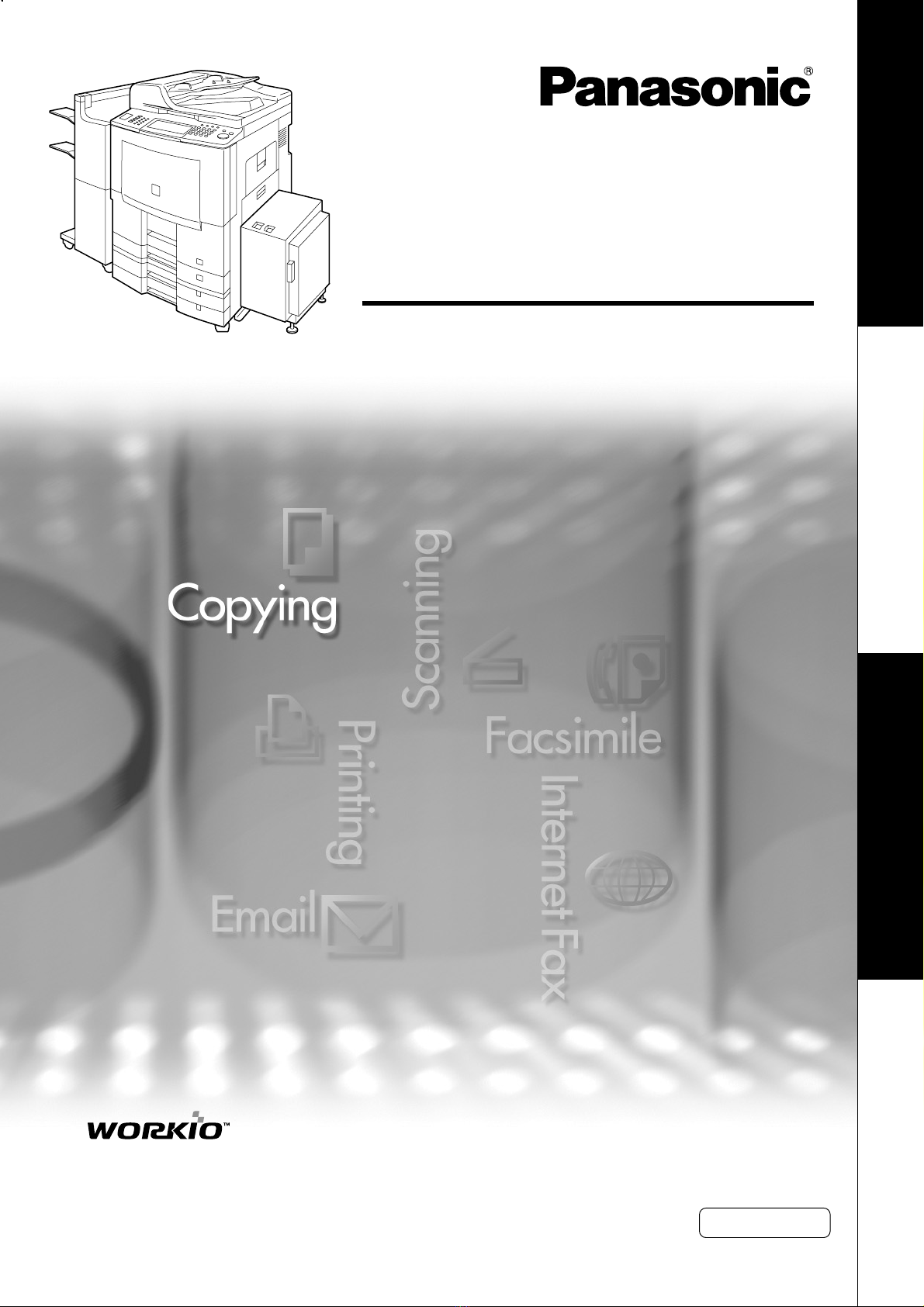

Panasonic WORKIO DP-8035 Manual de usuario

Operating Instructions

(For Copy & Function Parameters)

Digital Imaging Systems

Model No. DP-8060 / 8045 / 8035

Before operating this machine, please carefully read this manual, and keep this

documentation in a safe place for future reference.

(Illustration shows optional accessories that may not be installed on your machine.)

Getting To Know

Your Machine

Making CopiesOthers

English

Function Parameters

Getting To Know Your Machine

Operating Instructions

AdobeReader 5.0 or newer is required and

mustbe installed to read the Operating

Instructions.

PJJXC0110ZB

Panasonic Communications Co., Ltd.

Digital Imaging Company

Unauthorizedcopying and distribution is a

violationof law.

Adobe,the Adobe logo, and Reader are either registered trademarks or trademarks of

AdobeSystems Incorporated in the United States and/or other countries.

Microsoft,Windows, Windows NT and Windows Server are either registered trademarks or trademarks

ofMicrosoft Corporation in the United States and/or other countries.

Madein Japan

AdobeReader 5.0 or newer is required and

mustbe installed to read the Operating

Instructions.

Unauthorizedcopying and distribution is a

violationof law.

Panasonic Communications Co., Ltd.

Digital Imaging Company

PJJXC0097ZB

The following Operating Instruction manuals are included with this machine. Please refer to the appropriate manual and

keep all manuals in a safe place for future reference. If you lose a manual, contact an authorized Panasonic dealer.

Operating Instructions (For Setting Up)

This manual contains essential information for

setting up the machine.

Copy Function

Describes how to make a copy with

creative features.

Function Parameters

Describes how to change the default

settings of each function using the

Control Panel of the machine.

Facsimile and Internet Fax/Email Function

(Facsimile function is available when

optional Fax Communication Board (DA-

FG600) is installed.)

Describes how to send/receive a Facsimile/

Internet Fax/Email, or describes the course

of action to take when a trouble message

appears, etc.

Document Management System CD

Print Function

Describes how to print, change default

printer settings, or describes the course

of action to take when a problem

message appears, etc.

Application Software

Describes how to use the application

software.

Ex: Quick Image Navigator, Network

Scanner, Utilities (Network Status

Monitor, Address Book Editor,

Device Configuration Editor)

Accessories

Operating Instructions CD

Operating Instructions

(For Basic Operations)

This manual contains essential information for

proper operation of the machine.

It describes basic Copy, Print, Network Scan,

Facsimile/Internet Fax/Email, and other functions.

For a more detailed explanation of each function,

please refer to the Operating Instruction manuals

included on two CD-ROM as illustrated below.

Operating Instructions CD

Contains manuals with detailed information for Copy

& Function Parameters, Facsimile/Internet Fax/Email

Functions, and User Authentication.

Document Management System CD

Contains the Application Software, and manuals

with detailed information for the Print function, and

Application software.

User Authentication

Describes how to enable, and use the

user authentication function.

Getting To Know

Your Machine

The following Symbols/Icons are used throughout this operating instructions manual.

Place original(s) on the ADF

Place original(s) on the Platen

(Book)

Input text with a QWERTY

Keyboard

Input numbers

●Number of Copies, etc.

Go to next step

Go to next step (below)

When making copies

Getting to know your machine

Others

(Index)

Press Hard Key Touch any Button

Symbols/Icons

Place original(s) on the Platen

(Sheet)

Press any Hard Key on the control

panel, or touch any Button on the

touch panel display

When setting the machine's

function parameters

Getting To Know Your Machine

Operating Instructions 2

Symbols/Icons 3

Getting To Know Your Machine

Table of Contents

Getting To Know Your Machine

■Operating Instructions ...................................................................................... 2

■Symbols/Icons .................................................................................................. 3

Making Copies

Basic Menu ....................................................................................................................................... 6

■Copying the Same Size Originals (1:1) ............................................................ 6

■Selecting the type of Original(s) ....................................................................... 6

■Copying with Preset Ratios (Reduction/Enlargement) .................................... 8

■Proof Copying ................................................................................................... 8

■Tandem/Remote Copying ............................................................................... 10

■Parameter Registration (Tandem User Parameter) ....................................... 12

■Parameter Registration (Tandem Destination) .............................................. 14

■Editing the Tandem/Remote Machine ............................................................ 16

■Deleting the Tandem/Remote Machine .......................................................... 16

■Job Queue ...................................................................................................... 18

■Completion Notice .......................................................................................... 20

2-Sided/Original Copy .............................................................................................................. 22

■1-Sided 2-Sided, 2-Sided 1-Sided, 2-Sided 2-Sided Copy ......... 22

■Book 2-Sided Copy .................................................................................. 24

■2 Page Copy ................................................................................................... 26

■N in 1 Copy ..................................................................................................... 28

■Booklet Copy .................................................................................................. 30

■Multi-Size Feeding .......................................................................................... 32

■Job Build and SADF Mode ............................................................................. 34

Sort/Finish ....................................................................................................................................... 36

■When using Sort Mode ................................................................................... 36

Zoom/Effects .................................................................................................................................. 38

■Zoom ............................................................................................................... 38

■Auto Zoom ...................................................................................................... 38

■Edge ............................................................................................................... 40

■Book ................................................................................................................ 40

■Margin ............................................................................................................. 42

■Centering ........................................................................................................ 42

■Image Repeat ................................................................................................. 44

■Inverse ............................................................................................................ 44

■Stamping (Page Numbering) ......................................................................... 46

■Stamping (Date Stamp) .................................................................................. 46

■Stamping (Issue Number Stamping) .............................................................. 48

Insertion/Overlay ............................................................................................................................ 50

■Cover .............................................................................................................. 50

■Page Insertion ................................................................................................ 50

■OHP Interleaving ............................................................................................ 52

■Presentation ................................................................................................... 52

■Overlay ............................................................................................................ 54

■File Edit ........................................................................................................... 54

■Form Overlay .................................................................................................. 56

Getting To Know

Your Machine

Other Features ............................................................................................................................... 58

■Job Memory .................................................................................................... 58

■Double Exposure ............................................................................................ 60

■Skyshot Mode ................................................................................................. 62

■Reserve a Job ................................................................................................ 64

■Energy Saver (Power Save Mode, Sleep/Shutdown Mode) .......................... 66

■Interrupt Mode ................................................................................................ 66

Function Parameters

■Using Function Modes to Change the Initial Settings .................................... 68

■Procedure ....................................................................................................... 70

■General Settings ............................................................................................. 72

■Copier Settings ............................................................................................... 73

■Scanner Settings ............................................................................................ 74

■Printer Settings ............................................................................................... 75

For Key Operator ........................................................................................................................... 76

■General Settings ............................................................................................. 76

■Copier Settings ............................................................................................... 79

■Printer Settings ............................................................................................... 81

Examples ........................................................................................................................................ 82

■Weekly Timer .................................................................................................. 82

■Registering a department counter .................................................................. 84

■Verifying a department counter ....................................................................... 86

Combined FunctionTable .............................................................................................................. 88

Others

INDEX .............................................................................................................................................. 89

Making Copies

Basic Menu

100%

If set to other

function mode

If original size

is not detected

Copy size is automatically selected.

Making Copies

NOTE ●During the copy operation and after making copies, the fan motor may start spinning. This is a

normal operation and is used to cool down the copier.

Basic Menu

1 2 3

Load paper on the

Sheet Bypass.

Touch the PAPER TRAY button. Select Sheet Bypass and

touch the SIZE CHANGE button.

■■

■Copying the Same Size Originals (1:1)

■■

■Selecting the type of Original(s)

Ex: Copying on Heavy Paper (Post Cards, etc.) (35 lb max.)

Making Copies

Adjust the Contrast

(7 levels)

Select type of Original(s)

Mainly Text

Text and Photo

combined

Mainly Photo

Number of

Copies

(Max. 999)

Select HEAVY PAPER.

Making Copies

Basic Menu

Letter

Ledger Letter

Ledger

1 2

If original size

is not detected

correctly

1 2

100

Allows you to make one proof set, before

proceeding to copy a large multi-set with

various settings.

Proof copy

Multi copy

NOTE ●If the desired copy size is different from the paper size loaded in the Paper Tray, use Sheet

Bypass.

■■

■Copying with Preset Ratios (Reduction/Enlargement)

■■

■Proof Copying

Ex: 100 copies

Making Copies

3 4

ORIGINAL

COPY SIZE

SIZE

Ledger Legal Letter-R

Invoice-R

Ledger

100 77 65 50

Legal 121 100 79 61

Letter-R 129 100 100 65

Invoice-R

200 155 129 100

The Correct ratio is automatically selected.

Reduction and enlargement ratios (%)

Number of Copies

(Max. 999)

3 4

Select Copy Job settings

Number of Copies

(Max. 999)

If the Proof Copy is OK,

the remaining number of

sets will be printed.

If the Proof Copy is NG,

again, place the originals

back on the ADF (or Platen),

change to appropriate

settings, and try again.

NOTE ●Press the PROOF SET button again if the Proof Copying mode was reset.

Making Copies

Basic Menu

■■

■Tandem/Remote Copying

When using the Tandem/Remote Copy function.

Requires network setup (see pages 77-78).

The selected Remote printing copier must be either

DP-8060/8045/8035.

For the copier to function as a Remote/Tandem

Copier it has to be setup in advance.

Remote Copying

Tandem Copying Other machine

This machine

100 copies

100

copies

1 2

Select Copy Job settings

Select

the other

machine.

NOTE ●If the desired copy size is different from the paper size loaded in the Paper Tray, use Sheet

Bypass.

Other machine

Otros manuales para WORKIO DP-8035

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Panasonic

Panasonic

Panasonic DA-MC700 Manual de usuario

Panasonic

Panasonic DP-C406 Manual de usuario

Panasonic

Panasonic Panafax UF-7000 Manual de instrucciones

Panasonic

Panasonic KXFLB881 - Network Multifunction Laser... Manual de instrucciones

Panasonic

Panasonic Workio DP-8016P Manual de usuario

Panasonic

Panasonic DP-2010E Manual de usuario

Panasonic

Panasonic WORKIO DP-C106 Manual del operador

Panasonic

Panasonic DP-1810P Manual de usuario

Panasonic

Panasonic WORKIO DP-8060 Manual de usuario

Panasonic

Panasonic FP-D350 Manual de usuario

Panasonic

Panasonic KX-FLB803HK Manual de usuario

Panasonic

Panasonic KX-FLB811 - FLAT BED FAX Manual de usuario

Panasonic

Panasonic WORKIO DP-8035 Manual de usuario

Panasonic

Panasonic KX-MB1530E Manual de usuario

Panasonic

Panasonic Workio DP-1520P Manual de usuario

Panasonic

Panasonic DP-2330 Manual de usuario

Panasonic

Panasonic DP-MC210 Manual de usuario

Panasonic

Panasonic KX-PS8000 Guía del usuario

Panasonic

Panasonic KX-P 8410 Series Manual de usuario

Panasonic

Panasonic Workio DP-C405 Cómo utilizar

Panasonic

Panasonic Workio DP-3510 Manual de usuario

Panasonic

Panasonic KX-MB771GR Manual de usuario

Panasonic

Panasonic WORKIO DP-8035 Manual de usuario

Panasonic

Panasonic KX-FLB811 - FLAT BED FAX Manual de lista de piezas

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario
