Panasonic DP-C266 Manual de usuario

Digital Color Imaging Systems

Operating Instructions

Before operating this machine, please carefully read this manual

and keep this documentation in a safe place for future reference.

(Illustration shows optional accessories that may not be installed on your machine.) English

(For Printer)

Model No. DP-C406 / C306 / C266

Operating Instructions

The following Operating Instruction manuals are included with this machine. Please refer to the appropriate manual

and keep all manuals for future reference. If you lose the manual, contact the authorized Panasonic dealer.

Accessories

Quick Reference Guide

Describes the basic procedures for each function, and

introduces various settings for Copy function.

Operating Instructions (For Basic)

Describes the overview of this machine.

For a detailed explanation of functions, please refer to

the Operating Instruction manuals included on two

CD-ROMs as illustrated below.

Operating Instructions CD

Contains manuals with detailed information for

Administrator Setup, User Setup, Copy, Facsimile/

Internet Fax, Scan/Email, Print functions, Function

Parameters, User Authentication, and Maintenance.

Document Management System CD

Contains the Panasonic Document Management

System Application software, and manuals for the

Panasonic Document Management System Application

software.

Operating Instructions CD

Setup Guide For Administrator

Describes how to set up the machine.

Setup Guide For User

Describes how to install the printer driver

and application software to client PC.

Copy Function

Describes how to make a Color Copy with

creative features.

Facsimile and Internet Fax

Function

(The Facsimile function is available when

the optional G3 Fax Communication

Board is installed.)

Describes how to send/receive a

Facsimile/Internet Fax, and describes the

course of action to take when a trouble

message appears, etc.

Scan and Email Function

Describes how to scan and how to send

Email through the machine.

Print Function

Describes how to print using the Control

Panel of the machine.

Function Parameters

Describes how to change the default

settings of each function using the Control

Panel of the machine.

User Authentication

Describes how to enable and use the

User Authentication function.

Maintenance Guide

Describes how to maintain the machine,

and the course of action to take when a

problem message appears.

Document Management System CD

Application Software

Describes how to use the application

software.

Ex: Printer Driver, Fax Driver, Quick

Image Navigator, Device Monitor/

Device Explorer, Network

Configuration and Address Book

Editor

Conventions

Icons

The following icons are used in this manual.

Notation

The following notations are used in this manual.

Icon Description

Indicates important information that must be read in detail.

Indicates reference information.

Notation Description

For Keys and Buttons Hard buttons on the Control Panel are depicted as **** key, and soft buttons on the Touch

Panel Display are depicted as “xxx”.

Ex:

Press the Start key and select “More Menus”.

Table of Contents

Chapter 1 Print Operations

Printing from PC .................................................................................................................. 6

Printing from SD Memory Card/USB Flash Memory/Internal Hard Disk Drive/Mailbox....... 8

Photo Print ...................................................................................................................... 8

File Print .......................................................................................................................... 9

Basic Operation Procedure ................................................................................................. 10

Printing from SD Memory Card ...........................................................................“SD Print”11

Printing from USB Flash Memory........................................................................“SD Print”14

Printing from the Internal Hard Disk Drive...........................................................“SD Print”16

Mailbox Printing....................................................................................................“Mailbox”17

Printing from Mailbox ...................................................................................................... 17

Deleting Mailbox Data ..................................................................................................... 20

Job Control (Output Queue) ..........................................................................“Job Control”22

Turning the Printer On-Line and Off-Line......................................“On Line” / “Off Line”22

Canceling the Current Print Job ............................................................... “Cancel Print”23

Confirming the Print Jobs in the Output Queue .................................... “Output Queue”24

Chapter 2 SD Print Settings

Selecting the Color Mode .............................................................................. “Color Mode”26

Quality Adjusting............................................................................................ “Quality Adj.”27

Contrast.......................................................................................................... “Contrast”29

Brightness .................................................................................................. “Brightness”30

Saturation.................................................................................................... “Saturation”31

Tint ..........................................................................................................................“Tint”32

Color Balance........................................................................................“Color Balance”33

Sort Mode......................................................................................................“Sort Setting”34

Selecting the Frame Size for Individual Print........................................... “Frame Settings”36

Selecting the Layout for Index Print...........................................................“Index Settings”38

Mirror Image ............................................................................................................“Mirror”39

2-Sided Mode ....................................................................................................... “2-Sided”40

Image Repeat.......................................................................................................... “1 to N”41

Preset Jobs....................................................................................................“Preset Jobs”42

Storing a Job in Memory ................................................................................................. 42

Recalling a Preset Job Stored in Memory....................................................................... 44

Confirming/Editing the Selected Print Features.................................... “Confirm Settings”45

Chapter 3 Solving Problems

Tips for Solving Problems.................................................................................................... 46

Printing Operation Failure................................................................................................ 46

Documents Not Printing Correctly ................................................................................... 46

Error Messages ................................................................................................................... 47

Checking Error Messages ............................................................................................... 47

Chapter 4 Appendix

Combined Print Functions ................................................................................................... 48

File List Tab..................................................................................................................... 48

Thumbnail/Individual and Thumbnail/Index Print Tabs.................................................... 49

Specifications....................................................................................................................... 50

PCL Printer Unit............................................................................................................... 50

Chapter 1 Print Operations

Chapter 1

Print Operations

Printing from PC

You can print images or data of application software from PC on which the printer driver is installed.

zTo print from PC, the setup of this machine and PC is necessary.

For setting up the machine as a network printer, refer to Setting up the Network Configuration in the

Operating Instructions (For Administrator Setup) of provided CD-ROM.

For installing the printer driver to your PC, refer to Installing the Printer Driver and Application Software in

the Operating Instructions (For User Setup) of provided CD-ROM.

zThe illustrations shown for the following steps are of WordPad on Windows®XP.

The procedures for other applications and Windows operating systems are basically the same, even though the

screen displays may differ.

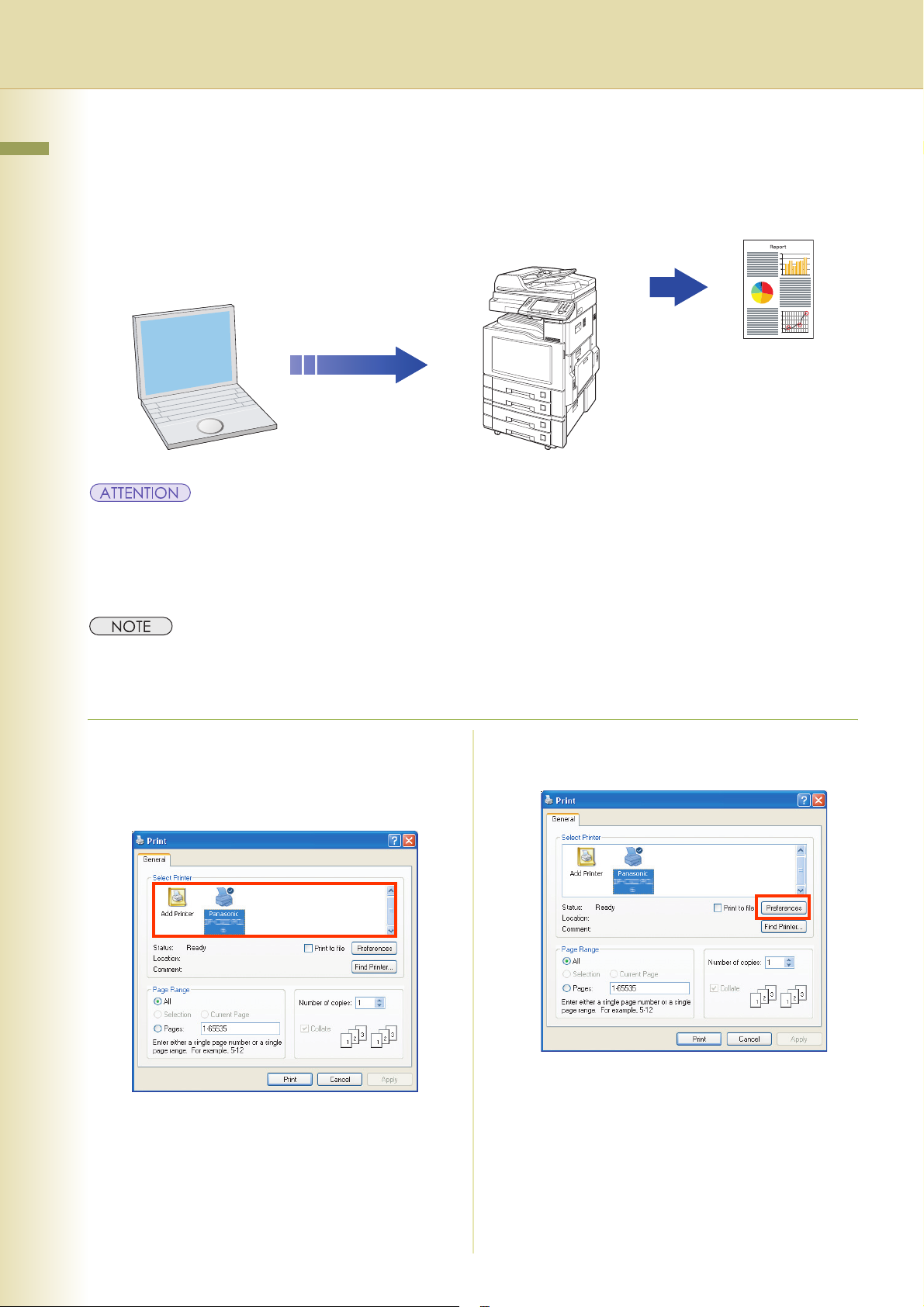

Select “Print” from the “File” menu.

Select the desired printer in “Select

Printer”.

Click “Preferences” to configure the

print settings if necessary.

Change the print settings, and then

click “OK”.

zFor the settings of printer driver, refer to the

online help for the printer driver.

Chapter 1 Print Operations

Click “Print”.

zWhen the desired size of paper is not set in

the Paper Tray, use the Sheet Bypass.

Chapter 1 Print Operations

Printing from SD Memory Card/USB Flash

Memory/Internal Hard Disk Drive/Mailbox

You can print data saved in the SD Memory Card, USB Flash Memory, Internal Hard Disk Drive, or

Mailbox using the Control Panel of the machine.

There are two ways for selecting data to print.

Photo Print

Photo images (JPEG files) are displayed as thumbnails in the Thumbnail/Individual and Thumbnail/

Index Print tabs, and can be printed individually or as thumbnail indexes.

zOnly JPEG files in EXIF* format ver 2.1 or later for the digital camera are displayed as thumbnails.

zSD Logo is a trademark.

zSDHC Logo is a trademark.

* Short for Exchangeable Image File, a standard format used for storing interchange information in digital

photography image files using JPEG compression. (Ex: Dimensions, Date Picture Taken, Camera Model, File

Type, Size).

SD Memory Card: For printing pictures taken by a digital camera, etc., (see page 11).

Photo Images

SD Memory Card

Ex: Digital Camera

Individual Print

Index Print

Selecting thumbnails of files from the Thumbnail/Individual or Thumbnail/Index Print tab

Individual Print: Selected files are printed individually.

zThe frame size for the Individual Print can be changed. For details,

refer to Selecting the Frame Size for Individual Print (see page

36).

Index Print: Selected files are printed as thumbnail indexes.

zThe layout for the Index Print can be changed. For details, refer to

Selecting the Layout for Index Print (see page 38).

Frame

Chapter 1 Print Operations

File Print

Files other than photo images (JPEG/TIFF/PDF files) are displayed in the File List tab.

zOnly one file can be selected at a time in the File List tab. For more details, refer to step 5 of Printing from

USB Flash Memory (see page 14).

USB Flash Memory: For printing files copied to the USB Flash Memory from PC (see page 14).

Internal Hard Disk Drive/Mailbox: For printing files saved in the machine from PC on the network

(see pages 16 and 17).

USB Flash Memory

Internal Hard Disk Drive/

Mailbox

Chapter 1 Print Operations

Basic Operation Procedure

This section describes the workflow of printing data using the Control Panel of the machine. For the

detailed description of procedures for each print function, refer to the relevant suggested section.

Press the Print key if the machine is

set to other function mode.

Select the desired print function.

•SD Print:

Select when printing data in the SD Memory

Card, USB Flash Memory or Internal Hard

Disk Drive (see pages 11 to 16).

•Mailbox:

Select when printing or deleting data saved

in Mailbox (see pages 17 to 21).

•Job Control:

Select when turning the printer on-line or off-

line, canceling the current print job, or

managing print data in the Output Queue

(see pages 22 to 24).

zYou can confirm the progress information

while printing in the message area of the

Touch Panel Display by setting the Function

Parameter “27 PC Print Page Display”

(Printer Settings > General User Mode) to

“On”.

For more details, refer to Printer Settings in

the Operating Instructions (For Function

Parameters) of provided CD-ROM.

zAfter finishing printing, press the Reset key to

return to the initial screen of the currently active

mode.

Otros manuales para DP-C266

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Panasonic

Panasonic

Panasonic KXFLB881 - Network Multifunction Laser... Manual de usuario

Panasonic

Panasonic DP-2330 Manual de usuario

Panasonic

Panasonic KX-MB1520BL Manual de funcionamiento

Panasonic

Panasonic WORKIO DP-C354 Manual de usuario

Panasonic

Panasonic WORKIO DP-C354 Manual de usuario

Panasonic

Panasonic KX-P 8410 Series Manual de usuario

Panasonic

Panasonic Workio DP-2310 Cómo utilizar

Panasonic

Panasonic KX-MB2010BL Manual de funcionamiento

Panasonic

Panasonic KX-MB2000 Manual de usuario

Panasonic

Panasonic FP-D455 Manual de usuario

Panasonic

Panasonic Workio DP-3010 Cómo utilizar

Panasonic

Panasonic DP-4530 Manual de usuario

Panasonic

Panasonic KX-MC6020 Manual de usuario

Panasonic

Panasonic Workio DP-2310 Manual de usuario

Panasonic

Panasonic KX-MC6040 - Color Laser Multi-Function... Manual de instrucciones

Panasonic

Panasonic KX-FLB803HK Manual de usuario

Panasonic

Panasonic KX-MB783BR Manual de usuario

Panasonic

Panasonic WORKiO DP-8020P Manual de usuario

Panasonic

Panasonic DP-C406 Manual de usuario

Panasonic

Panasonic DP-8020E Manual de usuario

Panasonic

Panasonic DA-PC700 Manual de usuario

Panasonic

Panasonic KXFLB881 - Network Multifunction Laser... Manual de usuario

Panasonic

Panasonic Workio DP-C405 Manual de usuario

Panasonic

Panasonic WORKIO DP-8035 Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario
