Operating Instructions

FS Multi Air Conditioner

Model No.

Indoor Unit Outdoor Unit

S-22KA1E5 U-4LA1E5

S-28KA1E5 U-5LA1E5

S-36KA1E5 U-6LA1E5

S-45KA1E5 U-4LA1E5-1

S-56KA1E5 U-5LA1E5-1

S-63KA1E5 U-6LA1E5-1

S-71KA1E5 * U-8EA1E8

S-22KA1E5S *

U-10EA1E

U-10EA1E8

S-28KA1E5S

S-36KA1E5S

S-45KA1E5S

Unauthorized copying and distribution is a violation

of law.

F567781

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

* Available to selected country

2 ~ 13

FRANÇAIS

Avant d’utiliser l’appareil, lisez ce mode d’emploi dans son intégralité et conservez-le pour toute référence ultérieure.

* Achetez pour un pays spécial

14 ~ 25

ESPAÑOL

Antes de utilizar la unidad, sírvase leer atentamente estas instrucciones de funcionamiento y conservarlas como

futuro elemento de consulta.

* Comprar para país especial

26 ~ 37

DEUTSCH

Bevor Sie das Gerät in Betrieb nehmen, lesen Sie bitte diese Bedienungsanleitung aufmerksam durch und bewahren Sie sie

für die künftige Verwendung auf.

* Für ein spezielles Land kaufen

38 ~ 49

ITALIANO

Prima di utilizzare l’unità si prega di leggere attentamente le istruzioni e di conservare questo opuscolo per potervi

fare riferimento in futuro.

* Acquisto per un paese speciale

50 ~ 61

NEDERLANDS

Lees voor u het apparaat gebruikt deze gebruiksinstructies grondig en bewaar ze voor toekomstig gebruik.

* Kopen voor uitzonderlijk staten

62 ~ 73

PORTUGUÊS

Antes de ligar a unidade, leia cuidadosamente este manual de utilização e guarde-o para futura referência.

* Compra para país especial

74 ~ 85

EΛΛΗΝΙΚΆ

Προτού θέσετε τη μονάδα σε λειτουργία, διαβάστε προσεκτικά αυτές τις οδηγίες χρήσης και φυλάξτε τις για

μελλοντική αναφορά.

* Αγορά για συγκεκριμένη χώρα

86 ~ 97

БЪЛГАРСКИ

Преди да задействате климатика, прочетете внимателно инструкциите за употреба иги запазете за бъдещи

справки.

* Покупка за специална страна

98 ~109

SAFETY PRECAUTIONSSAFETY PRECAUTIONS

To prevent personal injury, injury to others, or property damage, please

comply with the following.

Incorrect operation due to failure to follow instructions below may cause

harm or damage, the seriousness of which is classiﬁed as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classiﬁed by the following symbols:

This symbol denotes an action that is

PROHIBITED.

This symbol denotes an action that is

COMPULSORY.

Thank you for purchasing

Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS

2~3

INFORMATION

MULTI AIR CONDITIONER

FUNCTION

PRODUCT OVERVIEW &

OPERATIONS

(WIRELESS REMOTE

CONTROL)

6~7

PRODUCT OVERVIEW &

OPERATIONS

(WIRED REMOTE

CONTROL)

8~10

CARE & CLEANING

TROUBLESHOOTING

12~13

QUICK GUIDE

BACK COVER

NOTE

The illustrations in this manual are for

explanation purposes only and may

differ from the actual unit. It is subjected

to change without notice for future

improvement.

WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to repair, install,

remove and reinstall the unit. Improper installation and handling

will cause leakage, electric shock or ﬁre.

Do not install the unit in a potentially explosive or ﬂammable

atmosphere. Failure to do so could result in ﬁre.

Do not insert your ﬁngers or other objects into the

air conditioner indoor or outdoor unit, rotating parts

may cause injury.

Do not touch the outdoor unit during lightning, it may cause

electric shock.

REMOTE CONTROL

Do not allow infants and small children to play with the remote

control to prevent them from accidentally swallowing the

batteries.

ENGLISH

CAUTION

INDOOR UNIT AND OUTDOOR UNIT

Do not wash the indoor unit with water, benzene,

thinner or scouring powder.

Do not use for other purpose such as

preservation of food.

Do not use any combustible equipment in front of

the airﬂow outlet to avoid ﬁre propagation.

Do not expose yourself directly to cold air for a

long period.

Do not sit or step on the unit, you may

fall down accidentally.

Do not touch the sharp aluminium ﬁn,

sharp parts may cause injury.

Do not switch ON the indoor unit when waxing

the ﬂoor. After waxing, aerate the room properly

before operating the unit.

Do not install the unit in oily and smoky areas.

Ensure drainage pipe is connected properly.

Otherwise, leakage may occur.

Aerate the room regularly.

After long period of use, make sure the

installation rack is not deteriorate to prevent the

unit from falling down.

REMOTE CONTROL

Do not use rechargeable (Ni-Cd) batteries.

It may damage the remote control.

Remove the batteries if the unit is not going to be

used for a long period of time.

New batteries of the same type must be inserted

following the polarity stated to prevent

malfunction of the remote control.

WARNING

POWER SUPPLY

Do not use modiﬁed cord,

joint cord, extension cord or

unspeciﬁed cord to prevent

overheating and ﬁre.

Do not share the same power outlet with other

equipment to prevent overheating and ﬁre.

Do not operate with wet hands to prevent electric

shock.

If the supply cord is damage, it must be replaced

by the manufacturer, its service agent or similarly

qualiﬁed persons in order to avoid a hazard.

It is strongly recommended to be installed

with Earth Leakage Circuit Breaker (ELCB)

or Residual Current Device (RCD) to prevent

electric shock or ﬁre.

This equipment must be earthed to prevent

electrical shock or ﬁre.

Prevent electric shock by switching off the power

supply when:

- Before cleaning or servicing.

- Extended non-use.

- Abnormally strong lightning activity.

Stop using the product when any

abnormality/failure occurs and disconnect

the power plug or turn off the power

switch and breaker.

(Risk of smoke/ﬁre/electric shock)

Examples of

abnormality/

failure

• The ELCB trips frequently.

• Burning smell is observed.

• Abnormal noise or vibration of the unit is

observed.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

• Fan speed cannot be controlled.

• The unit stops running immediately even if it is

switched on for operation.

• The fan does not stop even if the operation

is stopped.

Contact immediately your local dealer for

maintenance/repair.

Power Supply

Air Inlet

Air Outlet

Air Inlet

Indoor Unit

Remote Control

Outdoor Unit

INFORMATIONINFORMATION

OPERATION CONDITION

Use this air conditioner under the following temperature range

Temperature (°C) Indoor Outdoor

COOLING Maximum 32 43

Minimum 21 -5

HEATING Maximum 27 24

Minimum 16 -15

NOTICE: • This unit is still able to operate as a cooler with outdoor temperature as low as -5°C in a non-living room, such

as a computer room, with a room temperature of 21°C or above, and room humidity up to 80%.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and

electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to

applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and

2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent

any potential negative effects on human health and the environment which could otherwise arise from

inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local

municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further

information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your

local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement

set by the Directive for the chemical involved.

ENGLISH

MULTI AIR CONDITIONER FUNCTIONMULTI AIR CONDITIONER FUNCTION

DEFINITION

Multi air conditioner system has one outdoor unit connected to multiple indoor units.

Outdoor Unit

Room B

Room A

Room C

• It is possible to operate the indoor units individually or simultaneously.

• The operation mode priority is given to the ﬁrst unit that turned on.

• During operation, heating and cooling mode could not be activated at the same time for different indoor unit.

• The power indicator blinks to indicate the indoor unit is standing by for different operation mode.

INDOOR UNIT

Remote Control Preparation

1Press and pull out 4Set time

2Insert AAA or R03 batteries

(can be used ~ 1 year) 5Conﬁrm

3Press CLOCK 6Close the cover

Auto OFF/ON button

• To operate the unit if the wireless remote

control is misplaced or malfunctioning.

Action Mode

Press once. Auto

Press and hold until you hear 1

beep, then release. Cooling

1.Press and hold until you hear 2

beeps then release.

2.Press the

SET

button for 5 seconds.

Heating

Press the button to turn off.

PRODUCT OVERVIEW & OPERATIONS

(WIRELESS REMOTE CONTROL)

PRODUCT OVERVIEW & OPERATIONS

(WIRELESS REMOTE CONTROL)

ADDRESS

AUTOAUTO

TIMER

MODE

AIR SWING

FAN SPEED

OFF/ON

SET AC RESET

RC RESET ADDRESS

AIR SWING

TIMER

SET

CANCEL

SELECT

CLOCK

FAN SPEED

FILTER RESET

MANUAL

MODE

AUTO

Remote control

display

Transmitter

Maximum distances: 8m

CZ-RWS1 (Heat-pump model)

CZ-RWC1 (Cooling model)

Front panel

Receiver

Horizontal airﬂow

direction louver

• Manually

adjustable. Vertical airﬂow

direction louver

• Do not adjust

by hand.

Air Filters

INDICATOR

(Green)

(Orange)

(Red)

FILTER

Error Code Display (For servicing use only)

ENGLISH

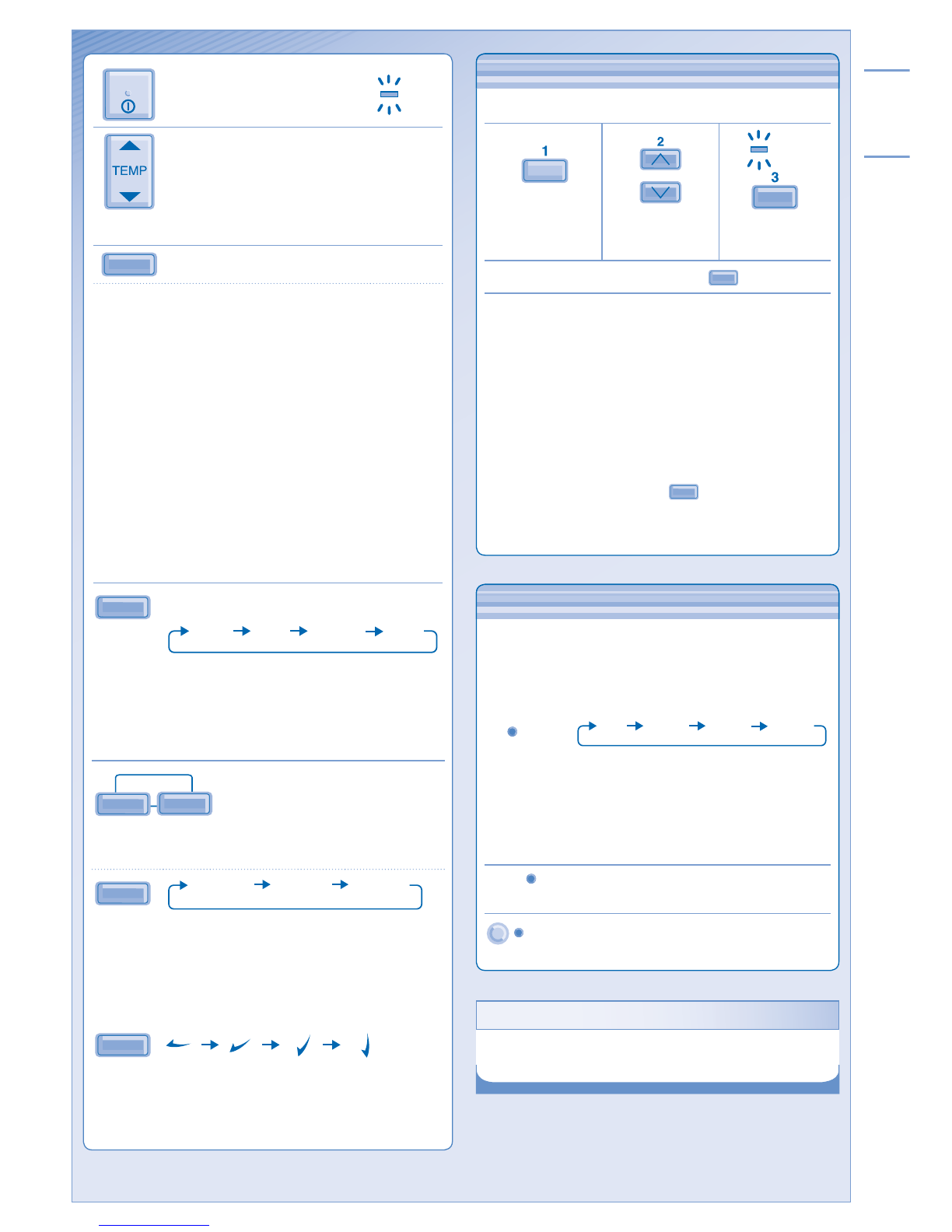

TO SET DAILY TIMER

• To turn ON or OFF the unit at a preset time.

SELECT

TIMER

SET

Select ON or

OFF timer. Set the time. Conﬁrm.

• To cancel ON or OFF timer, press

CANCEL

• When ON timer is set, the unit may start early before

the actual set time in order to achieve the desired

temperature on time.

• Timer operation is based on the clock set in the remote

control and repeats daily once set. For clock setting,

please refer to Remote Control preparation.

• The timer closest to the current time will be activated

ﬁrst.

• If timer is cancelled manually, you can restore the

previous setting by pressing SET .

• If the main power is switched off for an hour or more,

the clock and timer will need to be set again.

ADDRESS

• To avoid unintentional operation, you can

assign a different address to each indoor

unit.

• Press repeatedly to select your desired

address setting.

Address 1 Address 2Group Address 3

• By default, ADDRESS 1 is selected. You

do not need to change this setting for

normal operation.

• If the address is set to GROUP, more

than one indoor unit can be operated at

the same time.

RC RESET

Press to restore the remote control’s default

setting.

SET

AC RESET

Not used in normal operations.

HINT

• Use curtains to screen off sunlight and outdoor heat to

reduce power consumption during cool mode.

OPTIONAL SETTINGS

FAN SPEED

TO SELECT FAN SPEED (3 OPTIONS)

LOW MEDIUMAUTO HIGH

• For AUTO, the indoor fan speed is automatically

adjusted according to the operation mode.

• If the operation mode is set to Fan, the fan speed will

be ﬁxed at MEDIUM regardless of the temperature

setting.

AIR SWING

MANUAL

AUTO

TO ADJUST AIRFLOW

DIRECTION

• Keeps the room ventilated.

• The air is discharge evenly through 4 output vents.

AUTO

AUTO 1 AUTO 2 AUTO 3

• There are 3 options for auto vertical airﬂow direction

but with same swing angles.

• The vertical airﬂow louver swings up and down

automatically.

• Do not adjust the vertical airﬂow direction louvers by

hand.

MANUAL

• There are 4 options for manual vertical airﬂow

direction.

• The airﬂow direction can be adjusted as desired by

using remote control.

OFF/ON

TO TURN ON OR OFF THE

UNIT POWE

TO SET TEMPERATURE

• Selection range: 16°C ~ 31°C.

MODE TO SELECT OPERATION MODE

AUTO mode - For your convenience

• Unit selects operation mode according to temperature

setting, outdoor and room temperature.

HEAT mode - To enjoy warm air

• Unit takes a while to warm up.

FAN mode - To enables air circulation in the room

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling

operation.

• During soft dry operation, the indoor fan operates at a

low fan speed.

• The louvers movement might not align with the remote

control display.

CHECK ODOUR WASH VENTILATION TEST RUN FILTER RESET

TEMP/

A/C No.

DOWN

MODE

SELECT

SET

CANCEL

OFF /ON

TIMER/CLOCK

AIR SWING

ECONOMY

AUTO

AUTO 123

FAN SPEED

AIR SWING

MON TUE WED THU FRI SAT SUN

DOWN

FAN

SPEED

AUTO

MODE

MANUAL

CZ-RT1

Remote Control Preparation

1Press

ELECT

2Press to set day

3Conﬁrm

4Repeat steps 2 and 3 to set the

current time.

• For normal operation, the

ODOUR WASH

ECONOMY

VENTILATION

and

TEST RUN

buttons are not in use.

PRODUCT OVERVIEW & OPERATIONS

(WIRED REMOTE CONTROL)

PRODUCT OVERVIEW & OPERATIONS

(WIRED REMOTE CONTROL)

CZ-RT1

Front panel

Horizontal airﬂow

direction louver

• Manually

adjustable.

Vertical airﬂow

direction louver

• Do not adjust

by hand.

Air Filters

INDICATOR

(Green)

(Orange)

(Red)

FILTER

Error Code Display (For servicing use only)

ENGLISH

TO SET DAILY TIMER

• To turn ON or OFF the unit at a preset time.

MODE SELECT

Enter daily timer mode. Select ON or OFF timer.

DOWN

SET

Set the time. Conﬁrm.

• To cancel ON or OFF timer, press

CANCEL

• When ON timer is set, the unit may start early before

the actual set time in order to achieve the desired

temperature on time.

• Timer operation is based on the clock set in the remote

control and repeats daily once set. For clock setting,

please refer to Remote Control preparation.

• The timer closest to the current time will be activated

ﬁrst.

• If timer is cancelled manually, you can restore the

previous setting by pressing

SET

• If the main power is switched off for an hour or more,

the clock and timer will need to be set again.

FAN

SPEED

TO SELECT FAN SPEED (3 OPTIONS)

LO MEDAUTO HI

• For AUTO, the indoor fan speed is automatically

adjusted according to the operation mode.

• If the operation mode is set to Fan, the fan speed will

be ﬁxed at MED regardless of the temperature setting.

AIR SWING

AUTO MANUAL

TO ADJUST AIRFLOW

DIRECTION

• Keeps the room ventilated.

• The air is discharge evenly through 4 output vents.

AUTO

• The vertical airﬂow louver swings up and down

automatically.

• Do not adjust the vertical airﬂow direction louvers by

hand.

MANUAL

• There are 4 options for manual vertical airﬂow

direction.

• The airﬂow direction can be adjusted as desired by

using remote control.

HINT

• Use curtains to screen off sunlight and outdoor heat to

reduce power consumption during cool mode.

OFF /ON

TO TURN ON OR OFF THE UNIT

DOWN

TO SET TEMPERATURE

• Selection range: 16°C ~ 31°C.

MODE

TO SELECT OPERATION MODE

AUTO mode - For your convenience

• Unit selects operation mode according to temperature

setting, outdoor and room temperature.

HEAT mode - To enjoy warm air

• Unit takes a while to warm up.

FAN mode - To enables air circulation in the room

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling

operation.

• During soft dry operation, the indoor fan operates at a

low fan speed.

• The louvers movement might not align with the remote

control display.

• Weekly timer is only applicable for wired remote

control, press

MODE

for 3 seconds to select daily

timer or weekly timer.

• Daily timer and weekly timer could not be set at the

same time.

• Promotes energy saving by allowing you to set up to

6 timers in any given day.

• Same timer program cannot be set on the same day.

Check Timer

Modify Or Add Timer

• Perform check timer operation to select the day.

Repeat steps 4 to 8 to modify existing timer program,

or add any new timer program.

Cancel Timer

• Perform the step below to cancel the timer program

for a particular day.

OFF

TIMER

MON TUE WED THU FRI SAT SUN

23456

4. Press to cancel the

timer set.

Will light up if Timer

operation is selected

6 different programs can

be set in a day (1 ~ 6)

Time to be

selected (Interval

10 minutes)

ON-Timer. To automatically switch “ON” the unit.

OFF-Timer. To automatically

switch “OFF” the unit.

Day to be selected

Indicate the

selected day

CHECK ODOUR WASH VENTILATION TEST RUN FILTER RESET

TEMP/

A/C No.

DOWN

MODE

SELECT

SET

CANCEL

OFF /ON

TIMER/CLOCK

AIR SWING

ECONOMY

AUTO

AUTO 1 23

FAN SPEED

AIR SWING

MON TUE WED THU FRI SAT SUN

DOWN

FAN

SPEED

AUTO

MODE

MANUAL

CZ-RT1

CHECK ODOUR WASH VE

MODE

SELECT

SET

CANCEL

OFF /O

TIMER/CLOCK

ECONOMY

DOWN

CZ-RT1

MODE

SELECT

SET

CANCEL

TIMER/CLOCK

ECONOMY

DOWN

MODE

SELECT

SET

CANCEL

TIMER/CLOCK

ECONOMY

DOWN

TO SET WEEKLY TIMER

Change Display

1. Press

MODE

for 3 seconds to change the display to

weekly timer.

Select days to run timer

2. Press

SELECT

to enter day setting.

3. Press to select your desired day.

The selected day will be highlighted with .

Press

SET

to deselect or select mark.

Repeat this step includes other day.

Select ON/OFF Timer

4. Press

SELECT

to enter Timer 1.

5. Press to choose ON or OFF.

6. Press

SET

to conﬁrm the selection.

Select Timer

7. Press to select your desired time.

If you want to set together with your desired

temperature, press

DOWN

to select the temperature.

8. Press

SET

to conﬁrm the setting.

• Repeat steps 5 to 8 to set Timer 2 to 6, or press

CANCEL

to cancel the related timers.

Disable Weekly Timer

• To disable weekly timer setting, press

MODE

, then

press

CANCEL

Enable Weekly Timer

• To enable previous weekly timer setting, press

MODE

then press

SET

OPERATION DETAILS

1. Enter timer mode.

2. Select the day.

3. The display will show the program for each of the

selected day.

1. Enter timer mode.

2. Select the day.

3. Press to enter day

setting.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CS-V9NKA Manual de usuario

Panasonic

Panasonic CW-C100AU Manual de instrucciones

Panasonic

Panasonic CS-NE9LKE Manual de usuario

Panasonic

Panasonic CS-C281KR Manual de usuario

Panasonic

Panasonic CS-YW9GKE Manual de usuario

Panasonic

Panasonic CS-A18DKD Manual de usuario

Panasonic

Panasonic S-180ME2E5 Manual de usuario

Panasonic

Panasonic CSC9CKPG - SPLIT A/C IN DOOR Manual de usuario

Panasonic

Panasonic CS-W18BD3P Manual de usuario

Panasonic

Panasonic CS-PU9WKH-8M Manual de usuario

Panasonic

Panasonic CS-Z25VKR Manual de usuario

Panasonic

Panasonic CS-C18KKS Manual de usuario

Panasonic

Panasonic CS-WU12WKY Series Manual de usuario

Panasonic

Panasonic CS-E15EKEA Manual de usuario

Panasonic

Panasonic CS-S9KKQ Manual de usuario

Panasonic

Panasonic CS-E24EKES Manual de usuario

Panasonic

Panasonic CW-XC121AK Manual de usuario

Panasonic

Panasonic CW-1406BU Manual de usuario

Panasonic

Panasonic CS-S12MB4ZW Manual de usuario

Panasonic

Panasonic CS-RE12NKE Manual de usuario

Panasonic

Panasonic CS-XE7PKEW Manual de usuario

Panasonic

Panasonic CS-E15DTEW Manual de usuario

Panasonic

Panasonic CS-XE7JKEW Manual de usuario

Panasonic

Panasonic S-45KA1E5S Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
