Panasonic CS-E15DTEW Manual de usuario

1 Features 2

2 Functions 3

2.1. Remote Control 3

2.2. Indoor Unit 4

2.3. Outdoor Unit 5

3 Product Specifications 6

3.1. CS-E15DTEW CU-E15DBE 6

3.2. CS-E18DTEW CU-E18DBE 8

3.3. CS-E21DTES CU-E21DBE 10

4 Dimensions 12

4.1. Indoor Unit & Remote Control 12

4.2. Outdoor Unit 13

and distribution is a violation of law.

CS-E15DTEW CU-E15DBE

CS-E18DTEW CU-E18DBE

CS-E21DTES CU-E21DBE

5 Refrigeration Cycle Diagram 14

6 Block Diagram 15

7 Wiring Diagram 16

8 Operation Details 17

8.1. Basic Operation 17

8.2. Protection Control Features 27

9 Operating Instructions 33

10 Installation And Servicing Air Conditioner Using R410A 41

10.1. Outline 41

10.2. Tools For Installing/Servicing Refrigerant Piping 42

10.3. Refrigerant Piping Work 46

10.4. Installation, Transferring, Servicing 48

Air Conditioner

CONTENTS

Page Page

Order No. MAC0502042C8

11 Installation Instructions 52

11.1. Safety Precautions 52

11.2. Indoor Unit 55

11.3. Outdoor Unit 58

12 Servicing Information 63

12.1. Troubleshooting 63

12.2. Breakdown Self Diagnosis Function 65

12.3. Remote Control 67

12.4. Auto OFF/ON Button 68

12.5. Disassembly of Parts 69

13 Technical Data 72

13.1. Operation Characteristics 72

13.2. Sensible Capacity Chart 75

14 Exploded View (Indoor Unit) 76

• Product

− Four modes of operation selection

− Powerful Mode operation

− 24-Hour Real Time Timer Control

− Quiet Mode Operation

− Discharged air can be swung automatically or manually

by remote control

− Air filter with function to reduce dust and smoke

14.1. CS-E15DTEW CS-E18DTEW CS-E21DTES 76

15 Replacement Parts List (Indoor Unit) 77

15.1. CS-E15DTEW CS-E18DTEW CS-E21DTES 77

16 Exploded View (Outdoor Unit) 78

16.1. CU-E15DBE CU-E18DBE CU-E21DBE 78

17 Replacement Parts List (Outdoor Unit) 79

17.1. CU-E15DBE CU-E18DBE CU-E21DBE 79

18 Electronic Circuit Diagram 80

18.1. Indoor Unit 80

18.2. Outdoor Unit 83

18.3. Remote Control 88

18.4. Print PatternIndoor Unit Printed Circuit Board 89

18.5. Print PatternOutdoor Unit Printed Circuit Board View 90

• Serviceability Improvement

− Removable and washable Intake Grille

− Breakdown Self Diagnosis function

• Environmental Protection

− Non-ozone-depletion substances refrigerant (R410A)

• Quality Improvement

− Gas leakage detection

− Deice operation

− Auto restart control

1 Features

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

2 Functions

2.1. Remote Control

Operation OFF / ON Room Temperature Setting

TEMP

Operation Mode Selection

•AUTO Automatic Operation

•HEAT Heating Operation

•COOL Cooling Operation

•DRY Soft Dry Operation

Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Quiet Mode Operation

QUIET

Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

Timer Setting

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

Powerful Mode Operation

POWERFUL

• Increase or decrease set temperature.

(16°C to 30°C)

•AUTO Vertical Automatic Airflow

Direction Control.

• MANUAL Vertical Manual Airflow

Direction Control.

FAN SPEED

Check Point

Reset Point

RESET

CHECK

AIR SWING

• Breakdown self diagnosis function.

• Clear memory data.

CANCEL

OFF

TIMER

FAN

SPEED

AUTO

HEAT

DRY

COOL

OFF

MODE

TIMER

123

OFF

CLOCK RESET

SET

CANCEL

TEMP

POWERFUL

FAN SPEED

AIR SWING

OFF/ON

QUIET

AUTO

MANUAL

CHECK

INVENTER

OFF / ON I

MODE

Indoor Fan Speed Selection

•Low

•Medium-

•Medium

•Medium+

•High

•AUTO Automatic Fan Speed

TIMER-ON

TIMER-OFF

SET

CANCEL

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

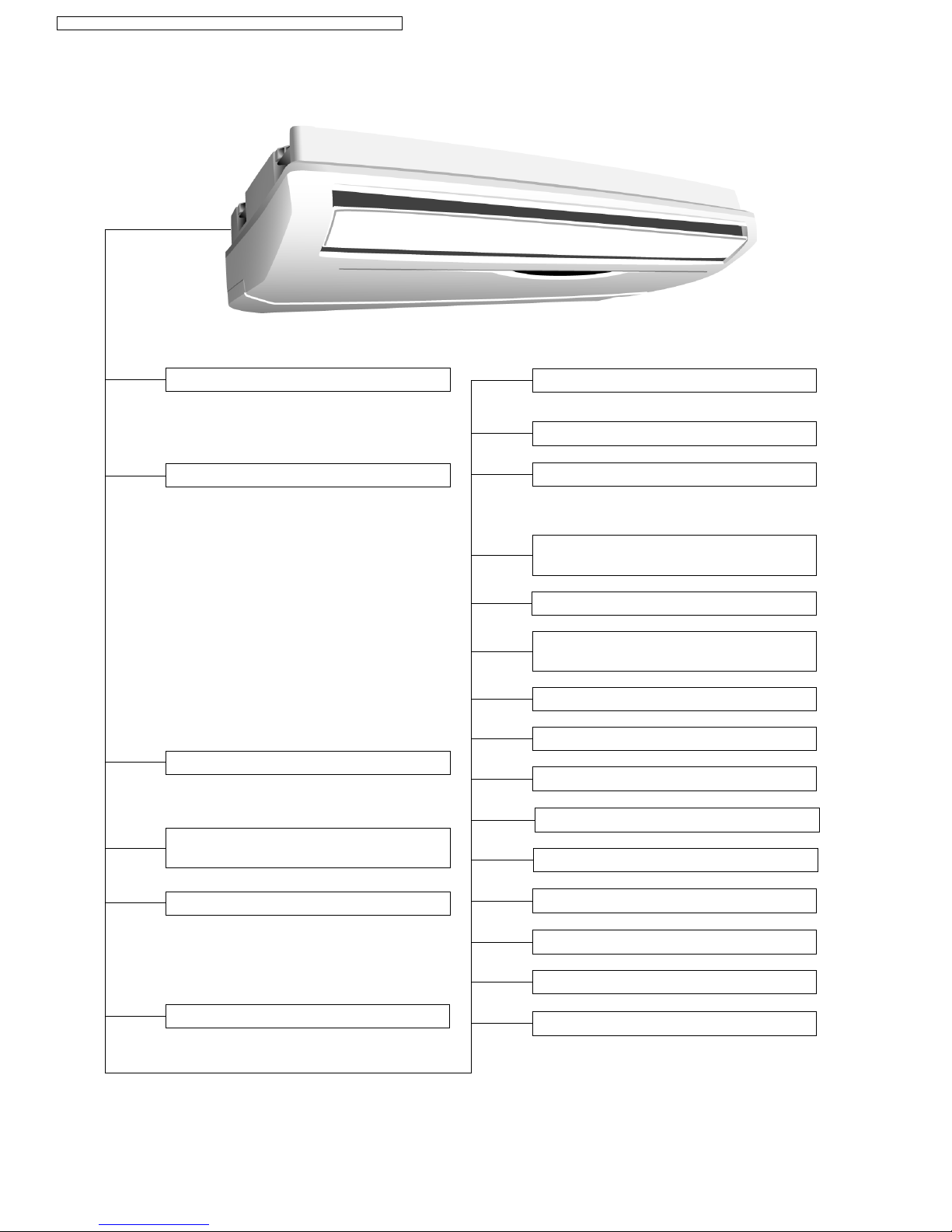

2.2. Indoor Unit

Automatic and 5 Manual Indoor

Fan Speeds

Powerful Mode

•For quick cooling or heating.

24-Hour Real Time Timer Control

Microcomputer-controlled Room

Temperature Control

Breakdown Self Diagnosis Function

Indoor Power Relay Control

Anti-Dew Formation Control

Anti Freezing Control

Anti-Cold Draft Control

Hot Start

Intake Air Temperature Control

Quiet Mode

•To provide quiet operation.

Automatic Restart Control

•Operation is restarted after power failure at

previous setting mode.

Low Pressure Control

(Gas Leakeage Detection)

Deodorizing Control

Four Operation Modes

•Automatic, Heating, Cooling and Soft Dry

Operation.

Operation Indication Lamps (LED)

•

POWER (Green) ........ Lights up in operation,

blinks in Automatic

Operation Mode judging,

deice, On Timer sampling

and Hot Start operation.

•

TIMER (Orange) ...... Lights up in Timer Setting.

Blinks in Self Diagnosis

Control.

•

QUIET (Orange) ...... Lights up in Quiet Mode

Operation.

•

POWERFUL (Orange) ... Lights up when Powerful

Mode is selected.

•

AIR SWING (Orange) .... Lights up in Auto Air

Swing.

Airflow Direction Control

•Vertical discharged air can be swung

automatically or manually by remote control.

•Horizontal discharged air can be adjusted by

hand.

Automatic Operation Switch

•To run automatic operation, force cooling or

heating operation, or change remote control

signal type.

High Pressure Control

Deice Operation

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

2.3. Outdoor Unit

30 seconds Forced Operation

Time Delay Safety Control

Overload Protection Control

Deice Operation

Standby Control

Compressor Overheating

Prevention Control

IPM (Power Transistor)

Overheating Protection Control

Total Running Current Control

Mininum Operation Frequency

Protection Control

Low Operation Frequency

Protection Control

Outdoor Air Temperature

Control

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

3.1. CS-E15DTEW CU-E15DBE

3 Product Specifications

Unit CS-E15DTEW CU-E15DBE

Cooling Capacity kW

kcal/h

BTU/h

4.15 (0.90 - 4.55)

3,570 (770 - 3,910)

14,200 (3,070 - 15,500)

Heating Capacity kW

kcal/h

BTU/h

5.17 (0.90 - 6.30)

4,450 (770 - 5,420)

17,600 (3,070 - 21,500)

Moisture Removal l/h

Pint/h

2.4

(5.1)

Power Source (Phase, Voltage, Cycle) ø

Single

230 - 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 9.1 (320) —

Heating; 8.3 (290)

Me m3/min (cfm) Cooling; 10.6 (370) —

Heating; 10.4 (360)

Hi m3/min (cfm) Cooling; 12.0 (420) Cooling; 48.5 (1,710)

Heating; 12.2 (430) Heating; 48.5 (1,710)

dB (A) Cooling; High 45, Low 37 Cooling; 46

Heating; High 45, Low 33 Heating; 47

Noise Level

Power level dB Cooling; High 58 Cooling; High 59

Heating; High 58 Heating; High 60

Electrical Data Input Power WCooling; 1,290 (255 - 1,550)

Heating; 1,550 (260 - 2,050)

Running Current ACooling; 6.0 - 5.9

Heating; 7.1 - 7.0

EER W/W Cooling; 3.22 (3.53 - 2.94)

BTU/hW Cooling; 11.0 (12.0 - 10.0)

COP W/W Heating; 3.34 (3.46 - 3.07)

BTU/hW Heating; 11.4 (11.8 - 10.5)

Starting Current A7.1

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

Unit CS-E15DTEW CU-E15DBE

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 14 —

Length m0.66 —

Power Cord Length

Number of core-wire

—— —

—

Dimensions Height inch (mm) 21 - 9/32 (540) 29 - 17/32 (750)

Width inch (mm) 40 - 1/2 (1,028) 34 - 7/16 (875)

Depth inch (mm) 7 - 7/8 (200) 13 - 19/32 (345)

Net Weight lb (kg) 37 (17) 106 (48)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W—900

Air Circulation Type Sirocco Propeller Fan

Material ABS + GF 10% P.P

Motor Type Transistor (8-poles) Transistor (8-poles)

Rate Output W51 40

Fan Speed Lo (Cool/Heat) rpm 730 / 660 —

Me (Cool/Heat) rpm 845 / 830 —

Hi (Cool/Heat) rpm 960 / 1,000 660 / 660

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Louver Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/12 1/28

FPI 20 18

Size (W × H × L) mm 857 × 252 × 25.4 871.7 × 711.2 × 22

Refrigerant Control Device —Expansion Valve

Refrigeration Oil (cm3) — RB68A (400)

Refrigerant (R410A) kg (oz) —1.23 (43.4)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

• Specifications are subjected to change without notice for further improvement.

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

3.2. CS-E18DTEW CU-E18DBE

Unit CS-E18DTEW CU-E18DBE

Cooling Capacity kW

kcal/h

BTU/h

5.00 (0.90 - 5.40)

4,300 (770 - 4,640)

17,100 (3,070 - 18,400)

Heating Capacity kW

kcal/h

BTU/h

6.10 (0.90 - 7.60)

5,250 (770 - 6,540)

20,800 (3,070 - 25,900)

Moisture Removal l/h

Pint/h

2.8

(5.9)

Power Source (Phase, Voltage, Cycle) ø

Single

230 - 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 9.8 (350) —

Heating; 8.6 (300)

Me m3/min (cfm) Cooling; 11.2 (390) —

Heating; 10.7 (380)

Hi m3/min (cfm) Cooling; 12.5 (440) 40.0 (1,410)

Heating; 12.7 (450)

dB (A) Cooling; High 46, Low 39 Cooling; 47

Heating; High 47, Low 35 Heating; 48

Noise Level

Power level dB Cooling; High 59 Cooling; High 60

Heating; High 60 Heating; High 61

Electrical Data Input Power WCooling; 1,660 (255 - 1,890)

Heating; 1,820 (260 - 2,380)

Running Current ACooling; 7.5 - 7.4

Heating; 8.2 - 8.1

EER W/W Cooling; 3.01 (3.53 - 2.86)

BTU/hW Cooling; 10.3 (12.0 - 9.7)

COP W/W Heating; 3.35 (3.46 - 3.19)

BTU/hW Heating; 11.4 (11.8 - 10.9)

Starting Current A8.2

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

Unit CS-E18DTEW CU-E18DBE

Drain

Hose

Inner diameter mm 14 —

Length m0.66 —

Power Cord Length

Number of core-wire

—— —

—

Dimensions Height inch (mm) 21 - 9/32 (540) 29 - 17/32 (750)

Width inch (mm) 40 - 1/2 (1,028) 34 - 7/16 (875)

Depth inch (mm) 7 - 7/8 (200) 13 - 19/32 (345)

Net Weight lb (kg) 40 (18) 106 (48)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W—900

Air Circulation Type Sirocco Propeller Fan

Material ABS + GF 10% P.P

Motor Type Transistor (8-poles) Transistor (8-poles)

Rate Output W51 40

Fan Speed Lo (Cool/Heat) rpm 800 / 700 —

Me (Cool/Heat) rpm 910 / 875 —

Hi (Cool/Heat) rpm 1,020 / 1,050 660 / 660

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Louver Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/12 2/34

FPI 20 16

Size (W ×H×L) mm 857 ×252 ×25.4 849.3

878

×714 ×36.4

Refrigerant Control Device —Expansion Valve

Refrigeration Oil (cm3)—RB68A (400)

Refrigerant (R410A) kg (oz) —1.06 (37.4)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

• Specifications are subjected to change without notice for further improvement.

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

3.3. CS-E21DTES CU-E21DBE

Unit CS-E21DTES CU-E21DBE

Cooling Capacity kW

kcal/h

BTU/h

5.80 (0.90 - 6.60)

4,990 (770 - 5,680)

19,800 (3,070 - 22,500)

Heating Capacity kW

kcal/h

BTU/h

6.80 (0.90 - 8.10)

5,850 (770 - 6,970)

23,200 (3,070 - 27,600)

Moisture Removal l/h

Pint/h

3.2

(6.8)

Power Source (Phase, Voltage, Cycle) ø

Single

230 - 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 10.0 (350) —

Heating; 8.8 (310)

Me m3/min (cfm) Cooling; 11.6 (410) —

Heating; 11.0 (390)

Hi m3/min (cfm) Cooling; 13.1 (460) Cooling; 42.8 (1,510)

Heating; 13.2 (465) Heating; 41.5 (1,460)

dB (A) Cooling; High 47, Low 41 Cooling; 48

Heating; High 47, Low 37 Heating; 49

Noise Level

Power level dB Cooling; High 60 Cooling; High 61

Heating; High 60 Heating; High 62

Electrical Data Input Power WCooling; 1,930 (255 - 2,240)

Heating; 1,990 (260 - 2,650)

Running Current ACooling; 8.7 - 8.6

Heating; 9.0 - 8.8

EER W/W Cooling; 3.01 (3.53 - 2.95)

BTU/hW Cooling; 10.3 (12.0 - 10.0)

COP W/W Heating; 3.42 (3.46 - 3.06)

BTU/hW Heating; 11.7 (11.8 - 10.4)

Starting Current A9.3

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE

Otros manuales para CS-E15DTEW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CS-MC12DKK Manual de usuario

Panasonic

Panasonic CU-2C14BKP5G Manual de usuario

Panasonic

Panasonic CS-HE9DKE Manual de usuario

Panasonic

Panasonic CS-C9GKZW Manual de usuario

Panasonic

Panasonic CW-XC100AU Manual de usuario

Panasonic

Panasonic CS-ME5PKE Manual de usuario

Panasonic

Panasonic CS-E7NKR Manual de usuario

Panasonic

Panasonic CS-E9BKP Manual de usuario

Panasonic

Panasonic CSXC181KP - ROOM AIR CONDITIONER Manual de usuario

Panasonic

Panasonic CW-C100MU Manual de usuario

Panasonic

Panasonic CS-Z25TKEA Manual de usuario

Panasonic

Panasonic CS-HZ12RKE Manual de usuario

Panasonic

Panasonic CS-C18GKV Manual de usuario

Panasonic

Panasonic CS-S9NKV Manual de usuario

Panasonic

Panasonic CSA9CKPG - SPLIT A/C IN DOOR Manual de usuario

Panasonic

Panasonic CU-J50DBE8 Manual de usuario

Panasonic

Panasonic CSA18CKPG - SPLIT A/C IN DOOR Manual de usuario

Panasonic

Panasonic CS-C12CKP Manual de usuario

Panasonic

Panasonic SUPER DELUXE CS-XE9DKE Manual de usuario

Panasonic

Panasonic CS-C125KH Manual de usuario

Panasonic

Panasonic CS-F24DB4E5 Manual de usuario

Panasonic

Panasonic CS-1273KR Manual de usuario

Panasonic

Panasonic CS-LZ9ZKA Manual de usuario

Panasonic

Panasonic cs-s9pkzw Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
