Panasonic CS/CU-YW9DKE Manual de usuario

CS/CU-YW9DKE

CS/CU-YW12DKE

Air Conditioner

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-techical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service

or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

1 Features 2

2 Functions 3

3 Product Specifications 6

4 Dimensions 11

5 Refrigeration Cycle Diagram 12

6 Block Diagram 13

7 Wiring Diagram 14

8 Operation Details 15

9Installation instructions 29

10 Installation and Serving Air Conditioner Using R410A -----

11 Disassembly of The Parts

12 Troubleshooting Guide

13 Technical Data

14 Exploded View

15 Replacement Parts List

16 Exploded View

17 Replacement Parts List

18 Electronic Circuit Diagram

CONTENTS

Page Page

Order No.

Guangzhou Matsushita Air Conditioner Co., Ltd.

and distribution is violation of law.

------------------------------------------------------

--------------------------------------------------------

------------------------------------------

-----------------------------------------------------

-----------------------------------

--------------------------------------------------

-------------------------------------------------

-----------------------------------------------

---------------------------------------------------

--------------------------------------

----------------------------------------

--------------------------------------------------

-----------------------------------------

--------------------------------------------------

-----------------------------------------

--------------------------------------

OFF

MODE TEMP

OFF/ON

CANCEL SET

STD

TIMER

FAN SPEED AIR SWING

GMAC0504037C3

1 Features

High Efficiency

Air Quality Indicator

Comfort Environment

Air filter with function to reduce dust and smoke

Auto Restart Control

Automatically restart after power failure

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

Enviromental Friendly (For Refrigerant : R410A Model)

12-hour Timer Setting

Zero ozone depleting potential and low global

warming potential by using R410A refrigerant.

Operation START/STOP

Operation Mode Selection

Automatic Operation

Heating Mode Operation

Cooling Mode Operation

Soft Dry Mode Operation

Mode

Indoor Fan Speed Selection

Low Speed

Medium Speed

High Speed

Automatic Speed

Airflow Direction Control

Horizontal Airflow Direction Control

-Auto Control

-Manual Control

Vertical Airflow Direction Manual Control

Room Temperature Setting

Temperature Setting(16 to 30 )

Auto Operation

Timer Operation Selection

Stop/Start Operation Control

(set the ON/OFF Timer hourly later)

Set /Cancel Timer Operation

Set timer/Cancel the set timer

2 Functions

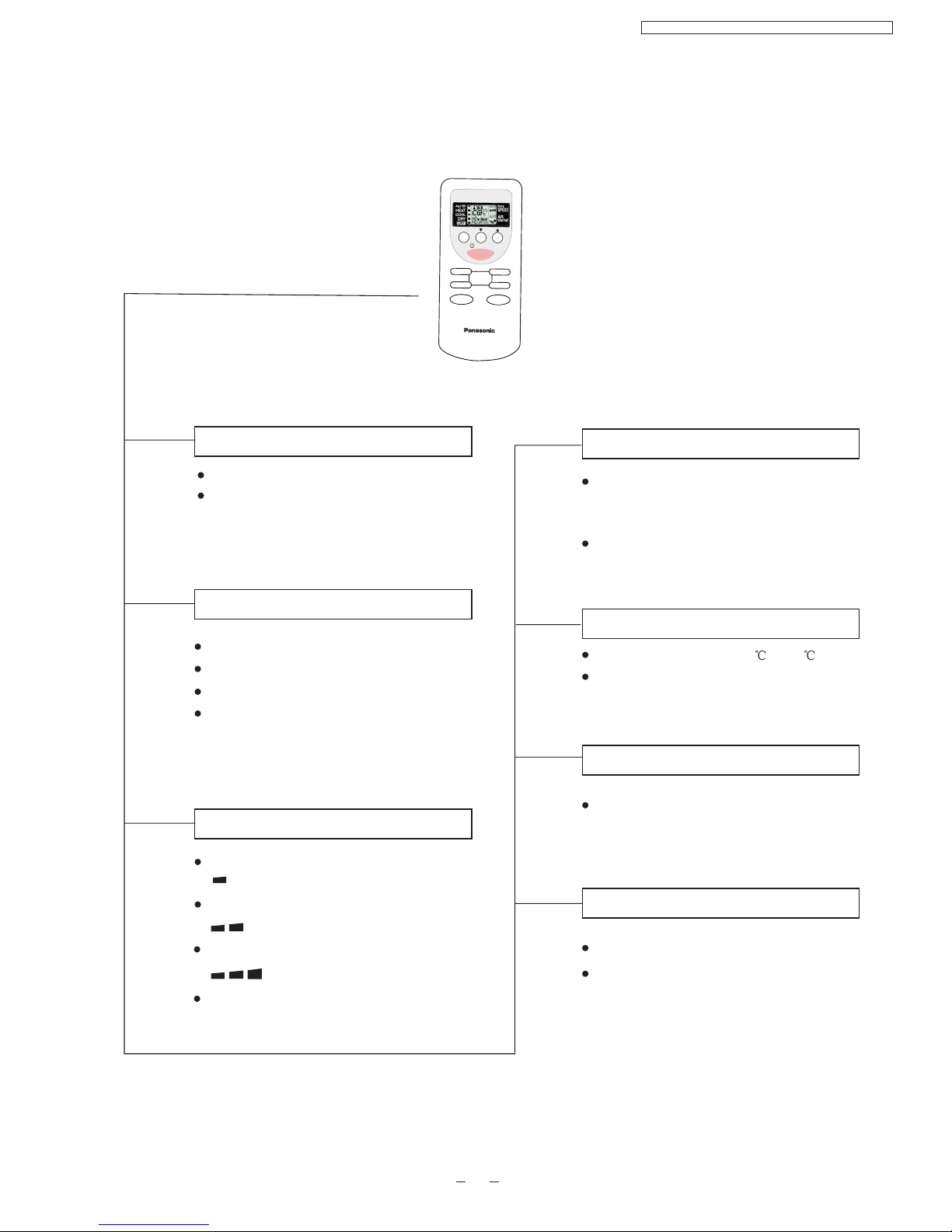

Remote Control

OFF/ON

MODE

FAN

SPEED

AIR

SWING

TEMP

TIMER

OFF/ON

TIMER

SET/

CANCEL

OFF

MODE TEMP

OFF/ON

CANCEL SET

STD

TIMER

FAN SPEED AIR SWING

Turn on/off the air conditionor

When stop the operation by pressing

OFF/ON button,the cursor key points

to OFF.

By pressing SET button for 5seconds

continuously to switch to set the sensor

sensitivity.

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

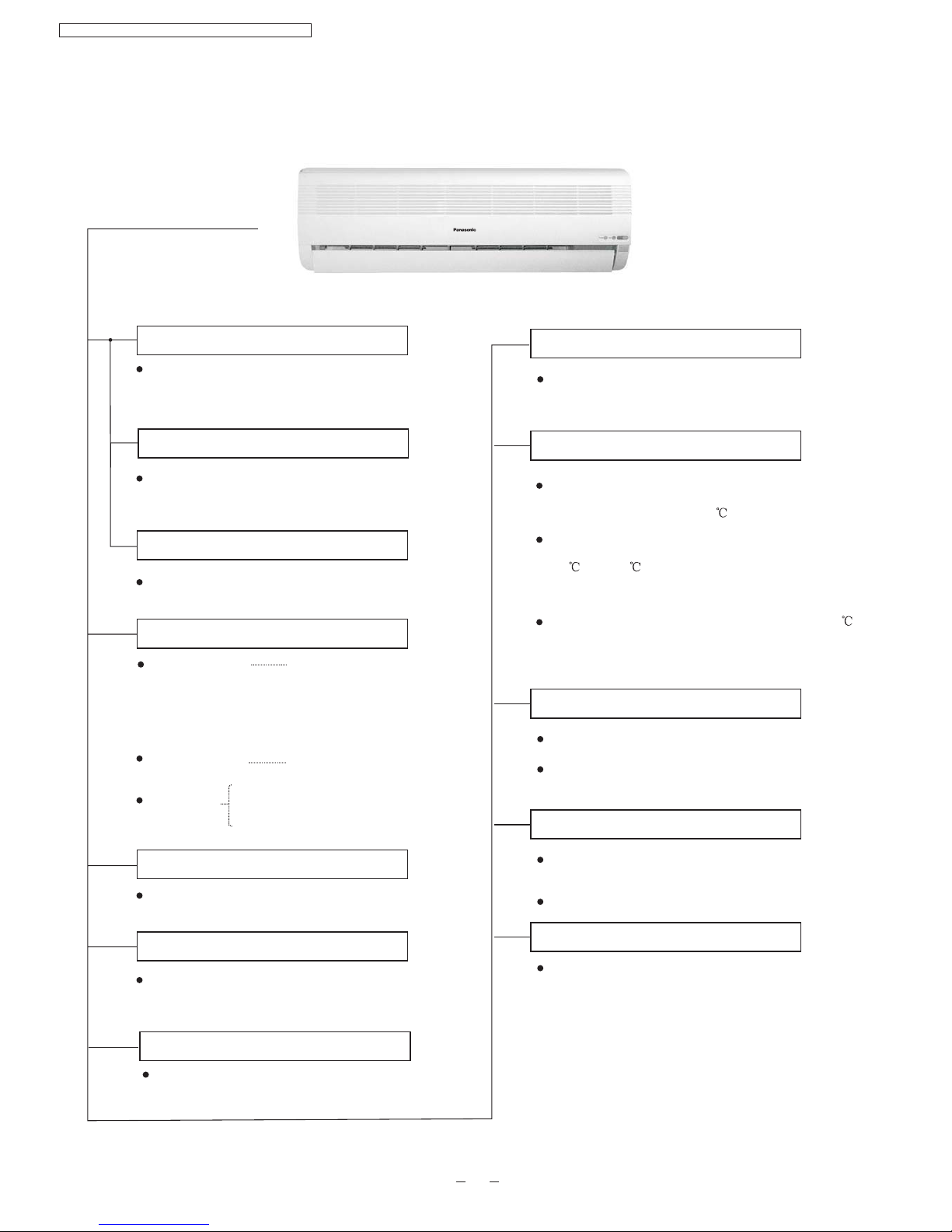

Indoor Unit

Demonstration Mode

When the remote control cannot be used or

for repairing and testing ,please use this

button.

Power Switch ON/OFF

Signal Receiving Sound Control

Keep pressing this button for 10seconds to turn

on or turn off the signal receiving sound.

Operation Indication Lamps

Power (green)

Timer(orange)

Lights up in operation;

Blinks during Test

Run operation and

determining Auto

Operation mode

Timer in operation

Operation Mode

Cooling/Heating/Soft Dry /Auto Operation

Time Delay Safety Control

The unit will restart operation in 3-4

minutes after each pause.

7-Minutes Time Save Control

7-minutes automatic restarting at Cooling

Operation

National

Keep pressing this button for 15seconds to start

or end the Demonstration Mode.

Auto Switch

Button

Air quality

Green

Orange

Red

Anti-freezing Control for the Evaporator

Cooling or Soft Dry Operation

Warm Booting Control

Indoor fan starts running when temperature

of evaporator reaches 30 or above.

When temperature of evaporator is between

30 and 34 ,indoor fan will run at Super Low

or Low speed.

When temperature of evaporator reaches 34 ,

Warm Booting Operation ends.

High,Med,Low

Auto Fan Speed

Indoor Fan Speed Control

Automatic Airflow Direction Control

The louver automatically swings up and down

Airflow Direction Manual Control

Airflow Direction Control

Delayed On-timer Control

For cooling or soft dry mode, the unit

starts 15 minutes before the set time with

the remote control, but for heating mode

30 minutes before the set time.

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

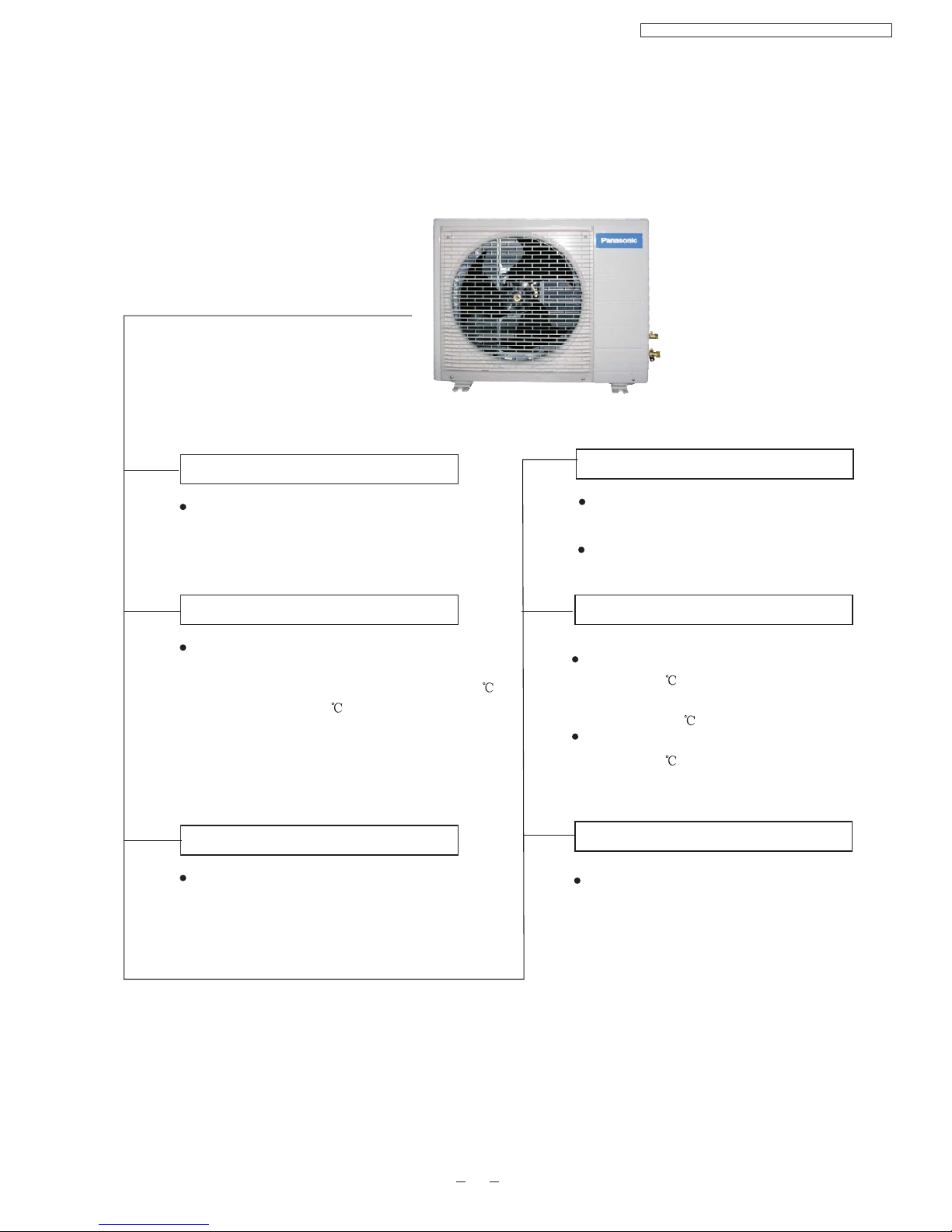

Outdoor Unit

Panasonic

Anti-reverse Protection

To protect the compressor from reverse

rotation when power off suddenly.

Overload Protector

The 2-step Overload Protector is to protect

the compressor when

1)Temperature of compressor reaches 153

(YW9DKE) or

2)High temperature or current enters into the

compressor

146 (YW12DKE)

60-seconds Test Operation Control

Once the compressor is activated, it does not

stop for 60 seconds. It stops immediately with

remote control ON/OFF button.

Anti-freezing operation for outdoor unit

(during Heating Mode Operation only)

Temperature of the condenser is tested

by TRS.

Deicing Control

4-way Valve Control

If the unit is stopped during Heating

Operation,the 4-way valve will remain in

heating mode operation for 5 minutes.

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

Overload Protection Control

When the temperature of evaporator

reaches 51 ,outdoor fan stops,and will

restart when the temperature of evaporator

declines to 49 .

When the temperature of evaporator

reaches 65 ,compressor will stop.

Cooling Capacity

Heating Capacity

Moisture Removal

Power Source

Airflow Method

Air Circulation Indoor Air (low)

Indoor Air (medium)

Indoor Air (high)

Outdoor Air

Noise Level

Electrical

Data

Piping Connection Port(Flare piping)

Piping Size(Flare piping)

Drain Hose

Power Supply Cord Length

(Number of core-wire)

Dimensions

Net Weight

Compressor

Air Circulation

Unit

L/h

Phase

Cycle

OUTLET

INTAKE

m /min

dB(A)

W/W

Input

Running Current

EER/COP

Starting Current

Inner Diameter

Length

Height

Width

Depth

Type

Motor Type

Rated output

type

Motor type

Fan

Speed

Low

Med

High

Rated Output

Input

Inch

rpm

CS-YW9DKE

CU-YW9DKE

2.65

2.95

1.6

Single

230

SIDE VIEW TOP VIEW

7.34

8.5

9.6

Cooling:high48

Heating:high49

Cooling:high39,Low31

Heating:high39,Low31

Cooling:880

Heating:830

Cooling:3.90

Heating:3.70

Cooling:3.01

Heating:3.55

18.4

G:half union3/8

L:half union1/4 "

G:gas side3/8"

L:liquid side1/4"

G:3-way valve3/8"

L:2-way valve1/4"

G:gas side3/8"

L:liquid side1/4"

0.5

1.3

3 core-wire/1.0mm2

250

770

205

7.5

530

650

230

Cross-flow fan

Induction(4 pole)

Rotary(1 cylinder)

Rolling piston type

Induction(2 pole)

750

Propeller fan

Induction(6 pole)

940 60

1090 60

1230 60

800 60

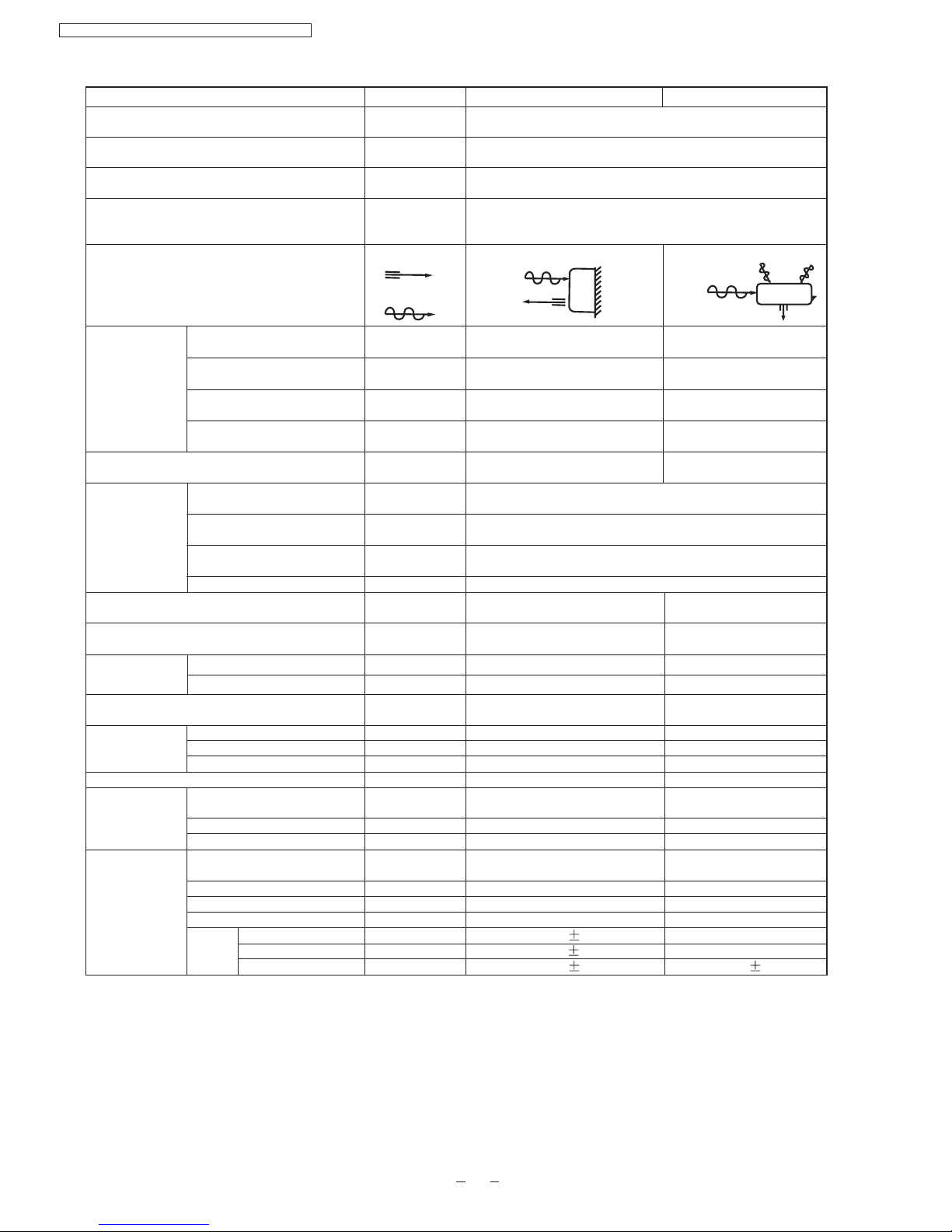

3 Product Specifications

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

Heat

Exchanger

Description

Tube Material

Fin Type

FPI

Refrigerant Control Device

Refrigeration Oil

Refrigerant (R-22)

Thermostat

Protection Device

Capillary

Air Filter

Refrigerant Circulation Control Device

Compressor Capacitor

Fan Motor Capacitor

Unit CS-YW9DKE CU-YW9DKE

Length

Circulation

Inner Diameter

(c.c)

L/min

F,V

Evaporator

Copper

Slot type

(Plate fin configuration,forced draft)

2x12

2X24

Condenser

Copper

Corrugation type

610x252x25.4

Electronic Control

P.P. Honeycomb

Capillary Tube

870(*)

O.L.P.(230V,16A)

609 10

10.0 0.2

1.4

F,2.0 400V

Specifications are subject to change without notice for further improvement.

F , 400V

Dimensions

Rows/Stage

Capillary

F,30 370V

1.5

X504x36.38

SUNISO 4GDID or ATMOS

M60 or ATMOS 56M

569.1

540.5

* 60g for air purging is not included.

530 10

7.0 0.2

1.2

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

Cooling Capacity

Heating Capacity

Moisture Removal

Power Source

Airflow Method

Air Circulation Indoor Air (low)

Indoor Air (medium)

Indoor Air (high)

Outdoor Air

Noise Level

Electrical

Data

Piping Connection Port(Flare piping)

Piping Size(Flare piping)

Drain Hose

Power Supply Cord Length

(Number of core-wire)

Dimensions

Net Weight

Compressor

Air Circulation

Unit

L/h

Phase

Cycle

OUTLET

INTAKE

m /min

dB(A)

W/W

Input

Running Current

EER/COP

Starting Current

Inner Diameter

Length

Height

Width

Depth

Type

Motor Type

Rated output

type

Motor type

Fan

Speed

Low

Med

High

Rated Output

Input

Inch

rpm

CS-YW12DKE

CU-YW12DKE

3.10

3.60

1.9

Single

230

SIDE VIEW TOP VIEW

7.40

8.34

9.2

Cooling:high49

Heating:high50

Cooling:high40,Low33

Heating:high39,Low32

Cooling:1170

Heating:1140

Cooling:5.30

Heating:5.10

Cooling:2.65

Heating:3.16

22.4

G:half union3/8

L:half union1/4 "

G:gas side3/8"

L:liquid side1/4"

G:3-way valve3/8"

L:2-way valve1/4"

G:gas side3/8"

L:liquid side1/4"

0.5

1.3

3 core-wire/1.0mm2

250

770

205

7.5

530

650

230

Cross-flow fan

Induction(4 pole)

Rotary(1 cylinder)

Rolling piston type

Induction(2 pole)

900

Propeller fan

Induction(6 pole)

1030 60

1160 60

1280 60

800 60

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

Heat

Exchanger

Description

Tube Material

Fin Type

FPI

Refrigerant Control Device

Refrigeration Oil

Refrigerant (R-22)

Thermostat

Protection Device

Capillary

Air Filter

Refrigerant Circulation Control Device

Compressor Capacitor

Fan Motor Capacitor

Unit CS-YW12DKE CU-YW12DKE

Length

Circulation

Inner Diameter

(c.c)

L/min

F,V

Evaporator

Copper

Slot type

(Plate fin configuration,forced draft)

2x12

2X24

Condenser

Copper

Corrugation type

610x252x25.4

Electronic Control

P.P. Honeycomb

Capillary Tube

920(*)

O.L.P.(230V,20A)

609 10

10.0 0.2

1.4

F,2.0 400V

Specifications are subject to change without notice for further improvement.

F , 400V

Dimensions

Rows/Stage

Capillary

25 370V

1.5

X504x36.38

SUNISO 4GDID or ATMOS

M60 or ATMOS 56M

569.1

540.5

* 60g for air purging is not included.

590 10

8.2 0.2

1.3

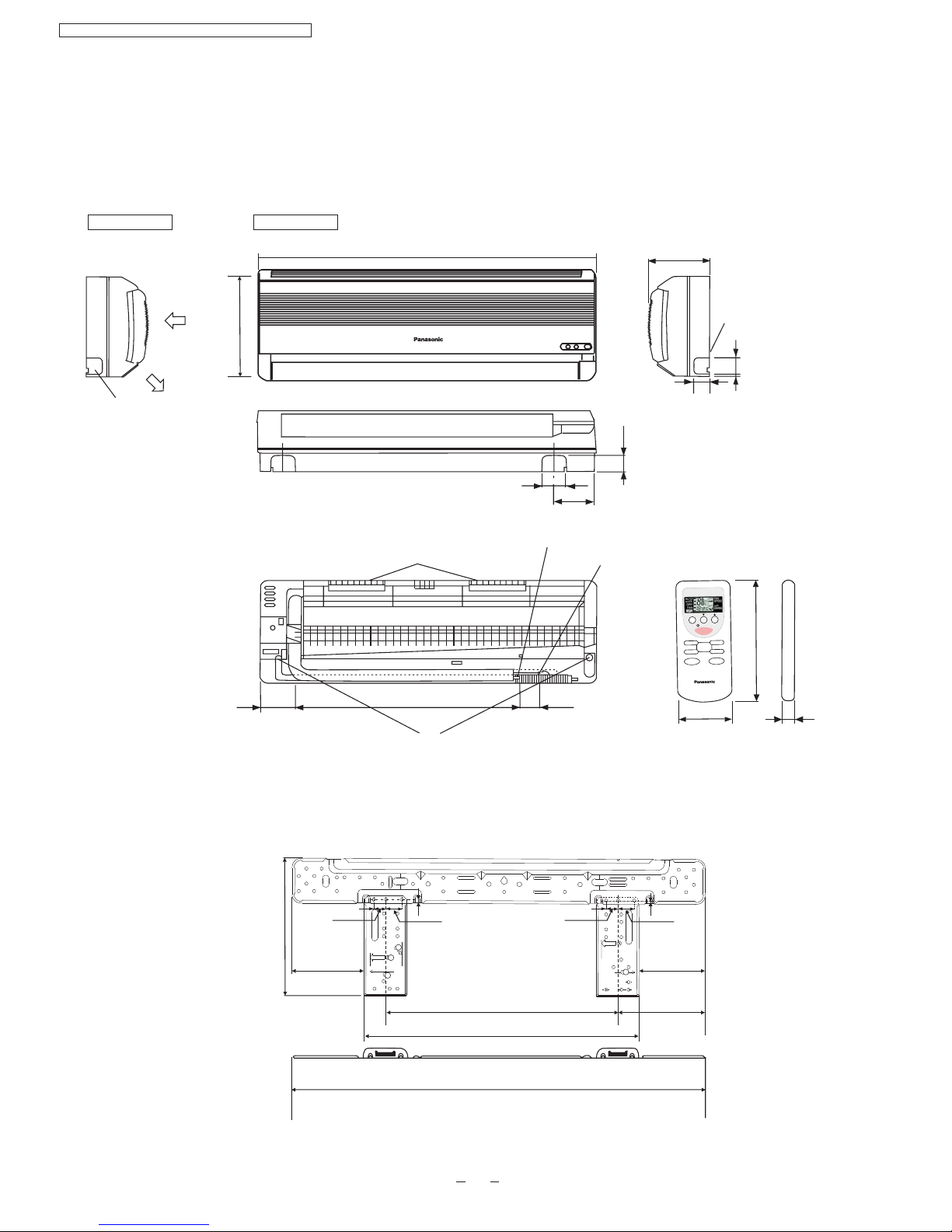

4 Dimensions

Indoor Unit

165

(410) (43)

Front View

<Back View> Installation Plate Hook

Gas Side

Liquid

Side

Relative position between the unit and the installation plate (Front View)

Drain Port

770

Air intake

250

Side view

205

Air outlet

Left Piping

Hole

Right Piping

Hole

(79)

OFF

MODE TEMP

OFF/ON

CANCEL SET

STD

TIMER

FAN SPEED AIR SWING

125

16.5

229

118.8

15.5

20 26.5

(382)

(452)

109.2

144.2

(680)

15.5

20 26.5

Unit : mm

CS-YW9DKE / CU-YW9DKE / CS-YW12DKE / CU-YW12DKE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CW-A120AE Manual de usuario

Panasonic

Panasonic CS-LU18ZKA Manual de usuario

Panasonic

Panasonic CW-A120FR Manual de usuario

Panasonic

Panasonic ACXF55-30430 Manual de usuario

Panasonic

Panasonic S-36PT2E5B Manual de usuario

Panasonic

Panasonic CS-F18DTE5 Manual de usuario

Panasonic

Panasonic Econavi XE9PKUA Manual de usuario

Panasonic

Panasonic CS-LV7SKA Manual de usuario

Panasonic

Panasonic CS-V28BKP5 Manual de usuario

Panasonic

Panasonic CU-QZ9SKE Manual de usuario

Panasonic

Panasonic S-26PU2U6 Manual de usuario

Panasonic

Panasonic S-22YA1E5 Manual de usuario

Panasonic

Panasonic CS-S18JKQ Manual de usuario

Panasonic

Panasonic CS-S9TKV Manual de usuario

Panasonic

Panasonic PAPAMY1604017CE Manual de usuario

Panasonic

Panasonic CSC18DKU - AIR CONDITIONER - SPLIT Manual de usuario

Panasonic

Panasonic CW-A120VR Manual de usuario

Panasonic

Panasonic CW-802HU Manual de usuario

Panasonic

Panasonic CS-E9GKR Manual de usuario

Panasonic

Panasonic CS-PA12GKD Manual de usuario

Panasonic

Panasonic S-22KA1E5 Manual de usuario

Panasonic

Panasonic CS-W18CKP Manual de usuario

Panasonic

Panasonic CS-W24EKR Manual de usuario

Panasonic

Panasonic U-72MF2U9 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
