Room Air Conditioner

CONTENTS

Page Page

Order No. MAC0107024C0

E25

• High Efficiency

• Compact Design

• Comfort Environment

− 8 hours of sleep mode operation

− Air filter with function to reduce dust and smoke

− Wider range of horizontal discharge air

• Auto Restart

− Random auto restart after power failure for safety restart

operation

• Removable and Washable Front Panel

• Remote Control Self-illuminating Button

• Catechin Air Purifying Filter

− Trap dust, tobacco smoke and tiny particles

− Prevent the growth of bacteria and viruses trapped

• Solar Refreshing Deodorizing Filter

− Remove unpleasant odour from the air

• Quality Improvement

− Gas leakage protection

− Prevent compressor reverse cycle

− 2-stage OLP to protect compressor

− Noise prevention during soft dry operation

− Anti-dew Formation Control (Cooling & Soft Dry)

− Blue Coated Condenser (Gold Coated Condenser for

Panama only)

− High resistance to corrosion.

• Operation Improvement

− Economy mode to reduce electrical power consumption

− Powerful mode to reach the desired room temperature

quickly

• Long Installation Piping

− CS/CU-C7BK, CS/CU-C9BK, long piping up to 10 meter

− CS/CU-C12BK, long piping up to 15 meter

• 24-hour Timer Setting

1 Features

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

2 Functions

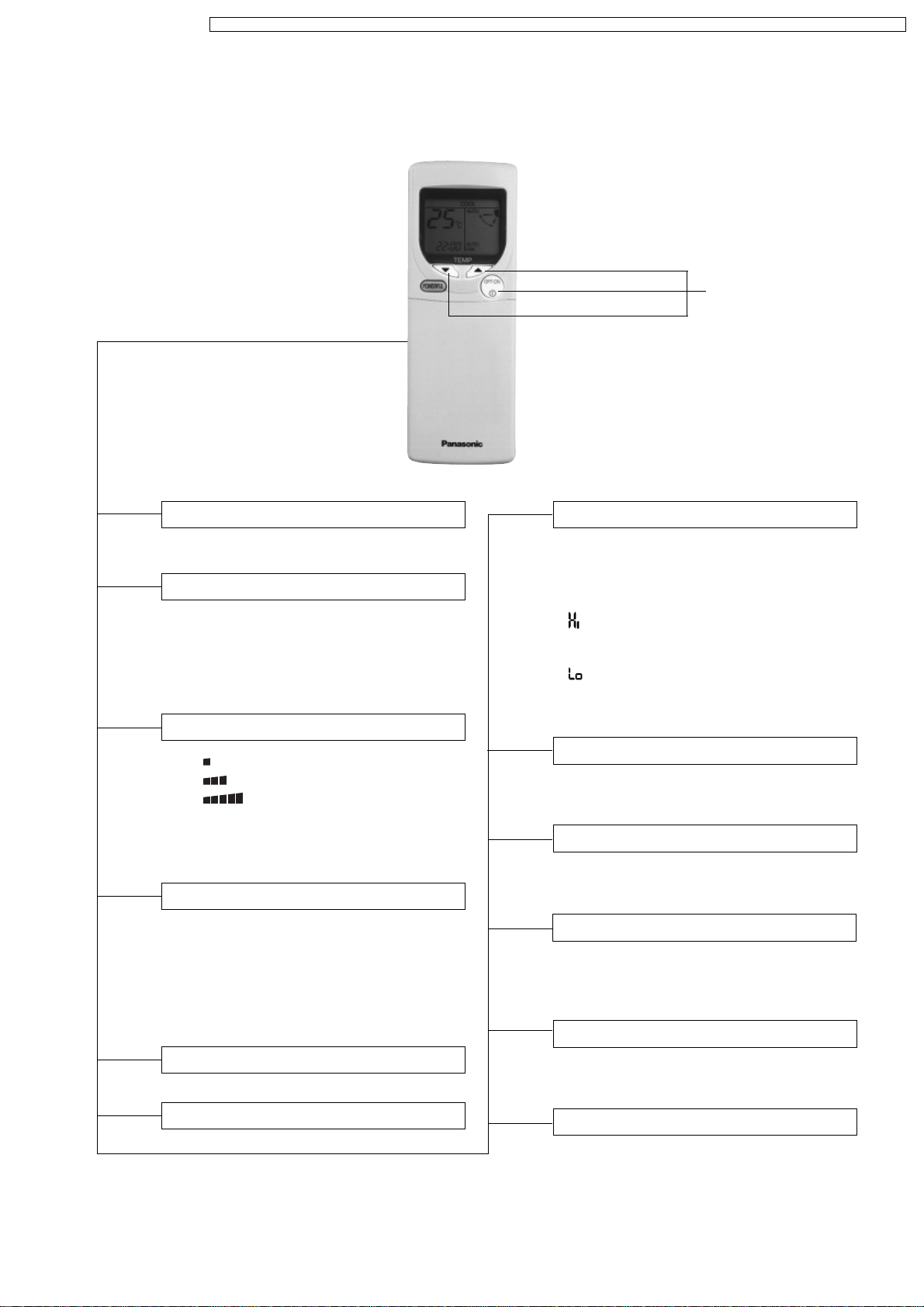

Remote Control

Operation OFF / ON

OFF / ON I

Room Temperature Setting

TEMP.

Operation Mode Selection

•AUTO Automatic Operation Mode

•COOL Cooling Operation Mode

•DRY Soft Dry Operation Mode

•FAN Air Circulation Mode

MODE

TIME

Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Sleep Mode Operation OFF / ON

SLEEP

Indoor Fan Speed Selection

FAN SPEED

•FAN Low Fan Speed

•FAN Medium Fan Speed

•FAN High Fan Speed

•AUTO Automatic Fan Speed

FAN

Vertical Airflow Direction Control

• 24-hour, OFF / ON Real Timer Setting.

ON-TIMER

OFF-TIMER

Timer Operation Selection

SET

CANCEL

Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

AIR SWING

•AUTO Automatic Vertical Airflow

Direction Control

•MANUAL Vertical Airflow Direction

Manual Control (5 stages of

adjustment)

Powerful Mode Operation OFF/ON

POWERFUL

Economy Mode Operation OFF/ON

ECONOMY

Cooling, Soft Dry, Air Circulation Operation.

• Temperature Setting (16°C to 30°C)

Automatic Operation

•Operation with 2°C higher than

standard temperature.

• Operation with standard temperature.

•Operation with 2°C lower than

standard temperature.

Self illuminating

button

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Indoor Unit

Random Auto Restart Control

• Operation is restarted randomly after

power failure at previous setting mode.

Anti-Freezing Control

• Anti-Freezing control for indoor heat

exchanger. (Cooling and Soft Dry)

Sleep Mode Auto Control

• Indoor Fan operates at Low speed.

• Operation stops after 8 hours.

Indoor Fan Speed Control

• High, Medium and Low.

• Automatic Fan Speed Mode

– Cooling : Fan rotates at Hi, Me and

SLo speed. Deodorizing

control is available.

– Soft Dry: Fan rotates at SLo speed.

Deodorizing control

is available.

• Automatic air swing and manual adjusted

by remote control for vertical airflow.

•

Manually adjusted by hand for horizontal airflow.

Airflow Direction Control

Automatic Operation Button

• Press for < 5s to operate Automatic

operation mode.

(Used when the remote control cannot be used.)

• Press continuously for 5s or < 10s to

operate Test Run/Pump down. “Beep”

sound will be heard at the 5th second.

(Used when test running or servicing.)

• Press continuously for 10s and above to

omit or resume the remote control signal

receiving sound. “Beep, beep” sound will

be heard at the 10th second.

AUTO

OFF / ON

Operation Indication Lamps (LED)

•POWER (Green) ........ Lights up in operation,

blinks in Automatic

Operation Mode

judging.

•SLEEP (Orange) ........ Lights up in Sleep

Mode Operation.

•TIMER (Orange) ....... Lights up in Timer

Setting.

•POWERFUL (Orange) .. Lights up in Powerful

Mode Operation.

•ECONOMY (Green) ..... Lights up in Economy

Mode Operation.

Operation Mode

• Cooling, Soft Dry, Air Circulation and

Automatic Mode.

Powerful Operation

• Reaches the desired room temperature

quickly.

Time Delay Safety Control

•

Restarting is inhibited for appro. 3 minutes.

Starting Current Control

Economy Operation

• To reduce electrical power consumption.

7 Minutes Time Save Control

• Cooling Operation only.

Anti-Dew Formation Control

• Anti-Dew Formation Control for indoor

unit discharge area.

• Fan motor is delayed for 1.6 seconds

when compressor starts simultaneously.

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Outdoor Unit

• To protect compressor from reverse

rotation when there is a instantaneous

power failure.

60 Secs. Forced Operation Control

• Once the compressor is activated, it

does not stop within the first 60 secs.

However, it stops immediately with

remote control stop signal.

Overload Protector

• 2-Stage OLP to protect the compressor.

Overload Protector will trip when

– Temperature of compressor increases

to 120°C.

– High temperature or high current flows

to compressor.

(Refer circuit diagram for OLP

characteristic)

Compressor Reverse Rotation

Protection Control

Outdoor Fan Operation Control

•Temperature Fuse.

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

3 Product Specifications

Unit CS-C7BK CU-C7BK

Power Source Phase, Voltage, Cycle (1) Single, 220 - 230, 50 Hz

(3) Single, 220 - 240, 50 Hz

Cooling Capacity kW (kcal/h) (1) 2.00 - 2.10 (1,720 - 1,800)

kW (BTU/h) (3) 2.00 - 2.05 (6,820 - 6,990)

Moisture Removal l/h (Pint/h) 1.3 (2.7)

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) 6.4 (230) - 6.4 (230) —

Indoor Air (Me) m3/min (cfm) 7.4 (260) - 7.4 (260) —

Indoor Air (Hi) m3/min (cfm) 8.5 (300) - 8.5 (300) —

Indoor Air (SHi) m3/min (cfm) 9.4 (330) - 9.4 (330) —

Noise Level dB (A) High 33 - 33, Low 26 - 26 High 46 - 47

Power level dB High 45 - 45 High 61 - 62

Electrical Data Input Power W (1) 550 - 600

(3) 580 - 640

Running Current A (1) 2.7 - 2.7

(3) 2.7 - 2.8

EER W/W (kcal/hW) (1) 3.64 - 3.50 (3.13 - 3.00)

WW (BTU/hW) (3) 3.45 - 3.20 (11.8 - 10.9)

Starting Current A 11.8

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 3/8”

L ; Half Union 1/4” G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G ; (gas side) 3/8”

L ; (liquid side) 1/4” G ; (gas side) 3/8”

L ; (liquid side) 1/4”

Drain

Hose Inner diameter mm 12 —

Length mm 650 —

Power Cord Length m 1.9 —

Number of core-wire 3 (1.0 mm2) —

Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)

Net Weight lb (kg) 20 (9.0) 62 (28)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W — 500

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Note:

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% PP Resin

Motor Type Induction (4-poles) Induction (6-poles)

Input W 44.8 - 53.5 52.0 - 59.0

Rate Output W 15 30

Fan Speed Low rpm 780 - 780 —

Medium rpm 900 - 900 —

High rpm 1,030 - 1,030 820 - 830

SuperHigh rpm 1,140 - 1,140 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)

Fin Type Slit Fin Louver Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 1×20

FPI 19 17

Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3) — SUNISO 4GDID or ATMOS

M60 (260)

Refrigerant (R-22) g (oz) — 685 (24.2)

Thermostat Electronic Control —

Protection Device — 2 Stage Overload Protector

Capillary Tube Length mm — 655

Flow Rate l/min — 9.5

Inner Diameter mm — 1.4

Air Filter Material

Style P.P.

Honeycomb —

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC — 25 µF, 370VAC

Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC

• Specifications are subject to change without notice for further improvement.

• (1) — CS-C7BKP/CU-C7BKP5 (Europe).

• (3) — CS-C7BKP-2/CU-C7BKP5-2 (Oceania).

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Unit CS-C9BK CU-C9BK

Power Source Phase, Voltage, Cycle (1)

(7) Single, 220 - 230, 50 Hz

(2) Single, 220, 60 Hz

(3) Single, 220 - 240, 50 Hz

(4) Single, 220, 50 Hz

(5)

(6) Single, 230 - 208, 60 Hz

Cooling Capacity kW (kcal/h) (1)

(7) 2.65 - 2.75 (2,280 - 2,360)

kW (BTU/h) (2) 2.65 (9,000)

(3) 2.65 - 2.70 (9,040 - 9,200)

kW (kcal/h) (4) 2.65 (2,280)

kW (BTU/h) (5)

(6) 2.56 - 2.52 (8,760 - 8,600)

Moisture Removal l/h (Pint/h) (1)

(2)

(3)

(4)

(7)

1.6 (3.4)

(5)

(6) 0.4 (0.8)

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) (1)

(3)

(5)

(6)

(7)

6.8 (240) - 6.8 (240) —

(2)

(4) 6.8 (240) —

Indoor Air (Me) m3/min (cfm) (1)

(3)

(5)

(6)

(7)

8.0 (280) - 8.0 (280) —

(2)

(4) 8.0 (280) —

Indoor Air (Hi) m3/min (cfm) (1)

(3)

(5)

(6)

(7)

9.9 (350) - 9.9 (350) —

(2)

(4) 9.9 (350) —

Indoor Air (SHi) m3/min (cfm) (1)

(3)

(5)

(6)

(7)

10.9 (380) - 10.9 (380) —

(2)

(4) 10.9 (380) —

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Noise Level dB (A) (1)

(3)

(7) High 36 - 36, Low 26 - 26 High 46 - 47

(2) High 36, Low 26 High 48

(4) High 36, Low 26 High 46

(5)

(6) High 36 - 36, Low 26 - 26 High 49 - 48

Power level dB (1)

(3)

(7) High 49 - 49 High 61 - 62

(2) High 49 High 63

(4) High 49 High 61

(5)

(6) High 49 - 49 High 64 - 63

Electrical Data Input Power W (1)

(7) 740 - 785

(2) 750

(3) 780 - 820

(4) 740

(5)

(6) 780 - 760

Running Current A (1)

(3)

(7) 3.6 - 3.5

(2) 3.7

(4) 3.6

(5)

(6) 3.7 - 3.9

EER W/W (kcal/hW) (1)

(7) 3.58 - 3.50 (3.08 - 3.00)

W/W (BTU/hW) (2) 3.53 (12.0)

(3) 3.40 - 3.29 (11.6 - 11.2)

W/W (kcal/hW) (4) 3.58 (3.08)

W/W (BTU/hW) (5)

(6) 3.28 - 3.32 (11.2 - 11.3)

Starting Current A (1)

(3)

(4)

(7)

16.4

(2)

(5)

(6) 23.0

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 3/8”

L ; Half Union 1/4” G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G ; (gas side) 3/8”

L ; (liquid side) 1/4” G ; (gas side) 3/8”

L ; (liquid side) 1/4”

Drain

Hose Inner diameter mm 12 —

Length mm 650 —

Power Cord Length m 1.9 —

Number of core-wire (1)

(2)

(3)

(5)

(6)

(7)

3 (1.0 mm2) —

(4) 3 (1.5 mm2) —

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)

Net Weight lb (kg) (1)

(3)

(4)

(7)

20 (9.0) 71 (31.0)

(2)

(5)

(6) 20 (9.0) 62 (28.0)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W (1)

(3)

(4)

(7)

—700

(2)

(5)

(6) —600

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% PP Resin

Motor Type Induction (4-poles) Induction (6-poles)

Input W (1)

(3)

(4)

(7)

44.8 - 53.5 52.0 - 59.0

(2)

(5)

(6) 44.8 - 53.5 72.4 - 78.9

Rated Output W 15 30

Fan Speed Low rpm (1)

(3)

(5)

(6)

(7)

780 - 780 —

(2)

(4) 780 —

Medium rpm (1)

(3)

(5)

(6)

(7)

920 - 920 —

(2)

(4) 920 —

High rpm (1)

(3)

(5)

(6)

(7)

1,140 - 1,140 820 - 830

(2)

(4) 1,140 820

SuperHigh rpm (1)

(3)

(5)

(6)

(7)

1,250 - 1,250 —

(2)

(4) 1,250 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium (Blue/Gold Coat)

Fin Type Slit Fin Louver Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 1×20

FPI 19 17

Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3) (1)

(3)

(4)

(7)

— SUNISO 4GDID or ATMOS

M60 (320)

(2)

(5)

(6) —SUNISO 4GDID or ATMOS

M60 (290)

CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CU-3RE18SBE Manual de usuario

Panasonic

Panasonic CW-XC83YU Guía del usuario

Panasonic

Panasonic CS-Z25UFEAW Manual de usuario

Panasonic

Panasonic CS-TZ20ZKEW Manual de usuario

Panasonic

Panasonic CS-E7GKEW Manual de usuario

Panasonic

Panasonic CS-F28DTE5 Instrucciones de uso

Panasonic

Panasonic CW-N1821EA Manual de usuario

Panasonic

Panasonic CS-BE20TKD Manual de usuario

Panasonic

Panasonic CS-XE15LKE-3 Manual de usuario

Panasonic

Panasonic CU-QE12MKE Manual de usuario

Panasonic

Panasonic CU-5E34PBE Manual de usuario

Panasonic

Panasonic CS-C12BKPG Manual de usuario

Panasonic

Panasonic CS-E9SD3RW Manual de usuario

Panasonic

Panasonic Z7 SERIES Manual de usuario

Panasonic

Panasonic CS-YS9UKA Manual de usuario

Panasonic

Panasonic CS-A18CKH Manual de usuario

Panasonic

Panasonic WH-ADF0309J3E5CM Manual de usuario

Panasonic

Panasonic CS-SA9CKP Manual de usuario

Panasonic

Panasonic CW-XC60YU Manual de usuario

Panasonic

Panasonic CS-F14DD3E5 Manual de usuario

Panasonic

Panasonic CSC9BKP - SPLIT A/C SYSTEM Manual de usuario

Panasonic

Panasonic CS-E9GFEW Manual de usuario

Panasonic

Panasonic CS-MS9SD3H Manual de usuario

Panasonic

Panasonic CS-HE9DKE Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
