1 Functions

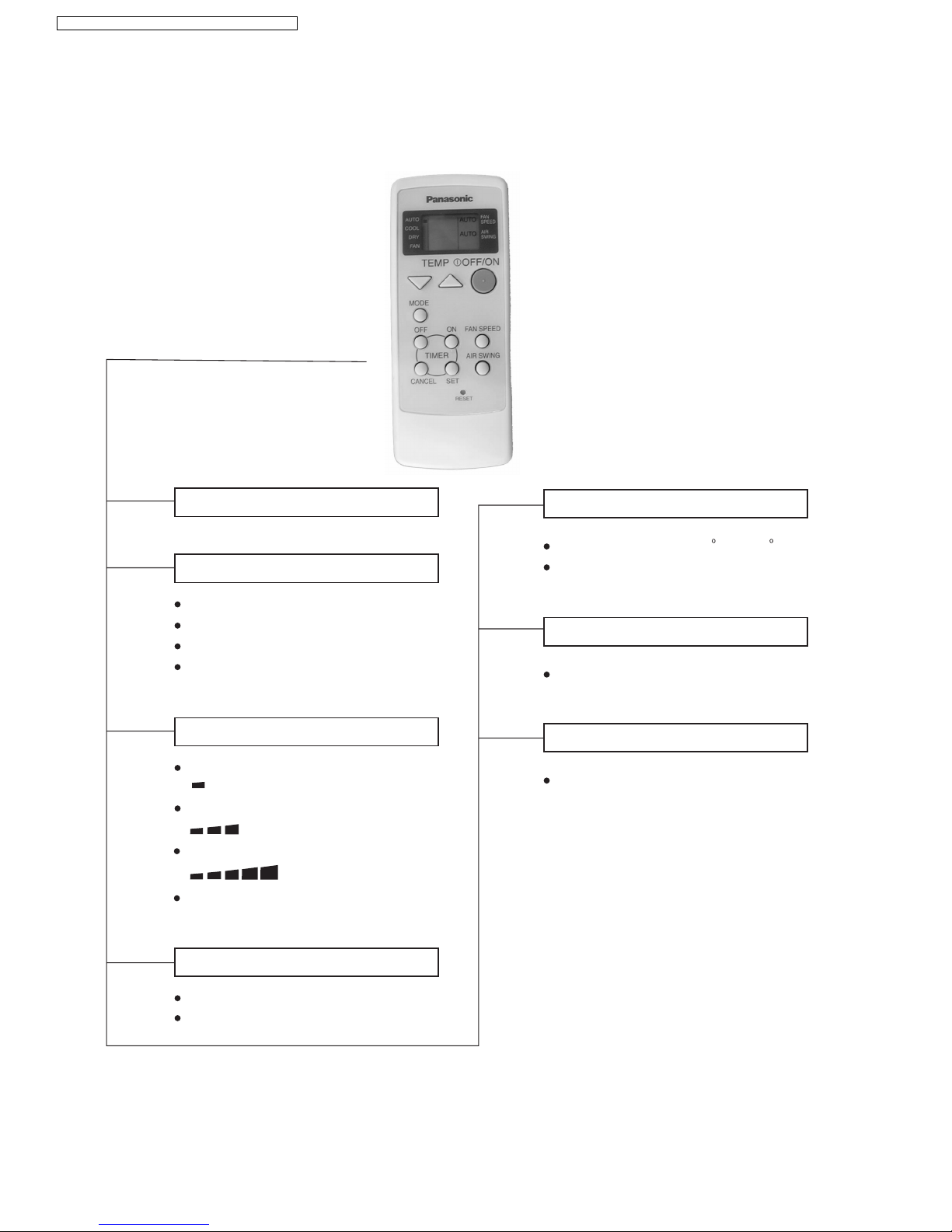

Operation START/ST OP

Operation Mode Selection

Automatic Operation

Heating Mode Operation

Cooling Mode Operation

Soft Dry Mode Operation

Mode

Indoor Fan Speed Selection

High Speed

Medium Speed

Low Speed

Automatic Speed

Airflow Direction Control

Auto Airflow Direction

Airflow Direction Manual Control

Room Temperature Setting

Temperature Setting(16 C to 30 C)

Auto Operation

Timer Operation Selection

Stop/Start Operation Control

(set the ON/OFF Timer hourly later)

Set /Cancel Timer Operation

Set timer/Cancel the set timer

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Indoor Unit

When the remote control cannot be used,

please use this button.

Keep pressing this button for 10sec to turn

on or turn off the signal receiving sound.

Used when testing or repairing

Operation (green)

Timer(orange)

Iights up in operation

Blinks during Test

Run operation and

determining Auto

Operation mode

Timer in operation

Heating/Cooling/Soft Dry/Auto Operation

The unit will restart operation after 3-4

minutes after each pause.

7-minutes automatic restarting at Cooling

Operation

Cooling or Soft Dry Operation

Indoor fan starts running when temperature

of evaporator reaches 30 Cor above.

When temperature of evaporator is between

30 Cand 40 C,indoor fan will run at Super Low

or Low speed.

When temperature of evaporator reaches 34 C,

Warm Booting Operation ends.

High,Med,Low,Auto

Auto Fan Speed

Automatic Airflow Direction Control

The louver automatically swings up and down

Airflow Direction Manual Control

Auto Mode Operation Selection Button

Power Switch ON/OFF

Signal Receiving Sound Control

Test Run

Operation Indication Lamps

Operation Mode

Time Delay Safety Control

Automatic Restarting Control

Anti-freezing Control for the Evaporator

Warm Booting Control

Indoor Fan Speed Controll

Airflow Direction Control

Delayed On-timer Control

For cooling or soft dry mode, the unit

starts 15 minutes before the set time with

the remote controller, but for heating mode

30 minutes before the set time.

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Outdoor Unit

To protect the compressor from reverse

rotation when power off suddenly.

The 2-step Overload Protector is to protect

the compressor when

1/ temperature of compressor reaches 120 C

2/ high temperature or current enters into the

compressor

(Only for CU-SA9CKP5)

Once the compressor is activated,it does not

stop for 60 seconds.It stops immediately with

remote controller ON/OFF button.

Anti-freezing operation for outdoor unit(during

Heating Mode Operation only)

Temperature of the condenser is tested by TRS.

When the temperature of evaporator

reaches 51 C,outdoor fan stops,and will

restart when the temperature of evaporator

declines to 49 C .

When the temperature of evaporator

reaches 65 C,compressor will stop.

If the outdoor fan does not run after the

compressor is activated for 50sec,the

compressor will stop.(only in cooling

and soft dry mode oteration)

If the unit is stopped during Heating

Operation,the 4-way valve will remain in

heating mode operation mode for 5 minutes.

Anti-reverse Protection

Overload Protector

60-seconds Test Operation Control

Deicing Control

Overload Protection Control

Compressor Protection Control

4-way Valve Control

Outdoor Fan Operation Control

Controlled by the indoor unit.

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

2 Product Specifications

Unit CS-SA9CKP CU-SA9CKP5

Cooling Capacity kW 2.70-2.75

Heating Capacity kW 3.10-3.15

Moisture Removal L/h 1.60

Power Source Phase

Cycle

Single

220-230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor air (low) m3/min Cooling: 6.79 —

Heating: 6.86

Indoor air (medium) m3/min Cooling: 7.84 —

Heating: 7.93

Indoor air (high) m3/min Cooling: 8.9 —

Heating: 9.0

Outdoor air m3/min — 22.0

Noise Level dB(A) Cooling: High38, Low29 Cooling: High47

Heating: High38, Low29 Heating: High48

Electrical Data Input W Cooling: 940-985

Heating: 800-830

Running Current ACooling: 4.40-4.34

Heating: 3.75-3.70

EER W/W Cooling: 2.87-2.79

COP Heating: 3.88-3.80

Starting Current A 21

Piping Connection Port (Flare piping) Inch

Inch

G: half union 3/8"

L: half union 1/4"

G: 3-way valve 3/8"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gad side 3/8"

L: liquid side 1/4"

G: gas side 3/8"

L: liquid side 1/4"

Drain

Hose

Inner diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length (Number of core-wire) m 1.9

5 core-wire/1.5mm2

—

Dimensions Height mm 275 505

Width mm 799 780

Depth mm 210 245

Net Weight kg 9.0 31.0

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA9CKP CU-SA9CKP5

Compressor Type —Rotary(1 cylinder)

Rolling piston type

Motor Type —Induction(2 pole)

Rated Output W — 750

Air Circulation Type Cross-flow Fan Propeller fan

Motor Type Induction (4 pole) Induction (6 pole)

Input W — 58.6

Rate Output W 13 20

Fan Speed Low rpm 900 —

Medium rpm 1040 —

High rpm 1180 705

Heat Exchanger Discription Evaporator Condenser

Tube Material copper copper

Fin Type slot type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×15 1×19

FPI 18 19

Dimensions mm 610 × 315 × 25.4 706.2 × 482.6 × 22

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60

(350)

Refrigerant (R-22) g — 840

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Length mm — Cooling: 470, Heating: 1160

Circulation L/min — Cooling: 13.4, Heating: 4.5

Inner dia mm — Cooling:1.5, Heating: 1.2

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Compressor Capacitor µFV — 25µF, 370V

Fan Motor Capacitor µFV — 1.2µF, 400V

•

• •

• Specifications are subject to change without notice for further improvement

•

• •

• The amount of refrigerant (60g) for air purging not included

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA12CKP CU-SA12CKP5

Cooling Capacity kW 3.35-3.40

Heating Capacity kW 4.00-4.05

Moisture Removal L/h 1.80

Power Source Phase

Cycle

Single

220 - 230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Circulation Indoor air (low) m3/min Cooling: 7.43 —

heating: 7.92

Indoor air (medium) m3/min Cooling: 8.27 —

heating: 8..81

Indoor air (high) m3/min Cooling: 9.1 —

heating: 9.7

Outdoor air m3/min — 22.0

Noise Level dB(A) Cooling: High39, Low32 Cooling: High49

Heating: High39, Low32 Heating: High49

Electrical Data Input W Cooling: 1230-1250

Heating: 1100-1130

Running Current ACooling: 5.75-5.60

Heating: 5.15-5.05

EER W/W Cooling: 2.72-2.72

COP Heating: 3.64-3.58

Starting Current A 26

Piping Connection Port

(Flare piping)

Inch

G: half union 1/2"

L: half union 1/4"

G: 3-way valve 1/2"

L: 2-way valve 1/4"

Piping Size

(Flare piping)

Inch

G: gad side 1/2"

L: liquid side 1/4"

G: gas side 1/2"

L: liquid side 1/4"

Drain

Hose

Inner diameter mm 12 —

Length m 0.6 —

Power Supply Cord Length

(Number of core-wire)

m 2.2

5 core-wire/1.5mm2

—

Dimensions Height mm 275 540

Width mm 799 780

Depth mm 210 289

Net Weight kg 9.0 38.0

Compressor Type —Rotary(1 cylinder)

Rolling piston type

Motor Type —Induction(2 pole)

Rated Output W — 1,100

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA12CKP CU-SA12CKP5

Air Circulation Type Cross-flow Fan Propeller fan

Motor Type Induction (4 pole) Induction (6 pole)

Input W — 58.6

Rate Output W 13 20

Fan Speed Low rpm 980 —

Medium rpm 1090 —

High rpm 1200 750

Heat Exchanger Discription Evaporator Condenser

Tube Material copper copper

Fin Type slot type Corrugation type

Rows / Stage (Plate fin configuration, forced draft)

2×15 1×20

FPI 18 18

Dimensions mm 610 × 315 × 25.4 706.2 × 482.6 × 22

Refrigerant Control Device — Capillary Tube

Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60

(350)

Refrigerant (R-22) g — 940

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Length mm — Cooling: 470, Heating: 1160

Circulation L/min — Cooling: 13.4, Heating: 4.5

Inner dia mm — Cooling: 1.5, Heating: 1.2

Air Filter P.P Honeycomb —

Refrigerant Circulation Control Device Capillary

Compressor Capacitor µFV — 30µF, 370V

Fan Motor Capacitor µFV 1.5µF, 400V 1.8µF, 400V

•

• •

• Specifications are subject to change without notice for further improvement

•

• •

• The amount of refrigerant (60g) for air purging not included

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

3 Dimensions

CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic KIT-UZ25-VKE Manual de usuario

Panasonic

Panasonic S-15MY2E5A CZ-KPY3A Manual de instrucciones

Panasonic

Panasonic LUMIX F3 Manual de usuario

Panasonic

Panasonic CWSC90YA Hoja de instrucciones

Panasonic

Panasonic CS-YN9XKD-3 Manual de usuario

Panasonic

Panasonic CS-PC12MKF Manual de usuario

Panasonic

Panasonic U-6LA1E5-1 Manual de usuario

Panasonic

Panasonic CW-XC55HU Manual de usuario

Panasonic

Panasonic PAPAMY1702034CE Manual de usuario

Panasonic

Panasonic CW-1203FR Manual de usuario

Panasonic

Panasonic CS-PC9MKQ Manual de usuario

Panasonic

Panasonic U-4LE2H4E Series Manual de usuario

Panasonic

Panasonic U-200PE2E8A Manual de usuario

Panasonic

Panasonic U-16GE2E5 Guía del usuario

Panasonic

Panasonic S-22MF2E5A8 Manual de usuario

Panasonic

Panasonic CS-ME7QKUA Manual de usuario

Panasonic

Panasonic CS-A24BD2P Manual de usuario

Panasonic

Panasonic CW-C172KR Manual de usuario

Panasonic

Panasonic CU-5E32QBR Manual de usuario

Panasonic

Panasonic PZH2 Manual de usuario

Panasonic

Panasonic CU-YL28HBE5 Manual de usuario

Panasonic

Panasonic S-22KA1E5 Manual de usuario

Panasonic

Panasonic CS-RE18LKR Manual de usuario

Panasonic

Panasonic FV-07VBA1 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
