Panasonic CS-A24BD2P Manual de usuario

1 SPECIFICATION (HEAT PUMP TYPE) (Pages: 8 ~ 14) 2

2 SPECIFICATION (COOLING ONLY TYPE) (Pages: 15 ~ 21) 3

3 FAN PERFORMANCE (Pages: 52 ~ 54) 4

and distribution is a violation of law.

CS-A24BD2P CU-A24BBP5

CS-A28BD2P CU-A28BBP5

CS-A28BD2P CU-A28BBP8

CS-A34BD2P CU-A34BBP5

CS-A34BD2P CU-A34BBP8

CS-A43BD2P CU-A43BBP8

CS-A50BD2P CU-A50BBP8

CS-A24BD2P CU-C24BBP5

CS-A28BD2P CU-C28BBP5

CS-A28BD2P CU-C28BBP8

CS-A34BD2P CU-C34BBP5

CS-A34BD2P CU-C34BBP8

CS-A43BD2P CU-C43BBP8

CS-A50BD2P CU-C50BBP8

4 SOUND DATA (Pages: 67 ~ 69) 7

5 REPLACEMENT PARTS (Pages: 124 & 125) 10

AIR CONDITIONER

Subject : Correction in Specification (Heat Pump Type), Specification (Cooling Only

Type), Fan Performance, Sound Data and Indoor Unit Replacement

Parts.

Please file and use this supplement manual together with the service manual for Model No.CS-

A24BD2P/CU-A24BBP5, CS-A28BD2P/CU-A28BBP5, CS-A28BD2P/CU-A28BBP8, CS-A34BD2P/CU-

A34BBP5, CS-A34BD2P/CU-A34BBP8, CS-A43BD2P/CU-A43BBP8, CS-A50BD2P/CU-A50BBP8, CS-

A24BD2P/CU-C24BBP5, CS-A28BD2P/CU-C28BBP5, CS-A28BD2P/CU-C28BBP8, CS-A34BD2P/CU-

C34BBP5, CS-A34BD2P/CU-C34BBP8, CS-A43BD2P/CU-C43BBP8, CS-A50BD2P/CU-C50BBP8, Order No.

MAC0112089C0.

CONTENTS

Page Page

OrderNo.MAC0206014S8

1 SPECIFICATION (HEAT PUMP TYPE) (Pages: 8 ~ 14)

1.1 CS-A24BD2P / CU-A24BBP5

ITEM / MODEL Indoor Unit Outdoor Unit

Main Body CS-A24BD2P CU-A24BBP5

External Static Pressure Pa Hi 98 Me 79 Lo 73 -

mmAq Hi 10 Me 8.1 Lo 7.5

1.2 CS-A28BD2P / CU-A28BBP5

ITEM / MODEL Indoor Unit Outdoor Unit

Main Body CS-A28BD2P CU-A28BBP5

External Static Pressure Pa Hi 98 Me 81 Lo 72 -

mmAq Hi 10 Me 8.5 Lo 7.4

1.3 CS-A28BD2P / CU-A28BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A28BD2P CU-A28BBP8

External Static Pressure Pa Hi 98 Me 81 Lo 72 -

mmAq Hi 10 Me 8.5 Lo 7.4

1.4 CS-A34BD2P / CU-A34BBP5

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A34BD2P CU-A34BBP5

External Static Pressure Pa Hi 98 Me 75 Lo 53 -

mmAq Hi 10 Me 7.5 Lo 5.4

1.5 CS-A34BD2P / CU-A34BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A34BD2P CU-A34BBP8

External Static Pressure Pa Hi 98 Me 75 Lo 53 -

mmAq Hi 10 Me 7.5 Lo 5.4

1.6 CS-A43BD2P / CU-A43BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A43BD2P CU-A43BBP8

Standard Air Volume for High m3/min Hi 40 Hi 82

Medium and Low Speed cfm Hi 1413 2895

External Static Pressure Pa Hi 98 Me 81 Lo 70 -

mmAq Hi 10 Me 8.3 Lo 7.2

1.7 CS-A50BD2P / CU-A50BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A50BD2P CU-A50BBP8

External Static Pressure Pa Hi 98 Me 90 Lo 79 -

mmAq Hi 10 Me 9.2 Lo 8.1

2 SPECIFICATION (COOLING ONLY TYPE) (Pages: 15 ~

21)

2.1 CS-A24BD2P / CU-C24BBP5

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A24BD2P CU-C24BBP5

External Static Pressure Pa Hi 98 Me 79 Lo 73 -

mmAq Hi 10 Me 8.1 Lo 7.5

2.2 CS-A28BD2P / CU-C28BBP5

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A28BD2P CU-C28BBP5

External Static Pressure Pa Hi 98 Me 81 Lo 72 -

mmAq Hi 10 Me 8.5 Lo 7.4

2.3 CS-A28BD2P / CU-C28BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A28BD2P CU-C28BBP8

External Static Pressure Pa Hi 98 Me 81 Lo 72 -

mmAq Hi 10 Me 8.5 Lo 7.4

2.4 CS-A34BD2P / CU-C34BBP5

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A34BD2P CU-C34BBP5

External Static Pressure Pa Hi 98 Me 75 Lo 53 -

mmAq Hi 10 Me 7.5 Lo 5.4

2.5 CS-A34BD2P / CU-C34BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A34BD2P CU-C34BBP8

External Static Pressure Pa Hi 98 Me 75 Lo 53 -

mmAq Hi 10 Me 7.5 Lo 5.4

2.6 CS-A43BD2P / CU-C43BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A43BD2P CU-C43BBP8

Standard Air Volume for High m3/min Hi 40 Hi 82

Medium and Low Speed cfm Hi 1413 2895

External Static Pressure Pa Hi 98 Me 81 Lo 70 -

mmAq Hi 10 Me 8.3 Lo 7.2

2.7 CS-A50BD2P / CU-C50BBP8

ITEM / MODEL Indoor Unit Outdoor unit

Main Body CS-A50BD2P CU-C50BBP8

External Static Pressure Pa Hi 98 Me 90 Lo 79 -

mmAq Hi 10 Me 9.2 Lo 8.1

3 FAN PERFORMANCE (Pages: 52 ~ 54)

Fan Performance Test Report

Model External static

pressure

Pa (mmAq)

Fan

speed

Current

(A)

Power

consumption

(kW)

RPM

(r/m)

Air volume

(m3/min)

98 (10) Hi 0.84 0.16 1396 18

CS-A24BD2P 79 (8.1) Me 0.56 0.11 1250 16

73 (7.5) Lo 0.51 0.10 1208 15

98 (10) Hi 0.80 0.17 1408 20

CS-A28BD2P 81 (8.5) Me 0.52 0.11 1281 18

72 (7.4) Lo 0.46 0.10 1208 17

98 (10) Hi 1.36 0.31 1225 35

CS-A34BD2P 75 (7.5) Me 1.07 0.23 1070 29

53 (5.4) Lo 0.87 0.18 904 24

98 (10) Hi 1.67 0.38 1370 40

CS-A43BD2P 81 (8.3) Me 1.31 0.31 1250 36.5

70 (7.2) Lo 1.18 0.28 1160 34

98 (10) Hi 2.44 0.49 1406 45

CS-A50BD2P 90 (9.2) Me 1.74 0.38 1350 43

79 (8.1) Lo 1.37 0.31 1265 40.5

●

●●

●CS-A24BD2P

Fan Performance Curve

●

●●

●CS-A28BD2P

Fan Performance Curve

●

●●

●CS-A34BD2P

Fan Performance Curve

●

●●

●CS-A43BD2P

Fan Performance Curve

●

●●

●CS-A50BD2P

Fan Performance Curve

4 SOUND DATA (Pages: 67 ~ 69)

5 REPLACEMENT PARTS (Pages: 124 & 125)

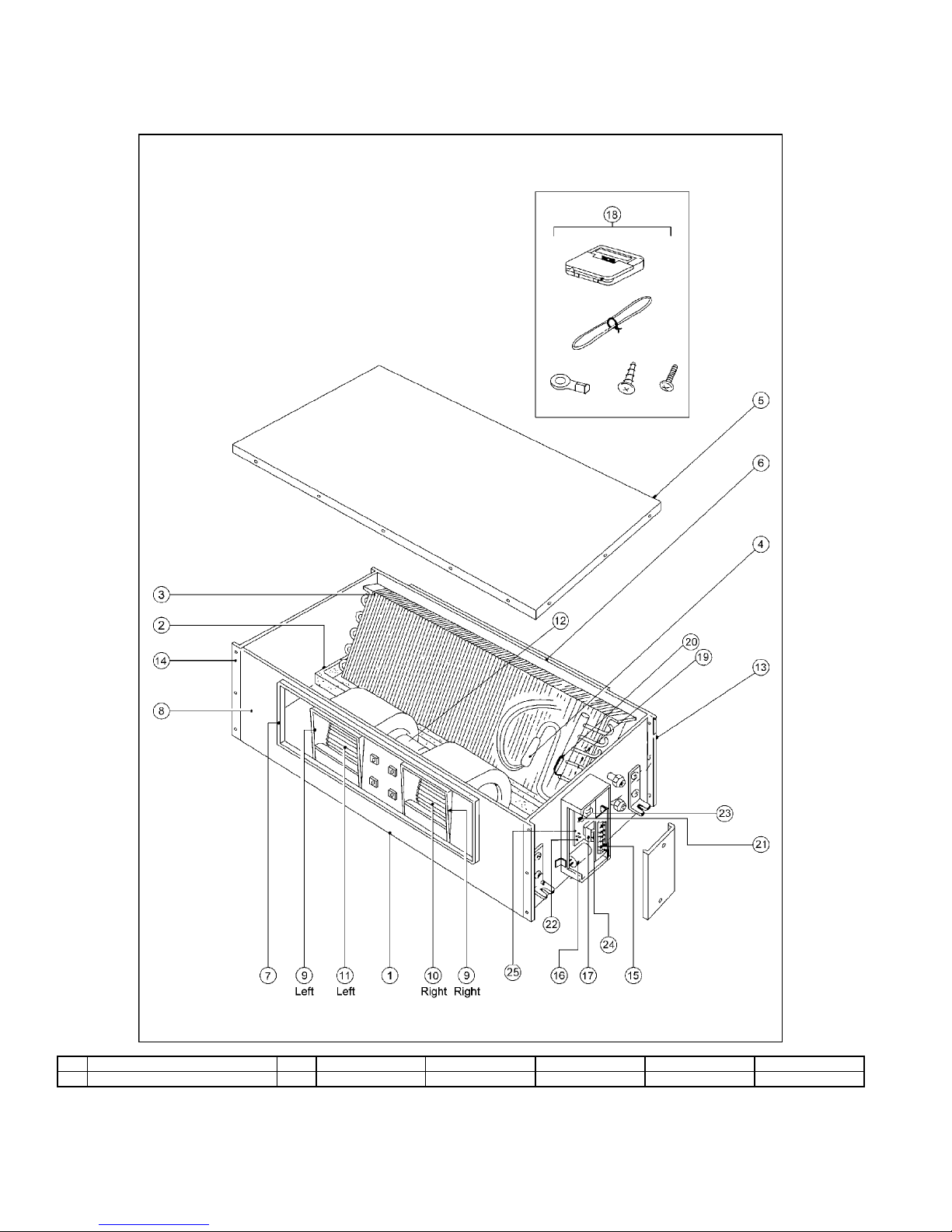

5.1. INDOOR UNIT

CS-A24BD2P, CS-A28BD2P, CS-A34BD2P, CS-A43BD2P, CS-A50BD2P

NO. PART DESCRIPTION QTY. CS-A24BD2P CS-A28BD2P CS-A34BD2P CS-A43BD2P CS-A50BD2P

25 Wire Harness Ass’y IHA 1P46-T04000 ←

←←

← ←

←←

← ←

←←

← ←

←←

←

All parts are supplied by Taiwan (Tamaco).

10 [MAICO] Printed in Malaysia
