Panasonic CS-ME7EB1E Manual de usuario

1 Safety Precautions 3

2 Features 5

3 Functions 6

3.1. REMOTE CONTROL 6

3.2. INDOOR UNIT 7

4 Product Specifications 9

5 Dimensions 10

5.1. Cassette Type 10

5.2. Grille 12

6 Refrigeration Cycle Diagram 13

7 Block Diagram 14

8 Wiring Diagram 15

9 Electronic Circuit Diagram 16

10 Operation Details (Functions & Protection) 18

rights reserved. Unauthorized copying and

distribution is a violation of law.

CS-ME7EB1E

CS-ME10EB1E

CS-ME12EB1E

CS-ME14EB1E

10.1. Simultaneous Operation Control 18

10.2. Airflow Direction Control 19

10.3. Indoor Fan Control 20

10.4. Drain Pump Control 22

10.5. Auto Restart Control 23

10.6. Other Indoor Unit Operation Functions 24

11 Installation Instructions 31

12 Disassembly of Parts 36

12.1. Detaching the fan motor and cross flow fan 36

12.2. Detaching the drain pump 37

12.3. Detaching the control board 37

12.4. Detaching the louver motor 39

13 Technical Data 40

Multi Air Conditioner

Please file and use this manual together with the service manual for Model No. CU-3E23CBPG, CU-

4E27CBPG, Order No. RAC0209005C2 and CU-3E18EBE, Order No. RAC0503011C2.

CONTENTS

PagePage

ORDER NO. RAC0602010C2

13.1. OPERATION CHARACTERISTICS 40

14 Exploded View & Replacement Parts List 45

14.1. Exploded View 45

14.2. Replacement Parts List 46

CS-ME7EB1E / CS-ME10EB1E / CS-ME12EB1E / CS-ME14EB1E

Operating instructions of this product can be referred at following Web site.

http://phaam.panasonic.com.my

1 Safety Precautions

CS-ME7EB1E / CS-ME10EB1E / CS-ME12EB1E / CS-ME14EB1E

Serviceability

−

− −

− Self diagnosis

−

− −

− Test Run at both Cooling and Heating rated frequency

Built-in drain pump

−

− −

− A drain pump is built in.

The pipe can rise to 200 mm above the drain outlet.

2 Features

Product

−

− −

− A single OUTDOOR unit enables air conditioning of up to four separate rooms

Remarks:

1. At least two indoor units must be connected.

2. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable

capacity range of outdoor unit. (Shown in the above table)

Example: The below indoor units combination is not possible to connect CU-3E23CBPG. (Total nominal capacity

of indoor unit is between 5.0kW and 10.0kW)

1) Two CS-ME7EB1E only. (Total nominal cooling capacity is 4.4kW)

2) Three CS-ME14EB1E only. (Total nominal cooling capacity is 12.0kW)

−

− −

− Inverter controlled for High energy efficiency and optimal comfort

−

− −

− New refrigerant R410A is used for protecting ozone layer

−

− −

− Lead - free P.C. Board

CS-ME7EB1E / CS-ME10EB1E / CS-ME12EB1E / CS-ME14EB1E

3 Functions

3.1. REMOTE CONTROL

CS-ME7EB1E / CS-ME10EB1E / CS-ME12EB1E / CS-ME14EB1E

3.2. INDOOR UNIT

CS-ME7EB1E / CS-ME10EB1E / CS-ME12EB1E / CS-ME14EB1E

4 Product Specifications

Model CS-ME7EB1E CS-ME10EB1E CS-ME12EB1E CS-ME14EB1E

Item Cassette Type

Power Source Outdoor power (single 230V 50Hz)

Air Volume Cooling m3/min. 9.1 9.6 9.5

Heating m3/min. 10.1 10.9 9.8

Noise Level Cooling

(Power) dB(A)

(dB) Hi:40(53)

Lo:32(45) Hi:41(54)

Lo:32(45) Hi:42(56)

Lo:32(45)

Heating

(Power) dB(A)

(dB) Hi:42(55)

Lo:32(45) Hi:42(56)

Lo:32(45) Hi:44(57)

Lo:34(47)

Moisture Removal L/h 1.3 1.6 1.8 2.3

Refrigeration

piping Connection Liquid mm 6.35 (1/4") Flare to the main unit

Gas mm 9.52 (3/8") Flare to the main unit

Type of pipe CZ-3F

Type of Indoor/Outdoor connecting cable mm 4x1.5mm

2flexible cord, type designation 245 IEC 57 (H05RN-F)

Drain opening mm VP20

Dimensions mm Height 185 x Width 770 x Depth 360

Net Weight kg 9.8 10.5

Fan Type Cross-flow fan

Motor Type DC brushless motor (ARW50A8P30AC)

Output W4P 25W 40V A98258

Heat exchanger Plate fin forced-draft

Adjustments Switches Wireless remote control

Timer Timer with ON and OFF times programmable

Temperature Electronic thermostat

Air filter PP honeycomb

* Specifications are subject to change without notice for further improvement.

CS-ME7EB1E / CS-ME10EB1E / CS-ME12EB1E / CS-ME14EB1E

5 Dimensions

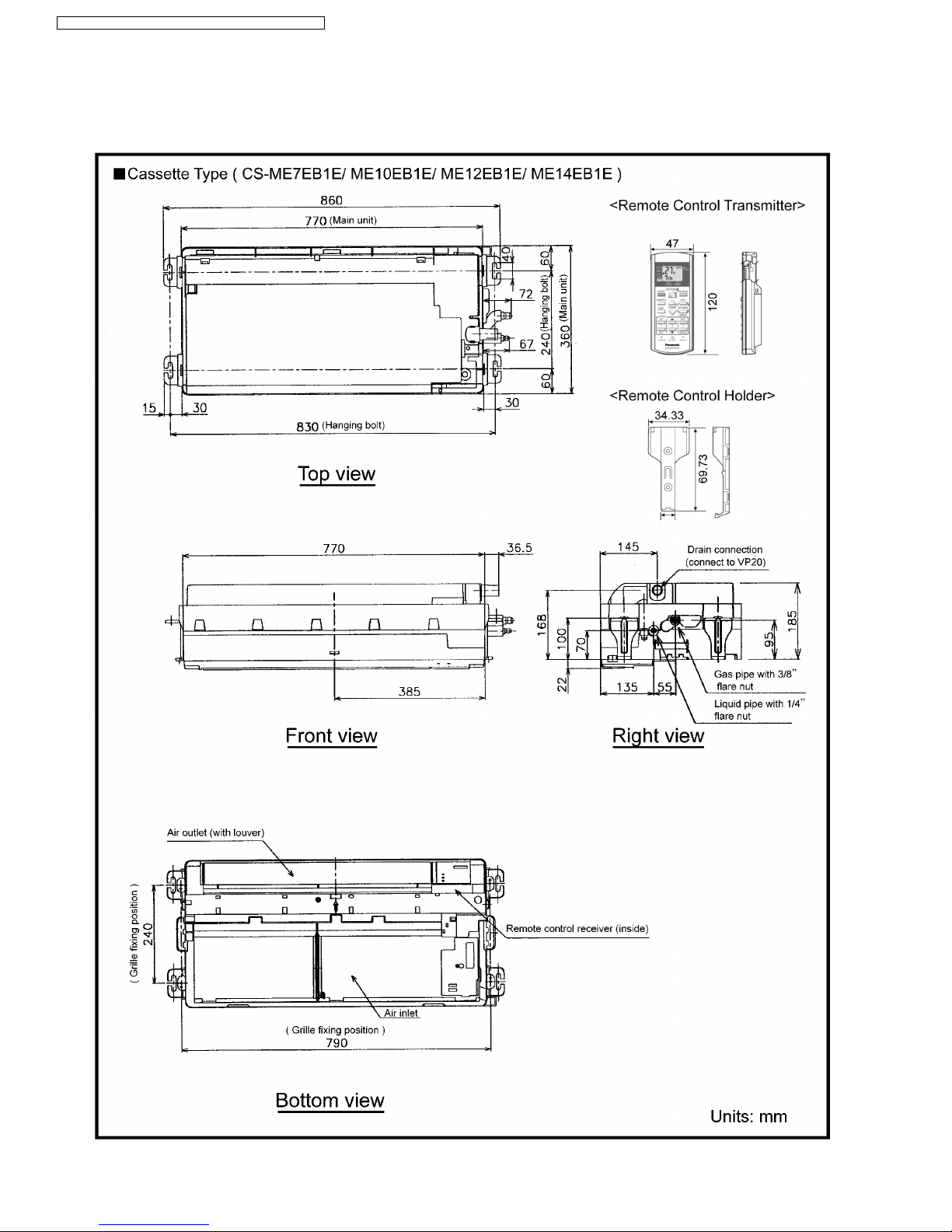

5.1. Cassette Type

CS-ME7EB1E / CS-ME10EB1E / CS-ME12EB1E / CS-ME14EB1E
