Panasonic CS-E9SB4RW Manual de usuario

Order No: PAPAMY1610080CE

Air Conditioner

Indoor Unit Outdoor Unit

CS-E9SB4RW CU-E9SB4R

Destination

Oceania

Please file and use this manual together with the service manual for Model No. CU-4E23QBR CU-4E27QBR CU-5E34QBR, Order

No. PAPAMY1404064CE

MODE

POWERFUL/

QUIET

TEMP

OFF/ON

TIMER

SET

CANCEL

OFF

123

FAN SPEED

SET CHECK C LOCK RESET

AC RC

AIR SWING

FAN

SPEED

AIR

SWING

AUTO

HEAT

COOL

DRY

FF/ON

CANCEL

OFF

HEC

LOCK

IMPORT

NT S

FET

NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic

Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced

with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service

or repair the products dealt with in this service information by anyone else could result in serious injury or death.

WARNING

PRECAUTION OF LOW TEMPERATURE

In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.

19. Exploded View and Replacement Parts List

19.1 Indoor Unit

17 16

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

O/I

I/I

48A

<Model: CS-E9SB4RW>

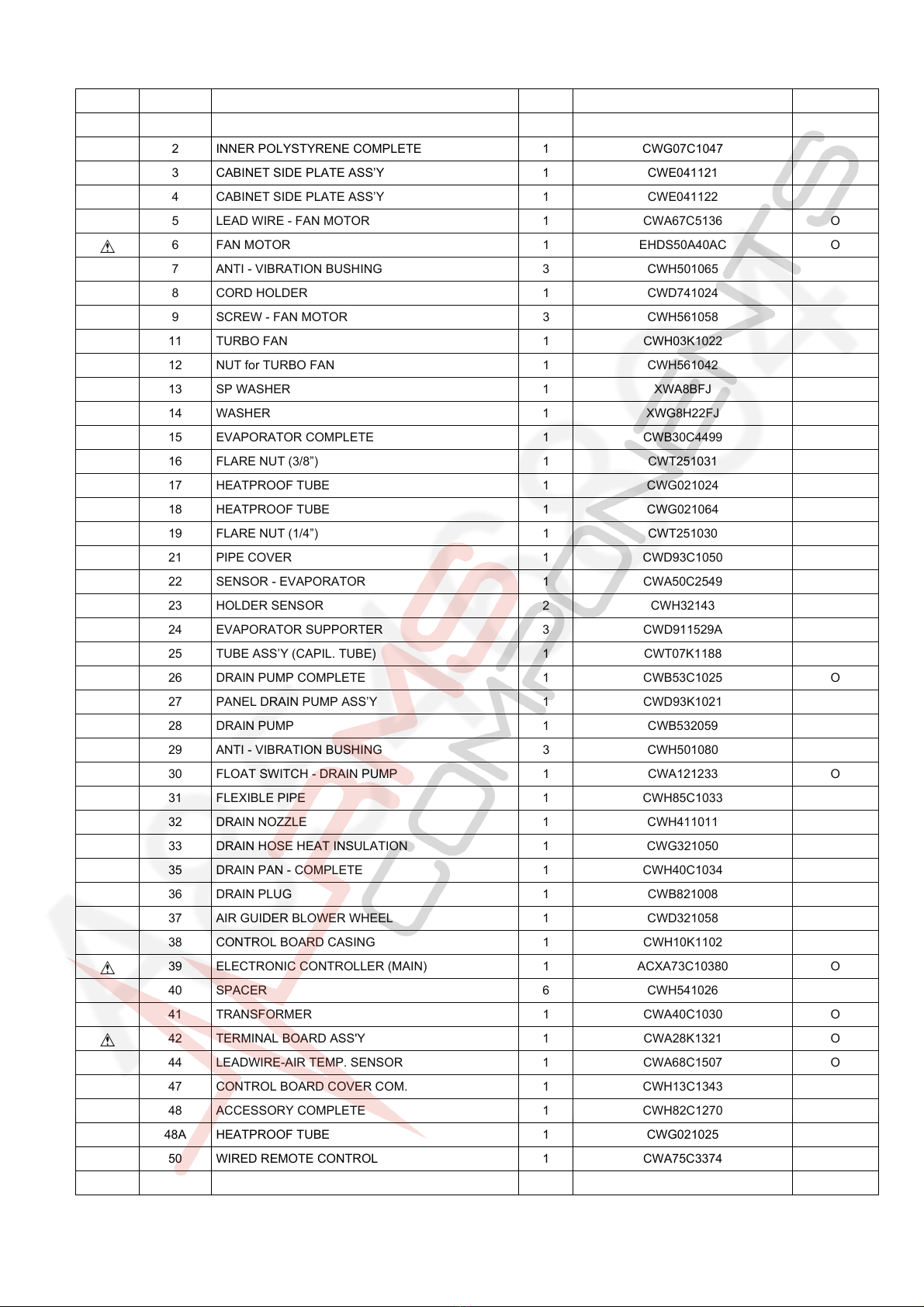

SAFETY REF. NO. PART NAME & DESCRIPTION QTY CS-E9SB4RW REMARK

1 BASE PAN ASS’Y 1 CWD52K1100

2 INNER POLYSTYRENE COMPLETE 1 CWG07C1047

3 CABINET SIDE PLATE ASS’Y 1 CWE041121

4 CABINET SIDE PLATE ASS’Y 1 CWE041122

5 LEAD WIRE - FAN MOTOR 1 CWA67C5136 O

6 FAN MOTOR 1 EHDS50A40AC O

7 ANTI - VIBRATION BUSHING 3 CWH501065

8 CORD HOLDER 1 CWD741024

9 SCREW - FAN MOTOR 3 CWH561058

11 TURBO FAN 1 CWH03K1022

12 NUT for TURBO FAN 1 CWH561042

13 SP WASHER 1 XWA8BFJ

14 WASHER 1 XWG8H22FJ

15 EVAPORATOR COMPLETE 1 CWB30C4499

16 FLARE NUT (3/8”) 1 CWT251031

17 HEATPROOF TUBE 1 CWG021024

18 HEATPROOF TUBE 1 CWG021064

19 FLARE NUT (1/4”) 1 CWT251030

21 PIPE COVER 1 CWD93C1050

22 SENSOR - EVAPORATOR 1 CWA50C2549

23 HOLDER SENSOR 2 CWH32143

24 EVAPORATOR SUPPORTER 3 CWD911529A

25 TUBE ASS’Y (CAPIL. TUBE) 1 CWT07K1188

26 DRAIN PUMP COMPLETE 1 CWB53C1025 O

27 PANEL DRAIN PUMP ASS’Y 1 CWD93K1021

28 DRAIN PUMP 1 CWB532059

29 ANTI - VIBRATION BUSHING 3 CWH501080

30 FLOAT SWITCH - DRAIN PUMP 1 CWA121233 O

31 FLEXIBLE PIPE 1 CWH85C1033

32 DRAIN NOZZLE 1 CWH411011

33 DRAIN HOSE HEAT INSULATION 1 CWG321050

35 DRAIN PAN - COMPLETE 1 CWH40C1034

36 DRAIN PLUG 1 CWB821008

37 AIR GUIDER BLOWER WHEEL 1 CWD321058

38 CONTROL BOARD CASING 1 CWH10K1102

39 ELECTRONIC CONTROLLER (MAIN) 1 ACXA73C10380 O

40 SPACER 6 CWH541026

41 TRANSFORMER 1 CWA40C1030 O

42 TERMINAL BOARD ASS'Y 1 CWA28K1321 O

44 LEADWIRE-AIR TEMP. SENSOR 1 CWA68C1507 O

47 CONTROL BOARD COVER COM. 1 CWH13C1343

48 ACCESSORY COMPLETE 1 CWH82C1270

48A HEATPROOF TUBE 1 CWG021025

50 WIRED REMOTE CONTROL 1 CWA75C3374

51 WIRELESS REMOTE CONTROL COMPLETE 1 CWA75C4351 O

SAFETY REF. NO. PART NAME & DESCRIPTION QTY CS-E9SB4RW REMARK

52 OPERATING INSTRUCTION 1 ACXF55-03830

53 INSTALLATION INSTRUCTION 1 ACXF60C01760

(Note)

All parts are supplied from PAPAMY, Malaysia (Vendor Code: 00029488).

“O” marked parts are recommended to be kept in stock.

19.2 CZ-BT20E (Front Grille Complete)

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

SAFETY REF. NO. PART NAME & DESCRIPTION QTY CZ-BT20E REMARK

1 FRONT GRILLE - COMPLETE 1 CWE11C5990

4 A.S MOTOR DC SINGLE 12V 250 OHM 2 CWA981105J O

5 BRACKET - A.S.MOTOR 1 CWD932522

6 VANE 4 CWE241159

7 SHAFT 6 CWH631038

8 SHAFT 2 CWH631045

9 CONNECTOR - SHAFT 4 CWH081007

10 BEARING 6 CWH641008 O

12 PLATE COVER FOR A.S.MOTOR 1 CWD911459

13 PLATE COVER FOR CONNECTING SHAFT 2 CWD911460

14 PLATE COVER FOR END SHAFT 1 CWD911461

21 ELECTRONIC CONT. (RECEIVER & INDICATOR) 1 CWA747507

22 LEAD WIRE - COMPLETE 1 CWA67C5576

24 INTAKE GRILLE 1 CWE221131

28 LEVER ARM 2 CWH651029

29 AIR FILTER 1 CWD001142 O

(Note)

All parts are supplied from PAPAMY, Malaysia (Vendor Code: 00029488).

“O” marked parts are recommended to be kept in stock.

19.3 Outdoor Unit

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

45A

23A

23B

10 14

SAFETY REF NO. DESCRIPTION & NAME QTY. CU-E9SB4R REMARK

1 CHASSIS ASSY 1 CWD52K1277

2 SOUND PROOF MATERIAL 1 CWG302719

3 FAN MOTOR BRACKET 1 CWD541167

4 SCREW - FAN MOTOR BRACKET 2 CWH551217

5 FAN MOTOR 1 L6CAYYYL0049 O

6 SCREW - FAN MOTOR MOUNT 4 CWH55252J

7 PROPELLER FAN ASSY 1 CWH03K1066

8 NUT - PROPELLER FAN 1 CWH56053J

9 COMPRESSOR 1 5RS102XNA21 O

10 ANTI - VIBRATION BUSHING 3 CWH50077

11 NUT - COMPRESSOR MOUNT 3 CWH561096

12 CONDENSER 1 CWB32C3218

14 DISCHARGE MUFFLER (4-WAY VALVE) 1 CWB121010

15 HOLDER - COUPLING 1 CWH351233

16 2 WAYS VALVE (LIQUID) 1 CWB021400 O

17 3 WAYS VALVE (GAS) 1 CWB011581 O

19 REACTOR 1 G0C193J00002 O

20 TERMINAL COVER 1 CWH171039A

21 NUT-TERMINAL COVER 1 CWH7080300J

22 SOUND PROOF BOARD 1 CWH151274

23A SOUND PROOF MATERIAL 1 CWG302949

23B SOUND PROOF MATERIAL 1 CWG302701

25 CONTROL BOARD COVER (TOP) 1 CWH131264

26 ELECTRONIC CONTROLLER - MAIN 1 ACXA73C10390R O

27 TERMINAL BOARD ASSY 1 CWA28K1110J O

28 CABINET SIDE PLATE COMPLETE 1 CWE04C1296

29 SENSOR COMPLETE (AIR & PIPE TEMP.) 1 CWA50C2893 O

30 CABINET SIDE PLATE (LEFT) 1 CWE041579A

31 CABINET FRONT PLATE CO. 1 CWE06C1360

32 CABINET TOP PLATE 1 CWE031148A

33 CONTROL BOARD COVER 1 CWH131470

34 CONTROL BOARD COVER COMPLETE 1 CWH13C1253

35 TUBE COMPLETE (CAP-TUBE) 1 ACXT00C05210

38 4 WAYS VALVE 1 CWB001063 O

39 V-COIL COMPLETE (4-WAYS VALVE) 1 CWA43C2447 O

40 WIRE NET 1 CWD041166A

44 SENSOR COMPLETE (COMP. TEMP.) 1 CWA50C2894 O

45 DRAIN HOSE 1 CWH5850080

45A PACKING 1 CWB81012

46 BAG COMPLETE 1 CWG87C900

52 TERMINAL BOARD ASSY 1 CWA28K1281 O

53 ELECTRONIC CONTROLLER - DEMAND CONTROL 1 CWA747605 O

(NOTE)

All parts are supplied from PAPAMY, Malaysia (Vendor Code: 00029488).

“O” marked parts are recommended to be kept in stock.

Printed in Malaysia

FY1016-0
