Adaptor Maintenance Screen Documentation

Table of Contents

Preparation

System Requirements....................................................................................................2

Changing Your Computer’s IP Address .........................................................................2

Using the Maintenance Screen

Accessing the Maintenance Screen...............................................................................5

Maintenance Screen Overview ......................................................................................5

Updating the Adaptor’s Firmware ..................................................................................6

Confirming the Adaptor’s Status ....................................................................................6

Changing the Adaptor’s IP Address...............................................................................7

Changing the Adaptor’s Password ................................................................................ 7

Viewing the Terminal Adaptor List..................................................................................8

De-registering a Terminal...............................................................................................8

Trademarks

• Microsoft, Windows, Windows Vista, and Internet Explorer are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

• Mac OS is a registered trademark of Apple Inc.

• Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.

• Mozilla is a registered trademark of the Mozilla Foundation.

• Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.

•HD-PLC or HD-PLC mark is a registered trademark or trademark of Panasonic Corporation in Japan and in other

countries.

• All other trademarks identified herein are the property of their respective owners.

This document describes how to access the maintenance screen of the BL-PA300A PLC Adaptor and perform the

following maintenance.

– Update the adaptor’s firmware (see page 6)

– Confirm adaptor information, such as firmware version, MAC address, etc. (see page 6)

– Change adaptor settings, such as IP address, registration information, etc. (see page 7)

Note

• This product is referred to as “the adaptor” in this document.

PNQX1481ZA

Preparation

System Requirements

Changing Your Computer’s IP

Address

In order to access the adaptor’s maintenance screen,

you must temporarily change the IP address assigned to

your computer.

Note

• Before you change the IP address of your computer,

note the IP address and network settings already

assigned to your computer.

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

• If you plan to update the adaptor’s firmware,

download the latest version of the adaptor’s firmware

from the Panasonic support site

(http://panasonic.co.jp/pcc/products/en/plc/) and

save it on the computer before you change the IP

address of the computer.

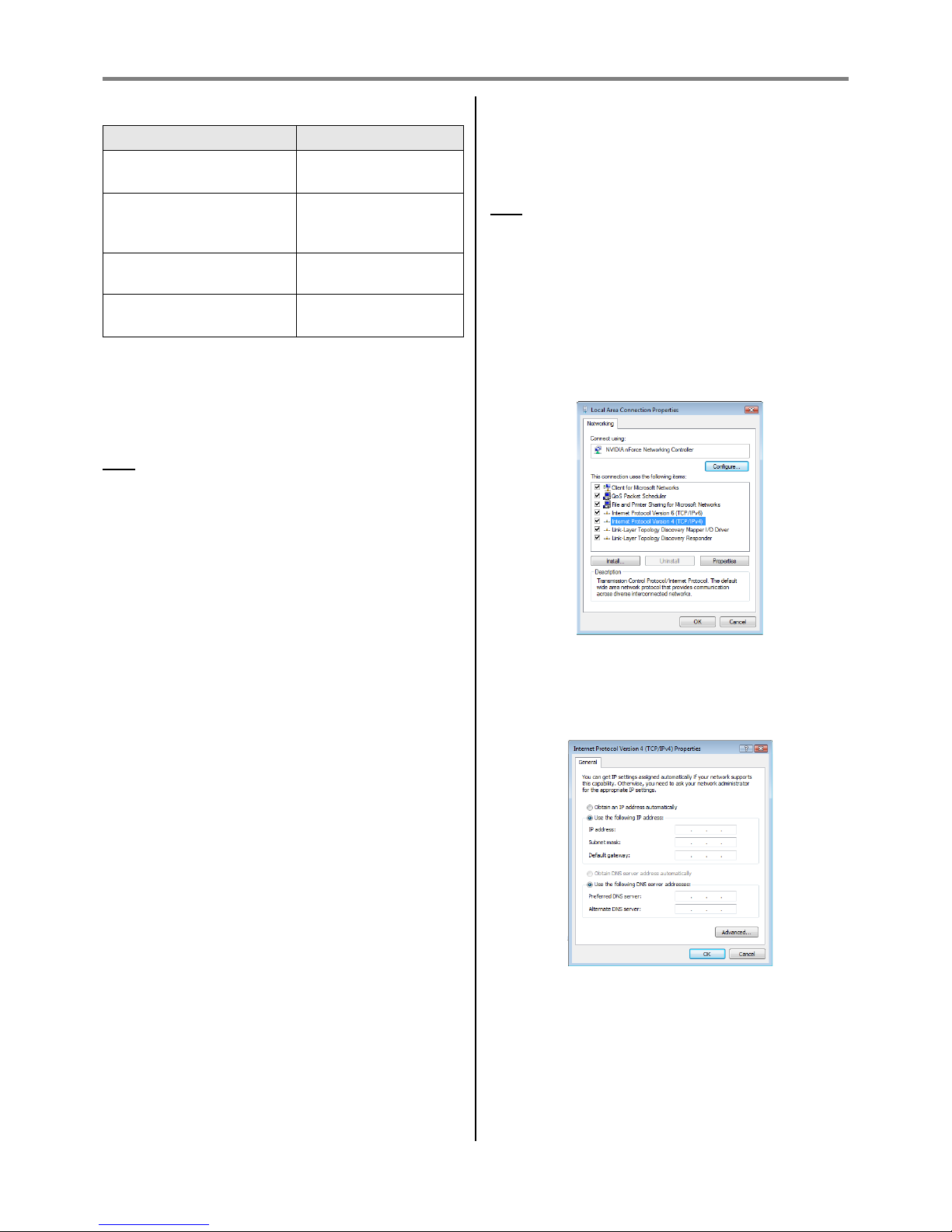

Windows Vista: Changing Your Computer’s IP

Address

This procedure must be performed by either the

“Administrator” user, or a user assigned with

administrator level privileges. Refer to the help file

supplied with the operating system for more information.

Note

• The procedure described here may vary slightly if

Control Panels are displayed using the “Classic”

style.

1. Click [Start]J[Control Panel]J[View network status

and tasks].

2. Click [View status]JClick [Properties] under [Local

Area Connection Status].

3. Select [Internet Protocol Version 4 (TCP/IPv4)], then

click [Properties].

4. Select [Use the following IP address:], then enter the

following values:

– IP address: 192.168.0.xxx (xxx=1–254. Note, 249

cannot be used.)

– Subnet mask: 255.255.255.0

5. Click [OK], then click [X] to finish.

Operating System Web Browser

Microsoft®Windows Vista®Internet Explorer®

(version 7 or later)

Microsoft®Windows®XP,

Microsoft®Windows®

2000

Internet Explorer®

(version 6 or later)

Mac OS®X Safari

(version 2.0.1 or later)

Linux®Mozilla®

(1.7.13 or later)

Preparation

Windows XP: Changing Your Computer’s IP

Address

This procedure must be performed by either the

“Administrator” user, or a user assigned with

administrator level privileges. Refer to the help file

supplied with the operating system for more information.

1. Click [Start]J[My Computer]J[My Network Places].

2. Click [View network connections].

3. Right-click [Local Area Connection], then click

[Properties].

4. Select [Internet Protocol (TCP/IP)], then click

[Properties].

5. Select [Use the following IP address:], then enter the

following values:

– IP address: 192.168.0.xxx (xxx=1–254. Note, 249

cannot be used.)

– Subnet mask: 255.255.255.0

6. Click [OK], then click [OK] to finish.

Windows 2000: Changing Your Computer’s IP

Address

This procedure must be performed by either the

“Administrator” user, or a user assigned with

administrator level privileges. Refer to the help file

supplied with the operating system for more information.

1. Click [Start]J[Settings]J[Control Panel].

2. Click [Network and Dial-up Connections].

3. Right-click [Local Area Connection], then click

[Properties].

4. Select [Internet Protocol (TCP/IP)], then click

[Properties].

5. Select [Use the following IP address:], then enter the

following values:

– IP address: 192.168.0.xxx (xxx=1–254. Note, 249

cannot be used.)

– Subnet mask: 255.255.255.0

6. Click [OK], then click [OK] to finish.

Preparation

Mac OS X: Changing Your Computer’s IP

Address

Refer to the help file supplied with the operating system

for information.

Linux: Changing Your Computer’s IP Address

Refer to the help file supplied with the operating system

for information.

Using the Maintenance Screen

Using the Maintenance Sc reen

Accessing the Maintenance Screen

Follow the procedure below after you have changed the

IP address of the computer.

1. Connect the adaptor and computer using a LAN

cable.

2. Start the computer’s web browser.

• See page 2 for recommended web browsers.

3. Enter the adaptor’s IP address in the web browser’s

address bar.

• Default: http://192.168.0.249

4. Enter the adaptor’s user name and password.

– Default user name: BL-PA300

– Default password: 999999

• The screen shown here depicts the screen shown

when using Windows XP.

5. Click [OK].

• The [Status] screen of the maintenance screen is

displayed.

Note

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

Maintenance Screen Overview

A. Model name

B. Name of current screen

C. Click to jump to the corresponding page

D. Click to restart the adaptor

E. Click to view copyright information

F. Contents of the current screen

G. Click to update the displayed information

Note

• The screen shown here depicts the screen shown

when accessing a terminal adaptor.

• After connecting the computer to an adaptor and

accessing its maintenance screen, we recommend

restarting the computer before connecting it to

another adaptor and accessing the other adaptor’s

maintenance screen.

You may reset the computer’s ARP table if you do not

want to restart the computer. Refer to the help file

supplied with the operating system for more

information.

Resetting the ARP Table when Using Windows

1. Display the command prompt by clicking [Start]J

[All Programs]J[Accessories]J[Command

Prompt].

2. Enter “arp -d” (the quotation marks are not

needed), then press [Enter].

Wall outlet

LAN cable (included)

PLC Adaptor

Using the Maintenance Screen

Updating the Adaptor’s Firmware

Make sure you download the latest version of the

adaptor’s firmware from the Panasonic support site

(http://panasonic.co.jp/pcc/products/en/plc/) and

save it to the computer before changing the computer’s

IP address and accessing the maintenance screen.

1. Access the maintenance screen of the

corresponding adaptor (see page 5).

2. Click [Update Firmware].

3. Click [Browse], then select the firmware file, then

click [Open].

4. Click [Start].

5. Click [OK] when prompted.

• The firmware will be updated, and then the adaptor

will automatically restart.

• Do not disconnect the adaptor from the wall outlet,

or disconnect the LAN cable until the update is

completed.

Note

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

• After you have updated the firmware, confirm the

adaptor’s firmware version on the [Status] screen.

• Registration information is not erased when updating

the firmware.

Confirming the Adaptor’s Status

You can confirm the following information on the [Status]

screen.

1. Access the maintenance screen of the

corresponding adaptor (see page 5).

2. Click [Status].

Note

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

Item Description

Boot Version Displays the adaptor’s boot

version.

Firmware Version Displays the adaptor’s firmware

version.

Operation Mode Indicates whether the adaptor is

functioning as a master or a

terminal.

MAC Address of

the PLC Adaptor

Displays the MAC address of the

connected adaptor.

Another PLC

Master Adaptor

Indicates whether other master

adaptors exist on the network.

Performance will be affected if

other master adaptors exist on the

network.

PLC Link Status

(Only displayed

when accessing a

terminal adaptor)

Indicates whether the adaptor is

currently connected to an HD-PLC

network.

MAC Address of

Master (Only

displayed when

accessing a

terminal adaptor)

Displays the MAC address of the

master adaptor that the terminal

adaptor is registered to.

Using the Maintenance Screen

Changing the Adaptor’s IP Address

You may change the adaptor’s IP address and subnet

mask if necessary.

1. Access the maintenance screen of the

corresponding adaptor (see page 5).

2. Click [Option].

3. Enter the desired IP address.

4. Change the subnet mask if necessary.

5. Click [Set], then click [OK] when prompted.

6. Click [Restart].

• The adaptor will restart, and the new settings will

take effect. The new IP address must be entered in

the web browser’s address bar in order to access

the adaptor’s maintenance screen again.

Note

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

• We recommend changing the adaptor’s IP address

and subnet mask to values that are compatible with

your network.

• When changing the adaptor’s IP address, specify an

address that is not used by other devices on the

network.

• This screen is different for master and terminal

adaptors.

Changing the Adaptor’s Password

You may change the adaptor’s password if necessary.

The password is required to access the maintenance

screen.

1. Access the maintenance screen of the

corresponding adaptor (see page 5).

2. Click [Option], then click the [Account] tab.

3. Enter the desired password, 6-12 characters (only

A-Z, a-z, and 0-9 can be used), then enter the

password again for confirmation.

• Passwords are case-sensitive.

4. Click [Set], then click [OK] when prompted.

5. Click [Restart].

• The adaptor will restart, and the new settings will

take effect. The new password must be entered in

order to access the adaptor’s maintenance screen

again.

Note

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

• To increase security, we recommend changing the

adaptor’s password.

• Do not forget the password. If the password is

forgotten, you can reset the password to the default

value (999999) by resetting the adaptor. If the

adaptor is reset, all registration information is erased.

• Do not disclose the password.

• The user name cannot be changed.

• This screen is different for master and terminal

adaptors.

Using the Maintenance Screen

Viewing the Terminal Adaptor List

You can access the master adaptor’s maintenance

screen and view a list of all registered terminal adaptors.

1. Access the maintenance screen of the desired

adaptor (see page 5).

2. Click [Option], then click the [Terminal List/Delete]

tab.

• The MAC addresses of all terminal adaptors

registered to the master adaptor are displayed.

• The MAC address is displayed on the bottom of the

adaptor.

Note

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

De-registering a Terminal

You can access the master adaptor’s maintenance

screen and delete a terminal adaptor’s registration. We

recommend deleting a terminal adaptor’s registration

when:

– Handing the adaptor over to another party

– Disposing of the adaptor

– The adaptor has been lost

1. Access the maintenance screen of the desired

adaptor (see page 5).

2. Click [Option], then click the [Terminal List/Delete]

tab.

• The MAC addresses of all terminal adaptors

registered to the master adaptor are displayed.

• The MAC address is displayed on the bottom of the

adaptor.

3. Click the checkbox to select the terminal that you

want to de-register, and then click [OK] when

prompted.

• The [Restart] screen is displayed.

4. Click [Restart].

• The adaptor will restart.

Note

• After you have completed adaptor maintenance,

restore the computer’s IP address and network

settings to their original values.

• After the master has restarted, the de-registered

terminal cannot be used with the master. If you want

to use the terminal again, follow the procedure

described in the Operating Instructions and register

the terminal.

Tabla de contenido

Preparación

Requisitos del sistema ................................................................................................. 10

Cómo cambiar la dirección IP de su computadora ......................................................10

Cómo usar la pantalla de mantenimiento

Cómo ingresar a la pantalla de mantenimiento ........................................................... 13

Visión general de la pantalla de mantenimiento ..........................................................13

Cómo actualizar el firmware del adaptador .................................................................14

Cómo confirmar el estado del adaptador.....................................................................14

Cómo cambiar la dirección IP del adaptador ............................................................... 15

Cómo cambiar la contraseña del adaptador ................................................................15

Cómo visualizar la lista de adaptadores terminales.....................................................16

Cómo dar de baja un terminal......................................................................................16

Marcas comerciales

• Microsoft, Windows, Windows Vista e Internet Explorer son marcas comerciales registradas o marcas

comerciales de Microsoft Corporation en los Estados Unidos y/o en otros países.

• Mac OS es una marca comercial registrada de Apple Inc.

• Linux es la marca comercial registrada de Linus Torvalds en los EE.UU. y en otros países.

• Mozilla es una marca comercial registrada de Mozilla Foundation.

• Las pantallas de los productos Microsoft fueron reimpresas con autorización de Microsoft Corporation.

•LasmarcasHD-PLC o HD-PLC son marcas registradas o marcas comerciales de Panasonic Corporation en

Japón y otros países.

• Todas las demás marcas comerciales identificadas en el presente son propiedad de sus respectivos dueños.

Este documento describe cómo ingresar a la pantalla de mantenimiento del Adaptador PLC BL-PA300A y realizar el

siguiente mantenimiento.

– Actualizar el firmware del adaptador (consulte página 14)

– Confirmar la información del adaptador, como versión del firmware, dirección MAC, etc. (consulte página 14)

– Cambiar las configuraciones del adaptador, como dirección de IP, información de registro, etc. (consulte

página 15)

Nota

• En este documento nos referimos a este producto como “el adaptador”.

Preparación

Preparació n

Requisitos del sistema

Cómo cambiar la dirección IP de su

computadora

Para ingresar a la pantalla de mantenimiento del

adaptador, debe cambiar temporalmente la dirección IP

asignada a su computadora.

Nota

• Antes de cambiar la dirección IP asignada a su

computadora, anote la dirección de IP y las

configuraciones de red ya asignadas a su

computadora.

• Una vez que haya finalizado el mantenimiento del

adaptador, restablezca la dirección IP y las

configuraciones de red de su computadora a sus

valores originales.

• Si su intención es actualizar el firmware del

adaptador, descargue la última versión del firmware

del adaptador del sitio de asistencia de Panasonic

(http://panasonic.co.jp/pcc/products/en/plc/) y

guárdela en la computadora antes de cambiar la

dirección IP de la computadora.

Windows Vista: cómo cambiar la dirección IP

de su computadora

Este procedimiento debe ser realizado por el usuario

“Administrador” o un usuario asignado con privilegios de

nivel de administrador. Consulte el archivo de ayuda

que se suministra con el sistema operativo para obtener

más información.

Nota

• El procedimiento aquí descrito puede variar

levemente si los Paneles de control aparecen

usando el estilo “Clásico”.

1. Haga clic en [Start] (Iniciar)J[Control Panel] (Panel

de control)J[View network status and tasks] (Ver

estado y tareas de la red).

2. Haga clic en [View status] (Ver estado)JHaga clic

en [Properties] (Propiedades) bajo [Local Area

Connection Status] (Estado de conexión de área

local).

3. Seleccione [Internet Protocol Version 4 (TCP/IPv4)]

(Versión de protocolo de Internet (TCP/IPv4)), y

luego haga clic en [Properties] (Propiedades).

4. Seleccione [Use the following IP address:] (Utilizar la

siguiente dirección IP:), luego ingrese los siguientes

valores:

– Dirección IP: 192.168.0.xxx (xxx=1–254. Nota, no

se puede utilizar 249.)

– Máscara de subred: 255.255.255.0

5. Haga clic en [OK] (Aceptar), luego haga clic en [X]

para finalizar.

Sistema de operación Navegador Web

Microsoft®Windows Vista®Internet Explorer®

(versión 7 o posterior)

Microsoft®Windows®XP,

Microsoft®Windows®

2000

Internet Explorer®

(versión 6 o posterior)

Mac OS®X Safari

(versión 2.0.1 o

posterior)

Linux®Mozilla®

(1.7.13 o posterior)

Otros manuales para BLPA300A - HD-PLC ETHERNET ADAPTOR

Tabla de contenidos

Idiomas:

Otros manuales de Adaptador de Panasonic

Panasonic

Panasonic ET-UW100 Manual de usuario

Panasonic

Panasonic CA-PANSC1U Manual de usuario

Panasonic

Panasonic DM0706SY0 Manual de instrucciones

Panasonic

Panasonic WV-PS03 Manual de usuario

Panasonic

Panasonic BB-HCA7 Manual de usuario

Panasonic

Panasonic CF-AA6503A Series Manual de usuario

Panasonic

Panasonic WV-PS31 Manual de usuario

Panasonic

Panasonic CZ-TACG1 Manual de usuario

Panasonic

Panasonic DBUB-P705 Manual de usuario

Panasonic

Panasonic AK-HBA3500G Manual de usuario

Panasonic

Panasonic WV-QAT502-W Manual de usuario

Panasonic

Panasonic BL-PA300KTA - High Definition Power Line Communication Ethernet Adaptor... Manual de usuario

Panasonic

Panasonic KX-TGA575S Manual de instrucciones

Panasonic

Panasonic BLPA100KTA - HD-PLC ETHERNET ADAPT.2PK Manual de usuario

Panasonic

Panasonic AW-PS550N Manual de usuario

Panasonic

Panasonic BL-PA100KT Manual de usuario

Panasonic

Panasonic AW-PS600 Manual de usuario

Panasonic

Panasonic AW-PS600 Manual de usuario

Panasonic

Panasonic AWPS505 - AC ADAPTOR Manual de usuario

Panasonic

Panasonic CF-AA5713A Manual de usuario

Panasonic

Panasonic BB-HCA3A Manual de usuario

Panasonic

Panasonic AXA1A100 Manual de usuario

Panasonic

Panasonic CZ-TAW1 Manual de usuario

Panasonic

Panasonic AW-PS300 Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
