AJ- P

AC Adaptor

Operating Instructions

indicates safety information.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (service) instructions in

the literature accompanying the appliance.

FCC Note:

This device complies with Part 15 of the FCC Rules. To assure

continued compliance follow the attached installation

instructions and do not make any unauthorized modifications.

This equipment has been tested and found to comply with the

limits for a class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense.

indicates safety information.

CAUTION:

Do not install or place this unit in a bookcase, built-

in cabinet or any other confined space in order to

maintain adequate ventilation. Ensure that curtains

and any other materials do not obstruct the

ventilation to prevent risk of electric shock or fire

hazard due to overheating.

Note:

The rating plate (serial number plate) is on the bottom of

the unit.

WARNING:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD AND ANNOYING INTERFERENCE, USE

THE RECOMMENDED ACCESSORIES ONLY.

$If the unit is not going to be used for length of time, turn the

power OFF and disconnect the power plug from the AC outlet.

Features

This unit is an AC adaptor with XLR 4-pin specifications.

It is used to supply power to a laptop editor, video camera or other

product from AC power supply.

Specifications

Rated input voltage:

AC 120 V, 50 – 60 Hz, 250 W

Rated output voltage:

DC OUT (XLR 4-pin), DC 12 V, 13 A

Weight:

Approx. 6.38 lb (2.9 kg)

Dimensions (WaHaD):

3-11/16˝a5-9/16˝a13˝ (93a140.5a329 mm)

(excluding cord hooks)

Ambient operating temperature:

32°F to 104°F (0°C to 40°C)

Ambient operating humidity:

Less than 80% (RH)

Accessories supplied:

AC power cord a1

DC cable a1

Contents

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Parts and their functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Parts and their functions

POWER

FANWARNING

PUSH

2POWER lamp

4DC OUT connector (XLR)

The power to the laptop editor or video camera is supplied through

this connector.

Use the accessory DC cable to connect it to the DC IN connector

on the product to be connected.

Pin signal:

1. GND

2. N.C

3. N.C

4. +12V

1POWER switch

This is the power switch.

3FAN WARNING

When the fan stops, this lamp

lights to indicate a malfunction

in the product. When this

symptom occurs, switch off

the power

Parts and their functions

AC IN

5FAN

6AC IN socket

This is the unit’s power socket

(3-pin). Use the accessory

power cord to the AC power

outlet.

Connections

Before proceeding with the connections, turn off the power to all

the products.

1. After having performed the connections, connect the power cord to

the power outlet.

2. Set the unit’s POWER switch to ON.

3. Turn on the power to the connected products.

PANASONIC BROADCAST & DIGITAL SYSTEMS COMPANY

DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA

Executive Office:

3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500

EASTERN ZONE:

One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621

Mid-Atlantic/New England:

One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621

Southeast Region:

1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024

(770) 338-6835

Central Region:

1707 N Randall Road E1-C-1, Elgin, IL 60123 (847) 468-5200

WESTERN ZONE:

3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500

Dallas Region:

6226 Abington Way, Houston, TX 77008 (713) 802-2726

No. CA/Northwest Region:

5870 Stoneridge, #3, Pleasanton, CA 94588 (925) 416-5108

Government Marketing Department:

52 West Gude Drive, Rockville, MD 20850 (301) 738-3840

PARTS INFORMATION & ORDERING:

9:00 a.m. –5:00 p.m. (EST) (800) 334-4881/24 Hr. Fax (800) 334-4880

TECHNICAL SUPPORT:

Emergency 24 Hour Parts & Service (800) 222-0741

TRAINING INFORMATION:

Digital System Products - (201) 392-6852

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010

Panasonic de Mexico S.A. de C.V.

Av angel Urraza Num. 1209 Col. de Valle 03100 Mexico,

D.F. (52) 1 951 2127 P

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Adaptador de Panasonic

Panasonic

Panasonic CF-AA5713A Manual de usuario

Panasonic

Panasonic AW-PS600 Manual de usuario

Panasonic

Panasonic AG-IA823P Manual de usuario

Panasonic

Panasonic AW-PS600 Manual de usuario

Panasonic

Panasonic CF-AA Series Manual de usuario

Panasonic

Panasonic TYTAD20 Manual de usuario

Panasonic

Panasonic BL-PA300KTA - High Definition Power Line Communication Ethernet Adaptor... Manual de usuario

Panasonic

Panasonic CZ-CFUSCC1 Manual de usuario

Panasonic

Panasonic CF-AA5803A Manual de usuario

Panasonic

Panasonic BB-HCA7A Manual de usuario

Panasonic

Panasonic BL-PA100KT Manual de usuario

Panasonic

Panasonic AW-PS300 Manual de usuario

Panasonic

Panasonic CA-PANSC1U Manual de usuario

Panasonic

Panasonic KX-PS13 Manual de usuario

Panasonic

Panasonic CA-PANSC1U Manual de usuario

Panasonic

Panasonic AG-B15 Manual de usuario

Panasonic

Panasonic WL16B Manual de usuario

Panasonic

Panasonic BB-HCA3A Manual de usuario

Panasonic

Panasonic KV-SSM100 Manual de servicio

Panasonic

Panasonic WV-PS03 Manual de usuario

Panasonic

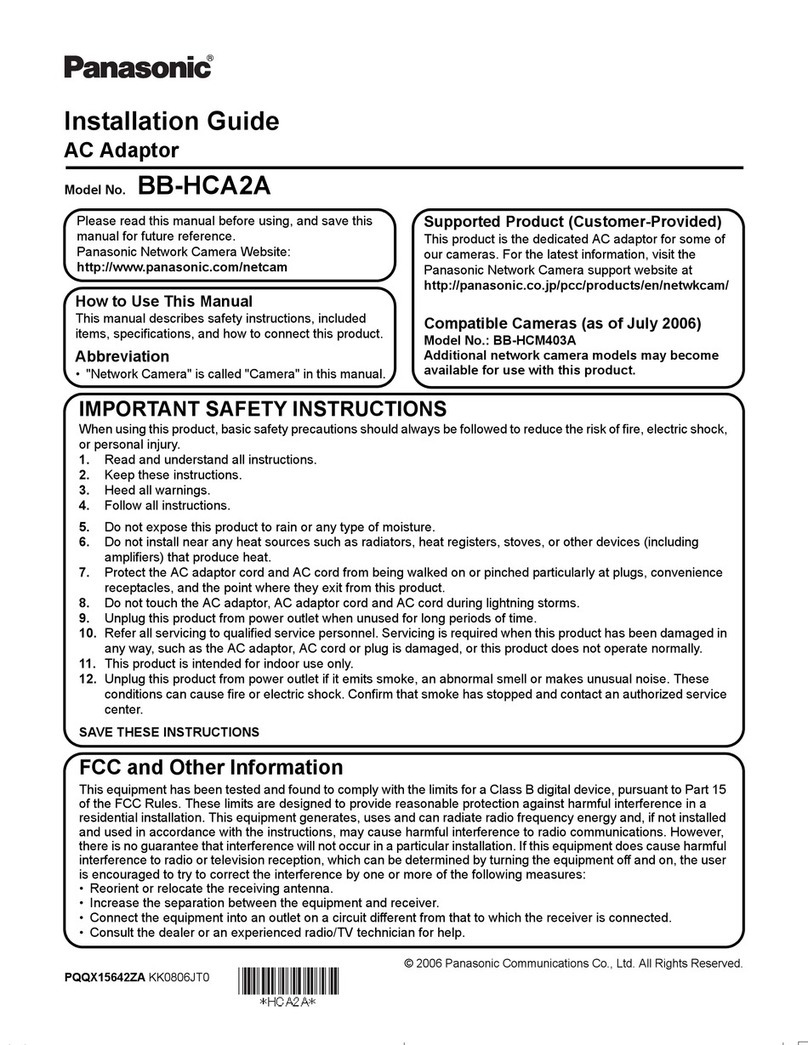

Panasonic BB-HCM403A Manual de usuario
