Getting Started

HD-PLC Ethernet Adaptor

Power Line Communication

Model No.

BL-PA100KTA

Included items

BL-PA100A

Pre-configured as the "master" adaptor,

as indicated by the seal affixed to the

top of the adaptor.

BL-PA100A

Pre-configured as the "terminal" adaptor.

AC Cord

Connects each adaptor to the wall outlet.

Example of an integrated HD-PLC network

See reverse side for installation instructions.

INTERNET

Master

Network printer

Wall outlet Wall outlet

Wall outlet

Hub

Network camera

Modem

Router PC

Terminal

(Add-on adaptor)

This document is written to be used with the BL-PA100KTA,

which is a pre-configured set of 2 adaptors.

No settings are required to use these adaptors.

Simply follow the instructions provided in this document.

Refer to the included Operating Instructions for safety,

reconfiguration, and troubleshooting information.

Additional adaptors

can be added later,

for a total of 16

adaptors including

the master.

See the Operating

Instructions for

details.

Set of 2 Adaptors (Master and Terminal)

1Connect the master adaptor (indicated by the

"MASTER" seal) to the wall outlet using the

included AC cord.

For best results

We recommend connecting the adaptors directly to a wall outlet. Avoid connecting high power-consuming appliances to the same

wall outlet. Additionally, connecting an adaptor to a uninterruptable power supply (UPS) or backup power supply device is not

recommended.

While connecting the adaptors to a wall outlet is recommended, keep the following in mind if you must connect an adaptor to a

power strip:

- Make sure the power strip does not a have a noise filter or a surge protector, as these features may interfere with the

performance of your adaptors.

- Do not connect the adaptor to a power strip that receives power from another power strip.

- Use a power strip with an AC cord that is as short as possible.

For more information, refer to the included Operating Instructions.

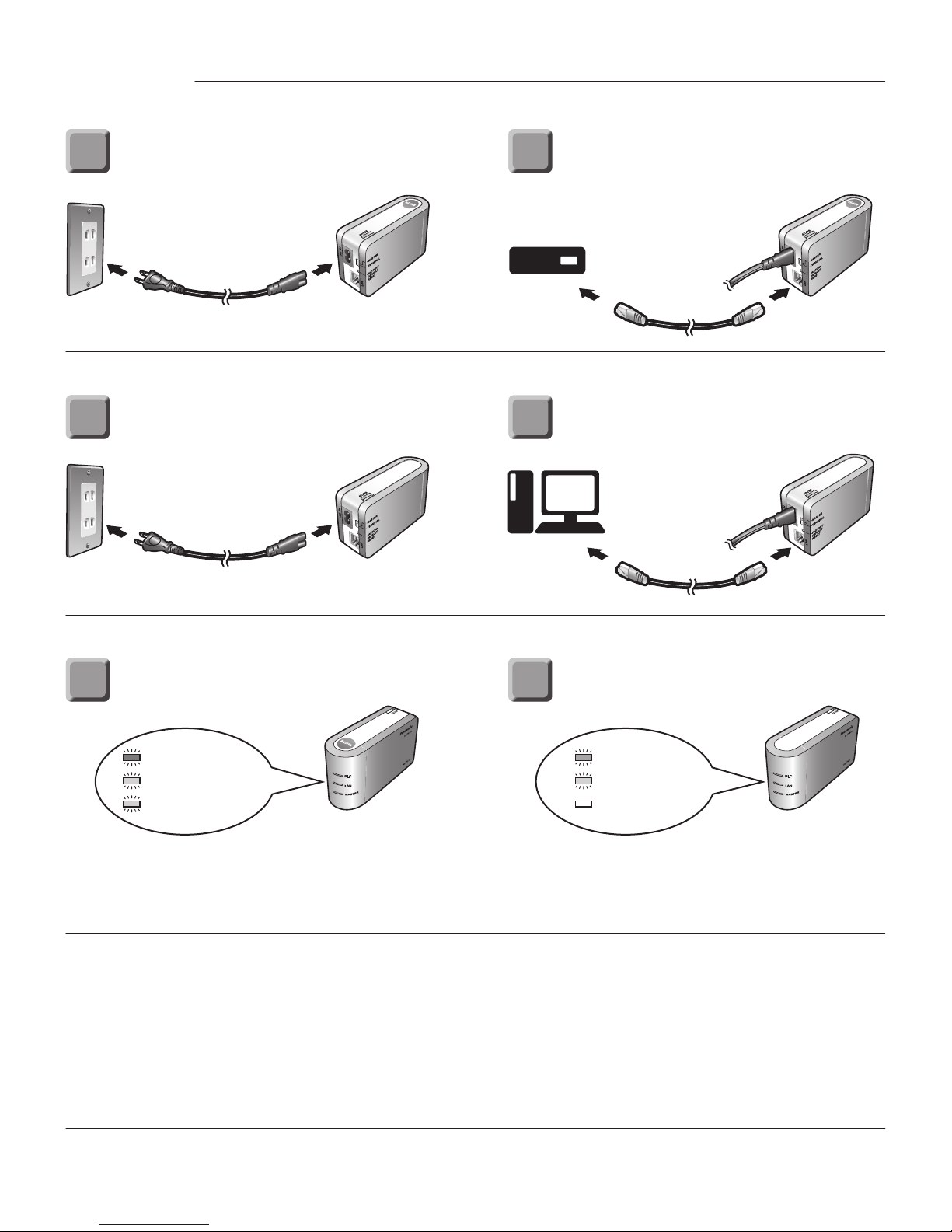

Installation

2Connect the master adaptor to a network device

using a LAN cable (sold separately). We

recommend connecting the master to your router.

3Connect the terminal adaptor to the wall outlet

using the included AC cord. 4 Connect the terminal adaptor to a network

device, such as your PC, using a LAN cable (sold

separately).

5Confirm that the indicators on the master adaptor

are lit (not flashing) as shown. 6Confirm that the indicators on the terminal

adaptor are lit (not flashing) as shown.

If the indicators are not lit as shown above, confirm all

connections and refer to the Troubleshooting section of the

Operating Instructions.

If the indicators are not lit as shown above, confirm all

connections and refer to the Troubleshooting section of the

Operating Instructions.

PLC (blue)

LAN (green)

MASTER (green)

Router

PLC (blue)

LAN (green)

MASTER (off)
