Panasonic AKHTF900P - INTERFACE ADAPTOR Manual de usuario

Before attempting to connect, operate or adjust this product,

please read these instructions completely and save this manual for future use.

Model AK-HTF900P

Interface Adapter

FCC Note:

This device complies with Part 15 of the

FCC Rules. To assure continued

compliance follow the attached instal-

lation instructions and do not make any

unauthorized modifications.

This equipment has been tested and

found to comply with the limits for a Class

A digital device, pursuant to Part 15 of

the FCC Rules. These limits are de-

signed to provide reasonable protection

against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates,

uses, and can radiate radio frequency

energy and, if not installed and used in

accordance with the instruction manual,

may cause harmful interference to radio

communications. Operation of this equip-

ment in a residential area is likely to

cause harmful interference in which case

the user will be required to correct the

interference at his own expense.

1is the safety information.

CAUTION

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with

arrowhead symbol, within an

equilateral triangle, is intended to

alert the user to the presence of

uninsulated “dangerous voltage”

within the product’s enclosure

that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an

equilateral triangle is intended to

alert the user to the presence of

important operating and main-

tenance (servicing) instructions

in the literature accompanying

the appliance.

CAUTION:

TO REDUCE THE RISK OF FIRE OR

SHOCK HAZARD AND ANNOYING

INTERFERENCE, USE THE RECOM-

MENDED ACCESSORIES ONLY.

WARNING:

TO REDUCE THE RISK OF FIRE OR

SHOCK HAZARD, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

This class A digital apparatus complies

with Canadian ICES-003.

Cet appareil numérique de la classe A

est conforme à la norme NMB-003 du

Canada.

For CANADA

12 Volt Class II Power Supply Only.

(For Example: AW-PS505P)

For Your Safety

Contents

For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Precautions for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Controls and their Functions

_Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

_Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

How To Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Appearance and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Outline

≥This unit is able to separate multiple data (camera control data and swivel stand control

data) transmitted from the camera controller (AK-HRP900P), and to output the control

information to the multi-purpose camera (AK-HC900P) and the swivel stand (AW-

PH300A, etc.).

≥The distance between this unit and the camera is 33 ft (10m) max.

Precautions for Use

≥We recommend that the AC adapter AW-PS505P is used for power supply.

≥Handle the unit with care.

If dropped or given a strong shock, it may cause a trouble or accident.

≥Use the unit in a temperature range of 32oF to 104oF (0oC to + 40oC).

If used at a temperature below 32oF or higher than 104oF, it may cause bad influences to

the component parts.

≥Turn off the power before connecting or disconnecting the cable.

When connecting or disconnecting the cable, be sure to turn off the power switch of the

unit beforehand.

≥Avoid using the unit outdoors.

≥Install the unit 3.3 ft (1 m) away from the monitor.

≥Maintenance

Pull out the power cord plug and clean the unit with dry cloth. If it is hard to clean,

moisten the cloth with a diluted neutral detergent solution and squeeze it well and lightly

wipe the unit.

≥Do not use volatile solvents such as benzene or thinner.

≥When using a chemical mop, carefully read the instructions.

Precautions

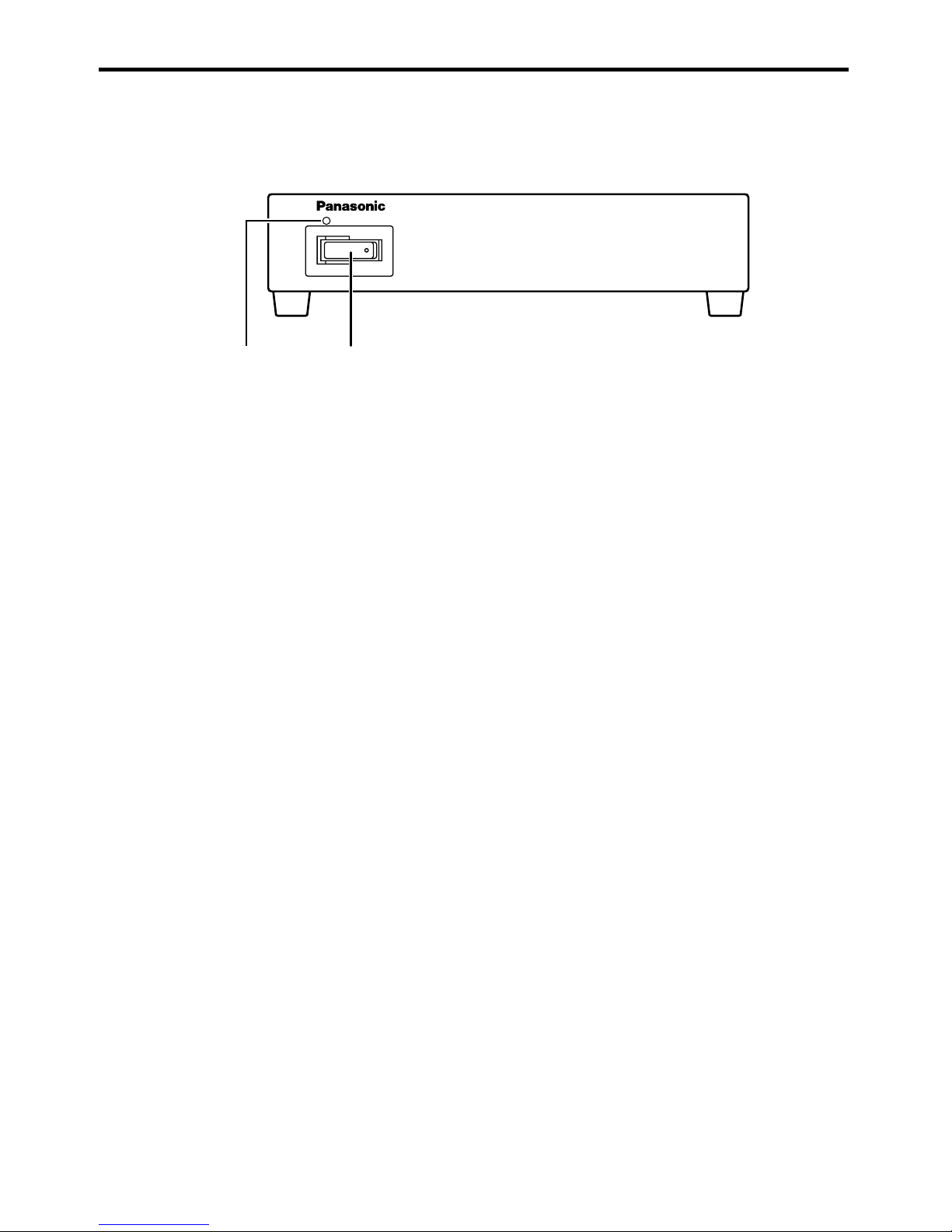

_Front panel

POWER

OFF ON

Interface Adapter

1Power indication LED [POWER]

When the power control switch 2is ON, it is lighted green. With the power control

switch 2set to OFF, it goes out.

2Power control switch [POWER ON/OFF]

When this switch is set to ON, this unit and the camera connected to it are turned on.

With the switch set to OFF, both of the unit and the camera are tuned off.

Controls and their Functions

3Camera connector [CAMERA I/F]

Connected to the camera (AK-HC900P) with the attached multi-cable.

4Swivel stand control signal output connector [PAN/TILT CONTROL OUT]

Connected to the swivel stand.

5Control data input connector [DATA IN]

Used to input the data multiplexed by the camera controller (AK-HRP900P).

CAMERA

DATA IN

BEAKER

DC 12V

PAN/TILT

CONTROL OUT

34 5 7

_Rear panel

17 234

9101112131415

17 234

9101112131415

17 234

9101112131415

Controls and their Functions

Signal

DC 12V

Frame GND

TXD (H)

Pin No

Signal

DC GND

TXD (C)

RXD (H)

RXD (C)

Pin No

TXD: Data from camera to remote controller.

RXD: Data from remote controller to camera.

Pin No

Signal

Frame GND

TXD (H)

Pin No

Signal

TXD (C)

RXD (H)

RXD (C)

Signal

GND

–––

12V

6Breaker [BREAKER]

DC power breaker. The breaker operates to cut off the power in case of over-current.

7DC12V input connector [DC 12V IN] (XLR4-pin)

Connects the AC adapter. We recommend that the AW-PS505P (option) is used.

Controls and their Functions

Pin No

2, 3

How To Connect

O I

BREAKER

ZOOM/

FOCUS

SDI OUT

G/L I N Pb OUT Pr /SDI

OUT

Y/VIDEO

OUT

1394

CONTROL IN

IP/RP

DC12V

CAMERA I/F

LENSE I/F

ND/EXT

SDI

CSOP

O I

POWER

ON OFF

SD CARD

OPERATE ALARM

SCENE

MODE

PRE

CAM BAR TEST

USER1 USER2

Camera Controller

TALLY

MENU ON

SPEED ZOOM

TELE

WIDE

FAR

NEAR

FOCUS

12345

PRESET

CC FLTER

3200

CROSS

63004300

ND FLTER

11/321/161/4

SHUTTER

OFF

SYNCRO

STEP

GAIN

S1 S2

9dB 18dB

AUTO

WHITE BLACK

GAIN

BLACK

AUTO

M-PED

IRIS

CHECK

Interface adapter

AK-HTF900P

≥Make the connections with all the units turned off.

≥We recommend that the AW-PS505P (option) is used as AC adapter

≥Use a swivel stand, AW-PH300A, AW-PH500, AW-PH600, and an adapter suited for the

swivel stand.

Remote

(zoom/focus

control) cable

Swivel stand controller

AW-RP301

Swivel stand

AW-PH300A

Multi-purpose digital camera

AK-HC900P

Multi-cable (17 ft)

AK-HDMLTCA05

Camera controller

AK-HRP900P

HD monitor

AC adapter

AW-PS505P

DDC

power

cable

Coaxial cable (5C-FB)HD-SDI

AC adapter

AW-PS301

AC adapter

AW-PS505P

Swivel stand control is

possible for AW-

PH500/PH600 as well.

AC adapter

AW-PS300

Multi-cable (17ft)

AK-HDMLTCA05

Trans-

mission

Remote

control

spec. lens

Appearance and Dimensions

( ): mm

POWER

OFF ON

Interface Adapter

CAMERA

DATA IN

BEAKER

DC 12V

PAN/TILT

CONTROL OUT

8-3/16z (206.5)

9-7/8z (250)

2-1/8z

(42.4)

7/16z

(10.3)

Specifications

Swivel control output:

Switch function:

Cable max. extension distance:

Operating temperature:

Dimensions:

Weight:

Finish:

Control signal (RJ-45 8P modular jack)

Power control

33 ft (10m)

32oF to 104oF (0oC to +40oC)

8-3/16(W)k2-1/8(H)k9-7/8(D) inch

(206.5k52.7k250 mm)

Approx. 4.18 lbs (1.9 kg)

AV ivory coating (Munsell 7.9Y 6.8/0.8 approx. color)

1is the safety information.

Power supply: DC +12V (XLR 4-pin connector)

Power consumption: 25 W (with camera connected)

Weight and dimensions shown are approximate.

Specifications are subject to change without notice.
