Panasonic BLPA300A - HD-PLC ETHERNET ADAPTOR Manual de usuario

Operating Instructions

PLC Adaptor Add-on Unit

Power Line Communication

Model No.

BL-PA300A

PLC LANMASTER

HD-PLC

BL-PA300

SETUP

Operating Instructions .......................................................... 2

Instrucciones de operación................................................. 27

Limited warranty ..................................................................... 52

Customer services ................................................................. 54

BL-PA300A_OI.book Page 1 Wednesday, August 6, 2008 9:59 AM

Introduction

IMPORTANT SAFETY INSTRUCTIONS.......................................4

Electrical environment information................................................5

Security information.......................................................................7

Security notices for when sending an adaptor for service.............8

Main unit........................................................................................9

Installation

Registration.................................................................................11

Placing the adaptors....................................................................13

Power Save Mode.......................................................................13

Connecting adaptors to network devices.....................................14

Useful Information

Testing a terminal’s network speed.............................................15

Understanding the indicators.......................................................17

Resetting an adaptor...................................................................18

Troubleshooting...........................................................................19

Specifications..............................................................................22

Adaptor Maintenance Screen......................................................24

FCC and other information..........................................................25

Table of Contents

IMPORTANT NOTES:

For best results, connect this product directly to a wall outlet.

This product may not function normally in certain electrical

environments.

See page 5 for more information.

Please read this document before use and save this document for future reference.

BL-PA300A_OI.book Page 2 Wednesday, August 6, 2008 9:59 AM

3[For assistance, please call: 1-800-272-7033]

Introduction

Introduction Thank you for purchasing a Panasonic HD-PLC product.

Included items

Confirm that the following items are included with this product.

Additional items can be ordered by calling 1-800-332-5368.

Abbreviations

• This product is referred to as “the adaptor” in this document.

Trademarks

•Linux

®istheregisteredtrademarkof LinusTorvaldsintheU.S.andother

countries.

•HD-PLC or HD-PLC mark is a registered trademark or trademark of

Panasonic Corporation in Japan and in other countries.

• All other trademarks identified herein are the property of their respective

owners.

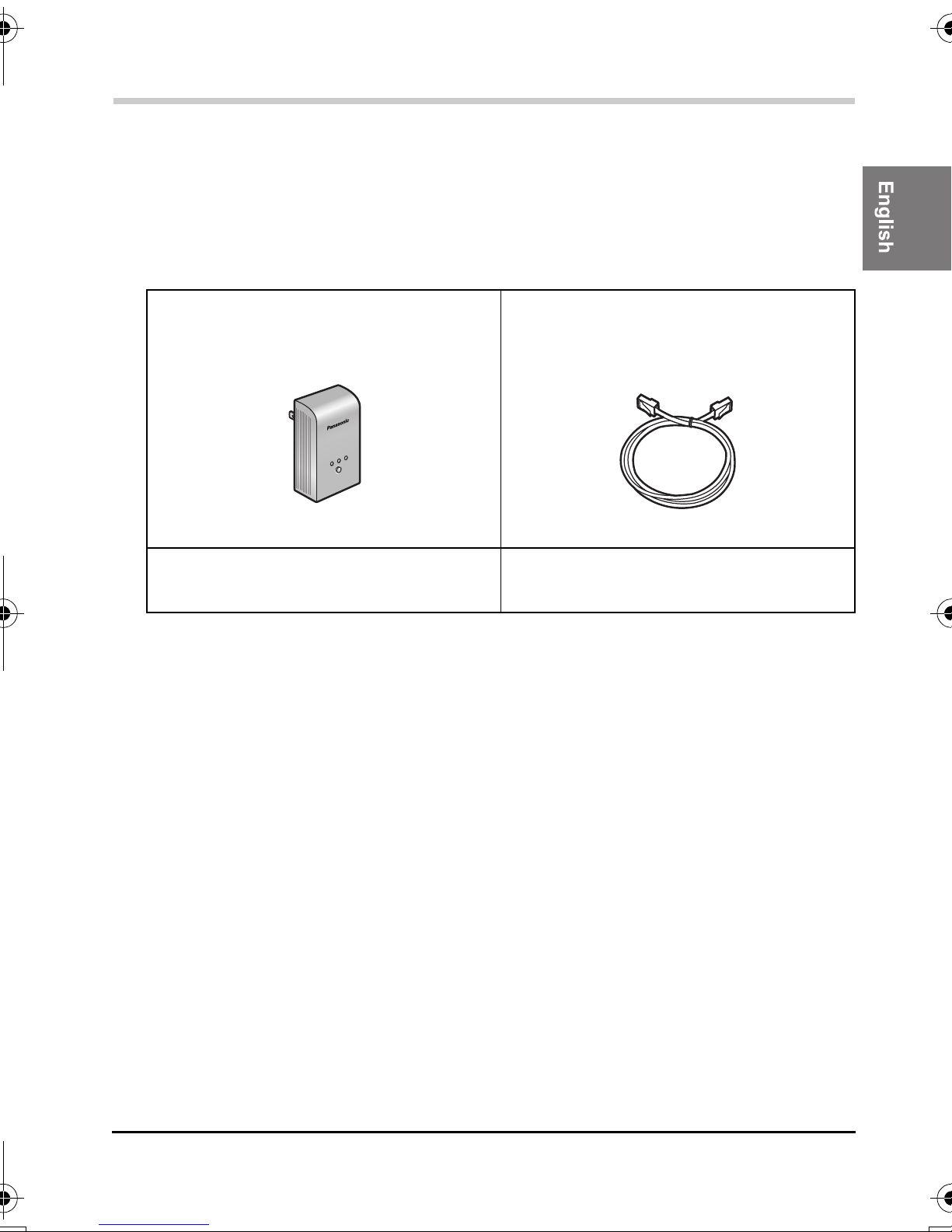

PLC Adaptor Add-on Unit.......... 1 LAN Cable....................................1

Order No.: PQJA10138Z

Getting Started............................. 1 Operating Instructions

(this document).............................1

PLC LAN MASTER

HD-PLC

BL-PA300

SETUP

BL-PA300A_OI.book Page 3 Wednesday, August 6, 2008 9:59 AM

Introduction

IMPORTANT SAFETY INSTRUCTIONS

Whenusingthisproduct,basicsafetyprecautionsshouldalwaysbefollowed

to reduce the risk of fire, electric shock, or personal injury.

1. Read and understand all instructions. Keep this document for future

reference.

2. Follow all instructions in this document and heed all warnings.

3. Do not install this product near any heat sources such as radiators,

heat registers, stoves, or other devices (including amplifiers) that

produce heat.

4. This product is used as the main disconnect device. Ensure that the AC

outlet is installed near this product and is easily accessible.

5. The adaptor must remain connected at all times.

6. To prevent the risk of fire or electrical shock, do not expose this product

to rain or any type of moisture, and do not plug it in upside-down (i.e.,

with the LAN jack pointing up).

7. Do not touch the product during lightning storms.

8. Unplug this product when unused for a long period of time.

9. Refer all servicing to qualified service personnel. Servicing is required

when the unit does not operate normally, has been damaged in any

way, or after the unit has been dropped.

10. Do not use this product outdoors.

11. Unplug this unit from power outlets if it emits smoke, an abnormal smell

or makes unusual noise. These conditions can cause fire or electric

shock. Confirm that smoke has stopped and contact an authorized

service center.

SAVE THESE INSTRUCTIONS

BL-PA300A_OI.book Page 4 Wednesday, August 6, 2008 9:59 AM

5[For assistance, please call: 1-800-272-7033]

Introduction

Electrical environment information

HD-PLC adaptors communicate with each other using the existing electrical

wiring in your home, and may be affected by electrical noise or the length of

your home’s wiring. Keep the following in mind when placing each adaptor.

AC outlets

For best results, we recommend connecting the adaptors directly to a wall

outlet. Avoid connecting high power-consuming appliances to the same wall

outlet. Additionally, connecting an adaptor to a uninterruptable power supply

(UPS) or backup power supply device is not recommended.

While connecting the adaptors to a wall outlet is recommended, keep the

following in mind if you must connect an adaptor to a power strip:

• Make sure the power strip does not have a noise filter or a surge

protector, as these features may interfere with the performance of

your adaptors.

• Do not connect the adaptor to a power strip that receives power from

another power strip.

• Use a power strip with an AC cord that is as short as possible.

Electrical interference

Certain electrical devices emit electrical noise. If this noise is passed on to

the electrical wiring in your home, it may interfere with the performance,

speed, and reliability of your adaptors. For best results, we recommend

connecting an electrical noise filter to noise emitting appliances.

The following appliances are more likely to produce noise:

• Battery chargers (including cell phone chargers)

• AC adaptors (including AC adaptors for modems, routers, notebook

computers, etc.)

• Hair dryers

• Vacuum cleaners

• Lights or lamps which have a dimmer switch or a touch-sensitive

on/off feature

• Power drills

Additionally, this product may interfere with the following appliances:

• Short wave radios

• Lights or lamps which have a touch-sensitive on/off feature

• Wireless devices (including wireless mice, etc.)

BL-PA300A_OI.book Page 5 Wednesday, August 6, 2008 9:59 AM

Introduction

Electrical wiring

HD-PLC adaptors communicate with each other using the existing electrical

wiring in your home. If 2 wall outlets are separated by a great length of

electrical wiring, the adaptors connected to those outlets may not be able to

communicate with each other.

For more information, refer to the troubleshooting section (see page 19) or

access the Panasonic PLC Support Site at:

http://panasonic.co.jp/pcc/products/en/plc/

After you have placed the adaptors where you plan to use them and plugged

them into the wall outlets, test the terminal’s network speed (see page 15).

BL-PA300A_OI.book Page 6 Wednesday, August 6, 2008 9:59 AM

7[For assistance, please call: 1-800-272-7033]

Introduction

Security information

1. With any network connection, security is a concern. The BL-PA300A

provides security to prevent unauthorized access to your network.

• Only terminals that are registered to the master adaptor can

communicate with the network.

• A terminal may be registered to the master only if the SETUP

buttons on the master and terminal are pressed within 3 seconds

of each other.

2. Datasentandreceivedoverthe HD-PLC networkemploysAES128-bit

encryption, however we cannot guarantee that data will not be

intercepted by a third party.

3. For security, reset your adaptors (see page 18) in the following

situations.

• If you are concerned that another adaptor may have been

accidentally registered to your master (for example, the adaptor

of someone who lives in the same apartment building as you),

reset each of your adaptors and register them again.

• If you discard an adaptor, give an adaptor to someone else to

use, or send an adaptor for servicing, reset the adaptor first.

• Ifyoulosean adaptor, resetyourremaining adaptors andregister

them again.

4. The adaptor does not have a firewall feature. To prevent unauthorized

external access to the network, we recommend performing the

following steps.

• Setup security measures for the router and computers accessing

the network.

• Change the default password on the Adaptor Maintenance

Screen.

Refer to the Panasonic PLC Support Site

(http://panasonic.co.jp/pcc/products/en/plc/) for information

about changing the default password.

BL-PA300A_OI.book Page 7 Wednesday, August 6, 2008 9:59 AM

Introduction

Security notices for when sending an adaptor

for service

Please note the following when sending an adaptor for servicing.

• Reset the adaptor before sending it for servicing.

• After your master adaptor is serviced, you must register all your

terminals to the master again.

• After a terminal adaptor is serviced, you must register the

terminal to the master again.

BL-PA300A_OI.book Page 8 Wednesday, August 6, 2008 9:59 AM

9[For assistance, please call: 1-800-272-7033]

Introduction

Main unit

(1) PLC Indicator

Lights to indicate that the adaptor is connected to the HD-PLC

network. For more information, see page 17.

(2) LAN Indicator

Lights when a LAN cable is connected to the adaptor, and flashes

when data is being sent or received. For more information, see

page 17.

(3) MASTER Indicator

Lights when the adaptor is configured as the master. For more

information, see page 17.

(4) SETUP Button

Used to register the adaptor (see page 11) or test the terminal’s

network speed (see page 15).

(5) Mode Selector

The position of this selector during registration (see page 11)

determines whether the adaptor is configured as the master or as a

terminal.

(6) LAN Jack

Connects the adaptor to a network device, such as a broadband

router, hub, computer, etc. (see page 14).

PLC LAN MASTER

HD-PLC

BL-PA300

SETUP

FACTORY

DEFAULT

RESET

(1)

(2)

(3)

(4)

(5)

(6)

(7)

BL-PA300A_OI.book Page 9 Wednesday, August 6, 2008 9:59 AM

Introduction

(7) FACTORY DEFAULT RESET Button

Used to reset the adaptor and erase its registration (see page 18).

BL-PA300A_OI.book Page 10 Wednesday, August 6, 2008 9:59 AM

Otros manuales para BLPA300A - HD-PLC ETHERNET ADAPTOR

Tabla de contenidos

Idiomas:

Otros manuales de Adaptador de Panasonic

Panasonic

Panasonic AG-MYA30G - XLR Mic Adaptor Manual de usuario

Panasonic

Panasonic CF-AA1653A2 Manual de usuario

Panasonic

Panasonic CA-PANSC1U Manual de usuario

Panasonic

Panasonic ET-UW100 Manual de usuario

Panasonic

Panasonic Palmcorder PV-DAC9 Manual de usuario

Panasonic

Panasonic AW-AD500A Manual de usuario

Panasonic

Panasonic AWML600 - MULTIPLEX CONTROLER Manual de usuario

Panasonic

Panasonic TYTAD20 Manual de usuario

Panasonic

Panasonic AG-IA823P Manual de usuario

Panasonic

Panasonic CA-PANSC1U Manual de usuario

Panasonic

Panasonic CZ-TACG1 Manual de usuario

Panasonic

Panasonic AXA1A100 Manual de usuario

Panasonic

Panasonic CF-AA Series Manual de usuario

Panasonic

Panasonic AW-PS300 Manual de usuario

Panasonic

Panasonic AW-AD500A Manual de usuario

Panasonic

Panasonic BB-HCA7 Manual de usuario

Panasonic

Panasonic et-adser Manual de usuario

Panasonic

Panasonic KX-NS8290 Manual de usuario

Panasonic

Panasonic CF-AA5803A Manual de usuario

Panasonic

Panasonic DBUB-P207 Manual de usuario

Panasonic

Panasonic CF-AA6503A Manual de usuario

Panasonic

Panasonic AW-PS300 Manual de usuario

Panasonic

Panasonic DE-852D Manual de usuario

Panasonic

Panasonic AG-CA300G Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
