S8Mpdp Quick Start Guide
pakedgedevice&software inc.
QUICK START GUIDE
S8Mpdp
Enterprise-Class, 8-Port PoE Powered Priority Switch
2
S8Mpdp Quick Start Guide
Table of Contents
Introduction ...................................................................................................................................................... 3
Quick Switch Overview ...................................................................................................................................... 3
Preparing to Install the Switch ........................................................................................................................... 6
Installation ........................................................................................................................................................ 6
Configuration .................................................................................................................................................... 8
Configuring the Switch Using the Web Interface (Windows 7)........................................................................ 8
QoS Configuration ....................................................................................................................................... 11
Resetting The IP Address From Terminal...................................................................................................... 13
Troubleshooting & Support ............................................................................................................................. 14
3
S8Mpdp Quick Start Guide
Introduction
This guide has been written to allow you to get up and running quickly with the S8Mpdp Pakedge priority
switch keeping a few assumptions in mind:
a. You have a working knowledge of networking hardware configuration
b. You have a working knowledge of PC operations
Quick Switch Overview
The S8Mpdp is preconfigured for prioritization. It includes 8 10/100/1000 ports where port 1 can be used to
power the switch using PoE. You can either use a PoE injector or another PoE switch to power the S8Mpdp.
Additionally, it includes 1 Gigabit SFP interface and a console interface. The features of the standard ports are
shown in Table 1.
Port name
Features
Giga Ethernet
interfaces
Speed: 10/100/1000M auto-sense; cable: MDI/MDIX, UTP (RJ45)
interface with LINK/ACT, 1000 Mbps indicator
SPF
Speed: 10/100/1000M auto-sense; cable: Fiber Optic
Console interface
Speed: 38400bps, RJ45 interface
Table 1: Switch Port Features
The Front Panel of the S8Mpdp (shown in Figure 1) has several LEDs displaying the status of the switch ports.
Figure 1 –S8Mpdp front panel
Label
Function
Description
1000M
Speed Indicator of Gigabit port
Indicator is lit only when the port is operating in
1000M.
Link/Act
Valid connection indicator
Steady blue: Valid port connection
Blinking blue: Valid port connection and data
transmit/receive
Off: Media disconnected.
Table 2: LED Descriptions
4
S8Mpdp Quick Start Guide
The rear panel (Figure 2) is where the ports and other equipment connections are located. Table 3 describes
each port and its function.

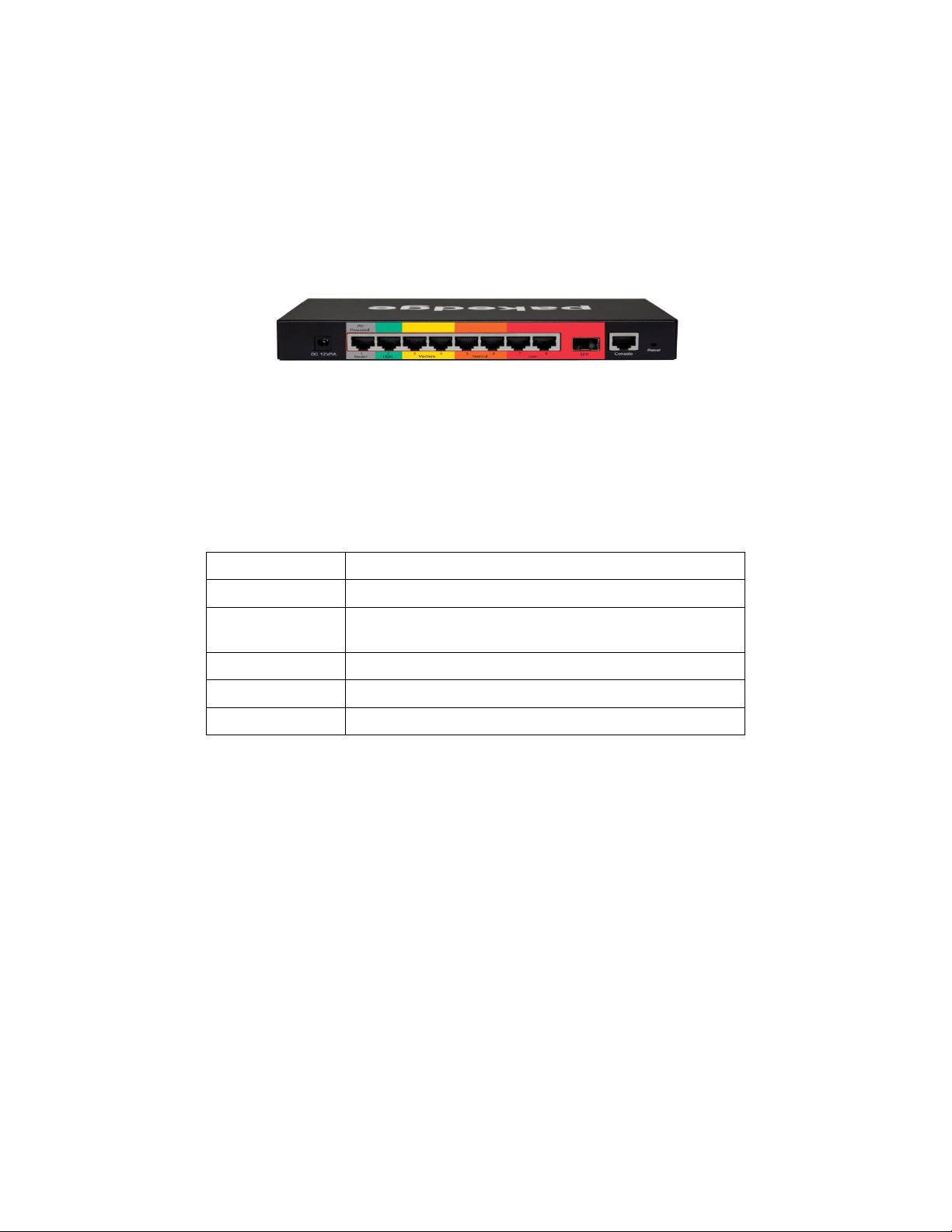

Figure 2: Rear Panel of the S8Mpdp
Name
Explanation
DC connector
12V/1A
8 10/100/1000M
Ports
Implement 10/100/1000M Ethernet signal transformation. Port 1
is used to power the switch using PoE.
1 SFP Port
Implements 10/100/1000M Fiber connection using a GBIC
Console
Implements switch management using a console cable
Reset
Resets switch to factory defaults.
Table 3: Description of the Rear Panel of the S8Mpdp from left to right
5
S8Mpdp Quick Start Guide
The following illustrates the priority configuration on the S8Mpdp.
The S8Mpdp ensures Quality of Service (QoS) by prioritizing traffic by port.
Port 1 will be used as an uplink port
Devices connected to ports 2-3 will have high priority
Devices connected to ports 4-5 will have medium priority
Devices connected to ports 6-7 will have normal priority
Device(s) connected to port 8 will have low priority
If additional ports/switches are needed they can be connected into the S8Mpdp so quality of
service is not bypassed.
6
S8Mpdp Quick Start Guide
Preparing to Install the Switch
Tools Required:
PC or Laptop with Ethernet Interface (an integrated DB-9 port or USB to Serial adapter may be
necessary if you would like to use the console interface)
Ethernet Cable (RJ45 Cable)
Phillips Screwdriver (if using Rack-mount Brackets)
Installation
1. Open Box and Remove Unit.
a. OPTIONAL: If mounting the switch in a standard 19” AV rack, attach the rack mounting
brackets, included with the S8Mpd, to the sides of the unit. The switch can also be
mounted to the wall using the same included rack mounts. See images below.
7
S8Mpdp Quick Start Guide
b. Physically mount the S8Mpdp switch near the power and network connections (i.e.
backbone switch, firewall/router or behind a TV)
2. Connect the S8Mpdp to a power source
3. Connect your computer to any of the available ports on the S8Mpdp.
4. Configure the switch to an IP address that matches your network. Configuration process is
described in the following sections.
8
S8Mpdp Quick Start Guide
Configuration
There are two ways to complete the initial configuration of the S8Mpdp switch:
Using the standard IP address and a web browser
Using a console cable and a terminal emulation program such as PuTTY or HyperTerminal.
Configuring the Switch Using the Web Interface (Windows 7)
1. First you need to configure the PC with IP address 192.168.1.10, and subnet mask
255.255.255.0, by going to the Windows Control Panel, double-clicking Network
Connections and double-clicking the connection of your Network Interface Card (NIC). The
Local Area Connection Properties dialog appears:
Figure 3: Local Area Connection Properties
9
S8Mpdp Quick Start Guide
2. Select Internet Protocol Version 4 (TCP/IPv4)and click Properties. The Internet Protocol (TCP/IP)
dialog appears where you can configure the TCP/IP settings of your PC.
Figure 4: TCP/IP Properties
3. Select “Use the following IP Address”and manually type in the IP address and subnet mask
into the provided boxes, as in the example above. (Be sure the IP address and subnet mask
are on the same subnet as the S8Mpdp).
4. Click OK to close the dialog then click OK to close the Local Area Connection Properties
dialog.
5. Now open a web browser (Internet Explorer, Firefox and Chrome browsers all work for
configuring the S8Mpd, but Firefox is preferred)
6. Enter the switch’s default IP address: 192.168.1.200 into the Address Bar and press
<ENTER>.
7. The default password is pakedgep. Enter the password and click “Apply” to be logged into
the web administration portal.
10
S8Mpdp Quick Start Guide
8. In the web administration portal, you will be able to configure, update and reset the S8Mpd.
Figure 5: S8Mpdp Web Interface
PLEASE NOTE: Once you have logged in, you may use the web interface (Figure 5) to configure the switch
and customize it for your environment. You may also refer to the complete product manual on our website
for advanced configurations.
