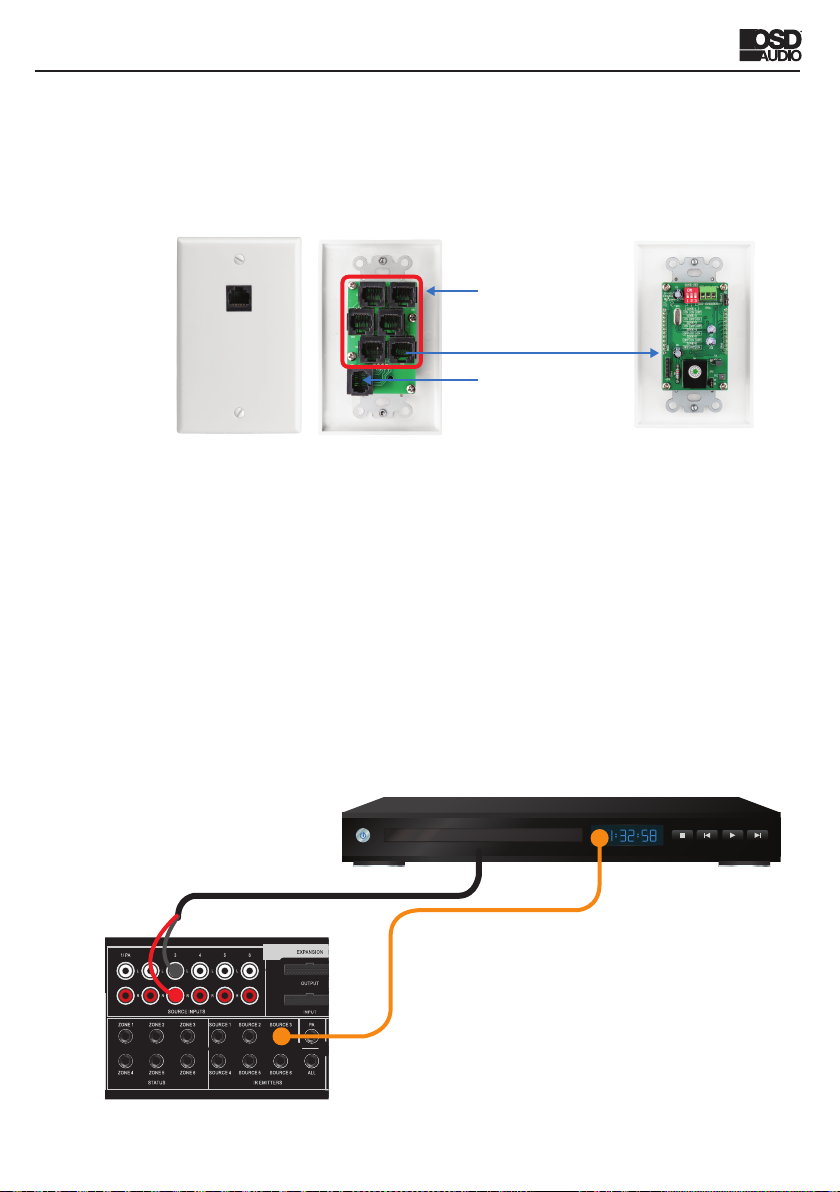

CONNECTING AND USING THE ZONE STATUS PORTS
NERO MAX 12 Trigger Outputs:
NERO MAX 12 Trigger Inputs:

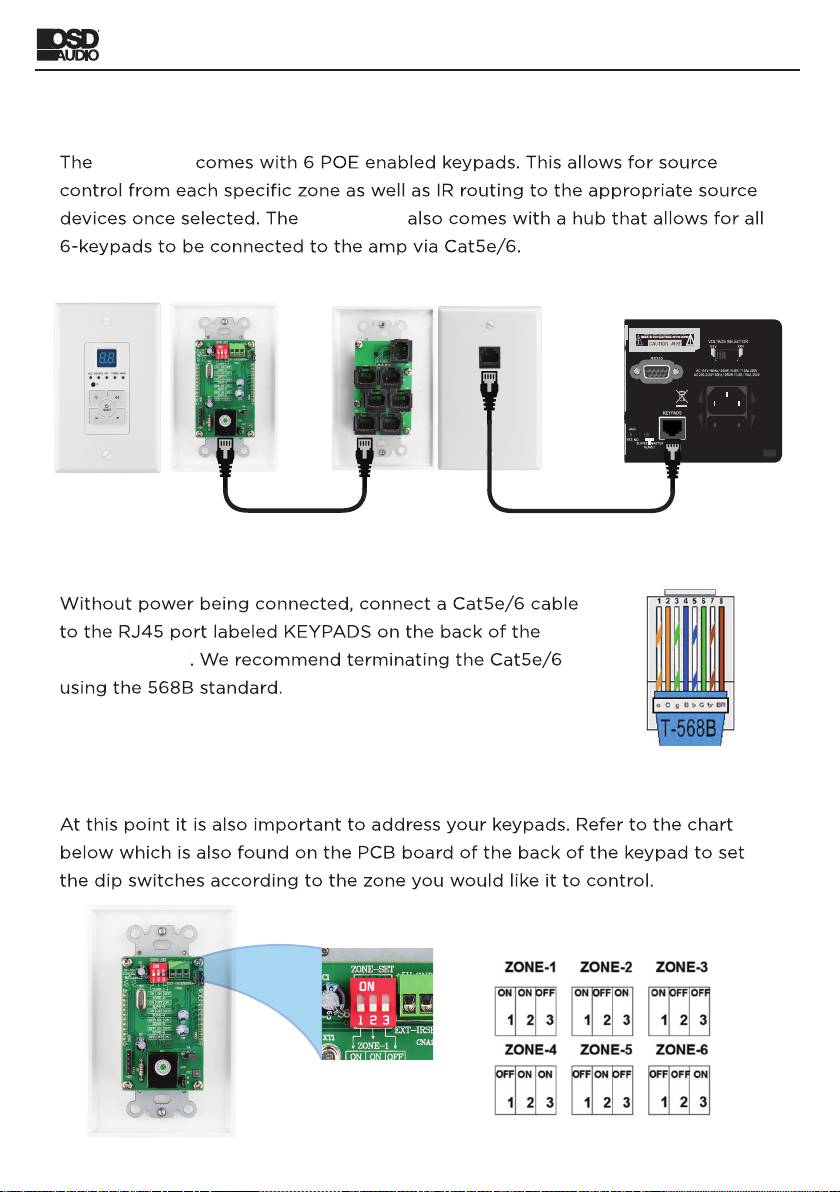

OPTIONAL KEYPAD KIT CONTENTS
ARRANTY
OSD Audio | Brea, CA | osdaudio.com
NERO MAX12 KEYPAD Man. 1/20
There are six 12Vdc trigger outputs which correspond to the six output zones. When a zone is
powered ON by the NERO MAX 12Keypad, the corresponding zone sends 12Vdc to the trigger
output jack. The triggers can be used to automatically switch peripheral equipment ON or OFF.
Wiring: 3.5mm Mono
ZONES 1 -6: Zone ON; 12Vdc applied to the TRIGGER
OUTPUT, Zone OFF; 12Vdc removed from the TRIGGER
CONTROL: Any zone ON; 12 Vdc applied to the CONTROL
OUT, All zones OFF; 12Vdc removed from the CONTROL OUT
PA-IN: Apply 12Vdc for input #1 override on all six zones
MUTE-IN: Apply 12Vdc to mute all zones
• Six (6) MAX12 Keypads
• One (1) MAX12 Keypad Hub
• Six (6) Outer Plates for Decora keypad inserts
• IR Remote Control (direct access to keypads)
• Product Manual
All OSD AUDIO electronics have (2) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany all
claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either
parts or labor OSD AUDIO may replace returned electronics with a product of equal value and performance. In such cases, some modifications to
the mounting may be necessary and are not OSD AUDIO’s responsibility. For this warranty to apply, the unit must be installed and used according
to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit must be returned to OSD AUDIO at the owner’s
expense and with prior written permission. Accidental damage and shipping damage are not considered defects, nor is damaged resulting from
abuse or from servicing performed by an agency or person not specifically authorized in writing by OSD Audio OSD AUDIO sells products only
through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD AUDIO product purchased from
an unauthorized dealer or other source, including retailers, mail order dealers and online sellers will not be honored or serviced under existing
OSD AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the
warranty on the applicable product. Damage to or destruction of components due to application of excessive power voids the warranty on those
parts. In these cases, repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer
service
at
[email protected] for
a
Returned
Merchandise
Authorization
(RMA)
number
then
the
unit
must
be
shipped
to
OSD
AUDIO
at
the owner’s expense, along with a note explaining the nature of service required. Be sure to pack the product(s) in a corrugated container with at
least 3 inches of resilient material to protect the unit from damage in transit.
This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that
have been altered or modified • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear
and maintenance.
