Orion SMART PAN Manual de usuario

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

AUTOMATICALLY

DETECTS &

TRACKS MOTION

SEE & RECORD EVERYTHING

THAT HAPPENS USING YOUR

SMARTPHONE

QUICK

START GUIDE

IMPORTANT!

PLEASE READ THESE

INSTRUCTIONS CAREFULLY

SMART PAN & TILT

SECURITY CAMERA

SC009HA

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

This SMART wireless pan & tilt security camera is designed for use in homes,

apartments, ofﬁces, garages and sheds. It has been developed to be easily

set up and operated, giving you and your family the security and peace of

mind that you deserve.

Install the Grid Connect mobile app, available for both iPhone and Android

devices, to monitor your camera remotely.

The Grid Connect app is free to download and is available from the Apple App

Store and Google Play.

1 x Smart Pan & Tilt Security Camera

1 x Power Adaptor

1 x USB Cable

1 x Mounting stand

3 x Mounting screws & Wall plugs

1 x Reset pin

1 x L Shape Screw Driver

Micro SD Card 16GB

Class 10 included

(Max. 128GB card supported)

1INTRODUCTION

2CONTENTS

DOWNLOAD PAIR USE

Download from:

MONITOR FROM ANYWHERE

3IDENTIFICATION

Power Port

5V Power inlet

Infrared LEDs

Allow camera capture

both day and night


Micro SD Card Slot

Use a micro SD memory

card to record video.

Camera Lens

1080p HD, with

100° ﬁeld of view

Speaker

Microphone

Reset Hole

Use the reset pin to press

and hold for 5 seconds

to reboot and clear

all settings to factory

defaults. This will allow

you to connect with

different Wi-Fi network

if required.

355°

Pan

65°

Tilt

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

4DOWNLOAD THE APP

Scan & download

the GRID Connect

App for free

NEW ACCOUNT

Download and install

GRID CONNECT App

from Play store (Android)

or App store (iOS).

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

5INSTALL THE APP

create new account

Open the GRID CONNECT App.

If you are a new user, tap create new

account and follow the prompts to

complete account setup.

Note: You must agree with the Privacy

Policy to be able to use the App.

If you already have an existing account,

just tap login to account and enter your

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

6ADDING A LOCATION

On the

Add location

setup page,

you can edit

Home name

, set up

Home location

and

Select rooms

Add room

This will help you manage your

GRID devices and assist you in

customising and scheduling the

time and order of one or multiple

devices, depending on your home

living needs.

Tap Done when you ﬁnish.

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

7.0 PAIRING YOUR DEVICE

Power on your smart camera by using the

supplied adaptor and USB cable.

It should take approximately 10 seconds

to startup and will indicate as such with a

solid red light.

You will hear a welcome sound. Conﬁrm

the status light is red and rapidly blinking

(approximately 2 times per second). The

camera is now ready for pairing.

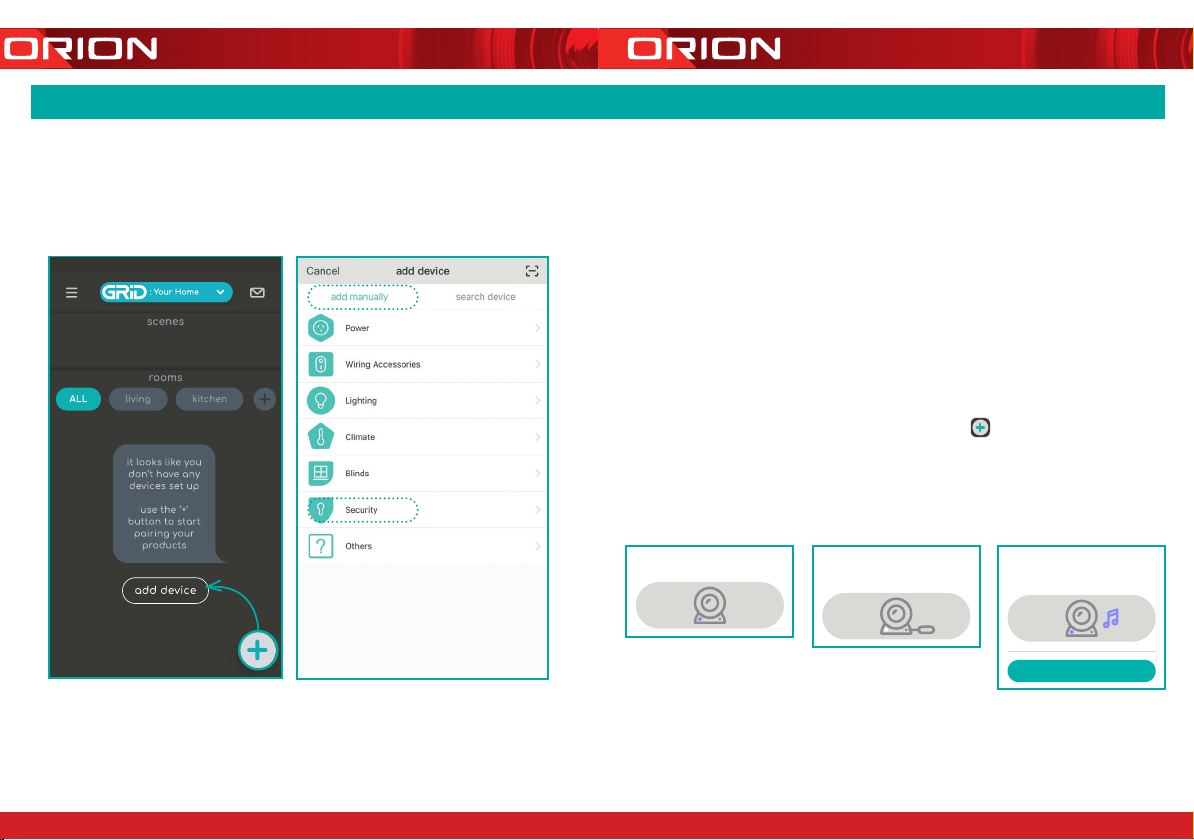

Once your camera is in pairing mode, open

the GRID CONNECT App, Tap , then select

security

add device

page.

Conﬁrm the status light is red and rapidly blinking

(approximately 2 times per second) before

tapping

ready to pair

to proceed.

step 1

Power on your device.

step 2

Hold the reset button on your device for

5 seconds for the camera to start the

reset process.

3 times

every

second

press for

5 second

ready to pair

12:30

pairing instructions

step 3

the indicator light will ﬂash rapidly or a

tone will sound every 15 seconds when

the camera is ready to be connected

step 1

Power on your device.

step 2

Hold the reset button on your device for

5 seconds for the camera to start the

reset process.

3 times

every

second

press for

5 second

ready to pair

12:30

pairing instructions

step 3

the indicator light will ﬂash rapidly or a

tone will sound every 15 seconds when

the camera is ready to be connected

step 1

Power on your device.

step 2

Hold the reset button on your device for

5 seconds for the camera to start the

reset process.

3 times

every

second

press for

5 second

ready to pair

12:30

pairing instructions

step 3

the indicator light will ﬂash rapidly or a

tone will sound every 15 seconds when

the camera is ready to be connected

1110

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

7.1 PAIRING YOUR DEVICE

Enter the Wi-Fi password and tap

conﬁrm

to proceed.

If needed, you can tap

change network

to switch to another suitable Wi-Fi

network for your camera.

conﬁrm

1312

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

7.2 PAIRING YOUR DEVICE

Press

continue

to scan QR code

using your camera. Hold 15cm

away from your mobile screen.

Press

heard the beep

after you

hear a sound from your camera.

The status light should be blue,

and blinking (refer to trouble

shooting guide on page 22 if you

don’t hear the prescribed beep).

The GRID CONNECT App will

start to connect to the camera

automatically as indicated by the

status light being solid blue.

scan

code

on screen

1514

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

7.3 PAIRING YOUR DEVICE

Once the pairing process is

complete a page showing

device

added successfully

will appear.

You may choose to edit the device

name or assign the device to a

dedicated room before tapping

done

to ﬁnish the pairing process.

Once your camera is paired to your

Wi-Fi network, your camera can

be viewed at anytime from your

smartphone as long as there is

internet access.

If no device is found and the pairing process

is not successful, check below and repeat

from Step 7

Wi-Fi network is 2.4GHz.

Wi-Fi password entered is correct and

the same Wi-Fi network is used on the

mobile device.

GRID device is in pairing mode.

Check your Wi-Fi for network activity.

1716

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004891

Once your camera is paired to your Wi-Fi network, you can view your camera

at anytime from your smartphone as long as there is internet access.

Tap to capture a photo/

video during live view.

Note: the photo and

video are saved to the

internal memory of your

smartphone

Tap to capture a photo/

video during playback.

Note: the photo and

video are saved to the

internal memory of your

smartphone

Tap to enable the

talk function

Access live screen

Select a date to

review your playback

from SD card

For more advanced features/functions, refer to

grid-connect.com.au for more details

Access playback

screen

Access to SD

card setting

Enable sound

& motion detection

alerts and adjust

sensitivity of sound

& motion detection

Tap to mute or

hear the sound

Tap to mute or

hear the sound

8OPERATING YOUR CAMERA

Live Screen Playback Screen

Feature Controls Feature Controls

Tap to enable pan

& tilt controls,

activate Tracking

function or ﬂip

screen

listen speak

alerts

save photo save video

orient

live playback

Smart Camera SC009HA

hdsd

listen

save photo save video

live playback

tuesday, 14 March 2019

11:32:10

11:30 11:32 11:34 11:36

date

card

Back to Device

Screen

Switch video quality

between Standard

deﬁnition (smoother

movement with

smaller ﬁle size)

and High deﬁnition

(clearer images but

larger ﬁle size)

Access Settings

including share

device, motion

detection

setting, ﬁrmware

information,

remove device etc.

Switch to full

screen display

for live view Slide forward/back

video playback on

time slider

Pause video

playback

1918
