Introduction

Thank you for purchasing the Composer C60 In-Wall Speaker.

At Origin Acoustics, we take pride in providing you with a high

quality product. All of Origin Acoustics’ speakers are designed to

have excellent sound quality, longevity, and a simple installation

process.

This instruction booklet covers the necessary information for a

smooth installation of your Composer, including: the tools you will

need, step-by-step instructions for installation, troubleshooting

tips for any errors that may occur, and all warranty information. If

for any reason you experience problems or if you have installation

questions please call us at (844) 674-4461. Hours of operation are

8:00am to 5:00pm (Pacific Time), Monday through Friday.

Installation Requirements

and Recommendations

What’s included

• Template • Speaker • Grille

For this setup, use a

multi-stranded wiring designed

for amplifier to speaker connec-

tions. The gauge of wire used

can have an impact on the per-

formance of your speakers and

we would recommend that you

choose the largest wire size that

is practical for your installation.

Which gauge to select depends

on the length of wire to be used

on any particular speaker. In

general the shorter the run the

smaller the wire size you can

use, however you can never go

wrong by using a thicker gauge.

Wire Length Recommend-

ed Gauge

Feet Meter

0-100 0-30 16

50-150 15-45 14

100+ 30+ 12

Speaker Wire

Recommendations

Required Tools/Items

1. Keyhole or drywall saw

2. Speaker wire

3. Pencil

4. Wire stripper

5. Measuring tape

Optional Tools/Items

• Drill with ⅛” (33 mm) drill

bit

To check for obstacles in wall

• Sti wire (like from a coat

hanger)

To check for obstacles in wall

• Stud finder To check for obstacles in wall

• Fish tape To route wire through walls

• Can of spray paint For painting the grille

• Can of compressed air For painting the grille

Figure 3.1: Tools

Tweeter

SpringLock

Release

SpringLock

Release

Woofer

Bass/Treble

Control

Figure 2.1: Speaker

4 5

844·674·4461

TECHSUPPORT@ORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM

C60 COLLECTION INSTALLATION MANUAL

Speaker Placement

3.1

Place the center channel (CC)

speaker directly above or

below the video display, pref-

erably equidistant from the

walls on the le and right. The

le (L) and right (R) speakers

should be on the same wall on

either side of the video display,

with the center speaker exactly

between them. It’s better if

the le and right speakers are

closer to the screen rather than

further from it.

It’s best if all three front speak-

ers about 3.5 feet (1 m) from the

floor, however there’s a good

chance that the center speaker

will have to be lower or higher

than the others.

The speakers can be installed

either vertically or horizontally.

For better sound quality, avoid

installing the speakers near

corners.

5.1

In addition to the le, right,

and center speakers described

in the 3.1 setup, install the sur-

round le and right speakers

on the le and right walls. They

should be a few feet behind the

listening area, and about 5 feet

(1.5 m) from the floor.

7.1

The front le, right, and center

speakers should be in the same

location as the previous two

setups described. The surround

le and right speakers should

be about 5 feet (1.5 m) from the

floor, directly to either side of

the listening area. Finally, the

rear speakers should be on the

back wall, about 5 feet (1.5 m)

from the floor and 3 to 6 feet (1

to 2 m) apart. If possible, make

sure that the distance between

the rear speakers is the same as

the distance between the front

le and right speakers.

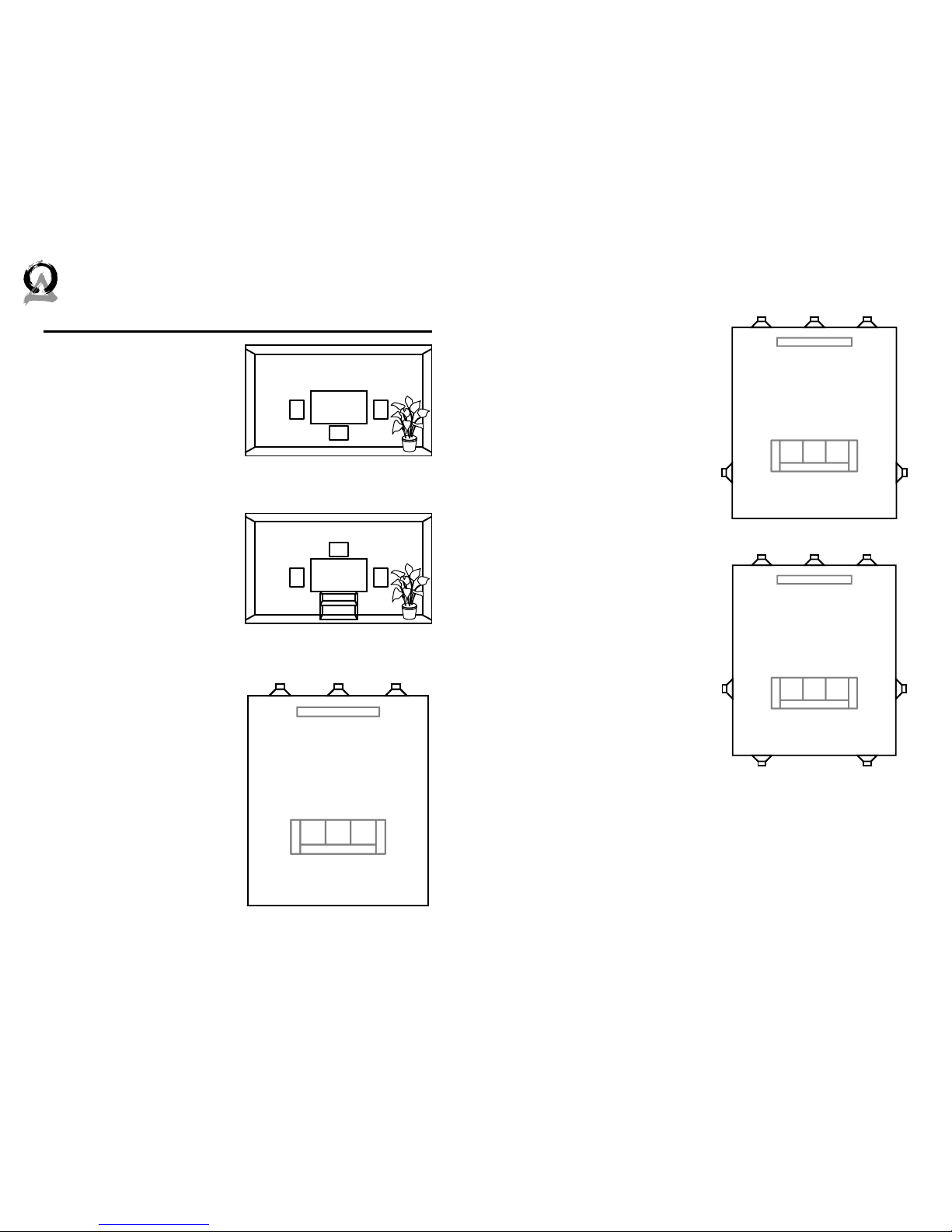

L R

Figure 4.1: Speaker Layout

(Option 1) Side View

L R

Figure 4.2: Speaker Layout

(Option 2) Side View

Listening Area

Le Front Right FrontCenter Channel

Figure 4.3: 3 Speaker Setup

Listening Area

Right

Surround

Le

Surround

Le Rear Right Rear

Le Front Right FrontCenter Channel

Figure 5.2: 7 Speaker Setup

Listening Area

Right

Surround

Le

Surround

Le Front Right FrontCenter Channel

Figure 5.1: 5 Speaker Setup

6 7

844·674·4461

TECHSUPPORT@ORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM

C60 COLLECTION INSTALLATION MANUAL

Installation

1) Installing the Wire

Strip ¼ to ½ inches (6 to 12

mm) of the insulation o both

ends of the wire. To avoid stray

strands, twist them at the end.

Connect the wire to the am-

plifier, and make sure the wire

connected to the le speaker

output will be routed to the le

speaker, right output to right

speaker, etc.

You will need a wire that has at least two conductors; one that can be

identified as the positive and the other as the negative. All two conductor

wires have some means of identifying which conductor is which, but at

times this identification may be subtle. It’s crucial that you keep track of

which wire you use for positive (+) and negative (-). Typically if the wires

are colored red and black, the red wire is used for positive and the black

wire is used for negative, but sometimes other colors or patterns are

used. You can choose whichever color of wire you want to be positive and

negative as long as you remain consistent throughout the install.

On both your amplifier and your speaker the connectors will be identi-

fied as red for positive and black for negative. It is very important to look

carefully at the speaker wires and be certain that the same wire that is

attached to the positive connector in the amplifier is attached to the pos-

itive connector in the speaker.

About Speaker Wire

Plan out how you’ll route the

wire to the desired speaker

location. There are several

methods for routing the wire,

and you will most likely need

to combine several of these

methods.

Under the Carpet:

One option is to li up the car-

pet and use tape wire to route

the wire under the carpet.

Behind the Baseboard:

If these speakers are being

installed in a new home during

construction, the installation

process will be a bit dierent (al-

though much simpler). For these

situations, it’s recommended

you purchase a bracket. In-

structions on how to install the

speakers are provided with the

bracket, or can be found on our

website. Visit www.originacous-

tics.com for more information.

For New Construction

Figure 6.1: Strip Wire

Figure 6.2: Twist Ends

The wire can be routed behind the baseboard by cutting a groove

out of the back of the baseboard, or by buying special baseboard

designed for concealing wires.

Through the Attic:

If the room is under the attic or a crawlspace, the wire can be rout-

ed through there.

Through the Basement:

Likewise, if there’s a basement or crawlspace under the floor, the

wire can be routed through there.

Route the wire through the walls and ceiling to the desired speak-

er location. Be sure to avoid all obstacles such as AC wiring, pipes,

and ducts.

8 9

844·674·4461

TECHSUPPORT@ORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM

C60 COLLECTION INSTALLATION MANUAL

2) Painting the Grille

In some situations the speakers

may look better if the color

matched the walls, ceiling, or

trim in the room. This can be

accomplished by painting the

grille. The grille must be paint-

ed with spray paint, and most

hardware stores will mix a can

of paint to match whatever col-

or you need.

Before painting, carefully

remove the thin cloth on the

underside of the grille. Lightly

spray the front of the grille

with the paint from a distance,

being careful not to plug any

of the holes. Diluting the paint

with paint thinner will lessen

the risk of filling any holes. If

a hole is plugged, use a can of

compressed air to open it. Once

the paint is dry, put the cloth

back on the grille.

3) Cutting the Hole

When you’ve decided on the locations for all of the speakers, use

the template to trace a rectangle lightly in pencil where the hole

should be. If you’re unsure on whether there may be obstacles

(such as pipes or wires) where you plan on installing the speaker,

drill a ⅛ inch hole in the center of the rectangle, then put a bent

coat hanger through the hole to feel around. If there are no obsta-

cles, use a keyhole or drywall saw to cut the hole.

4) Connecting the Wires

Figure 8.2: Spray Grille

Figure 8.1: Remove Cloth

Figure 9.1: Connecting the Wires

Push down on the top of the

connector and insert the wire,

making sure that the positive

is being attached to the red

connection and the negative

is being attached to the black

connection. If the negative and

positive wires are switched,

speaker performance will be

drastically impacted.

10 11

844·674·4461

TECHSUPPORT@ORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM

C60 COLLECTION INSTALLATION MANUAL

6) Listening Test and

Adjustments

The tweeter can be pivoted

to direct the sound towards

the listening area. Gently ap-

ply pressure to the rim of the

tweeter with your thumbs to

aim.

The C66 and C68 have two

switches: one to adjust the tre-

ble, and one to adjust the bass.

7) Installing the Grille

Fit the grille over the speaker. The grille uses magnets to be held

in place.

Bass: When a speaker is installed in a corner, the bass is amplified. If this

is the case, it may be best to turn the bass down.

Treble: When a room has a lot of hard surfaces like bare walls and hard-

wood floors, the treble will reflect o of these surfaces and increase. In

these situations, it may be a good idea to turn the treble down. Alternate-

ly, in rooms with carpet and things like curtains, the treble is oen ab-

sorbed. If this is the case, it would probably be best to turn up the treble.

Reasons to Adjust Bass and Treble

5) Installing the Speaker

On the speaker, make sure all

the SpringLocks are loaded

in the upper notch, facing in-

ward. Fit the speaker into the

hole, and using a screwdriver

or a coin, turn the SpringLock

releases 90 degrees so the

SpringLocks face outwards.

When you turn each SpringLock

release, you should hear each

SpringLock clamp down on the

wall. Do not attempt to tighten

the SpringLock releases, be-

cause once the SpringLock has

clamped down it’s as secure as

it can be.

If you need to remove the

speaker, turn the SpringLocks

90 degrees so that they face in-

wards and li the speaker out.

Figure 10.2: Deploying the SpringLock

Figure 10.1: Turing the

SpringLock Release

Figure 11.1: Aiming the Tweeter

Figure 11.2: Bass/

Treble Switches

12 13

844·674·4461

TECHSUPPORTORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM

C60 COLLECTION INSTALLATION MANUAL

If you have any questions or concerns about installing or using

this product, you can reach us through one of the following meth-

ods:

Phone: (844) 674-4461

Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri

Email: techsupport@originacoustics.com

If you are having technical trouble, please include the model num-

ber and briefly explain what steps you took to resolve the problem

in your email, or be prepared to answer these questions over the

phone. If you are considering returning the product, it’s required

that you contact Origin Acoustics prior to any return attempts.

This way we can determine if the issue can be resolved without

returning the product, or if needed we can provide instructions

and support for the return process.

If possible, it’s oen good to try to isolate the problem first. For

example, if you’re playing a DVD on a television and there’s no

sound, try connecting an MP3 player to the system to see if that

works. If it does work, then the problem is with the television, DVD

player, or the cables connecting them. If it doesn’t work, the prob-

lem will be with the amplifier, speakers, or those cables.

Problem Possible Cause

No Sound

The volume may be turned down or muted. Check

the volume settings on both the amplifier and the

television/computer/CD player/etc.

Make sure the proper source is selected on the am-

plifier or receiver.

Check the cord connecting the amplifier with the

source. The cord may be damaged or plugged into

the wrong input or output.

Check the wires connecting the amplifier with the

speakers. Make sure they’re connected properly and

not damaged in any way.

Poor Sound Quality

If you hear something like static, or the sound is cut-

ting in and out, check the audio cables. If the prob-

lem increases when a cable is being moved, then the

cable is most likely faulty or not connected properly.

Today’s audio systems may have several places to

adjust the volume, for example your MP3 player may

have a volume control, and your amplifier may also

have one. Check to be certain that the volume isn’t

turned up past 80% on any device.

Try changing sources to be certain that the selection

you’ve chosen is a good quality recording.

Troubleshooting Technical AssistanceTechnical AssistanceTroubleshooting

14 15

844·674·4461

TECHSUPPORT@ORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM

C60 COLLECTION INSTALLATION MANUAL

Specifications

*DPSD = Dual Plane Stabilized Diaphragm

Specifications

Model Number C64 C66 C68

Part Number SWM12400 SWM12600 SWM12800

Tweeter Dome Aluminum Silk DPSD* Silk DPSD*

Tweeter Diameter 1” (25mm) 1” (25mm) 1” (25mm)

Woofer Cone IMG Glass Kevlar

Woofer Dimensions 4 x 8” (102 x 203mm) 4 x 8” (102 x 203mm) 4 x 8” (102 x 203mm)

Adjustments N/A Treble & Bass Treble & Bass

Frequency Response 45Hz-20kHz 43Hz-20kHz 40Hz-20kHz

Impedance 8 ohm 8 ohm 8 ohm

Recommended Power Handling 5-110 watts 5-125 watts 5-140 watts

Sensitivity 89dB ± 3dB 89dB ± 3dB 89dB ± 3dB

Dimensions 5.5 x 11.75”

(140 x 300mm)

5.5 x 11.75”

(140 x 300mm)

5.5 x 11.75”

(140 x 300mm)

Cutout Dimensions 5 x 11.25” (±0.25)

126 x 286mm (±10)

5 x 11.25” (±0.25)

126 x 286mm (±10)

5 x 11.25” (±0.25)

126 x 286mm (±10)

Mounting Depth 3.75” (95mm) 3.75” (95mm) 3.75” (95mm)

16 17

844·674·4461

TECHSUPPORT@ORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM

C60 COLLECTION INSTALLATION MANUAL

This warranty may not be valid if the product was purchased

through an unauthorized dealer. This warranty only applies to

the individual that made the original purchase, and it cannot be

applied to other purchases. The purchaser must be prepared to

provide proof of purchase (receipt). This warranty will not be val-

id if the identifying number or serial number has been removed,

defaced, or altered.

This warranty does not cover the following:

• Accidental damage

• Damage caused by abuse or misuse

• Damage caused by attempted repairs/modifications by

anyone other than Origin Acoustics or an authorized dealer

• Damage caused by improper installation

• Normal wear, maintenance, and environmental issues

• Damage caused by voltage inputs in excess of the rated

maximum of the unit

• Damage inflicted during the return shipment

Warranty

Limited Lifetime Warranty

Origin Acoustics warrants to the original retail purchaser only that

this Origin Acoustics product will be free from defects in materials

and workmanship, provided the speaker was purchased from an

Origin Acoustics authorized dealer.

If the product is determined to be defective, it will be repaired or

replaced at Origin Acoustics’ discretion. If the product must be

replaced yet it is no longer manufactured, it will be replaced with

a model of equal to or greater value that is the most similar to

the original. If this is the case, installing the replacement model

may require mounting modifications; Origin Acoustics will not be

responsible for any such related costs.

Requirements and Warranty Coverage

Return Process

Before making any return attempts, it is required that you first

contact Origin Acoustics. Return product to Origin Acoustics

or your dealer, either in person or by mail. It’s preferable if the

product is returned in the original packaging. If this isn’t possible,

the customer is responsible for insuring the shipment for the full

value of the product.

This warranty is in lieu of all other expressed or implied warranties.

Some states do not allow limitations on implied warranties, so this

may not apply depending on the customer’s location. (For more

information, see Magnuson-Moss Warranty Act.)

Return Process

Requirements and Warranty Coverage

Warranty

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Oradores de Origin Acoustics

Origin Acoustics

Origin Acoustics ACOUSTIC LANDSCAPE AS41SAT Manual de usuario

Origin Acoustics

Origin Acoustics Director D62 DT/SUR Manual de usuario

Origin Acoustics

Origin Acoustics Seasons Landscape OSUB Series Manual de usuario

Origin Acoustics

Origin Acoustics DSP2-200 Manual de usuario

Origin Acoustics

Origin Acoustics Director Collection D89 Manual de usuario

Origin Acoustics

Origin Acoustics P80 Manual de usuario

Origin Acoustics

Origin Acoustics Season Outdoor OS 60 Series Manual de usuario

Origin Acoustics

Origin Acoustics DSUB6 Manual de usuario

Origin Acoustics

Origin Acoustics D88 Manual de usuario

Origin Acoustics

Origin Acoustics PROFESSIONAL PP80B Manual de usuario

Origin Acoustics

Origin Acoustics Season Outdoor OS 60 Series Manual de usuario

Origin Acoustics

Origin Acoustics BANG & OLUFSEN Celestial BOC60 Series Manual de usuario

Origin Acoustics

Origin Acoustics BANG & OLUFSEN Celestial BOC80 Series Manual de usuario

Origin Acoustics

Origin Acoustics Composer LCR69 Manual de usuario

Origin Acoustics

Origin Acoustics DIRECTOR D89 Manual de usuario

Origin Acoustics

Origin Acoustics PROFESSIONAL PP50 PROFESSIONAL PP60 Manual de usuario

Origin Acoustics

Origin Acoustics D39 Manual de usuario

Origin Acoustics

Origin Acoustics MOS36K Manual de usuario

Origin Acoustics

Origin Acoustics Seasons Outdoor Collection OSR85 Manual de usuario

Origin Acoustics

Origin Acoustics COMPOSER C60 Series Manual de usuario

Origin Acoustics

Origin Acoustics DIRECTOR D69 Manual de usuario

Origin Acoustics

Origin Acoustics Composer LCR LCR36 Manual de usuario

Origin Acoustics

Origin Acoustics PROFESSIONAL PS50B Manual de usuario

Origin Acoustics

Origin Acoustics Director 100 Series Manual de usuario

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
