Orient OrientStar DIVER'S WATCH 200m Manual de usuario

MECHANICAL WATCH

AUTOMATIC & HAND WINDING MECHANISM

DIVER’S WATCH 200m

INSTRUCTION MANUAL

BEDIEUNGSANLEITUNG

MODE D’EMPLOI

MANUALE DI ISTRUZIONI

MANUAL DE INSTRUCCIONES

EMAM90

ENGLISH

MECHANICAL WATCH

AUTOMATIC & HAND WINDING MECHANISM

DIVER’S WATCH 200m

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

WARNING

CAUTION

ENGLISH

IN HANDLING THE WATCH

(1) Precautions when diving

WARNING

Watches with “DIVER’S 200m” or “DIVER’S WATCH 200m” marked on its

dial or case back are designed to be able to be used when scuba diving

(air diving, water depth of up to 200m).

• This watch is not designed for saturation diving. Do not use this watch

when saturation diving.

• Do not use this watch in water depths of 200m or deeper.

• The diver’s watch is an auxiliary instrument mainly used for displaying

the elapsed time. Ensure that you have acquired the necessary

experience and skills to dive safely before diving, and be sure to use

specialized diving equipment such as the diving computer.

CAUTION

[Precautions before diving]

Make sure to do the following before you dive.

• Check that the mainspring is fully wound.

• Make sure the watch shows the correct time.

• Make sure that the rotating bezel is set to the correct time. Also, make

sure that the rotating bezel is not too loose, too tight or rotating in the

opposite direction.

• Check that the screwed-down type crown is securely tightened.

• Make sure that there are no cracks or chips in the glass.

• Make sure that the watchband is not about to tear, and check that

there are no problems with its joints (spring bar, buckle, clasp, etc.).

If there are any problems, do not use the watch when diving.

CAUTION

[Precautions during diving]

• Do not operate the crown while in the water.

ENGLISH

• The rotating bezel may be hard to operate under water due to water

pressure.

• The elapsed time indicated by the rotating bezel is to be taken as a

rough estimate.

• Do not subject the watch to shocks, such as banging on rocks.

CAUTION

[Precautions after diving]

• To remove salt water from the case or bracelet/strap, first make sure

the crown is securely tightened. Then, rinse it with fresh water to

prevent rusting.

• Do not use chemical agents to rinse the watch or soak the watch.

(2) Shock

1Be sure not to carry the watch when you engage in

strenuous sports, whereas playing such light sports as golf,

etc., will not adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(3) Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(5) Temperature

In environments below and above normal temperatures (5°C-35°C), the

watch may malfunction and stop.

ENGLISH

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The

watch may heat and cause burns.

(6) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics, etc.), and so forth. Such may cause discoloration of the

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

(7) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of

children.

If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due

to contact with the watch or strap, stop wearing the watch immediately

and consult a doctor.

ENGLISH

(9) About “luminous light”

This watch has luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

◆HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or

the case code on the watch’s case back.

1. Searching by the model number

Check the 13 digit model number on the guarantee supplied with your watch.

You can also see the number on the product tag put on the watch. Its fourth

and fifth digits indicate the caliber number of your watch.

(Ex.) R¨-XXXXXXXXXX

2. Searching by the case code

Check the case code on the case back of

your watch.

It has displayed as XXXX-XXXX.

The first three digits indicate the caliber

number.

(In the example, F6D is the caliber number.)

* The place of case code may vary and its letter size may be small and

difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual

appearance of your watch but the function and operation procedures are

the same.

Case code

ENGLISH

SPECIFICATIONS

Caliber

Number

of jewels

Date Day of

week

Second

hand halt

mechanism

Running time Remark1*

AA F69 22 ○ ○ ○ More than 40 hours 8:00P.M.-4:00A.M.

AC F67 22 ○–○More than 40 hours 8:00P.M.-4:00A.M.

AU F6N 22 ○–○More than 50 hours 8:00P.M.-2:00A.M.

(1) Vibrations: 21,600 vibrations/1 hour

(2) Daily accuracy: +25 sec. to -15 sec.

(3) Drive system: Mainspring winding (Hand-winding)

(4) Shock-proof bearings to protect the balance with hairspring from shocks.

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and

the dial facing up.

• Due to the characteristics of the automatic winding watch, the time may

deviate from the stated “daily accuracy” depending on the following

conditions: amount of time the watch is worn each day, position of the

watch, movement of your arm, winding condition of the mainspring.

• Determine the deviation from not just a day but a period of about a week.

Product specifications may change without notice, for improvement.

CAUTION

* Avoid setting the date during the time periods listed in “Remark1” above

since the calendar changes during this time. If the date is set during this

time period, the date may not change or the watch may malfunction. Be

sure to move the hour and minute hands away from this time period when

setting the date.

ENGLISH

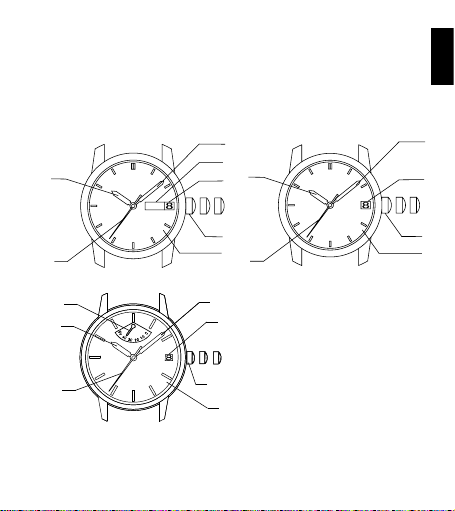

NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A: Hour hand

Date 1. Normal position

B: Minute hand F: Crown 2. First click: Calendar setting

C: Second hand G: Dial 3. Second click: Time setting

Day of the week H: Power reserve indicator hand

<AA(F69)> <AC(F67)>

<AU(F6N)>

* The position of the crown, date indicator, or day of the week window may

be different, depending on the model.

MON

123

12 3

ENGLISH

AUTOMATIC WINDING MECHANISM

(1) The mainspring is wound by natural movements of your

arm when wearing the watch on your wrist.

(2) If your watch stops, swing the watch back and forth ten

or more times to re-start the second hand. After it starts

moving, set the date and time.

(3) If it is not wound enough, the watch may lose accuracy.

In order to maintain the watch’s accuracy, we recommend

wearing the watch at least 8 hours a day.

HAND WINDING MECHANISM

(1) The mainspring can be wound up by hand.

(2) To wind the spring, ensure that the crown is in its normal position and

slowly turn it clockwise.

Turning the crown counterclockwise will have no effect.

(3) When the watch is in the stopped state, the spring can be wound

sufficiently by rotating the crown approximately 30 times. Since the crown

will rotate even when winding is complete, wind the watch using the

above number of turns as a guide.

SCREWED-DOWN CROWN

The crown can be locked (fixed) by screwing it into the case. Locking the

crown can prevent accidental operations and improve the watch’s waterproof

performance.

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown counterclockwise to

loosen the screw lock.

(2) After setting the date and time, turn the crown clockwise while pressing

in, until it stops turning to securely tighten the screw.

ENGLISH

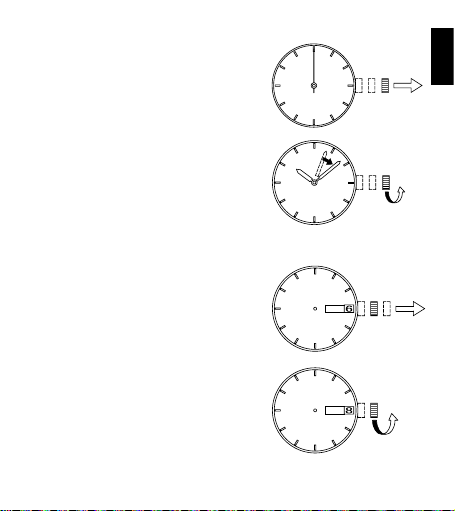

HOW TO SET THE TIME & CALENDAR [AA(F69)]

(1) Pull out the crown to the second click

when the second hand reaches the 12

o’clock position.

(The second hand stops.)

(2) Turn the crown counterclockwise and

set the current time.

*When setting the time, first bring the

hand back slightly earlier than the

actual time and then move it forward

to the actual time.

*For the watch with a calendar, make

sure that you set either a.m. or p.m.

without fail. The date changes at

[twelve o’clock midnight].

(3) Pull the crown out to the first click.

*The crown on this watch can be

pulled out to either of two clicks.

(4) Turn the crown counterclockwise, and

set the date to that for the current day.

Turn

counterclockwise

SAT

Turn

counterclockwise

SAT

Tabla de contenidos

Idiomas:

Otros manuales de Mirar de Orient

Orient

Orient TZ(KFE) Manual de usuario

Orient

Orient SY(KFF) Manual de usuario

Orient

Orient KFA (TD) Manual de usuario

Orient

Orient cem65001b Manual de usuario

Orient

Orient TT(KFB) Manual de usuario

Orient

Orient FUN8G001 Manual de usuario

Orient

Orient BEM5L003 Manual de usuario

Orient

Orient DD (48C) Manual de usuario

Orient

Orient VS75 Manual de usuario

Orient

Orient UG1R002B Manual de usuario

Orient

Orient RA-KV0403S Manual de usuario

Orient

Orient ST(KUD) Manual de usuario

Orient

Orient KFB TT Manual de usuario

Orient

Orient UB8A002B Series Manual de usuario

Orient

Orient RK-AU0301B Manual de usuario

Orient

Orient EW 46F Manual de usuario

Orient

Orient KU(RMC) Manual de usuario

Orient

Orient DB 46A Manual de usuario

Orient

Orient TT(KFB) Manual

Orient

Orient DM 48Y Manual de usuario

Orient

Orient CFA02001B Manual de usuario

Orient

Orient DA 40R Manual de usuario

Orient

Orient XC Manual de usuario

Orient

Orient EMAM80 Manual de usuario

Manuales populares de Mirar de otras marcas

Pandora

Pandora WATCH2 Manual de usuario

Casio

Casio QW-4343 Manual de usuario

Suunto

Suunto X6 Manual de usuario

Seiko

Seiko N830 Manual de usuario

MotionX

MotionX 365 Manual de usuario

Garmin

Garmin VENU SQ 2 Manual de usuario

QCY

QCY Watch GTC Manual de usuario

Canyon

Canyon Cindy CNE-KW41WP Manual de usuario

Esq

Esq Watches Guía de instalación

Crane

Crane AA5-CDSM-3A Manual de usuario

Timex

Timex W-214 Manual de usuario

DETOMASO

DETOMASO MATERA Manual de usuario

Geemarc

Geemarc Watch N Shake Manual de usuario

LORUS

LORUS W590 Manual de usuario

STENLILLE

STENLILLE Actío Manual de usuario

Casio

Casio 5594 Manual de usuario

Sinn

Sinn HUNTER'S WATCH 3. Edition Manual de usuario

Slazenger

Slazenger SLZ800 Manual de usuario
