Oregon Scientific ECLIPSE Manual de usuario

Advanced

Wireless Weather Station

USER MANUAL

ECLIPSE

CONTENTS

Overview.....................................................................2

Front View ..............................................................2

Back View ...............................................................3

Remote Sensor ......................................................3

Getting Started...........................................................3

Insert Batteries .......................................................3

Remote Sensor ..........................................................4

Sensor Data Transmission .....................................4

Clock...........................................................................5

Clock Reception .....................................................5

Manually Set Clock ................................................5

Weather Forecast.......................................................6

Weather Warning Message.......................................6

Temperature and Humidity...................................... 6

Ice Warning ........................................................... 7

Advanced Wireless Weather Station

Model: ECLIPSE

USER MANUAL

Weather Trends ..................................................... 7

Moon Phase ...............................................................7

Backlight ....................................................................7

Reset...........................................................................7

Precautions................................................................8

Specications ............................................................8

About Oregon Scientic ...........................................9

EU-Declaration of Conformity ..................................9

FCC Statement...........................................................9

Declaration of Conformity.......................................10

Information For Users.............................................10

OVERVIEW

FRONT VIEW (FIG 1)

1. Remote sensor reception indicator

2. Moon phase reading

3. Weather forecast

4. Indoor temperature with temperature trend

5. Clock signal reception indicator

6. MODE: Change settings / display

7. / : Increase / decrease settings; activate /

deactivate clock reception signal

8. Outdoor temperature with temperature trend

9. Outdoor humidity with humidity trend

10. Weather warning message

11. Indoor humidity with humidity trend

12. Clock with weekday

13. MEM: View current, maximum and minimum

temperature / humidity

14. LIGHT: Activate backlight for 5 seconds

15. Ice alert LED indicator

BACK VIEW (FIG 2)

CHANNEL

1. °C / °F: Select temperature unit

2. RESET: Reset unit to default settings

3. EU / UK:Select the nearest radio signal

REMOTE SENSOR (FIG 3)

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET hole

5. CHANNEL switch

GETTING STARTED

INSERT BATTERIES

1. Remove the battery compartment.

2. Insert the batteries, matching the polarities (see FIG 2).

3. Press RESET after each battery change.

LOCATION MEANING

Clock / alarm and

Indoor temperature area

Main unit batteries low

Outdoor temperature area Sensor batteries low

REMOTE SENSOR

The main unit can collect data from up to 3 sensors.

To set up the sensor:

1. Open the battery compartment (see FIG 3).

2. Select a channel then press RESET.

3. Close the battery door.

4. Place the sensor within 30 m (98 ft) of the main unit

using the table stand or wall mount.

TIP Ideal placements for the sensor would be in any

location on the exterior of the home at a height of not

more than 5 ft and which can shield it from direct sunlight

or wet conditions for an accurate reading.

150cm(5ft)

NOTE Use alkaline batteries for longer usage and

consumer grade lithium batteries in temperatures below

freezing.

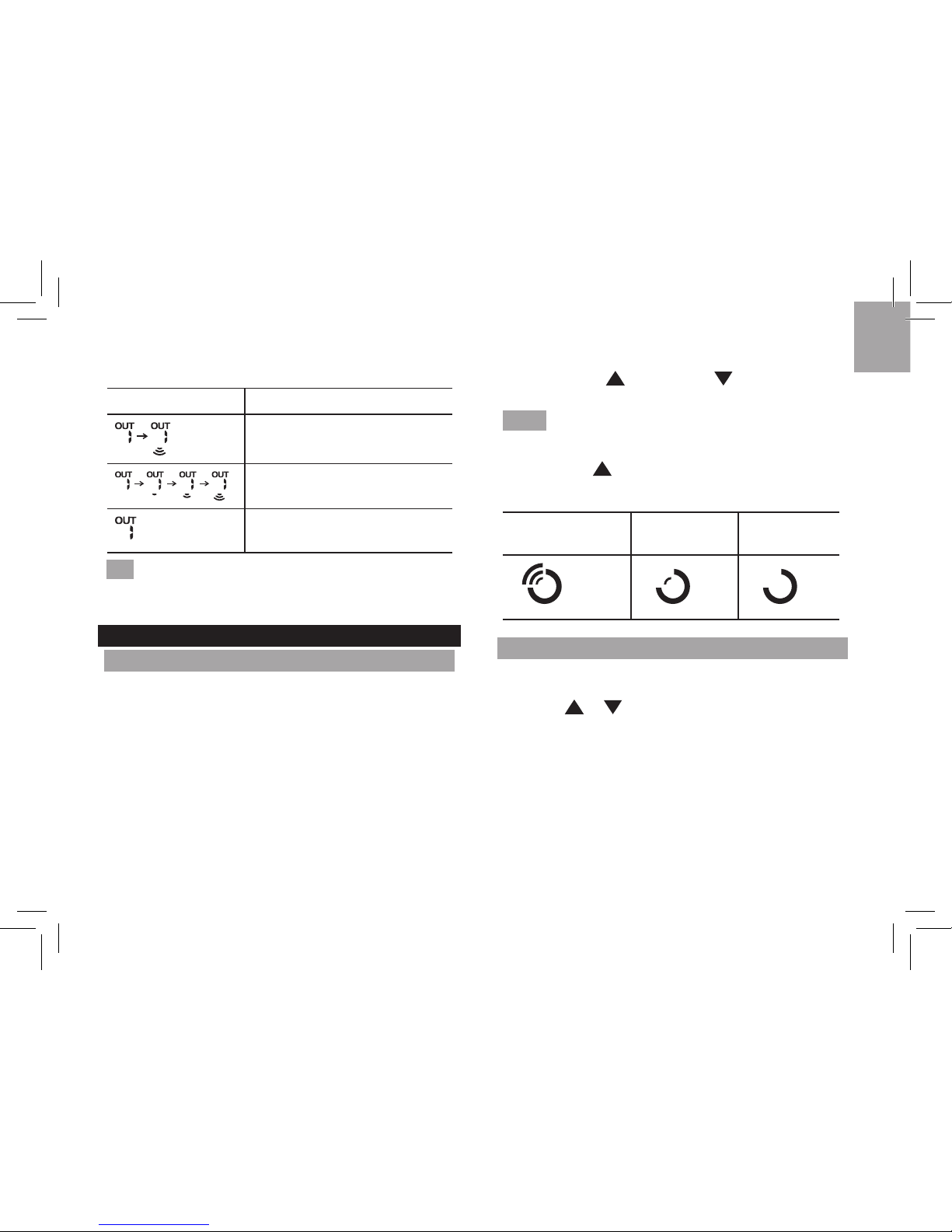

SENSOR DATA TRANSMISSION

To search for a sensor:

Press and hold + MODE.

The sensor reception icon in the remote sensor area

shows the status:

ICON DESCRIPTION

Main unit is searching for

sensor(s).

A channel has been found.

The sensor cannot be found.

TIP The transmission range may vary depending on

many factors. You may need to experiment with various

locations to get the best results.

CLOCK

CLOCK RECEPTION

This product is designed to synchronize its clock

automatically with a clock signal.

EU / UK:

Slide EU / UK to select the signal received.

• EU: DCF-77 signal: within 1500 km (932 miles) of

Frankfurt, Germany.

• UK: MSF-60 signal: within 1500 km (932 miles) of

Anthorn, England.

US:

• WWVB-60 signal: within 3200km (2000 miles) of Fort

Collins Colorado.

To enable / disable signal reception:

Press and hold to enable or to disable signal

reception.

NOTE Reception takes 2-10 minutes. If the signal is weak,

it can take up to 24 hours to get a valid signal. If signal

reception is unsuccessful, place your unit next to a window,

press and hold to force another signal search.

Clock signal reception indicator:

STRONG

SIGNAL

WEAK

SIGNAL

MANUALLY SET CLOCK

To set the clock manually, disable the signal reception rst.

1. Press and hold MODE.

2. Press or to change the settings.

3. Press MODE to conrm.

4. The settings order is: time zone, 12/24 hr format, hour,

minute, year, calendar mode (day – month /

month – day), month, day and language.

EU: Time zone offset sets the clock +/- 23 hours from the

received clock signal time.

US: Select the time zone: (P) Pacic,(E) Eastern, (C)

Central or (M) Mountain.

NOTE The language options are English (E), German

(D), French (F), Italian (I), and Spanish (S).

To select display mode:

Press MODE to choose between clock with seconds /

weekday / calendar / moon phase.

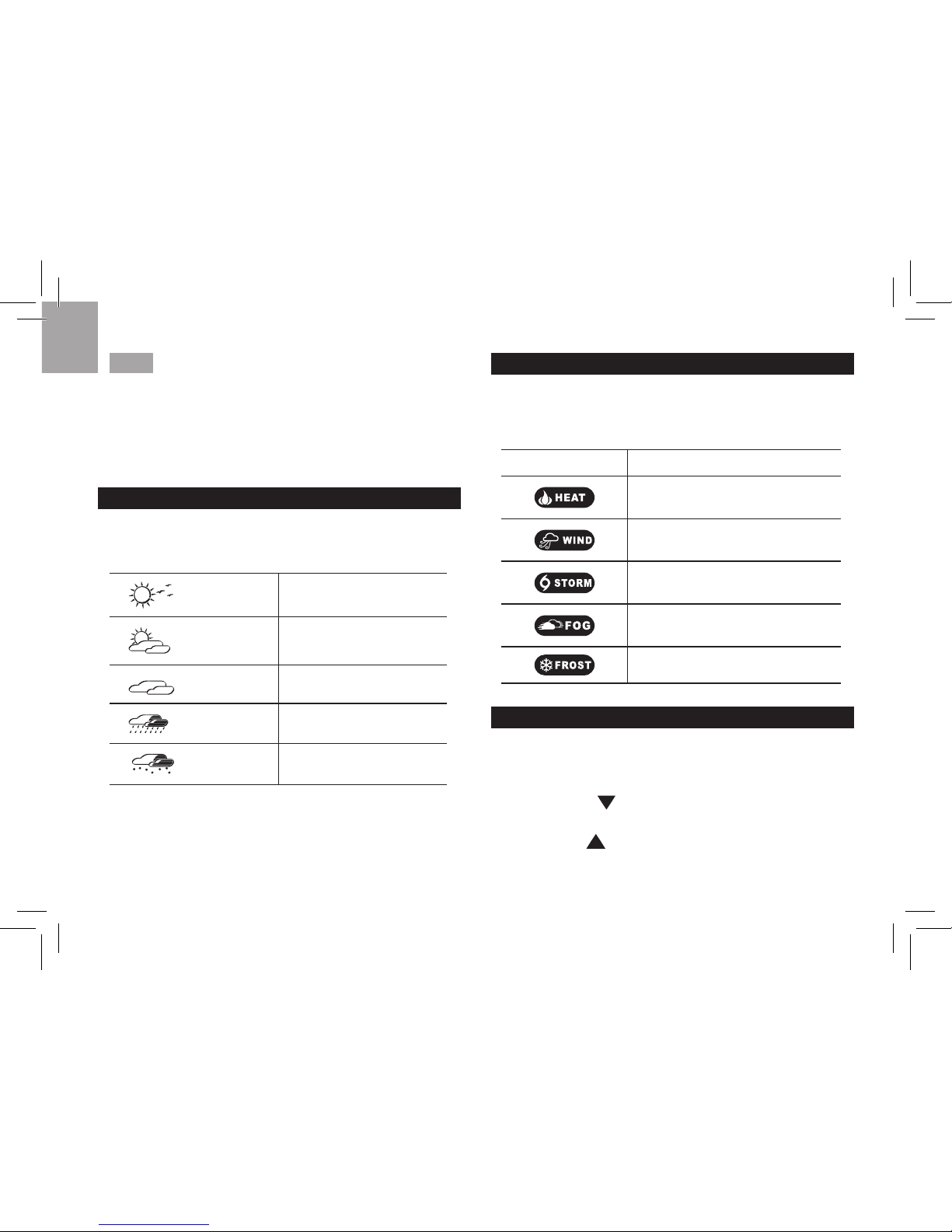

WEATHER FORECAST

This product forecasts the next 12 to 24 hours of

weather within a 30-50 km (19-31 mile) radius with a

75% accuracy.

Sunny

Partially Cloudy

Cloudy

Rainy

Snowy

WEATHER WARNING MESSAGE

The weather warning messages provide indications of

probable circumstances that may arise based on the

weather station’s calculations. The meanings for the

warnings are illustrated below:

Warning Meaning

Risk of high temperatures

Risk of fast wind speeds

Risk of a storm

Risk of foggy conditions

Risk of icy conditions

TEMPERATURE AND HUMIDITY

To toggle temperature unit:

Press °C /°F.

To auto-scan between sensors:

Press and hold + MEM to display each sensor’s data

for 3 seconds.

To end press .

To toggle between current, minimum and maximum

records for the selected sensor:

Press MEM repeatedly.

To clear the records:

Press and hold MEM.

ICE WARNING

If the channel 1 sensor falls between 3°C to -2 °C (37°F

to 28°F), LED indicator will ash, and will stop ashing

once the temperature is out of this range.

WEATHER TRENDS

The temperature, humidity and pressure trend icons are

based on recent sensor readings.

RISE STEADY FALL

MOON PHASE

In moon phase mode, press or to scan through

the years (2001 to 2099).

New Moon Full Moon

Waxing Crescent WaningGibbous

First quarter Last quarter

Waxing Gibbous Waning Crescent

NOTE Star icons around the moon phase will be displayed

from 6 o’clock in the evening to 6 o’clock the next morning.

BACKLIGHT

Press LIGHT to activate backlight for 5 seconds.

RESET

Press RESET to return to the default settings.

PRECAUTIONS

• Use only fresh batteries of the required size and type. Do

not mix old and new batteries, different types of batteries.

• Do not dispose old batteries as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

• If you do not plan to use the product for a long time,

remove the batteries. Batteries can leak chemicals that

can damage electronic parts.

• Do not subject the device to excessive force, shock, dust,

temperature or humidity.

• Do not immerse the device in water. If you spill liquid over

it, dry it immediately with a soft, lint-free cloth.

• Do not clean the device with abrasive or corrosive materials.

• Do not tamper with the device’s internal components.

Doing so invalidates the warranty.

• Imagesshowninthismanualmaydifferfromtheactualdisplay.

• When disposing of this product, ensure it is collected

separately for special treatment.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

NOTE The technical specications for this product and

the contents of the user manual are subject to change

without notice.

NOTE Features and accessories will not be available in

all countries. For more information, please contact your

local retailer. To download an electronic version of the

user manual, please visit

http://global.oregonscientic.com/customerSupport.php.

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

L x W x H 94 x 51 x 182.5 mm

(3.70 x 2.01 x 7.19 in)

Weight 236 g (8.3 oz) without battery

Temperature range -5°C to 50°C (23°F to 122°F)

Resolution 0.1°C (0.1°F)

Signal frequency 433 MHz

Humidity range 25% - 95%

Humidity resolution 1%

Power 3 x UM-3 (AA) 1.5 V batteries

REMOTE UNIT (THGR511)

L x W x H 50 x 22 x 96 mm

(1.97 x 0.87 x 3.78 in)

Weight 49 g (1.73 ounces)

without battery

Transmission range 30 m (98 ft) unobstructed

Temperature range -20°C to 60°C (-4°F to 140°F)

Humidity range 25% - 95%

Power 2 x UM-4 (AAA) 1.5 V batteries

ABOUT OREGON SCIENTIFIC

Visit our website www.oregonscientic.com to learn

more about Oregon Scientic products.

For any inquiry, please contact our Customer Services at

info@oregonscientic.com.

Tabla de contenidos

Idiomas:

Otros manuales de Estación meteorológica de Oregon Scientific

Oregon Scientific

Oregon Scientific RMS 300 Manual de usuario

Oregon Scientific

Oregon Scientific WMH601 Manual de usuario

Oregon Scientific

Oregon Scientific BAR206 Manual de usuario

Oregon Scientific

Oregon Scientific RMR203HG Manual de usuario

Oregon Scientific

Oregon Scientific BAR998HGA Manual de usuario

Oregon Scientific

Oregon Scientific RMR966PA Manual de usuario

Oregon Scientific

Oregon Scientific BAR916HG Manual de usuario

Oregon Scientific

Oregon Scientific BAR321HGA Manual de usuario

Oregon Scientific

Oregon Scientific BARM688 Manual de usuario

Oregon Scientific

Oregon Scientific JW102 Manual de usuario

Oregon Scientific

Oregon Scientific WMR200A Manual de usuario

Oregon Scientific

Oregon Scientific BA888 Manual de usuario

Oregon Scientific

Oregon Scientific Philippe Starck PS-M02 Manual de usuario

Oregon Scientific

Oregon Scientific BAR122HGN Manual de usuario

Oregon Scientific

Oregon Scientific BAR636A Manual de usuario

Oregon Scientific

Oregon Scientific WMR928N Manual de usuario

Oregon Scientific

Oregon Scientific TW686 Manual de usuario

Oregon Scientific

Oregon Scientific JW103 Manual de usuario

Oregon Scientific

Oregon Scientific BAR122HG Manual de usuario

Oregon Scientific

Oregon Scientific BAR388HG Manual de usuario

Oregon Scientific

Oregon Scientific WMR112 Manual de usuario

Oregon Scientific

Oregon Scientific CW101 Manual de usuario

Oregon Scientific

Oregon Scientific RMR203HG Manual de usuario

Oregon Scientific

Oregon Scientific RM600A Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

La Crosse Technology

La Crosse Technology C86371 Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

La Crosse Technology

La Crosse Technology WS-2210 Manual de usuario

La Crosse Technology

La Crosse Technology WS-811561 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario
