MULTI-CHANNELIN-OUT

CABLEFREETHERMOMETER

MODEL: EMR812

USER’S MANUAL

INTRODUCTION

Congratulations on your purchase of the EMR812 Multi-Channel

In-Out Thermometer with 433MHz cable free sensor.

The EMR812 is an easy-to-use, state-of-the-art thermometer. The

basic package comes with a main unit, which is the temperature

station, and a remote unit, the thermo sensor.

The main unit has extra-large read-outs for indoors temperature

and for that collected and transmitted by the remote unit. The main

unit can support up to three remote units.

The main unit is capable of monitoring temperature changes of

remote sites. By setting the upper and lower temperature limits the

alarm will activate when those limits are exceeded. Also, the maxi-

mum and minimum temperature of different sites can also be

retrieved quickly.

No wire installation is required between the main and remote units.

As the EMR812 operates at 433MHz, it can be used in the U.S. and

most places in Continental Europe.

MAIN FEATURES: MAIN UNIT

HI ON/OFF RESET

TEMP AL

°C

°FLO

CHANNEL MEM CLEAR

433 MHz CABLE FRE E

L WALL-MOUNT RECESSED HOLE

For mounting the main unit on a wall

FEATURES: REMOTE THERMO-HYGRO

SENSOR

A EXTRA LARGE TWO-LINE DISPLAY

Facilitates easy reading of remote and indoors temperatures

B CHANNELBUTTON

Selects among different channels

C MEMORY(MEM)BUTTON

Recallsthemaximumorminimumtemperatureofindividualchannels

D CLEAR BUTTON

Clears the maximum and minimum temperatures of individual

channels

E HIGH(HI)/LOW(LO)BUTTON

Setstheupperorlowertemperaturealarmlimitsofindividualchannels

F ADVANCE (s )BUTTON

Setsthereadingsfortheupperorlowertemperatureofindividual

channels

G TEMPERATURE ALARM (TEMPAL) ON/OFFBUTTON

For turning on or off, the temperature alarm of individual channels

H RESET BUTTON

Forreturningallsettingstodefaultvaluesanderases temperature

memories

I °C/°F SLIDE SWITCH

For selecting between degree Centigrade (°C) and Fahrenheit (°F)

J BATTERYCOMPARTMENT

Accommodates two UM3 or "AA" size alkaline batteries

K RETRACTABLE TABLE STAND

For standing the main unit on a flat surface

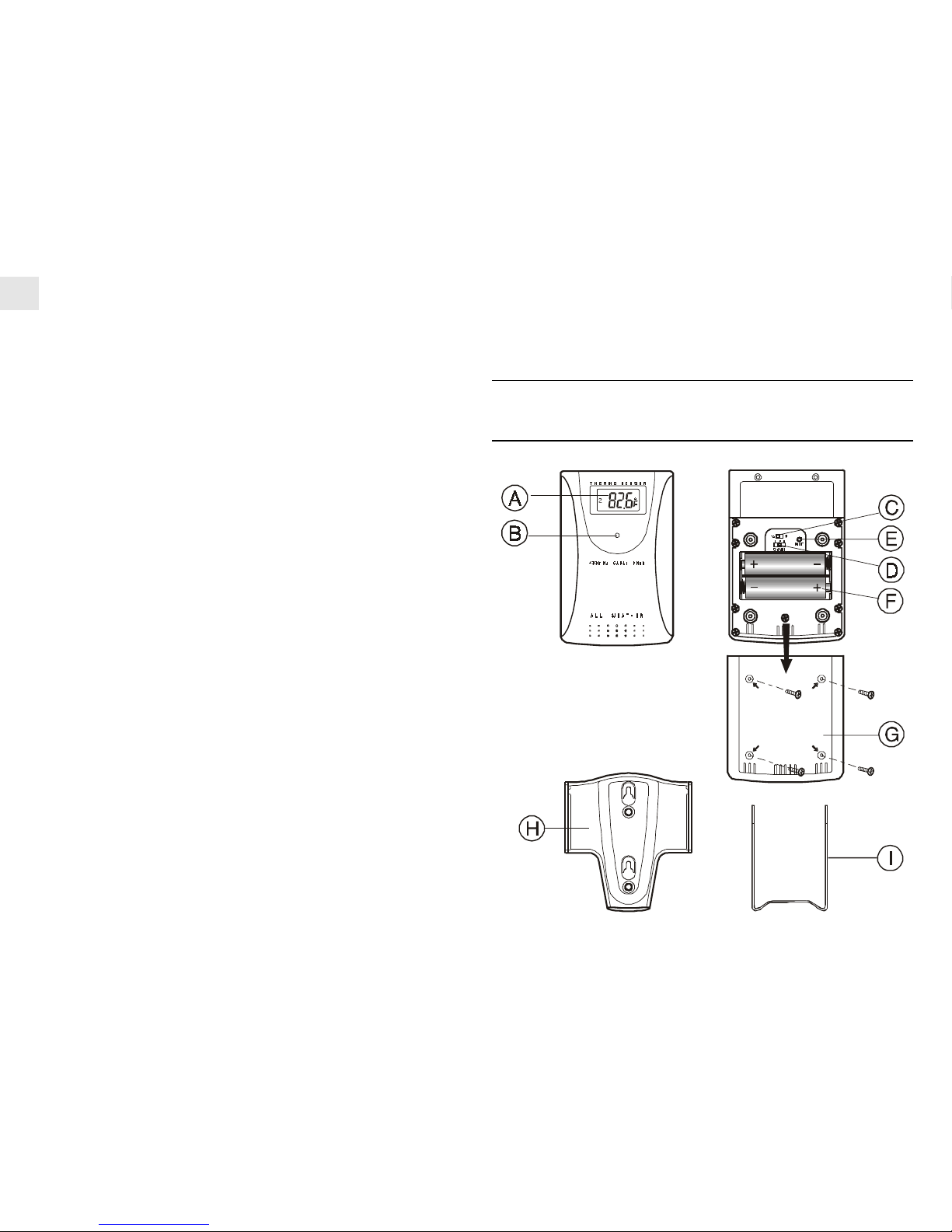

A. TWO-LINELCD

Displays the current temperature and humidity monitored by

the remote unit

B. LEDINDICATOR

Flashes when the remote sensor transmits a reading

C. °C/°FSLIDESWITCH

Selects between Centigrade (°C) and Fahrenheit (°F)

D. CHANNELSLIDESWITCH

Select the remote sensor Channel 1, Channel 2 or Channel 3

E. RESET

Returns all user programmed settings to original factory set

values

F. BATTERYCOMPARTMENT

Accommodates two (2) UM-3 or AA-size batteries

G. BATTERYDOOR

H. WALL-MOUNTHOLDER

Supports the remote unit in wall-mounting

I. REMOVABLETABLESTAND

For standing the remote unit on a flat surface

BEFORE YOU BEGIN

For best operation,

1. Assign different channels to different remote units.

2. Insert batteries for remote units before doing so for the main unit.

3. Initially place both units close together. This will ensure

synchronization between the remote unit and the main unit.

Then, install batteries for the main unit or reset the main unit.

4. Position the remote unit and main unit within effective

transmission range, which, in usual circumstances, is 30 meters.

Note : Building materials and where the main and remote units are

positioned can vastly affect effective range. Try various set-ups for

best result.

Though the remote units are weather proof, they should be

placed away from direct sunlight, rain or snow.

BATTERY AND CHANNEL

INSTALLATION: REMOTE UNIT

The remote thermo-hygro sensor unit uses two (2) UM-3 or “AA”

size batteries.

Follow these steps to install / replace batteries:

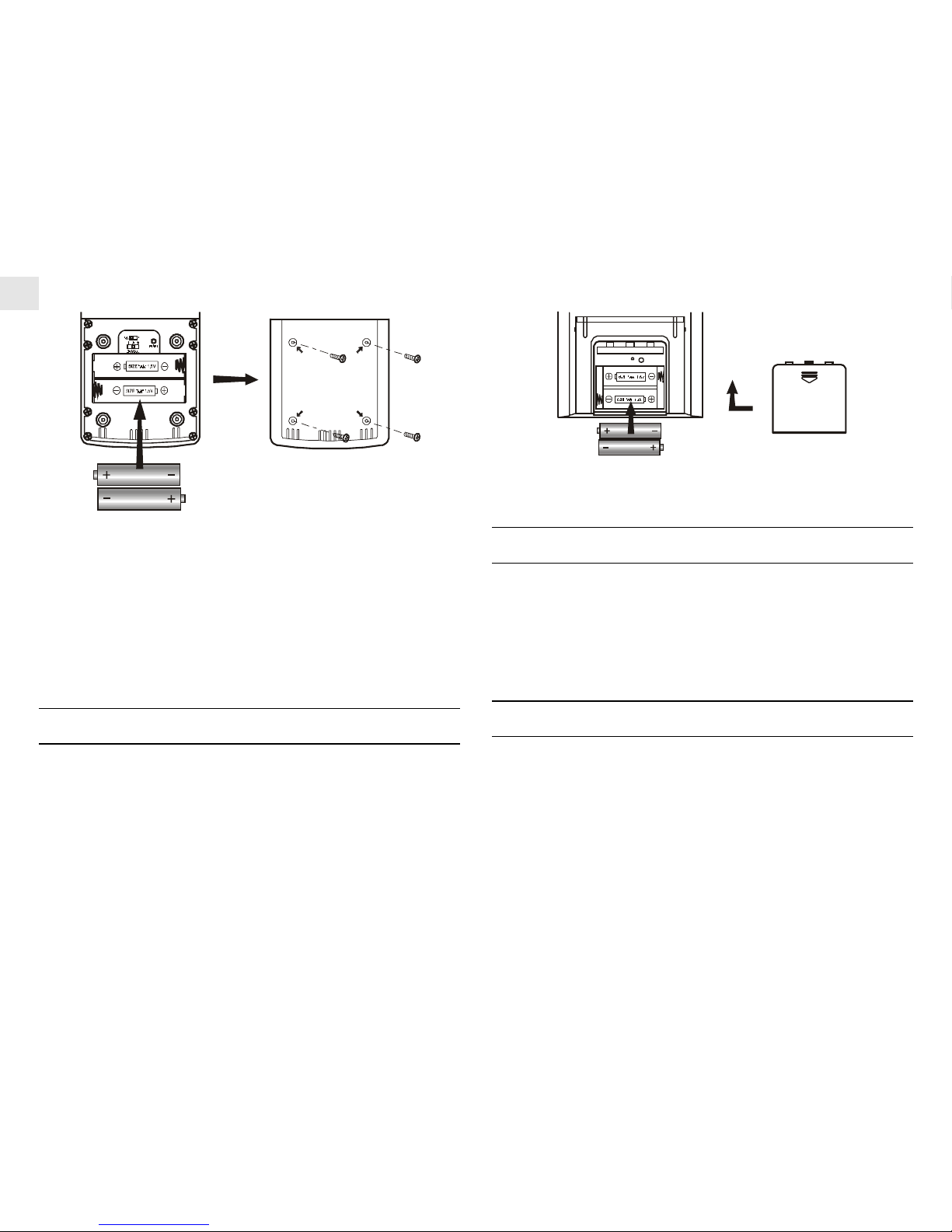

1. Remove the screws on the battery compartment.

2. Select the channel number on the [CHANNEL] slide switch.

3. Select the temperature display unit on the °C/°F slide switch.

4. Insert the batteries strictly according to the polarities shown therein.

5. Replace the battery compartment door and secure its screws.

Replacethebatterieswhenthelow-batteryindicatoroftheparticular

channel lights up on the main unit. (Repeat the steps described in

section“BEFOREYOUBEGIN”)

Note that once a channel is assigned to a remote unit, you can only

change it by removing the batteries or resetting the unit.

BATTERY INSTALLATION: MAIN UNIT

The main unit uses two UM3 or "AA" size alkaline batteries.

To install them,

1. Slide open the battery compartment door.

2. Insert the batteries strictly according to the polarities shown therein.

3. Replace the battery compartment door.

LOW BATTERY WARNING

Replace the batteries when the low-battery indicator of the indoor

temperature display lights up. (Repeat the steps described in

section"BEFOREYOUBEGIN")

Respectively, for a remote sensor unit, the low-battery icon will

show when the channel is selected.

GETTING STARTED

Once batteries are in place for the remote units, they will start

transmitting temperature readings at 30-second intervals.

The main unit will also start searching for signals for about a

minute once batteries are installed. Upon successful reception, the

individual channel temperatures will be displayed on the top line

and the indoors temperature on the bottom line. The main unit will

automatically update its readings at about 30-second intervals.

If no signals are received, blanks “ ” will be displayed and

thekineticwaveiconwillshow“ ”. PressCHANNELandMEM

simultaneously to enforce another search for about 30 seconds.

This is useful in synchronizing the transmission and reception of

the remote and main units.

Repeat this step whenever you find discrepancies between the

reading shown on the main unit and that on the respective remote

unit.

HOW TO CHECK REMOTE AND

INDOORS TEMPERATURES

The indoors temperature is shown on the bottom line of the

display.

Asfortheremotesitesorchannels,pressCHANNELtogofromone

channelto another.Thekineticwavedisplay onthe channelnumber

indicates the reception of that particular channel is in good order.

DISCONNECTED SIGNALS

If without obvious resasons the display for a particular channel

goes blank “ ”, press CHANNEL and MEM to enforce an

immediate search. If this fails, check the following.

1. The remote unit of that channel is still in place.

2. The batteries of both the remote unit and main unit and replace

as necessary.

Note : When the temperature falls befow freezing point, the

batteries of outdoor units will freeze, lowering their voltage

supply and the effective range.

3. Thetransmissionis withinrangeandthe pathisclearof obstacles

and interference. Shorten the distance when necessary.

TEMPERATURE TREND

The temperature trend indicator on the screen shows the trend of

readings collected at that particular remote site. Three trends,

rising, steady and falling, will be shown.

If the temperature goes above or below than the temperature meas-

uring range of the main unit or the remote unit ( stated in specifi-

cation), the display will show “HHH” or “LLL”.

Arrow

indicator

Temperature

Trend Steady FallingRising

HOW TO USE TEMPERATURE ALARMS

The temperature alarms allow you to set the upper and lower limits

of readings for individual channels. The alarm will activate if a

limit is exceeded. To set the alarm,

1. Select the channel to be set.

2. PresstheHI/LObuttonfortheupper(HI)orlower(LO)limit.An

“OFF” message will be displayed if the alarm for that limit is

turned off.

3. Use the ADVANCE ( s ) button to set the upper or lower

temperature.

If this is the first time you set the limits, the lower limit will start from

-50°C (-58°F) and the upper limit +70°C (158°F). Otherwise, the

reading will start from the temperature last selected.

Eachpresson thebuttonwill increasethetemperature by onedegree.

Holding on the button will step up the increment by five.

4. Press TEMP AL ON/OFF button to switch on or off the Max./

Min. temperature alarm. The set limit will be displayed.

5. Press HI/LO button to set another limit or return to normal

display. The respective HI, LO or both indicators will light up to

signify the status of the alarm.

When an alarm activates, the display will switch to the respective

channel with the display flashing. If undisturbed, it will alarm for

one minute. Press any key to momentarily mute the alarm. It will

alarm again if the temperature continues to exceed the set limit.

To disable an alarm altogether, select the channel and use TEMP

AL ON/OFF to turn it off.

If you have set the upper and lower temperatures for more than one

HOW TO READ THE KINETIC

WAVE DISPLAY

The kinetic wave display shows the signal receiving status of the

main unit. There are three possible forms:

MAXIMUM AND MINIMUM

TEMPERATURES

The maximum and minimum recorded indoor temperatures and

those of each channel will be automatically stored in memory. To

display them,

1. Select the channel to be checked.

2. PressMEMoncetodisplaythemaximumtemperatureandagain

the minimum temperature. The respective indicators, MAX or

MIN will be displayed.

Toclearthememory,pressCLEAR.Allsegmentsofthedisplaywilllight

up for two seconds. The display will return to the last screen with

maximum and minimum temperature erased from memory.

If you press MEM now, the maximum and minimum temperatures

will have the same values as the current ones until different read-

ings are recorded.

The unit is in searching mode.

Temperature readings are

securely registered.

No signals.

As for the remote unit, it comes with a wall-mount holder and a

removable stand. Use either to hold the unit in place.

THE RESET BUTTON

This button is only used when the unit is operating in an

unfavorable way or malfunctioning. Use a blunt stylus to hold

down the button. All settings will return to their default values.

channel and the limits are exceeded, the alarm will activate with the

display switching from one channel to another at five seconds

intervals.

TRANSMISSION COLLISION

Signals from other household devices, such as door bells, home

security systems and entry controls, may interfere with those of

this product and cause temporarily reception failure. This is nor-

mal and does not affect the general performance of the product. The

transmission and reception of temperature readings will resume

once the interference recedes.

NOTE ON °C AND °F

The unit of temperature display is selected on the °C/°F slide

switch. Select °C for Centigrade or °F for Fahrenheit.

Note : The remote temperature display on the main unit is domi-

nated by the selection on the °C/°F slide switch of the main unit.

Whatever the display units of the remote sensors are, they will be

automatically converted to the chosen one of the main unit.

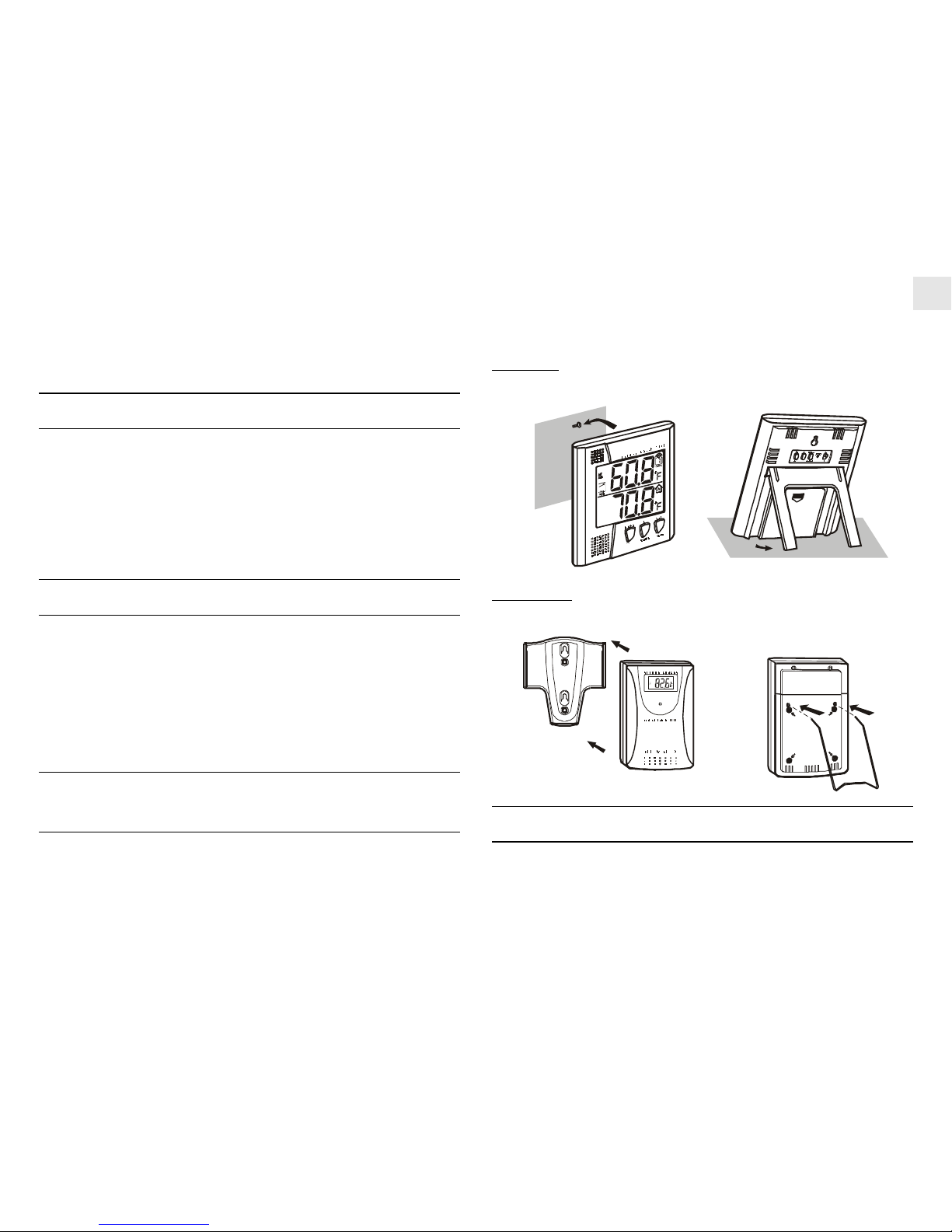

HOW TO USE THE TABLE STAND OR

WALL MOUNTING

The main unit has a retractable table stand, which when flipped

open, can support the unit on a flat surface. Or you can flip close the

stand and mount the unit on a wall using the recessed screw hole.

Remote unit

Wall-mount Table Stand

Main unit

Wall-mount Table Stand

PRECAUTIONS

This product is engineered to give you years of satisfactory service

if you handle it carefully. Here are a few precautions:

1. Do not immerse the unit in water.

2. Do not clean the unit with abrasive or corrosive materials. They

may scratch the plastic parts and corrode the electronic circuit.

3. Do not subject the unit to excessive force, shock, dust,

temperature or humidity, which may result in malfunction,

shorter electronic life span, damaged battery and distorted parts.

4. Do not tamper with the unit’s internal components. Doing so

will invalidate the warranty on the unit and may cause

unnecessary damage. The unit contains no user-serviceable

parts.

5. Only use fresh batteries as specified in the user’s manual. Do not

mix new and old batteries as the old ones may leak.

6. Always read the user’s manual thoroughly before operating the

unit.

SPECIFICATIONS

Temperature Measurement

Mainunit

Indoor Temperature measurement

Displayed IN temperature range : 14.2°F to 158.0°F

(-9.9°C to +70.0°C)

Proposed operating range : 23.0°F to 122.0°F

(-5.0°C to +50.0°C )

Temperature resolution : 0.2°F (0.1°C)

Remote Temperature measurement

Displayed OUT temperature range : -58.0°F to 158.0°F

(-50.0°C to +70.0°C)

Proposed operating range : 23.0°F to 122.0°F

(-5.0°C to +50.0°C)

Temperature resolution : 0.2°F (0.1°C)

Remoteunit

Displayed range : -58.0°F to 158.0°F

(-50.0°C to +70.0°C)

Proposed operating range : -4.0°F to 140.0°F

(-20.0°C to +60.0°C)

Temperature resolution : 0.2°F (0.1°C)

RF Transmission Frequency : 433 MHz

No. of Remote unit : Maximum of 3

Warning: Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

FCC :

NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,

uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to

radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interferencetoradioortelevisionreception,whichcanbedetermined

by turning the equipment off and on, the user is encouraged to try

tocorrecttheinterferencebyoneormoreofthefollowingmeasures:

oReorient or relocate the receiving antenna.

oIncrease the separation between the equipment and receiver.

oConnect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

oConsult the dealer of an experienced radio/TV technician for help.

CompanyName:OregonScientific,Inc.

Address: 19861 SW 95th Place, Tualatin, Oregon 97062, USA

Telephone Number: (1)503-6398883

Nameandmodelnumberoftheproduct:DigitalWeatherForecaster

with Remote Thermo-Hygro sensor and Radio Controlled Clock

BAR112HGA

RF Transmission Range : Maximum 100 feet

(30 meters)

Temperature sensing cycle : around 30 seconds

Power

Main unit : use2pcsUM-3or“AA”

1.5V alkaline battery

Remote sensing unit : use 2 pcs UM-4 or

“AAA”1.5Valkaline

battery

Weight

Main unit : 8.82 ounces (250 g)

(without batteries)

Remote sensing unit : 3.51ounces(100g)

(without batteries)

Dimension

Main unit : 4.61x4.21x1.07inches

(117 x 107 x 26 mm)

Remote sensing unit : 3.62x2.36x.83 inches

(92 x 60 x 21 mm)

NOTE ON COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause

undesired operations.

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The manufacturer and its suppliers held no

responsibility to you or any other person for any damage

expenses, lost profits, or any other claim arise by using

this product.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

CUSTOMER ASSISTANCE

Should you require assistance regarding this product and its

operation, please contact our customer care department at

800-853-8883 or via email at [email protected].

WARRANTY

This product is warranted to be free of manufacturing defects for

a period of 3 months from date of retail purchase. Defective

product should be directed to the place of retail purchase for

exchange. Should this not be possible, contact our customer care

department for assistance and a return material authorization. No

returns may be made without a return authorization. Please retain

your retail receipt as you may be asked to provide a copy of it

for proof of date purchased.

This warranty does not cover product subjected to abuse,

misuse, accidental damage or tampering.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termómetro de Oregon Scientific

Oregon Scientific

Oregon Scientific THT328 Manual de usuario

Oregon Scientific

Oregon Scientific RMR202A Manual de usuario

Oregon Scientific

Oregon Scientific MTR101 Manual de usuario

Oregon Scientific

Oregon Scientific THT328 Manual de usuario

Oregon Scientific

Oregon Scientific THT312 Manual de usuario

Oregon Scientific

Oregon Scientific RAR621 Manual de usuario

Oregon Scientific

Oregon Scientific EMS100 Manual de usuario

Oregon Scientific

Oregon Scientific RAR813 Manual de usuario

Oregon Scientific

Oregon Scientific RMR683HG Manual de usuario

Oregon Scientific

Oregon Scientific THGR228N Manual de usuario

Oregon Scientific

Oregon Scientific RGR126NX Manual de usuario

Oregon Scientific

Oregon Scientific RMR112 Manual de usuario

Oregon Scientific

Oregon Scientific RAR232 Manual de usuario

Oregon Scientific

Oregon Scientific EW92 Manual de usuario

Oregon Scientific

Oregon Scientific RMR382A Manual de usuario

Oregon Scientific

Oregon Scientific RMR132 Manual de usuario

Oregon Scientific

Oregon Scientific RMR202 Manual de usuario

Oregon Scientific

Oregon Scientific RGR126 Manual de usuario

Oregon Scientific

Oregon Scientific RAR213HG Manual de usuario

Oregon Scientific

Oregon Scientific RMR683HG Manual de usuario

Oregon Scientific

Oregon Scientific RGR126 Manual de usuario

Oregon Scientific

Oregon Scientific EM-913 R Manual de usuario

Oregon Scientific

Oregon Scientific RAR188A Manual de usuario

Oregon Scientific

Oregon Scientific RMR683HGA Manual de usuario

Manuales populares de Termómetro de otras marcas

Delton

Delton 981A Manual de usuario

Baker

Baker MM2P Manual de usuario

Tarmo

Tarmo 320281 Manual de usuario

Citizen

Citizen CTD 504 Manual de usuario

TFA

TFA 14.1500 Manual de usuario

Vive

Vive DMD1010 Manual de usuario

Gotemp

Gotemp THB4002 Manual de usuario

GREISINGER

GREISINGER G 1202 Manual de usuario

Amprobe

Amprobe TMD-53W Manual de usuario

Trotec

Trotec BP10 Manual de usuario

Radiance instruments

Radiance instruments RT616 Series Manual de usuario

Eurolec

Eurolec IR151 Manual de usuario

Scaneo

Scaneo TS42B Manual de usuario

Sper scientific

Sper scientific 800043 Manual de usuario

Microlife

Microlife NC 200 Manual de instrucciones

Motorola

Motorola MBP69SN Guía de configuración

The MeatStick

The MeatStick The MeatStick Manual de usuario

Hama

Hama TH35-A Manual de usuario
