Oregon Scientific RM328P Manual de usuario

RADIO CONTROLLED

PROJECTION CLOCK

WITH DIGITAL THERMOMETER

MODEL : RM328P / RM328PU

Instruction Manual

INTRODUCTION

Congratulations on your purchase of the RF Projection Clock with

Temperature Display RM328P (RM328PU) .

The RM328P is a multifunction (RF) controlled clock. It can

automatically synchronize its current time and date when brought

within an approximate 1500 km radius of the radio signal DCF77

generated from Frankfurt, Germany (the UK version from MSF

Rugby, England).

To facilitate nighttime reading, the unit comes with a projector that

can cast large, clear clock-time figures onto flat surfaces in dark. It

also has a back light for easy reading of the display.

OtherfeaturesoftheRM328Pinclude:displayingthecurrentindoor

temperature,acurrentdatedisplay,dailycrescendoalarmwitheight-

minute snooze function, and extra-large display.

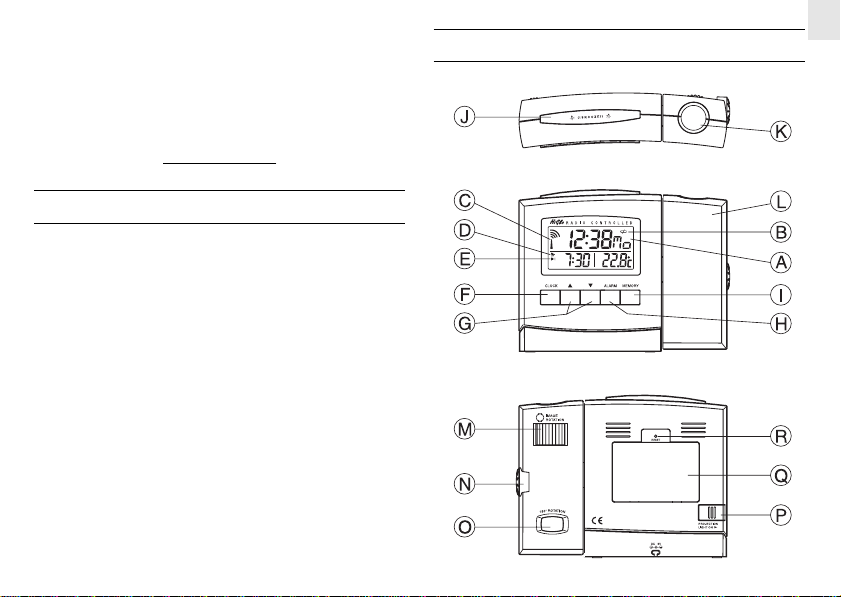

DESCRIPTION OF PARTS

A Two-line LCD

Displays the time, date, alarm status and temperature

B [ ] Battery-Low icon

Lights up when batteries are running dry

C[ ] Radio-Reception Signal

Indicates the condition of radio reception

D[ ] Alarm-on icon

Appears when the alarm is activated

E[ ] Alarm icon

Appears when the alarm time is displayed

F CLOCK button

Toggles the calendar clock display modes or activates the

calendar clock setting mode

G UP [ ] and DOWN [ ] buttons

Increases or decreases the value of a setting

H ALARM button

Displays the alarm time or sets the alarm status

I MEMORY button

Displays the maximum or minimum temperature or erases the

temperature memory

J[ ] button

Activates the snooze function when an alarm activates or turn

on the back light for five seconds

K Projection Lens

Lens from which image light emits

L Adjustable Projector

For projecting the current time on the wall or ceiling

M[ ] IMAGE ROTATION knob

90° (left or right) image rotation

N FOCUS Knob

Adjusts the focus of the projection

O 180° ROTATION button

Horizontal flip rotation of image

P PROJECTION LIGHT ON - switch

Used with the power adapter to enable extended use of the

projector

Q Battery compartment

Accommodates two UM-3 or “AA” size batteries

R RESET button

Resets the unit by returning all settings to their default values

BATTERY INSTALLATION

The unit uses two (2) UM-3 or “AA” size 1.5V batteries.

To insert batteries:

1. Press the door tab and click open the door.

2. Insert the batteries strictly according to the polarities shown

therein.

3. Replace the battery compartment door.

Note:Undernormalcircumstances,thebatteriesaregoodfor

1 year. However, the battery life can be reduced vastly by

frequent use of the back light, projector or snooze function.

If not disposed of properly batteries can be harmful.

Protect the environment by taking exhausted batteries

to authorized disposal stations.

HOW TO USE THE PROJECTOR

The projector projects the current time onto a wall or ceiling.

To project the time onto a flat surface:

In a darkened room, press [ ], the wall

projection will activate for approximately 5-seconds.

This unit has several features to enhance the clarity of the projected

image.

Projector Features

Feature Effect Instructions

Adjustable Rotates 180° to cast Adjust by turning forwards

Projector image onto any wall or backwards, the projector

so that the projection lens

is pointed in the appropriate

direction

FOCUS Focuses image Rotate knob forwards or

Knob backwards until the image

clarity is optimized

[ ] Rotates image on a Turns an image to maintain

IMAGE given surface to an upright position

ROTATION maintain an upright

knob position

180° Horizontally flips Flips an image to maintain

ROTATION an image on a given an upright position

button surface to maintain

an upright position

HOW TO USE THE PROJECTOR

POWER ADAPTER

Your unit comes with a power adapter so you can use the projector

for extended periods of time.

Unit has received radio signal.

Clock is searching for radio signal but not yet

received. It is recommended that you reposition or

rotate the antenna.

The display time has been manually set and is not

synchronized to the RF signal.

Radio reception is disabled and no signal reception

will be initiated until it is enabled again.

When the antenna symbol blinks, a reception is going

on. A full reception takes approx. 2 to 10 minutes,

depending on the quality of the signal received.

The hourly scanning may take a few seconds only.

No indicator

To install the adapter:

1. Insert adapter into jack on the bottom of the unit.

2. Plug the adapter into the adapter socket.

Note:Making surethevoltageis correct,plugtheother end of

the power adapter into a free wall socket.

Once the power adapter is in place, you can select to turn on the

projectorforlonger periodsoftime, suchas throughout thenight, by

sliding out the PROJECTION LIGHT ON - switch on the back of

the unit. To turn off the projector, slide the switch back.

Note that this switch can only be used with the power

adapter installed. For momentary projection, use the

[ ].

HOW TO USE THE BACKLIGHT

Press [ ] once. The back light will activate

for five seconds.

ABOUT RADIO RECEPTION

The RM328P is a radio frequency (RF) controlled clock. When

locatedwithina1500kmradiusofradiosignal(DCF77)atFrankfurt,

Germany,theclocktimewillautomaticallysynchronizewithDCF77

time-signaltransmission.ThebenefitofaRFcontrolledclockisthat

highly-accurate time is maintained and manual adjustments to the

time and date are not be required.

(UK version within a 1500km radius of radio signal (MSF) from

Rugby, England)

When the batteries are first installed, the RM328P (RM328PU) will

automatically search for a radio signal.

When in search mode, the antenna icon [ ] will blink. This

process takes between two (2) and ten (10) minutes. After initial

search,shortperiodic reception-signal scanswillcommence several

times a day.

The antenna icon indicates the quality of reception.

When the reception is complete, the radio-reception signal will stop

blinking.

Interference

Receptioncanbeaffectedbyanumberoffactors.Forbestreception,

place the device away from metal objects and electrical appliances.

Note: Interferencefrom sources suchas TV sets can affectthe

signal. If, after batteries have been inserted for ten minutes,

the signal is not received, then set the time manually (see

section: How To Set The Calendar Clock Manually).

“SECONDS” AND DAY-OF-THE-WEEK

DISPLAY

The“seconds”andtheday-of-the-weeksharethesamesectionofthe

display.

day-of-the-week display

“second” display

Theday-of-the-weekisdisplayedasanabbreviationinfivelanguages.

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

German

French

Italian

Spanish

Tochangethe“seconds”displaytotheday-of-the-weekdisplay:

• When the “seconds” are displayed, press CLOCK once.

Tochangetheday-of-the-weekdisplaytothe“seconds”display:

• When the day-of-the-week is displayed, press CLOCK once.

CALENDAR AND ALARM TIME DISPLAY

The calendar and the alarm-time share the same section of the

display.

The calendar is displayed in a day-month format.

calendar mode

alarm mode

To change the calendar display to the alarm-time display:

• When the calendar is displayed, press ALARM once.

To change the alarm-time display to the calendar display:

• When the alarm time is displayed, press CLOCK once.

HOW TO SET THE CALENDAR

CLOCK MANUALLY

IftheRM328P(RM328PU)istakenoutsideoftherangeofFrankfurt

DCF77 radio signal it will need to be manually set (the UK version

from MSF Rugby, England).

To manually set the clock:

1. Whenthe calendar isdisplayed, press CLOCK for two seconds.

The month value will start to blink.

2. Enter the month using the [ ] and [ ] buttons. Hold down

either button to rapidly increase or decrease the value.

3. Press CLOCK to confirm and proceed to set the day, display

language, day-of-the-week, hour and minute.

4. Forthedisplaylanguage,youcanchoosebetween(E)forEnglish

(D)for German (F) for French, (I) forItalian and (S) for Spanish

(see language chart above).

5. When finished, press CLOCK to return to normal display. If

changes are made during the process, the seconds will reset and

start from zero.

HOW TO SET AND ACTIVATE

THE ALARM

To set the alarm time:

1. Press and hold ALARMfor two seconds when the alarm time is

displayed.

2. Enterthevalueforthehourdigits.PressALARMtoconfirmand

go to the minute digits. Enter the value and press ALARM to

confirm.

3. The alarm is automatically activated. To deactivate it, press

ALARM once.

ALARM AND SNOOZE FUNCTION

When the alarm is set, it will activate at the set time. The back light

will go on for five seconds with the alarm-on icon [ ] flashing.

The crescendo function allows the alarm to start gently and step up

its intensity in three steps. Without interruption, the alarm will

activate for a minute.

To stop the alarm, press any key. If the [ ]

button is pressed, the snooze function will be triggered. The alarm

will stop for eight minutes before activating again.

INDOOR TEMPERATURE

The temperature is shown in Centigrade (°C). The RM328P

(RM328PU) is capable of measuring temperatures within the -5°C

and 50°C range. If the temperature goes above or below that, the

display will show “HHH” or “LLL”.

MAXIMUM AND MINIMUM

TEMPERATURES

The maximum and minimum recorded temperatures will be

automaticallystoredinmemory.Todisplaythem,pressMEMORY

torotatethroughthemaximum,minimumandcurrent temperatures.

The respective MAX or MIN indicator will be displayed.

maximum temperature minimum temperature

To clear the memory, hold down MEMORY for two seconds. The

maximum and minimum temperatures will be erased. If you press

MEMORY now, the maximum and minimum temperatures will

have the same values as the current ones until different readings are

recorded.

HOW TO RESET THE UNIT

The RESET button allows you to return all settings to its factory

values, which are, 1-1 (1st of January) for date, 12:00 for time and

06:00forthealarm,whichwillbedeactivated(UKversion,12:00pm

for time and 06:00am for the alarm).

The button is required only when the unit is not operating in a

favorable way, such as in the rare case of a malfunction.

PRECAUTIONS

Thisunitisengineeredtogiveyouyearsofsatisfactoryserviceifyou

handle it carefully. Here are a few precautions.

1. Do not immerse the unit in water. If you spill liquid over it, dry

it immediately with a soft, lint-free cloth.

2. Do not clean the unit with abrasive or corrosive materials. They

may scratch the plastic parts and corrode the electronic circuit.

3. Donotsubjecttheunittoexcessiveforce,shock,dust,temperature

orhumidity, which may result in malfunction, shorter electronic

life span, damaged battery and distorted parts.

4. Donottamperwiththeunit’sinternalcomponents. Doingsowill

invalidate the warranty on the unit and may cause unnecessary

damage. The unit contains no user-serviceable parts.

5. Onlyusefreshbatteriesasspecifiedintheuser’sinstructions. Do

not mix new and old batteries as the old ones may leak.

6. Always read the user’s instructions thoroughly before operating

the unit.

SPECIFICATIONS

Operating Temperature : 5° C to 50° C

Clock Functions

Radio Control : Auto synchronize current time and

date by Radio signal generated from

Germany DCF77

(the UK version from MSF Rugby,

England)

Calendar : Day of week in English / German /

French / Italian / Spanish

Current date / month format

Clock Time : 24-hour format

(12-hour format for UK version)

Alarm Duration : 1 minute crescendo

Snooze : 8 minutes

Accuracy : +/-0.5 second/day

(when RF is disabled)

Temperature Measurement

Indoor Measurement : -5°C to 50°C

Temperature Resolution : 0.1°C

TemperatureAccuracy : -5°C to 0°C +/- 2.0°C

0°C to 40°C +/- 1.0°C

40°C to 50°C +/- 2.0°C

General Specification

Battery Type : Two(2)UM-3or“AA”size

Alkaline 1.5V battery

Unit Dimension : 116 x 150 x 42 mm (H x W x D)

Unit Weight : 240g (without battery)

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— Themanufacturer and itssuppliers held noresponsibility

to you or any other person for any damage expenses, lost

profits or any other claim arises by using this product.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

Otros manuales para RM328P

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reloj de Oregon Scientific

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA G RRM222PA Manual de usuario

Oregon Scientific

Oregon Scientific RRA320PN Manual de usuario

Oregon Scientific

Oregon Scientific FSP-301 Manual de usuario

Oregon Scientific

Oregon Scientific WS902 Manual de usuario

Oregon Scientific

Oregon Scientific Slim Projection Clock RA368P Manual de usuario

Oregon Scientific

Oregon Scientific Jumbo JMR828A Manual de usuario

Oregon Scientific

Oregon Scientific RM338P Manual de usuario

Oregon Scientific

Oregon Scientific RM308PX Manual de usuario

Oregon Scientific

Oregon Scientific JMR868A Manual de usuario

Oregon Scientific

Oregon Scientific RA313P Manual de usuario

Oregon Scientific

Oregon Scientific RM826 Manual de usuario

Oregon Scientific

Oregon Scientific RM328P Manual de usuario

Oregon Scientific

Oregon Scientific RM328PA Manual de usuario

Oregon Scientific

Oregon Scientific RMR329P Manual de usuario

Oregon Scientific

Oregon Scientific RM813P Manual de usuario

Oregon Scientific

Oregon Scientific JM889 Manual de usuario

Oregon Scientific

Oregon Scientific RMR939P Manual de usuario

Oregon Scientific

Oregon Scientific RGR682 Manual de usuario

Oregon Scientific

Oregon Scientific EMR801 Manual de usuario

Oregon Scientific

Oregon Scientific TR119 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA R Manual de usuario

Oregon Scientific

Oregon Scientific BAR623PA Manual de usuario

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario
