Oregon Scientific THR238NF Manual de usuario

TABLE OF CONTENTS

Additional resources .......................................... 1

About this guide ................................................. 2

Product overview ............................................... 3

Getting started ................................................... 4

Set up ............................................................. 4

Change channel ............................................. 6

Low battery warning ....................................... 6

Reset system ..................................................... 6

Safety and care .................................................. 7

Warnings ............................................................ 7

Troubleshooting.................................................. 8

Specifications..................................................... 9

ADDITIONAL RESOURCES

Visitourwebsite(www.oregonscientific.com) tolearn

more about your new product and other Oregon

Scientific products such as digital cameras, hand-

heldorganizers,healthand fitnessgear, andweather

stations. The website also includes contact

information for our customer service department, in

case you need to reach us.

ABOUT THIS GUIDE

Congratulations on your selection of the Oregon

Scientific Wireless Outdoor Temperature Sensor

(THR228NF)

This sensor is compatible with a wide variety of

weathermonitoringtools,and can be usedwith most

of the Oregon Scientific receiver units.

Keepthis manualhandyasyouuse yournewproduct.

Itcontains practicalstep-by-stepinstructions,as well

as technical specifications and warnings you should

know.

In this box, you will find:

•Remote unit

•Batteries

PRODUCT OVERVIEW DESCRIPTIONS

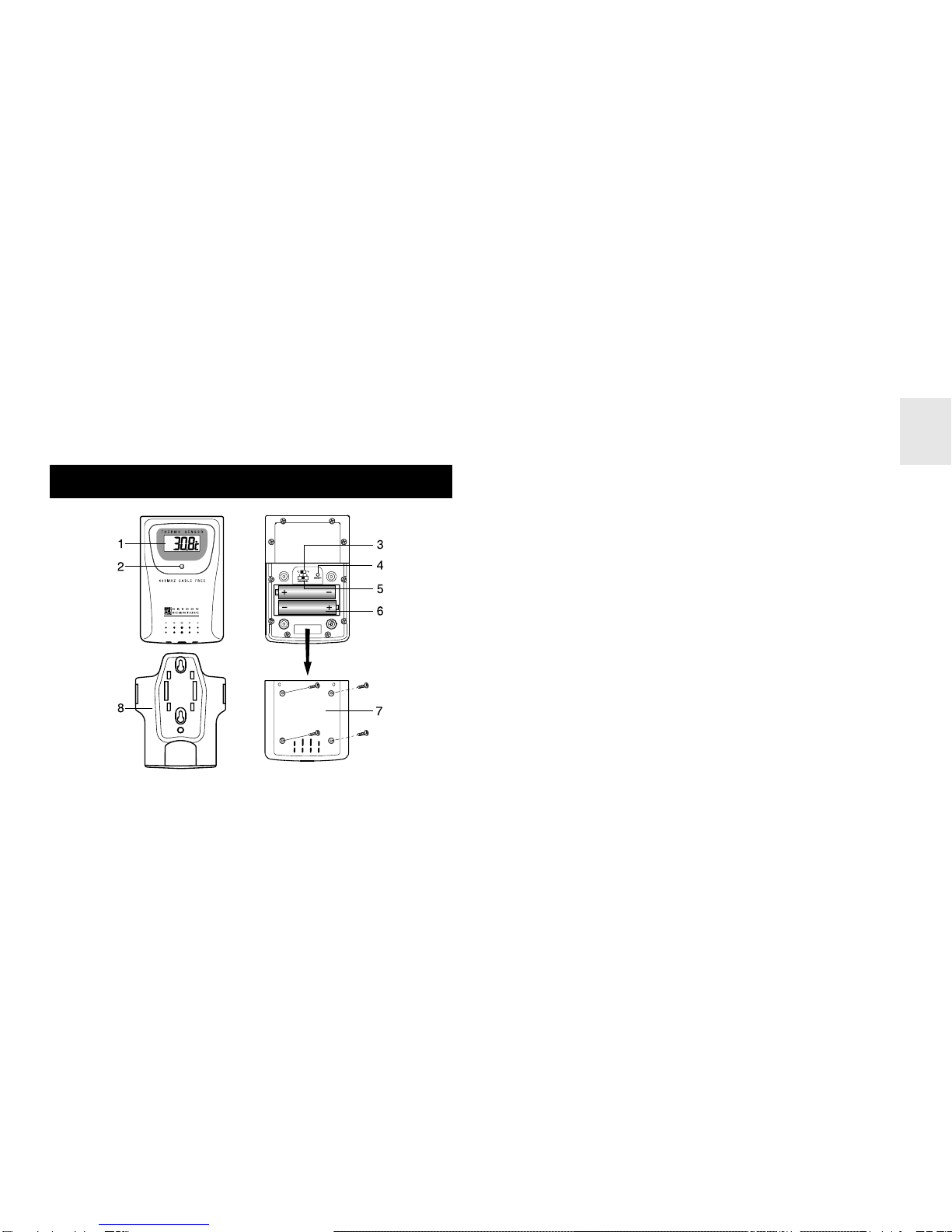

1. Temperature display

2. LED indicator

3. °C/°F switch

4. Reset button

5. Channel switch

6. Battery compartment

7. Battery compartment lid

8. Wall mount

SET UP

1. Place remote unit as close as possible to the

main unit.

2. Remove the battery compartment lid. (You will

need a small Phillips screwdriver.)

3. Assign a Channel Number.If you

are using more than one remote

unit, select a different channel

number for each unit.

4. Set the measurement unit.

5. Insertthe batteries.Matchthe polarity,as shown

in the battery compartment.

GETTING STARTED

This product can be used with up to 2 remote units

to transmit outdoor temperature data to a main

(indoor) unit. The measurement unit (°C or °F) and

channel number (1, 2, or 3) switches are located in

the battery compartment, and should be set prior to

installation.

Additional remote units sold separately.

6. Press RESET with the point of a blunt object

(such as a ball point pen).

7. Replace the battery compartment lid. Secure.

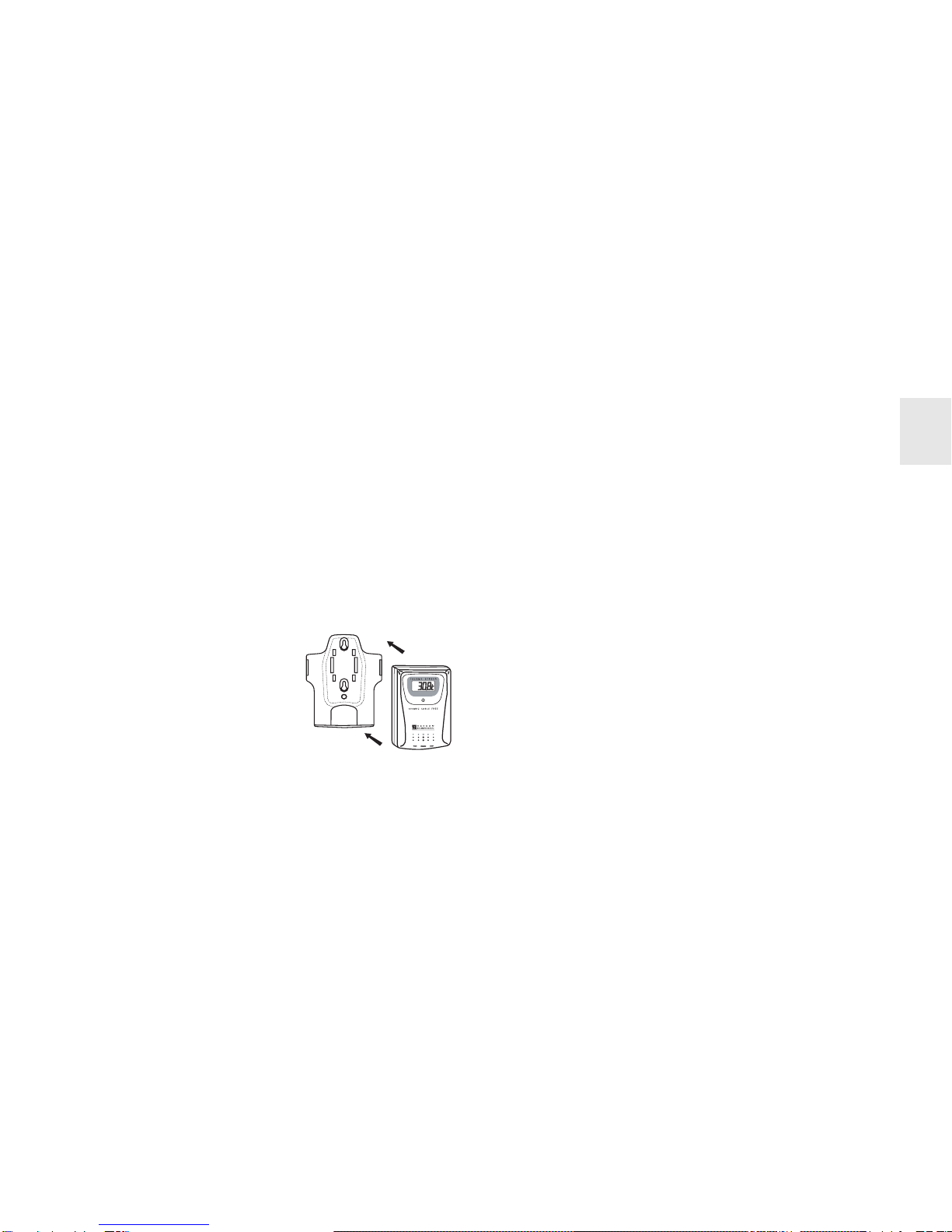

8. Mount the remote unit on a flat surface using

the recess holes on the back of the mounting

unit. Insert the sensor into the mounting unit,

andgently pushdownto secure.Forbest results:

• Place the unit out of

direct sunlight and

moisture.

• Do not place the remote unit more than 20 –

30 meters (60 – 90 feet) from the main

(indoor) unit.

• Position the unit so that it faces the main

(indoor) unit. Minimize obstructions such as

doors, walls, and furniture.

You may need to experiment with various

locations to get the best reception.

9. Once the batteries are in place, the sensor will

transmitsignals every40 seconds.The readings

shownonthe main unit depend onwhich remote

sensor (1, 2, or 3) is selected. Refer to the main

unit User Manual for more information.

CHANGE CHANNEL

Repeatthe Set Up procedure (à4). In Step3, select

a different Channel Number.

LOW BATTERY WARNING

Replace the batteries whenever the low battery

signal ( ) shows on the remote unit, or on the

remote unit area of the main unit.

Do not use rechargeable batteries. Properly

dispose used batteries by taking them to an

authorized disposal station.

RESET SYSTEM

The RESET button is located in the battery

compartment.Press it with the point of a blunt object

(such as a ball point pen) whenever you change the

batteries, or whenever performance is not behaving

asexpected(e.g.,unable to establishradiofrequency

link with main unit). Refer to the User Manual for the

main unit for more information.

SAFETY AND CARE

Wash the unit with a slightly damp cloth and mild

detergent. Avoid dropping the unit or placing it in a

high-traffic location.

Do not expose the unit to direct sunlight since this

may affect the accuracy of measurements.

WARNINGS

This product is designed to give you years of service

ifhandled properly. Observethe following guidelines:

• Neverimmerse the unitin water. Thiscan cause

electrical shock and damage the unit.

• Do not subject the main unit to extreme force,

shock, orfluctuations intemperature orhumidity.

• Do not tamper with the internal components.

• Do not mix new and old batteries or batteries of

different types. Do not use rechargeable

batteries with this product.

• Remove the batteries if storing this product for

a long period of time.

• Do not scratch the LCD display.

• Do not make any changes or modifications to

this product. Unauthorized changes may void

your right to use the product.

• The contents of this user manual are subject to

change without notice.

• Images not drawn to scale.

TROUBLESHOOTING

Check here before contacting our customer service

department.

Problem Symptom Remedy

Temp Main unit

shows “LLL”

or “HHH”

Temperature is

out-of-range.

Remote

unit Cannot locate

main unit Check batteries

(à6)

Check location

(à5)

SPECIFICATIONS

Dimensions

L x W x H 92 x 60 x 20 mm

(3.6 x 2.4 x 0.8 inches)

Weight 63 grams (0.1 lbs.) without

batteries

Temperature

Unit °C or °F

Range -20 °C to 60 °C

(-4 °F to 140 °F)

Resolution 0.1 °C (0.2 °F)

Frequency

RF frequency 433 MHz

Range 30 meters (98 feet) with no

obstructions

Transmission every 40 seconds

Channel No. 1, 2, or 3

Unit °C or °F

Power 2 x UM-4 (AAA)

1.5V alkaline batteries

EC-DECLARATION OF CONFORMITY

Thisproduct contains the approved transmittermoduleTX01 and

complieswith the essentialrequirements of Article3 of theR&TTE

1999/5/EC Directives, if used for its intended use and that the

following standard(s) has/have been applied:

Efficient use of radio frequency spectrum

(Article 3.2 of the R&TTE Directive)

applied standard(s) EN 300 220-1(2,3):1997

Electromagnetic compatibility

(Article 3.1.b of the R&TTE Directive)

applied standard(s) ETS 300 683:1997

Safety of information technology equipment

(Article 3.1.a of the R&TTE directive)

applied standard(s) EN 60950:1997

Additional information:

The product is therefore conform with the Low Voltage Directive

73/23/EC, the EMC Directive 89/336/EC and R&TTE Directive

1999/5/EC (appendix II) and carries the respective CE marking.

VS-Villingen / Germany August 2001

Gerhard Preis

R&TTE Representative of manufacturer

COUNTTRIES RTTE APPROVAL COMPLIED

All EC countries, Switzerland CH

and Norway N
