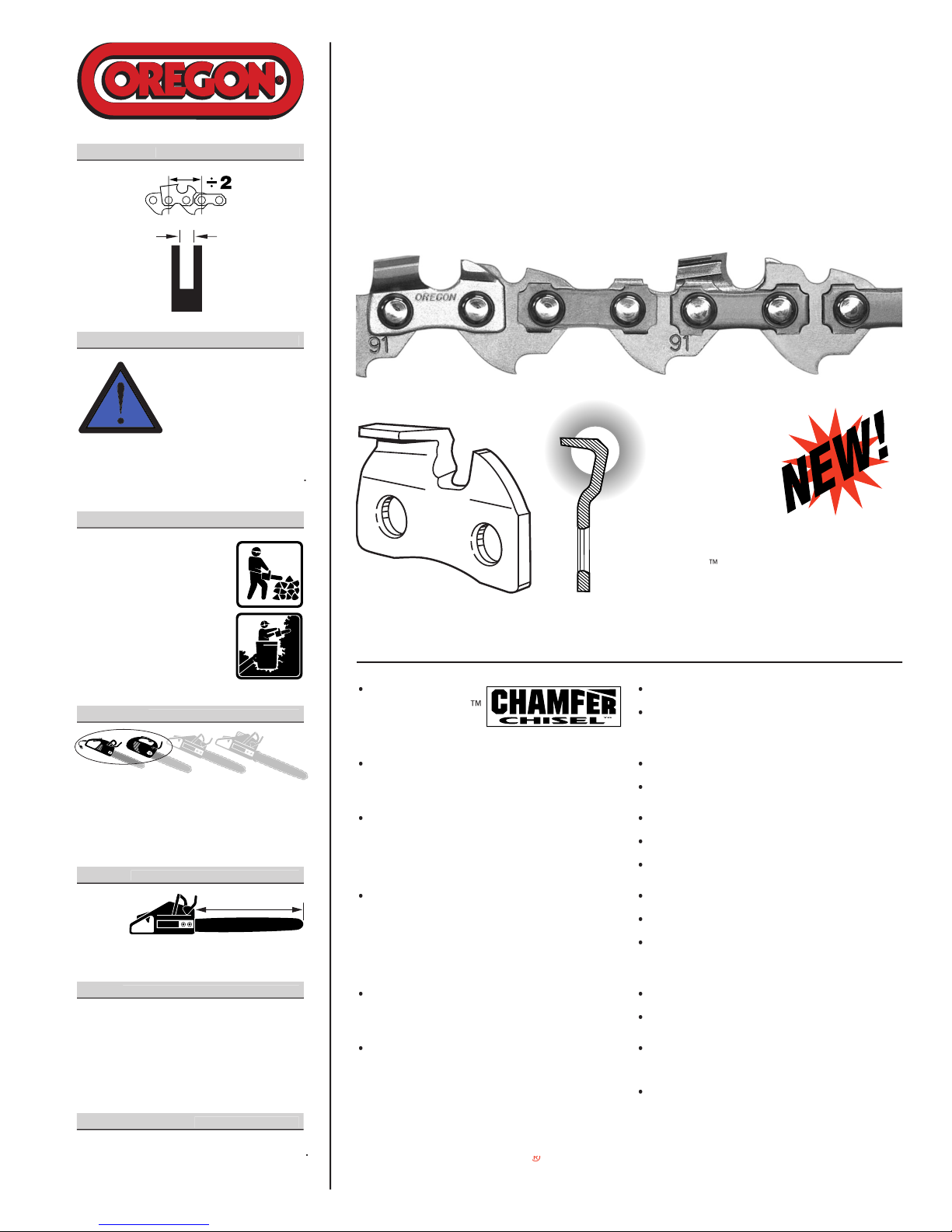

91P LOW-PROFILE 3/8”-PITCH

CHAMFER CHISEL

™

CHAIN

Oregon

91P chain features top-performing Chamfer Chisel™ cutters and a notched bumper

drive link for low-kickback performance, good chip flow, and a smooth cutting action. The twin

corners of the cutters on 91P chain deliver superior performance on the many popular saws

which use low-profile 3/8”-pitch chain. 91P chain also features four-way symmetrical tie straps

which simplifies the joining of chain loops.

FEATURES

BENEFITS

FEATURES BENEFITS

91P F&B A107038 AA 0903

.050”

•

Twin-cornered

•

Fast, efficient cutting

Chamfer Chisel

™

•

Excellent stay-sharp

cutters

•

Ramped depth gauge, and

•

Low kickback

ramped bumper drive links

•

Smooth cutting action

•

Bumper drive links are notched

•

Better chip flow, less clogging

(Patent pending)

•

Unique appearance, easy identification

•

A promotable, innovative new feature

•

Four-way symmetrical tie straps

•

Easy joining of chain loops

•

Fewer repair parts to inventory

•

Fool-proof, there’s no way to position

a 91P tie strap incorrectly

•

Same cutter as on other

•

Easy maintenance

Oregon

91 chains

•

Sharpens the same as other 91 chains

•

Low-profile design

•

Complements the effects of

kickback-reducing features

•

A smaller volume of chain material

is pulled through the kerf

Oregon

91P chain is

a blue-label chain; it

meets the low-kick-

back performance

requirements of ANSI

B175.1 (US), and

CSA Z62 (Canada)

91P is intended for use with electric

saws and smaller gasoline-powered

saws up to 2.5 cu. in. (41cc)

Use 91P with bars up to 18” (46cm)

3/8”

low profile

• Ramp-shaped Bumper

Depth Gauges

• Notched Bumper

Drive Links

Occasional Users

Homeowners,

campers and hunters

CHAIN PITCH AND GAUGE

KICKBACK – ANSI CLASSIFICATION

RECOMMENDED TYPES OF USE

RECOMMENDED SAW SIZES

RECOMMENDED BAR LENGTHS

KICKBACK-REDUCING FEATURES

PITCH

GAUGE

Visit the world’s #1 source for information on chainsaw cutting attachments: www.oregonchain.com

Choose Oregon

, because every cut counts

Choose Oregon , because every cut counts

91P is a standard-sequence chain

CUTTER SEQUENCE

Oregon

91P

chain features

twin-cornered

Chamfer Chisel

™

cutters

Commercial Users

Arborists, orchardists,

farmers, landscapers,

and utility workers

91P LOW-PROFILE 3/8”-PITCH

CHAMFER CHISEL™ CHAIN

PART NO.

DESCRIPTION, TYPES OF USE

91VG

Low-kickback Chamfer Chisel™ chain for cutting clean wood with electric and small gasoline chainsaws up to 2.5 cu. in. (41cc)

91VS

A professional Chamfer Chisel™ chain for experienced users of small chainsaws who prefer a low-profile 3/8”-pitch chain.

M91VS

A specialized version of 91VS with extra-heavy-duty chrome plating to cut effectively in extremely dirty, abrasive conditions.

What’s the difference between a 3/8”-pitch chain,

and a low-profile 3/8”-pitch chain?

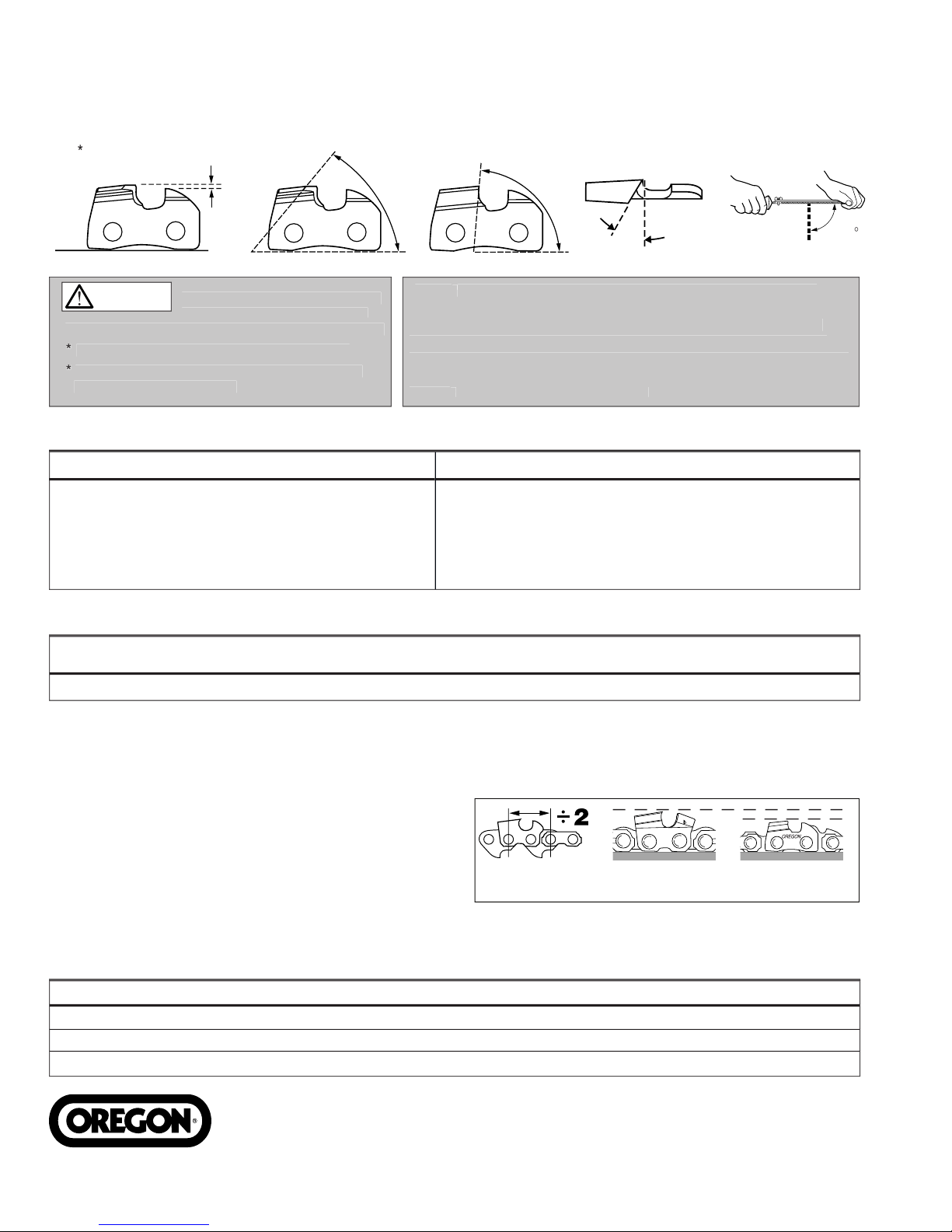

Filing instructions, Oregon

91P chain

Other Oregon

low-profile 3/8”-pitch (91) cutting chains

FILE SIZE: Use a 5/32” round file and file guide.

TOP-PLATE

DEPTH-GAUGE SETTING:

CUTTING ANGLE:

SIDE-PLATE ANGLE:

FILING ANGLE:

FILE-GUIDE ANGLE:

See warning and note below

91P Chain maintenance tools

91P Chain replacement parts

NOTE: Individual parts packages contain 25 pieces.

LEFT-HAND

RIGHT-HAND

PRESET

NOTCHED BUMPER

CHAIN TYPE

CUTTER

TIE STRAP

DRIVE LINK

91P

P111807

P111808

P111616

P112320

P28298

P111822

.025”

Heel

down

85°

30°

50°

Oregon

91P meets the reduced-kickback requirements of ANSI B175.1 when

tested on a representative sample of chainsaws. This chain significantly reduces

the risk of chainsaw kickback while maintaining high cutting performance. ALL

CUTTING CHAIN CAN KICK BACK, WHICH MAY RESULT IN SEVERE INJURY TO

THE SAW OPERATOR OR BYSTANDERS. Users should be cautioned to operate their

saw safely, and to read and follow all warnings in their saw operator’s manual and

Oregon

91P chain-maintenance instructions.

Failure to follow filing instructions can

increase the level of kickback which

can result in severe injury to the saw operator or bystanders.

Do not exceed the depth-gauge setting shown above

Always file depth gauges back to their original rounded

or ramped shape after lowering

For more information on these and other Oregon

products, contact your authorized Oregon

distributor, or:

OREGON CUTTING SYSTEMS DIVISION, BLOUNT, INC.

PO Box 22127 • Portland, OR, U.S.A. 97269-2127

Phone: 503- 653-8881 Fax: 503-653-4201 http://www.oregonchain.com

IN CANADA: OREGON DISTRIBUTION LTD.

505 Edinburgh Rd. N. • Guelph, Ontario, Canada N1H 6L4

Phone: 519-822-6870 Fax: 519-822-4999 http://www.oregonchain.ca

Printed in USA PFS 91P A107038 AA 0903

WARNING

Because every

cut counts

Standard 3/8”-pitch chains are full-size professional-type chains intended for

use on medium to large gasoline-powered saws, 3.0 to 6.0 cu. in. (50-100cc).

Low-profile 3/8” chains have the same pitch, but there are differences in the

drive sprockets and bar-nose sprockets used with low-profile chains. Standard

3/8” chains and low-profile 3/8” chains are NOT interchangeable. The phrase

“low profile” refers to the height, measured from the bar’s rail to the top of the

cutter. On low-profile chains, the height is less than on standard chains. Low-

profile 3/8”-pitch chains are intended for use on electric saws, and small gasoline-powered saws up to 2.5 cubic inches (41cc).

DESCRIPTION

PACK

PART NUMBER

DESCRIPTION

PACK

PART NUMBER

Assembled File Guide, 5/32”

Each

37534

1/8” Thick Grinding Wheels (3.2mm):

Round Files, 5/32”

12-pack

70504

Full-size, 5 3/4” dia.

5-pack

OR534-18

2-pack

40459

(For use with 511A grinders)

Each

OR534-18A

Depth-gauge Tool

10-pack

22290

Mini Grinder Wheels, 4 1/8” dia.

5-pack

OR4125-18

Flat File

12-pack

12211

(For use with 108181 mini grinders)

Each

OR4125-18A

DEFINITION

3/8”-PITCH CHAIN (72V)

LOW-PROFILE 3/8”-

OF PITCH

STANDARD PROFILE

PITCH CHAIN (91P)
