Oreck Ultimate Hand Held Manual de usuario

Ultimate Handheld

Vacuum

Important!

Read this manual carefully, and keep for future reference.

User’s

Guide

1600 Series

Other Oreck accessories available at:

Thank You for purchasing our Ultimate Handheld Vacuum.

The Ultimate Handheld Vacuum weighs about ﬁve pounds and

comes with a variety of accessories for any cleaning need. The

installed HEPA ﬁlter helps keep dust and dirt from escaping as

you vacuum.

Welcome to our Call, Click customer service program.

To contact Oreck Call or Click using the information below.

Enjoy

Click

Call

USA: 1•800•989•3535

Canada: 1•888•676•7325

On the web, point and click at: www.oreck.com

and click locate a store on the top right.

Contents

Safety ..................................4

General Warnings.........................4

Polarized Plug ...........................5

Parts & Features..........................6

Assemble ...............................8

Attach the Tool Caddy.....................8

Attach the Slinky Hose and Tools............9

Attach the Adjustable Shoulder Strap . . . . . . . . 10

Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the Vacuum . . . . . . . . . . . . . . . . . . . . . . . 11

After Using the Vacuum ..................11

Maintain ...............................12

Replacing the Disposable Inner Bag . . . . . . . . . 12

Replacing the Micro Filter.................13

Replacing the HEPA Filter . . . . . . . . . . . . . . . . 14

Trouble shoot . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Parts..................................16

Warranty...............................17

Safety

IMPORTANT SAFETY INSTRUCTIONS

General Warnings

Read all instructions before using the vacuum cleaner.

WARNING! To reduce the risk of ﬁre, electric shock, or injury

when using an electrical appliance, basic precautions should

always be followed, including the following:

• Donotleaveapplianceunattendedwhenpluggedin.Unplug

from outlet when not in use and before servicing.

• Donotuseoutdoorsoronwetsurfaces.

• Donotallowtobeusedasatoy.Closeattentionisnecessary

when used by or near children.

• Useonlyasdescribedinthismanual.Useonlymanufac-

turer’s recommended attachments.

• Donotusewithdamagedcordorplug.Ifapplianceisnot

working as it should, has been dropped, damaged, left out-

doors, or dropped into water, return it to a service center or

call customer service at: US: 1-800-989-3535

Canada: 1-888-676-7325

• Donotpullorcarrybycord,usecordasahandle,closedoor

on cord, or pull cord around sharp edges or corners.

• Keepcordawayfromheatedsurfaces.

• Donotrunapplianceovercord.

• Donotunplugbypullingoncord.Tounplug,grasptheplug,

not the cord.

• Donothandleplugorappliancewithwethands.

• Donotputanyobjectintoopenings.Donotusewithany

opening blocked; keep free of dust, lint, hair and anything

that may reduce air ﬂow.

• Keephair,looseclothing,ngersandallpartsofbodyaway

from openings and moving parts.

• Donotusetopickupanythingthatisburningorsmoking,

such as cigarettes, matches, or hot ashes.

• Donotusewithoutlterbagassemblyinplace.

• Turnoffallcontrolsbeforeunplugging.

• Useextracarewhencleaningonstairs.

• Donotusetopickupammableorcombustibleliquids,such

as gasoline or lighter ﬂuid, or use in areas where they may

be present.

• Donotuseapplianceinanenclosedspacewhereammable,

explosiveortoxicvaporsaregivenoffbyoilbasepaint,paint

thinner, some mothprooﬁng substances, or in an area where

ﬂammable dust is present.

• Donotpickuptoxicmaterialsuchaschlorinebleach,drain

cleaner, gasoline, etc. with this appliance.

• Usecautionwhenvacuumingoverarearugedgesandfringe.

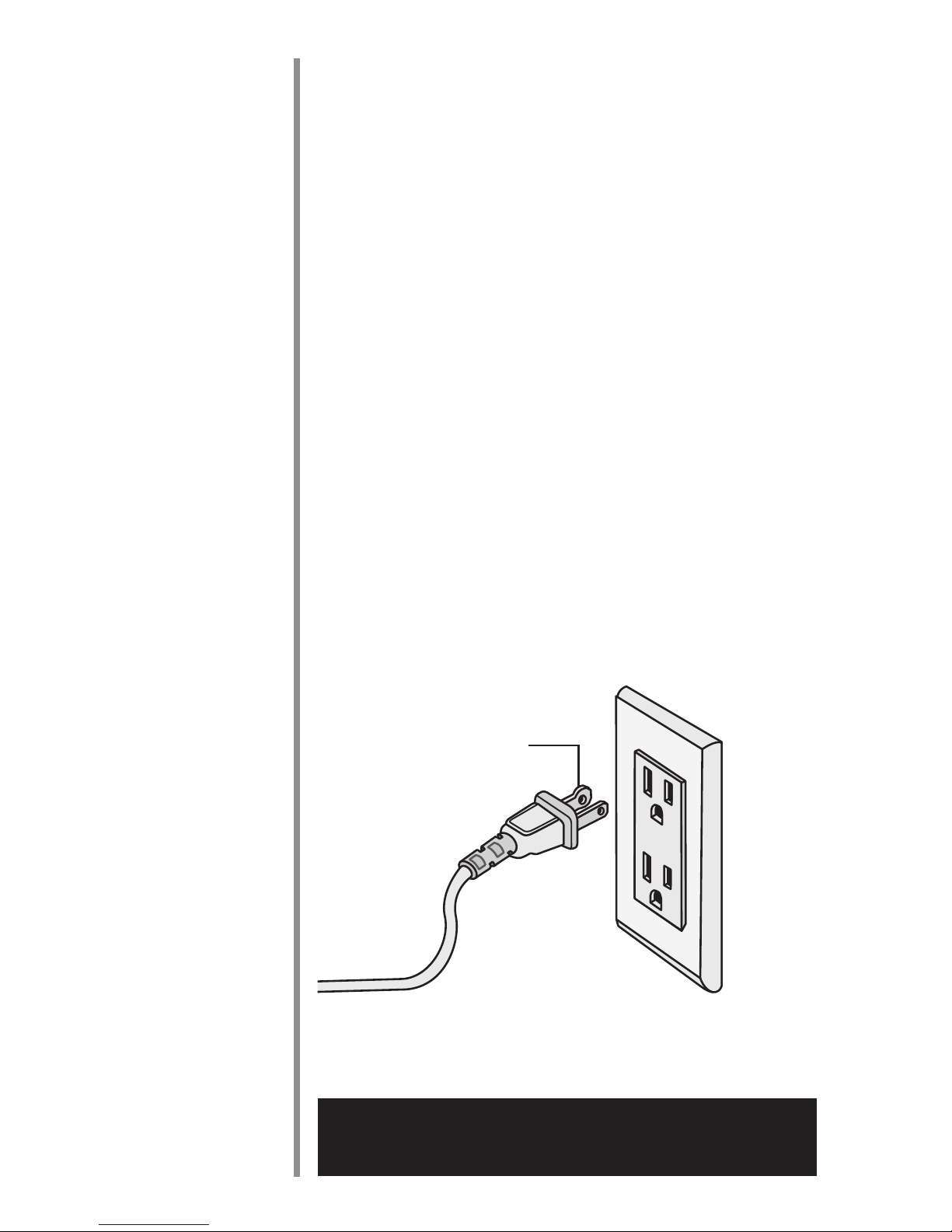

Polarized Plug

A polarized plug has one rounded prong and one straight

prong. The rounded end goes into the longest socket slot. To

reducetheriskofelectricshock,thisequipmenthasapolar-

ized plug (one blade is wider than the other). This plug will ﬁt

in a polarized outlet only one way. If the plug does not ﬁt fully

in the outlet, reverse the plug. If it still does not ﬁt, contact

qualiedpersonneltoinstalltheproperoutlet.Donotalterthe

plug in any way.

SAVE THESE INSTRUCTIONS

For household use only

Rounded prong

Parts

Features

1. Ultimate handheld

vacuum: Core canister

vacuum unit.

2. Adjustable shoulder

strap: Attaches to the

canister in both horizon-

tal and vertical positions.

3. Upholsterytool: Cleans

upholstered furniture and

drapery.

4. Large ﬂoor tool: Hand-

held tool for cleaning

bare ﬂoors and walls.

5. Dustingbrush: Best for

delicate surfaces.

6. Crevicetool: Cleans tight

areas such as cracks and

crevices.

7. Powercord:Twenty foot

cord for long distances.

8. Cordwrap: Power cord

storage area.

9. Toolcaddy: Stores tools on

board the vacuum.

10.On/Offswitch: Turns the

vacuum on and off.

11. Carry handle with strap

hooks: Use to carry the

vacuum and attach the straps.

43 6

shown with

hose, crevice

tool and

dusting brush

installed

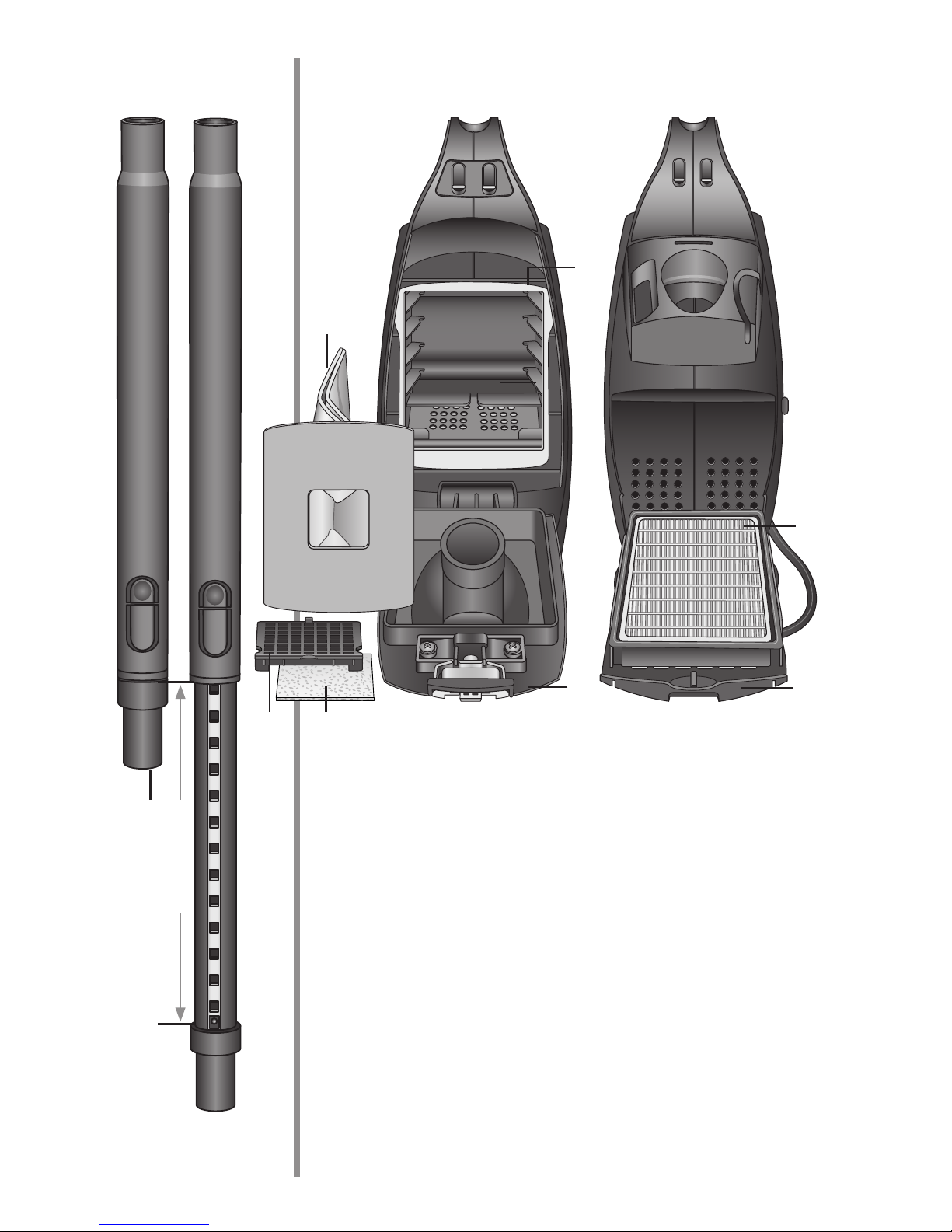

12. Slinky hose: Easy to use

exiblehose.

13.Hoseinlet: Hose connec-

tion location.

14. Extension wand:

Extendsanadditional

ten inches with the push

of a button.

15. MicroFilter:Keepsdirt

and dust from entering

the vacuum motor.

16. Innerbagdoor: Allows

access to the inner bag.

17. BagGasket: Creates a tight

seal to guard against air

leaks. Do not remove.

18. Disposableinnerbag:

Collects debris from the

vacuuming process.

19.HEPAFilter: Helps keep

dust and dirt inside the

vacuum as you clean.

20.HEPAFilterdoor: The HEPA

ﬁlter is secured to this door.

21. Micro Filter Frame: Holds

the Micro Filter.

1521

Hose inlet side HEPA ﬁlter side

10”extension

2016

Assemble

Attach the Tool Caddy

Before you attach the hose or any tools onto your vacuum,

you will ﬁrst want to attach the tool caddy.

1. Align the middle slot and two pronged tabs on the tool

caddy with the middle tab and two slots on the side of

the vacuum.

2. Rotate and snap the tool caddy down into place.

3. Load the tools onto the tool caddy in the designated

outside slots.

AttachtheSlinkyHoseandTools

1. Align the J-shaped slot at the end

of the hose with the tab inside the

hose inlet.

2. Turn the hose collar clockwise to

lock into place. To unlock, turn the

collar counterclockwise.

3.Attachtheadjustableextension

wand. The wand and all cleaning

tools supplied with the vacuum lock

together with friction. Twist and

push to lock tightly when attaching.

Twist and pull to remove.

4. Choose the tool you would like to

use for your cleaning job.

5. Attach the tool onto the end of the

extensionwandbyusingthetwist

and push friction method described

in step three.

Cleans

upholstery

J-shaped slot

hose collar

Cleans delicate

surfaces

Cleans tight

areas

Cleans bare

ﬂoors and walls

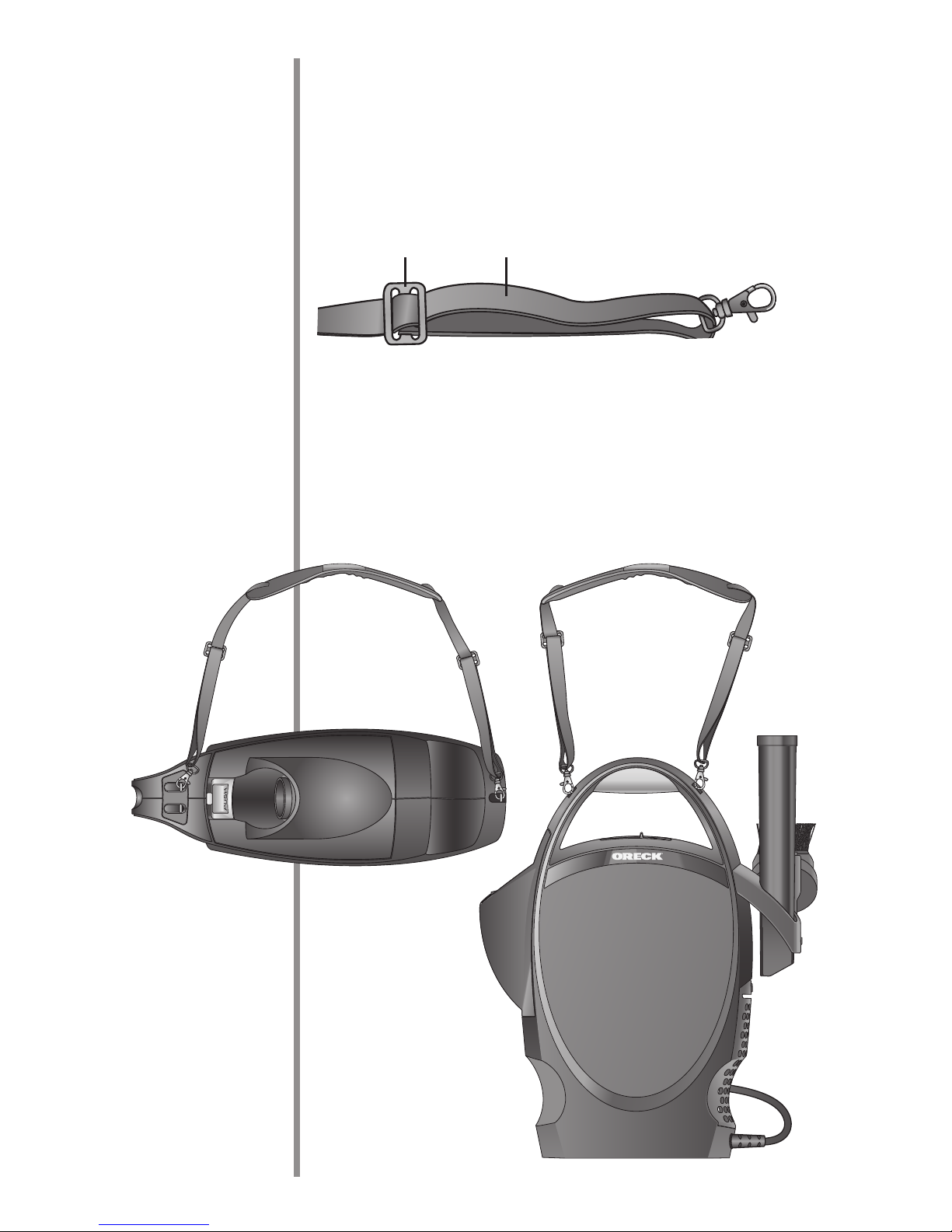

Attach the Adjustable Shoulder Strap

The shoulder strap can be attached to use the vacuum in the

horizontal or vertical position depending on what is most

comfortable for your use.

1. To adjust the shoulder strap length, loosen the straps, and

slide the clip up or down depending on the length you desire.

2. To carry the vacuum in the vertical position: clip each end of

the shoulder strap into the two slots on the sides of the carry

handle.

3. To carry the vacuum in the horizontal position: clip one end

of the shoulder strap into the slot of the carry handle, on the

hose inlet side. Clip the opposite end of the strap into the

slot on the bottom of the vacuum on the hose inlet side.

slide clip loosen strap

vertical position

horizontal position
