Orbis HTSC-F02 Manual de usuario

HTSC-F02

In-Line Optic Splice Closure

Installation Guide

NOTES:

1. Please read the user’s guide before installation.

2. Please pay attention while sealing the cable ports, the inappropriate

installation would affect the performance.

List of Contents

1. General introduction ………………………………………………………….. Page 3

2. Basic structure and configuration ………………………………………. Page 3

3. Product illustration ………………………………………………………….. Page 3

4. Preparation for installation …………………………………….….………. Page 4

5. Application ……………………………………………………………………….. Page 6

6. FOSC inspecting and testing items ……………………………………. Page 6

7. Customer service ……………………………………………………………….. Page 8

1. General introduction

HTSC-F02 is fiber optic splice closure equipment for multiple uses, which can contact and branch cables. It

has 2 inlet port. Device can apply for wall mounting environments. The goods can use in different area and

come with perfect sealing, easy installation and indeed our cover made of super strength material and

temperature proof. This is our mission to dedicated perfect communication equipment and to ensure every

customer has best quality of goods

2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (LxWxH, mm)

179x72x26

Weight (w/o packing box, kg)

0.17

Sealing method

Mechanical

Number of inlet/outlet ports

Diameter of fiber cable (mm)

Φ6

Max. splice capacity (single fiber)

Working temperature (℃)

-40~+65

Notice:

In case of slightly bigger diameter of optical cable, can apply proper force to squeeze cable into grommet,

and for smaller than 6mm diameter cable, using insulation tape to increase the diameter.

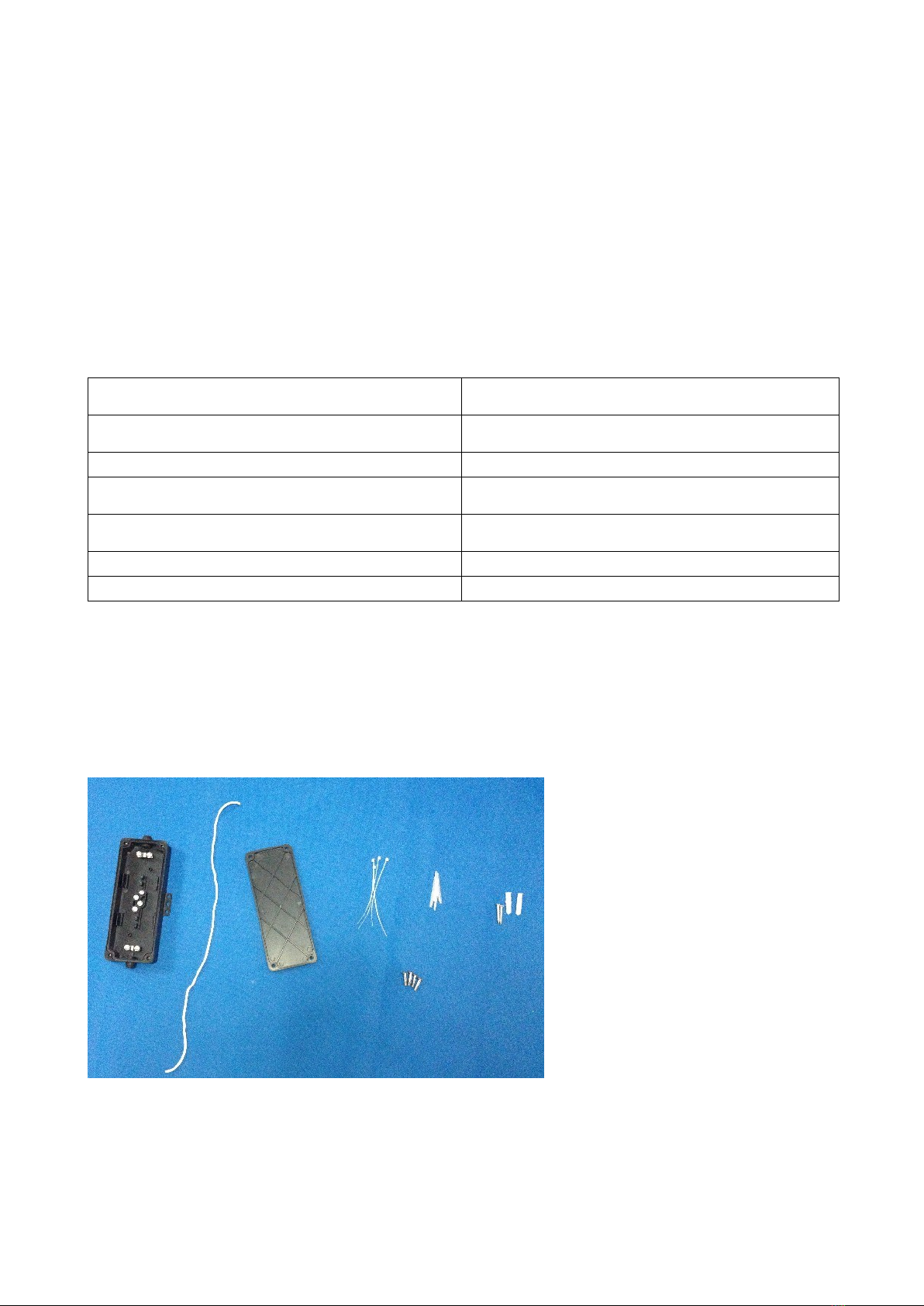

3. Product illustration

4. Preparation for installation

4.1 Preparation

4.1.1 Check the model of closure, accessories and specification of optical fiber cables before installation.

4.1.2 Keep all components and accessories dry and tidy for proper installation.

4.1.3 Keep the working place clean and flat for easy installation

4.1.4 Use the proper equipment and tools during the installation.

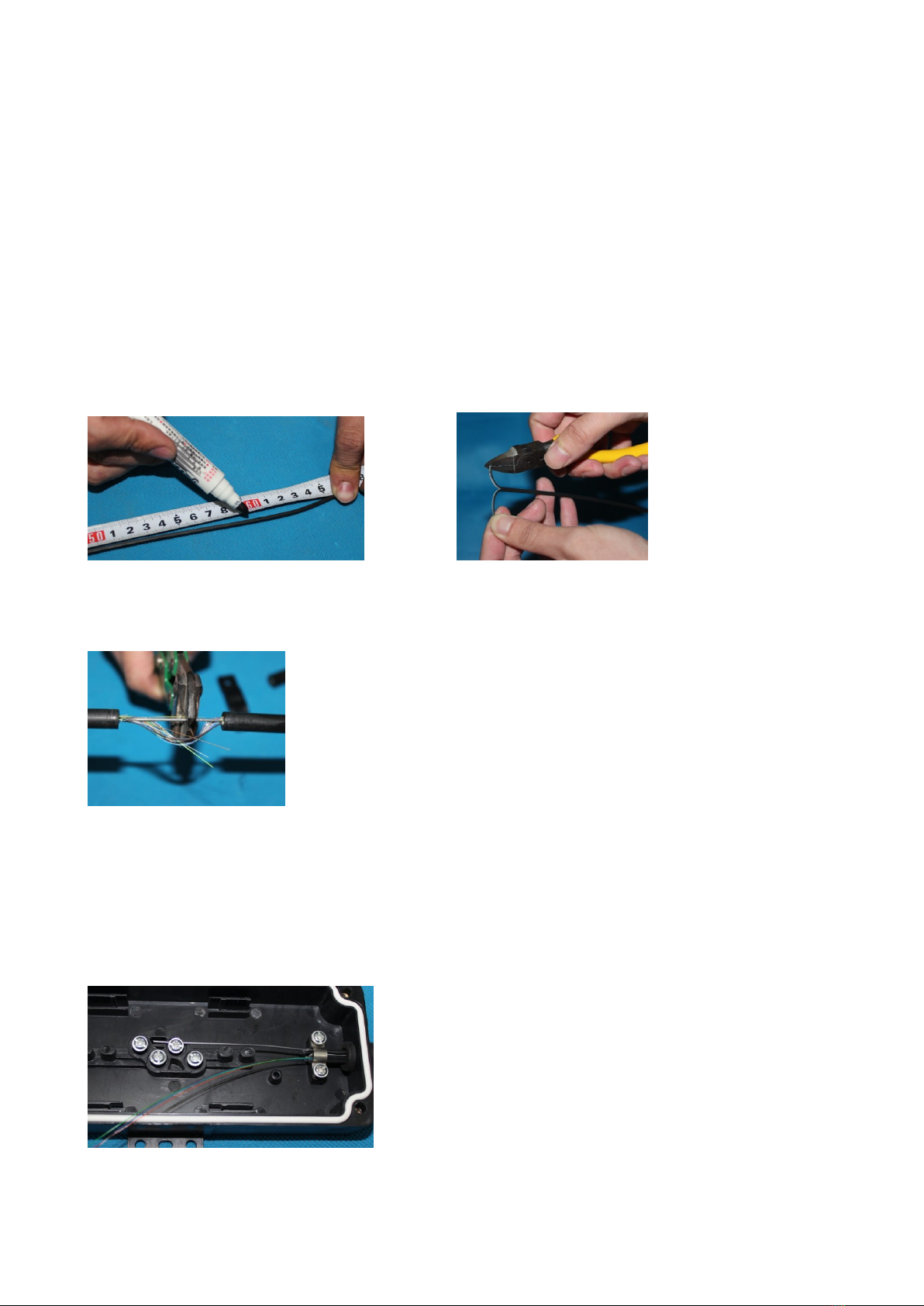

4.2 Cable installation

4.2.1 Stripping the cable in 60mm length

4.2.2 Cut the reinforced core (CSM).

Notice: Be sure not to damage the fiber. If the fibers are damaged, cut if off and stripping the new fibers.

4.3 Installation Process

4.3.1 Open the closure and release the screws on the splice tray.

4.3.2 Remove the cable block and use the proper grommet through the cable. Screw tight the cable block.

4.3.3 Remove the top of the aluminum cable clamp and then lead the stripped cable through, fasten the

cable on the cable clamp. Insert the CSM to the clamp and screw tight, also cut the remained CSM.

4.3.4 Insert the fiber to the splice protective sleeve and fasten with nylon tie.

4.4 Fibers spliced and protection with sleeve

4.4.1 Insert each fiber to each splice protective sleeve.

4.4.2 Splicing the fibers which have the same serial numbers

4.4.3 Heat shrink the fibers after all are spliced and then fix on the slot.

4.5 Routing the fibers

The diameter of the bending radius should be more than 30mm.

4.6 Sealing the Closure

4.6.1 Routing of optical fiber should be neat in optical splice tray, the bending radius should meet the

requirement.

4.6.2 Internal components should be fastened properly.

4.6.3 Plug the unused inlet/outlet drop cable ports.

4.6.4 The sealing tape should be used in proper volume.

4.6.5 Sealing tape should be placed in slot of base properly.

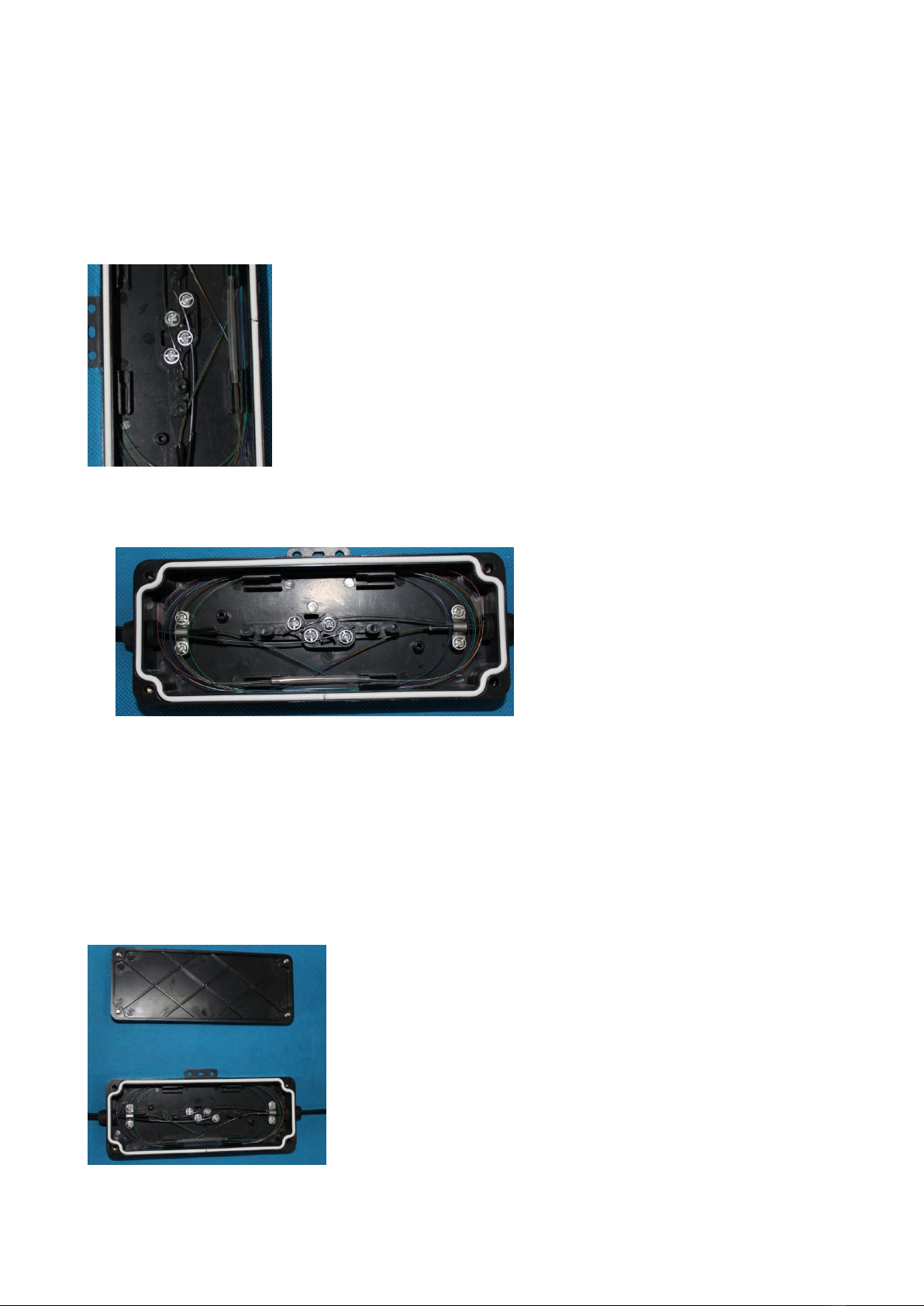

4.7 The installation of the Body

4.7.1 Put the Cover and the Bottom in alignment.

4.7.2 Screw the screws with wrench.

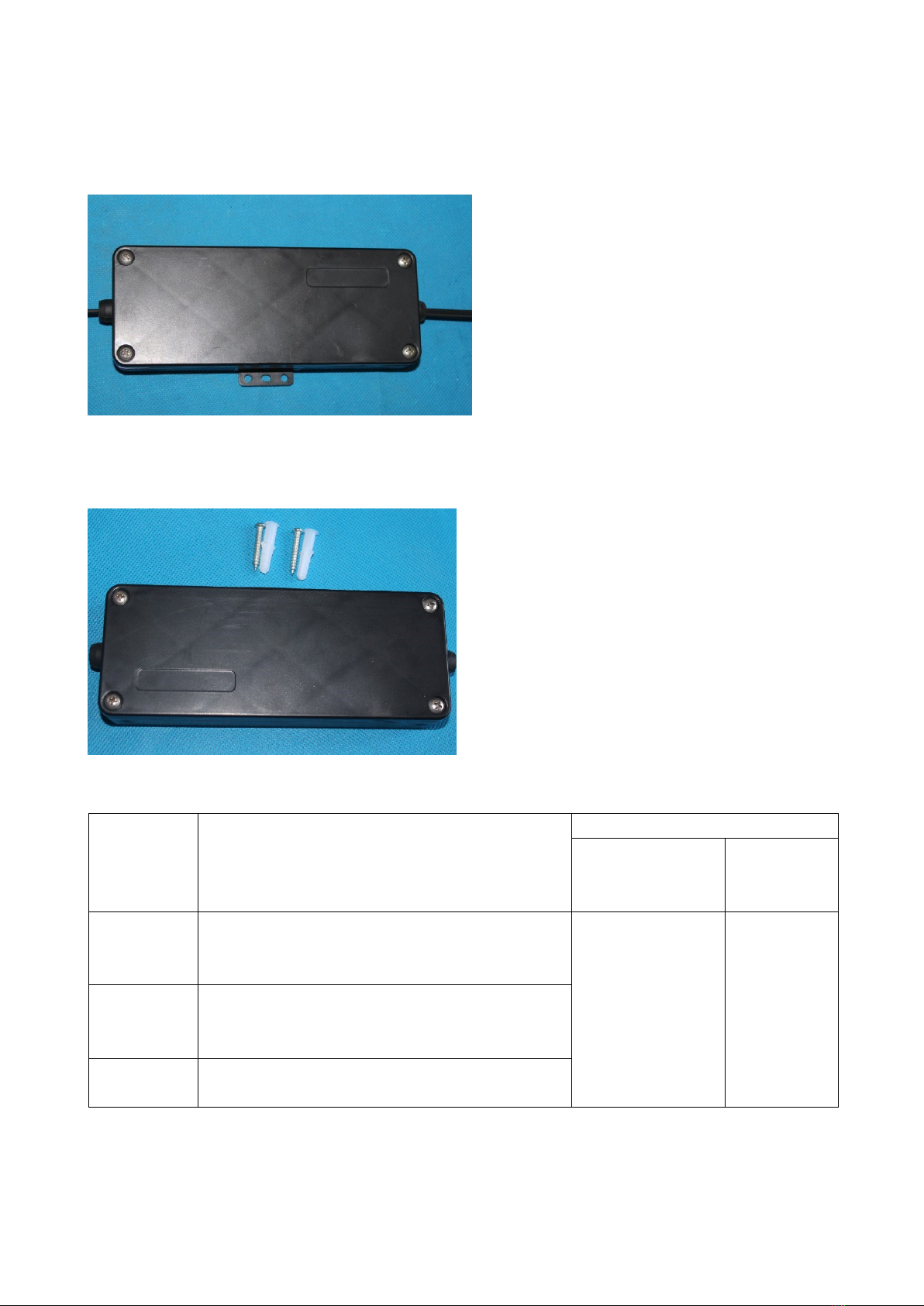

5. Application

Wall mounting application

6. FOSC inspecting and testing items

Inspecting

item

Technical Requirements

Inspecting type

Routine test

(Before leaving

factory)

Type test

Package

Each small package contains one fiber optic splice

closure, together with its accessories, tools,

installation manual and packing list.

full

At least 3 sets

sampled each

time

Appearance

Intact in shape, no burrs, bubbles, chaps, pores,

warps, impurities and other defects, all background

colors should be even and continual.

Sign

There is a clear sign on the housing, such as name

and model of the product, etc.

Fiber storage

device

The fibers reserved are to be winded in fiber optic

splice tray (FOST), the length of fibers housed in

FOST is >1.6m, the curved radius is >30mm. During

the installation and maintenance, there should be

no attenuation on fibers.

At least 3 sets

sampled each time

Electrical

jointing

device

Inside FOSC: metallic components of fiber cables

has the functions of electrical putting through,

earthing connection and disconnecting. It is

possible to install earthing deriving device outside

the housing

Sealing

performance

After sealing according to the stipulated operation

procedures, the injected air pressure is

100KPa±5Kpa, when immersed in clean water of

normal temperature for 15 minutes, there should

be no air bubbles, then observed for 24 hours,

there should be no change of air pressure.

Re-sealing

performance

After reopening and resealing according to the

stipulated operation procedures, the injected air

pressure is 100KPa±5Kpa, when immersed in clean

water of normal temperature for 15 minutes, there

should be no air bubbles, then observed for 24

hours, there should be no change of air pressure.

Pull

Bearing pull is ≧800N at axle orientation, there

should be no breakage on the housing.

Punching

Bearing pressure of 2000N/10cm for 1 minutes,

there should be no breakage on the housing

Impact

Bearing impact energy of 16N•m, 3 times of

impacts there should be not breakage on the

housing

Bending

The spot between the FOSC and seal fitting can

bear bending tension of 150N at bending angle of

±450for 10 circles, there should be no breakage on

the housing

Torsion

Bearing torsion 50N•m, 10 circle at torsion

angle±900,

There should be no breakage on the housing.

Temperature

circle

Injected air pressure of 60KPa±5 KPa, the

temperature circle ranging from -40℃~+65℃, 10

times of the circular tests (one circular consists of

high temperature for 2 hours + indoor temperature

for 2 hours + low temperature for 2 hours + indoor

temperature for 2 hours ) when the pressure

declines, the amplitude is ≦5Kpa, immerse the

swatch in clean water of normal temperature for

15 minutes, there should be no air bubbles.

Voltage

resistance

strength

After sealing the FOSC according to the stipulated

operation procedures, immerse it in clean water of

normal temperature in 1.5m depth for 24 hours,

there should be no breakdown or arc over between

the metallic components of the FOSC, between

metallic components and the ground at DC 15KV

for 1 minutes.

Isolating

resistance

After sealing the FOSC according to stipulated

operation procedure, immerse it in clean water in

1.5m depth for 24h, the isolating resistance

between the metallic components of the FOSC,

between the metallic components and the ground

should be ≧2×104MΩ.

7. Customer service

Should you have any questions or suggestions, please do not hesitate to contact your local supplier.
