Explorer WA ED-R Monocular
User Instructions and Warranty
North America
Models
8x32
8x42
10x42
Main Features
A3 stage locking rotating
retractable eyecup assembly
BWide band focusing
CObjective lens
DLug for connecting monocular
strap
A
C
B
Specifications 8x32 8x42 10x42
Product Code
Field (ft/1000yd)
Close Focus (ft)
Eye Relief (mm)
HxW (in)
Weight (oz)
30784
408
6.6
18
4.7x2
9.2
30785
393
6.2
17
5.4x2.1
11.6
30786
339
6.2
15
5.4x2.1
11.3
D

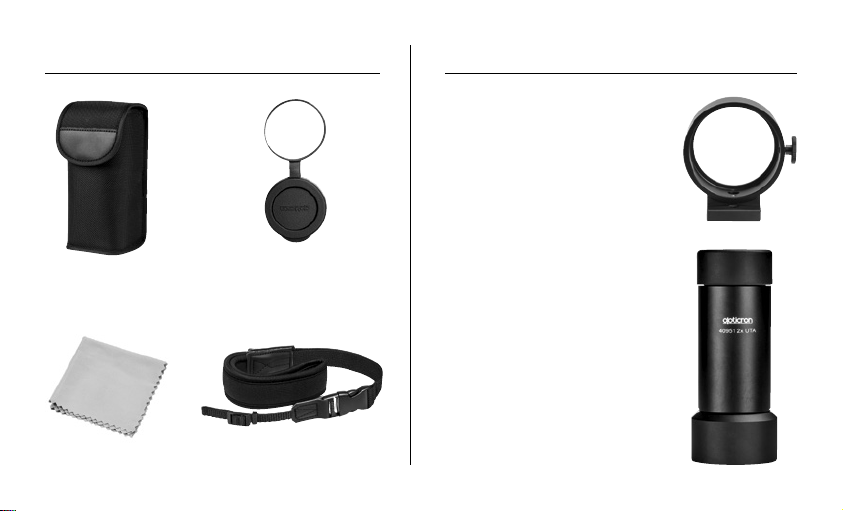

Accessories (included)
Soft Case
Neoprene Strap
Rubber Objective
Lens Cover
Cleaning Cloth
30443 Tripod Mount
(42mm models only)
A bespoke sleeve mount
providing a secure connection
to any photo/video panhead
with a 1/4” thread. Mount
secures over objective lens
housing.
Accessories (optional)
40951 Universal Tele-Adapter
UTA 2x + connection ring
Converts monocular into a
pocket telescope.
8x32 with 40942 -> 16x32
8x42 with 40943 -> 16x42
10x42 with 40943 -> 20x42
Monoculars can open up a whole range of new and exciting impressions when traveling on holiday, taken to
sporting and leisure events or used as part of a hobby such as birdwatching or astronomy. To help you get the
best results from your equipment please read the following instructions carefully.
Focusing
To focus at different distances simply rotate the central focusing band until a clear and sharp image is
obtained.
Retractable rubber eyecups and wearing glasses
Opticron Explorer WA ED-R monoculars provide the full field of view when wearing glasses. To get the
maximum field of view with glasses on, turn the eyecup clockwise into the ‘down’ position. Remember to
return it to the upright position if you or anybody else wants to use the instrument without glasses.
User Instructions
Care and cleaning
Monoculars require little maintenance but occasionally the outside surfaces of the eyepieces and objective
lenses will need cleaning. To avoid damaging these surfaces please read the following carefully.
(i) Gently remove excess dirt and dust using compressed air or a lens cleaning brush.
Caution: Hard and persistent rubbing of dirty surfaces can cause abrasive scratches on the surface of the
glass which may distort viewing.
(ii) Breathe on exposed glass surface and then wipe with an optical cleaning cloth in a circular motion until
the surface is clean again.
Do not attempt to dismantle the instrument as this will invalidate the warranty.
Cold weather
In cold weather the external lens surfaces may steam up when moving the instrument from cooler air outside
to warmer air inside. If this occurs, leave the instrument to stand for a few minutes until any condensation
evaporates.
WARNING Never under any circumstances use this monocular to view the Sun. Doing so will cause serious
damage to your eyes.
We hope you will get a great deal of pleasure from your new Opticron monocular. If you have any problems
or damage it in any way our Service Department is on hand to help you.
User Instructions
Opticron Explorer monoculars are of a very high quality both in their performance and construction and for
your peace of mind we offer a Premier Limited Lifetime Warranty.
The Premier Limited Lifetime Warranty covers all the optical and mechanical components as well as the outer
protective armor, but not accessories such as neck straps, rainguards, dust caps, objective lens covers etc.
which are covered by our Standard Warranty.
In the case of accidental damage or defects attributable to faulty parts or assembly we will assume
responsibility for the full costs of repair up to 5 years from the date of purchase. We reserve the right to
decide whether defective parts or products should be repaired or replaced.
The Premier Limited Lifetime Warranty does not cover loss, theft or deliberate damage to the instrument.
Please keep this Warranty Card in a safe place
Warranty
Model:.............................................................................................................................................................
Purchase Date:...................................................... Dealer:..........................................................................
Registration
It is important you register your new purchase to activate your Premier Limited Lifetime Warranty. To register
your product and activate the warranty please visit www.opticronusa.com and complete the online Product
Registration Form.
Premier Limited Lifetime Warranties are available on new instruments purchased from participating dealers in
North America and are transferable. If you part with your instrument please make sure the new owner has a
copy of your original proof of purchase and re-registers their ownership at www.opticronusa.com.
Privacy
Opticron takes your privacy seriously and we do not share personal information with other companies.
Address: Unit 21, Titan Court, Laporte Way, Luton, LU4 8EF, UK
Email: [email protected]
Servicing & Repair:
If you have a problem with your product please visit the Help and Support section at www.opticronusa.com
