The high performance CCTV Camera Surveillance Systems are the perfect self-installation kit for home, retail,

or small office. Systems can be networked to Home and/or Business locations.

Opticom has served the security and surveillance industry since 1973 and specializes in solving the most

challenging projects with field proven products.

Networkable DVR

MPEG-4 Compression

Indoor/Outdoor Cameras

Made in Korea

All Accessories Included

Remote Control

Product Information

Bulletin 2.1

4 60’ Cables Included

4 Channel Camera Kit

Camera/DVR Kit

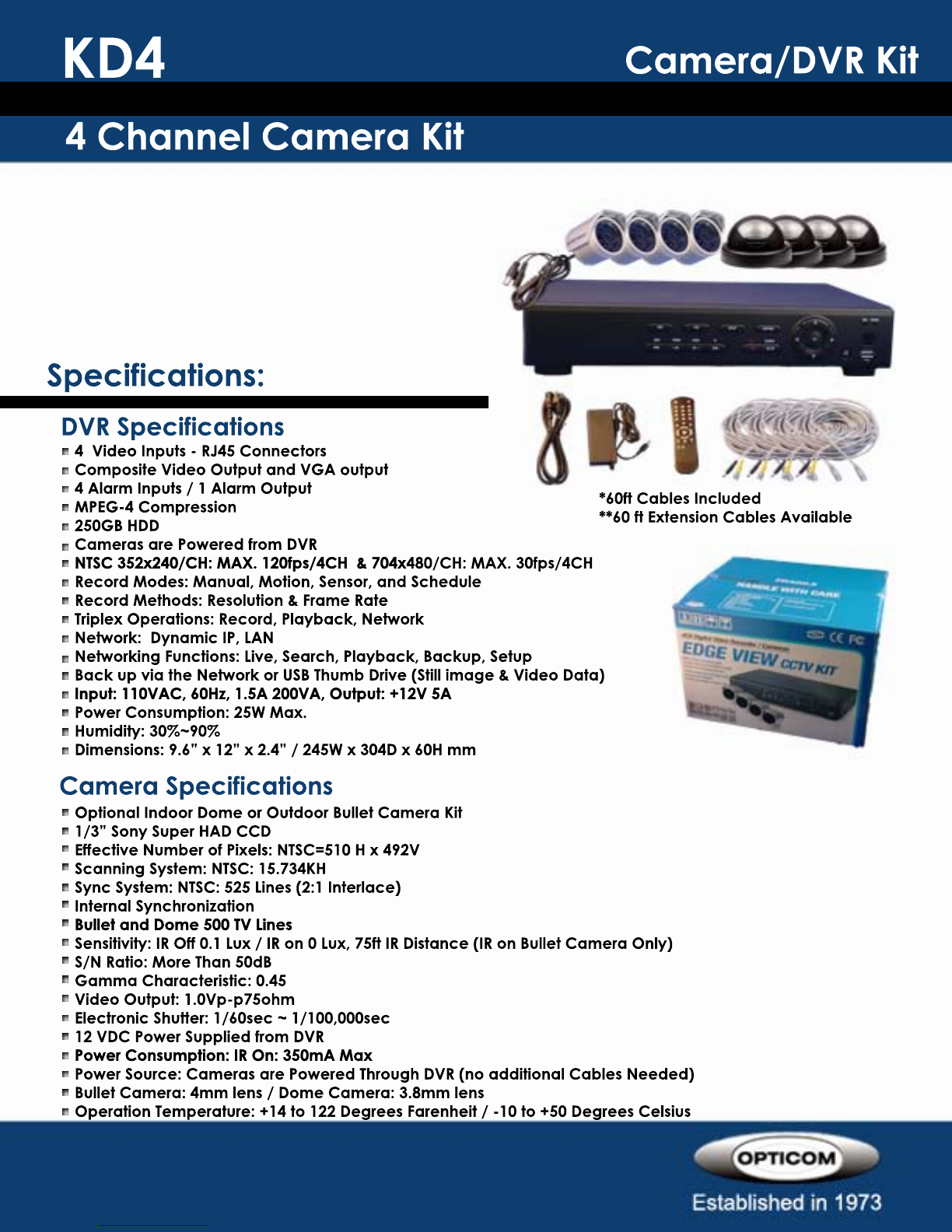

Specifications:

DVR Specifications

4 Video Inputs - RJ45 Connectors

Composite Video Output and VGA output

4 Alarm Inputs / 1 Alarm Output

MPEG-4 Compression

250GB HDD

Cameras are Powered from DVR

NTSC 352x240/CH: MAX. 120fps/4CH & 704x480/CH: MAX. 30fps/4CHNTSC 352x240/CH: MAX. 120fps/4CH & 704x480/CH: MAX. 30fps/4CH

Record Modes: Manual, Motion, Sensor, and Schedule

Record Methods: Resolution & Frame Rate

Triplex Operations: Record, Playback, Network

Network: Dynamic IP, LAN

Networking Functions: Live, Search, Playback, Backup, Setup

Back up via the Network or USB Thumb Drive (Still image & Video Data)

Input: 110VAC, 60Hz, 1.5A 200VA, Output: +12V 5AInput: 110VAC, 60Hz, 1.5A 200VA, Output: +12V 5A

Power Consumption: 25W Max.

Humidity: 30%~90%

Dimensions: 9.6” x 12” x 2.4” / 245W x 304D x 60H mm

*60ft Cables Included

**60 ft Extension Cables Available

Camera Specifications

Optional Indoor Dome or Outdoor Bullet Camera Kit

1/3” Sony Super HAD CCD

Effective Number of Pixels: NTSC=510 H x 492V

Scanning System: NTSC: 15.734KH

Sync System: NTSC: 525 Lines (2:1 Interlace)

Internal Synchronization

Bullet and Dome 500 TV LinesBullet and Dome 500 TV Lines

Sensitivity: IR Off 0.1 Lux / IR on 0 Lux, 75ft IR Distance (IR on Bullet Camera Only)

S/N Ratio: More Than 50dB

Gamma Characteristic: 0.45

Video Output: 1.0Vp-p75ohm

Electronic Shutter: 1/60sec ~ 1/100,000sec

12 VDC Power Supplied from DVR

Power Consumption: IR On: 350mA MaxPower Consumption: IR On: 350mA Max

Power Source: Cameras are Powered Through DVR (no additional Cables Needed)

Bullet Camera: 4mm lens / Dome Camera: 3.8mm lens

Operation Temperature: +14 to 122 Degrees Farenheit / -10 to +50 Degrees Celsius

KD4

8 60’ Cables Included

8 Channel Camera Kit

Specifications:

DVR Specifications

Supports 8 Cameras

8 BNC Video Inputs

BNC Video Output and VGA output

4 Alarm Inputs / 1 Alarm Output

MPEG-4 Compression

NTSC 352x240/CH: MAX. 120fps/8CH & 704x480/CH: MAX. 30fps/4CH

Record Modes: Continuous / Schedule / Motion / Sensor / ManualRecord Modes: Continuous / Schedule / Motion / Sensor / Manual

Record Quality: Low / Medium / High

Triplex Operations: Record, Playback, Network

Network: Dynamic IP, LAN

Networking Functions: Live, Search, Playback, PTZ Control, Backup, Setup

Back up via the Network or USB Thumb Drive (Still image & Video Data)

Power Source: DC 12V adapter (included)

Operating Temperature: +41 ~ +104 F / +5 ~ +41 COperating Temperature: +41 ~ +104 F / +5 ~ +41 C

Humidity: 30%~90%

Dimensions: 9.6” x 12” x 2.4” / 245W x 304D x 60H mm

*100ft Cables Included

** Mix and Match Cameras

Camera Specifications

1/3” Sony Super HAD CCD

IR Bullet Camera 480 TV Lines / Dome Camera 420 TV Lines

Internal Synchronization

Sensitivity: 0.3 lux (Bullet Camera 0 lux w/ IR ON)

S/N Ratio: More Than 45dB

Gamma Characteristic: 0.45

Video Output: 1.0Vp-p75ohmVideo Output: 1.0Vp-p75ohm

Electronic Shutter: 1/60sec ~ 1/100,000sec

Power Source: DC 12V Distributed Power Supply (included)

Operation Temperature: +14 to +122 F / -10 to +50 C

KD8

Camera/DVR Kit

Features

Specifications

Discreet Video Surveillance System

SDVR-150

Camera Kit

Motion Detection

Rechargeable Battery

Temperature-Hardened and Weather Resistant Enclosure

Remote Access

E-mail or Text Message Notifications

All-in-one System

Centralized Remote Management via WebCentralized Remote Management via Web

Network: Data Network with SIM Card

Antenna: 4dbi gain

Still Camera Resolution: 640 x 480 or 320 x 240

Still Camera Infrared: 25 ft

Still Camera Trigger Speed: 1-4 seconds

Video CameraResolution: 512 x 492

Video Camera Format: AVIVideo Camera Format: AVI

Video Camera Infrared: 25 ft

Video Camera Storage: 2 GB Max SD Card

PIR Sensor Distance: 25ft

Battery: 12V SLA 8 Ah

External Power: Optional Solar Panel

Op Temp: 0 ~ +120 degrees Farenheit / -18 ~ +49 degrees Celsius

Waterproof Class: IP67Waterproof Class: IP67

Enclosure Material: Fiberglass Reinforced Polyester

Enclosure Dimensions: 13.75” x 9.75” x 5.0” / 349 x 248 x 127mm

Weight: 11.0 lbs / 5kg
