Opticis IPKVM-350ED Manual de usuario

- 1 -

IP KVM HDMI /DVI Extender, IPKVM-350ED

User’s Manual

※The design can be chaned without notice

Doc No. : OIPKVM5-D150323/ Rev1.0

WWW.OPTICIS.COM

Ver. 1.0

Front

Back

- 2 -

Contents

Welcome .................................................................................................................................................. 3

Product Description..................................................................................................................................3

Main Features .......................................................................................................................................... 4

Network components ............................................................................................................................... 4

Shipping Group ........................................................................................................................................ 5

Supporting video resolutions for Input / Output........................................................................................ 5

Application................................................................................................................................................ 6

System requirements for setup ................................................................................................................6

Installation ................................................................................................................................................ 7

Connection Ports......................................................................................................................................8

Setting Local/Remote Authority.............................................................................................................. 10

LED Indication........................................................................................................................................11

SW & Factory Reset............................................................................................................................... 11

Configuration & Operation......................................................................................................................12

Remote Manager (PC Program) ............................................................................................................ 12

Getting Started ....................................................................................................................................... 23

Product Specifications............................................................................................................................ 29

Externally Setting Local/Remote Authority.............................................................................................30

Troubleshooting ..................................................................................................................................... 31

Warranty Information.............................................................................................................................32

- 3 -

Welcome

Congratulations on your purchase of the IP KVM HDMI / DVI Extender, IPKVM-350-ED. This manual

contains information that will assist you in installing and operating the product.

Product Description

The OPTICIS HDMI / DVI IP KVM Extender, IPKVM-350-ED is designed for extending of HDMI,

keyboard / mouse and provides unicast (1 to 1) over IP network. But the key feature of Dual-display

mode inside IPKVM-350-ED enables user to extend two (2) displays with keyboard / mouse.

The transmitter, IPKVM-350-E (Encoder) connected to a HDMI source, encodes the HDMI by H.264

and transmits the video signal via Ethernet. The receiver, IPKVM-350-D (Decoder) connected to a

display, receives the H.264 encoded video signal via the Ethernet and decodes video signal into the

HDMI display.

The USB keyboard and mouse interface in the receiver, IPKVM-350-D also can be accessed to the

source via transmitter, IPKVM-350-E, if it is connected to the source by USB interface.

The IPKVM-350-ED supports the digital video data of full HD up to 1080p at 60Hz and stereo audio

and transmits the signal via Intra network. By using GUI interface and PC program, user can control

the transmitters for connecting in the receiver side.

- 4 -

Main Features

♦Supports Dual-display mode: extend two (2) displays with keyboard / mouse.

♦Provides unicast (1 to 1) over IP network

♦LAN standard: 802.3 Ethernet 10/100/1000Mbps.

♦Video Resolution: up to 1080p@60Hz

♦H.264 CODEC

♦OSD GUI

♦Remote Manager: PC Program for User Setting and Control

♦HDMI V1.3, DVI 1.0

♦USB KVM via backchannel: USB HID mouse & keyboard on remote site(Rx).

♦Provides optionally mounting bracket (OPSCB) complying with VESA 75,100.

♦IPKVM-350-E(Transmitter,Tx): Power Jack, RJ45, HDMI Input /HDMI Output (Loop-through)

and mini USB port

♦IPKVM-350-D (Receiver,Rx): Power Jack, RJ45, HDMI Output and Dual USB ports

♦Certifications: CE / FCC

Network components

♦Source: A video source connected to a transmitter (encoder), a source can be a media player,

personal computer, or camera.

♦Transmitter (Encoder): An encoder is needed for each source and can broadcast to a single

transmitter (decoder) or to multiple receivers (decoders).

♦Receiver (Decoder): A decoder is needed for each display output.

♦RemoteManager(PC Program): Via a PC connected to the network, RemoteManager (PC

program) manages user accounts, configures IP addresses of IPKVM-350-EDs and

provides user information about each IPKVM connection.

When you set IP address or RX grouping for the first time and modify or add device

(IPKVM-350-EDs), you need to use this program.

♦IP Network: An IP network what IP devices is connected via Switching hub.

e.g Ethernet switching hub, Optical-Ethernet switch

- 5 -

Shipping Group

♦IPKVM-350-E: Transmitter (Tx, Encoder) or IPVKM-350-D: Receiver (Rx, Decoder)

♦Power adaptor: One (1) unit of 5V, 2A

♦One (1) HDMI male to male cables (1.2m)

♦One (1) Mini-USB Cable for PC (Only IPKVM-350-E,Tx)

♦Two (2) of Three (3) pin terminal block

♦User’s manual

Option

♦RS232 cable: DB9 male to Three (3) pin terminal block

♦Switch (Tx): Console Switch & RJ11 male to Three (3) pin terminal block

♦Mounting bracket (OPSCB) complying with VESA 75, 100.

Supporting Video Resolutions for Input / Output

♦480i60, 576i50

♦480p60, 576p50

♦720p50, 720p60

♦1080i30, 1080i50, 1080i60

♦1080p24, 1080p30, 1080p50, 1080p60

♦640x480p60

♦800x600p60

♦1024x768p60

♦1280x768p60

♦1280x960p60

♦1280x1024p60

♦1600x1200p60

♦1920x1080p60

Note: Some PC resolutions may not be displayed properly.

- 6 -

Application

♦KVM

♦Video Control room

♦RCS/ROS

System Requirements for Setup

♦Hardware requirements

▶You must have a HDMI graphic controller or card having a HDMI or DVI port in your PC or

any other equipment being used.

▶It should support the maximum graphic resolution feature of displays to be connected.

▶No special requirements for memory size, CPU speed and chipsets, if you’ve already

properly installed your HDMI or DVI graphic controllers or cards.

♦Software requirements

▶You need to check OS version of your PC or any other equipment being used.

♦Network requirements

▶You may need Ethernet switch(L2 or L3) as a switching hub, Optical-Ethernet switch or

router for connecting multiple IPKVM-350-EDs in Local network. And also it is possible to

communicate directly between one pair of IPKVM-350-ED, point-to-point connection.

Network speed of each port of Ethernet switch requires 100/1000Mbps

♦requirements for control PC to install RemoteManager

▶We provides RemoteManager [PC program] for setting and control. The program

manages user accounts, setup of IP addresses of IPKVM-350-EDs.

▶Requirements: Windows XP and Window7 (or above OS)

♦AC/DC Power Adapter Technical Advisory

▶The IPKVM-350-ED has a reverse voltage protection circuit and receiver (Rx) module also

has overcurrent protection circuit.

▶The IPKVM-350-ED is designed to use mainly external +5V AC/DC power adaptor. The

internal power supplied through a HDMI pin (#18) from the graphic source is used to

identify normal connection between a source and transmitter, IPKVM-350-E.

- 7 -

Installation

Important: Please keep the installation procedure below. Improper or no operation may result if the

start-up sequence is not followed correctly.

Step 1

Carefully unpack the contents of the shipping group.

Step 2

Turn on the PC, display, and network server.

Step 3

Connect HDMI IN port in IPKVM-350-E (Tx) to the PC by supplied HDMI cable.

Step 4

Connect mini USB port in IPKVM-350-E (Tx) to USB port in PC with supplied USB cable.

Step 5

Connect Local Display port in IPKVM-350-E (Tx) to HDMI port in a display with HDMI cable. You may

skip Step 5 if you don’t need loop-through for local.

Step 6

Connect LAN port (RJ45) in IPKVM-350-E (Tx) to LAN port in Network server with LAN cable.

Step 7

Connect HDMI OUT port in IPKVM-350-D (Rx) to a display by supplied HDMI cable.Then, Attach

keyboard and mouse for remote control.

Step 8

Connect LAN port (RJ45) in IPKVM-350-D (Rx) to LAN port in Network server with LAN cable.

Step 9

Plug the +5V power adaptors to both IPKVM-350-E (Tx) and IPKVM-350-D (Rx).

Note: If you change an input source to another source, you have to reset the power of all TXs and

RXs by re-plugging of the +5V power adaptor.

Note: Before you power on your devices, firstly connect your encoder(transmitter) unit to your

source and to the network, secondly connect your decoder(receiver) unit to the network and

to your displays, and other devices to your decoder and encoder units (including connection

of mini-USB cable to the PC source, finally plug +5V power adaptor to your encoders and

decoders.

- 8 -

Connection Ports

♦Connector descriptions

▶5V AC/DC Power (Transmitter & Receiver): Connect the 5V AC/DC Power Adaptor to the

connector of each device. When the 5V AC/DC Power Adaptor is connected to the

device, the power LED is turned on. For more information on LEDs, see “LED indication”

▶HDMI IN (Transmitter): Connect your video source (such as a PC) to this connector. If

your video source doesn’t support HDMI output, use an HDMI/DVI cable or an HDMI

converter to connect it to your transmitter device. Note: To connect to this connector,

you need a shielded HDMI cable.

▶HDMI Out (Receiver): Connect a digital display to this connector. If your digital display has

not an HDMI input, use an HDMI/DVI cable or an HDMI adaptor to connect it to your

receiver device. Note: To connect to this connector, you need a shielded HDMI cable.

▶Local Display (Transmitter): Connect a digital display to the HDMI output connector. If your

digital display has not an HDMI input, use an HDMI/DVI cable or an HDMI converter to

connect it to your transmitter device. Note: To connect to this connector, you need a

shielded HDMI cable.

▶RJ45 (Transmitter & Receiver): Connect a network cable (CAT5e/CAT6) to this connector.

▶mini USB port (Transmitter): Connect a source PC to this connector for the purpose of

using HID mouse or Keyboard.

▶Dual USB A Type (Receiver): Connect a mouse and/or a keyboard to this connector for

the purpose of using HID mouse or Keyboard.

▶RS232 (Transmitter & Receiver)

Optional - Connect a RS232 cable to this terminal block for the purpose of using a knob

or controller (which controls an instrument).

▶DIO (Transmitter & Receiver)

Optional - Connect a DIO cable to this terminal block for the purpose of using Knob

or controller (which receive some data from an instrument)

Note: If you change a source to another source such as PC, Camcorder, you have to reset

the power of all TXs and RXs by re-plugging of the +5V power adaptor.

- 9 -

♦IPKVM-350-E Transmitter Front

♦IPKVM-350-E Transmitter Back

- 10 -

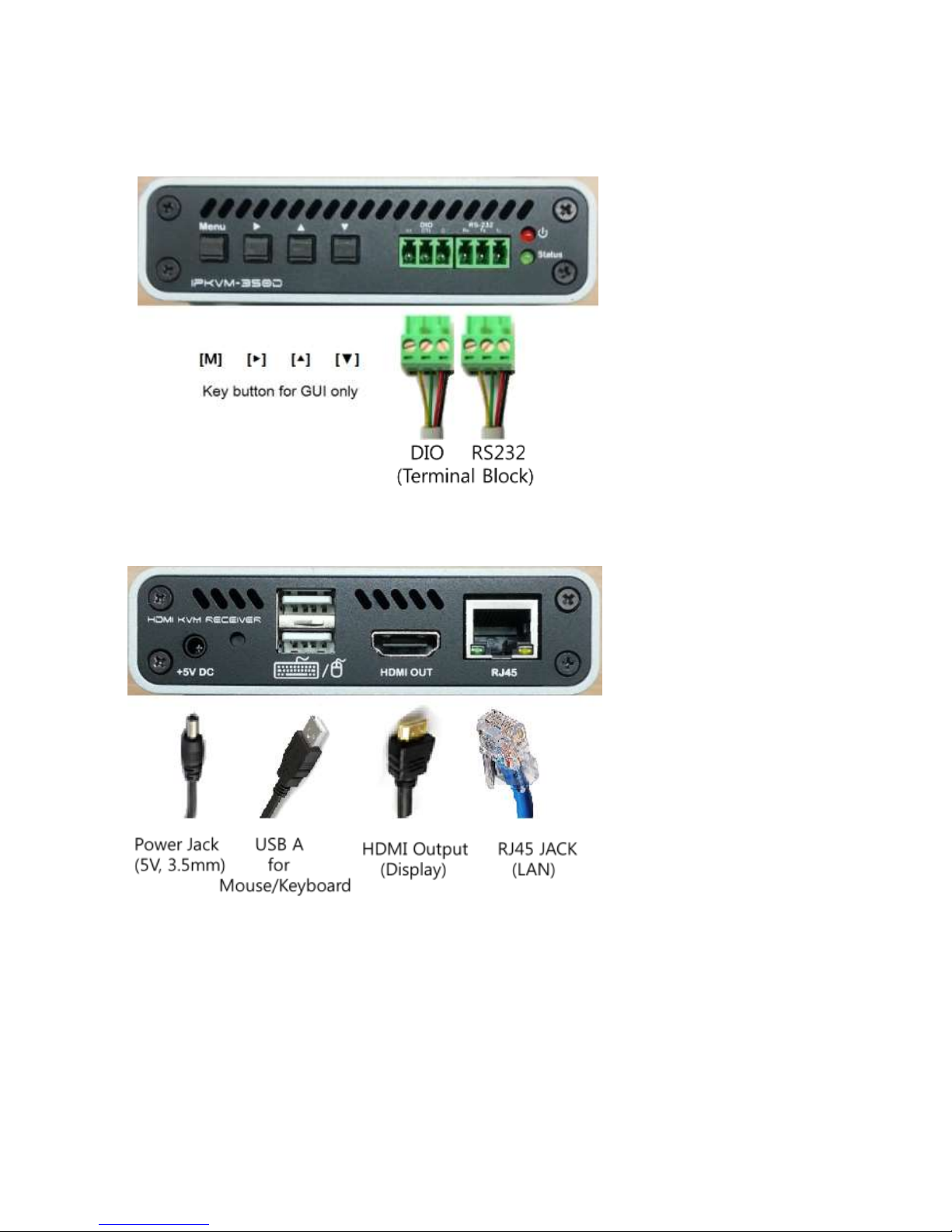

♦IPKVM-350-D Receiver front

♦IPKVM-350-D Receiver back

Setting Local/Remote Authority

You can use KVM (including an HID mouse and/or a keyboard, or a knob (or controller) under user’s

authority. Only on the Local site, you can set user’s authority to Local or Remote using an external

console switch. But without the external console switch, you can access to the devices on both local

and remote site.
