Optex HX-40 Manual de usuario
N219
CONTENTS
1 INSTALLATION PRECAUTIONS............2
1-1 BEFORE INSTALLATION................2
1-2 PARTS IDENTIFICATION................3
1-3 KNOCKOUTS..................................4
1-4 DETECTION AREA..........................5
1-5 DETERMINATION OF PIR
DETECTION LENGTH ....................5
2 INSTALLATION.......................................6
2-1 MOUNTING WITH BRACKET.........6
2-2 ADJUSTING THE VERTICAL
ANGLE.............................................8
2-3 MOUNTING WITHOUT
BRACKET........................................9
2-4 WIRING .........................................10
2-5 WALL TAMPER (OPTION) ............11
3 WALK TEST..........................................12
4 SETTING ..............................................13
5 AREA ADJUSTMENT ...........................16
6 LED INDICATION .................................17
7 SPECIFICATIONS ................................18
7-1 SPECIFICATIONS .........................18
7-2 DIMENSIONS................................19
HX-40 2 PIRs standard model
HX-40AM HX-40 with anti-masking
HX-40DAM HX-40AM with micro-wave
3.0 m high mount detection area (12.0 m)
Unique pyro element
Intelligent AND logic
Dual signal processing logic
Vegetation sway analysis logic
Ideal detection area setting
Digital anti-masking (AM/DAM model only)
Microwave range selector (DAM model only)
•
•
•
•
•
•
•
•
NO.59-1501-3
INSTALLATION INSTRUCTIONS
High Mount
Outdoor Detector
HX-40/40AM/
40DAM
HX-40/40AM/
40DAM
High Mount
Outdoor Detector
- 1 -
HX-40DAMEN.indd1HX-40DAMEN.indd1 2010/06/2414:11:552010/06/2414:11:55
1INSTALLATION PRECAUTIONS
1-1
BEFORE INSTALLATION
Warning Failure to follow the instructions provided with this indication and improper
handling may cause death or serious injury.
Caution Failure to follow the instructions provided with this indication and improper
handling may cause injury and/or property damage.
The check mark indicates recommendation.
The nix sign indicates prohibition.
Warning Warning Caution
Do not repair or modify
product Keep product away from water Mount the unit securely
Mounting height Keep the detector parallel to the ground.
Consider the direction a person is approaching from, as well as the detection area.
Install the detector in a place where it is free from false alarm factors. For example:
Sunlight and reflection• Heat source• Objects moving in the wind•
Tilt
Parallel
2.5 m – 3.0 m
(8'2" – 9'10")
- 2 -
HX-40DAMEN.indd2HX-40DAMEN.indd2 2010/06/2414:11:572010/06/2414:11:57
-Precautions for installing two or more sensors
HX-40
HX-40AM
HX-40DAM
Do not install two or more HX-40DAM’s units side-by-side or face-to-face. Instead, install them
back-to-back. If mounting on the same wall, be sure they are at least 1.0 m (3'3") apart from
each other.
1.0 m (3'3") or more Less than 1.0 m (3'3")
1-2
PARTS IDENTIFICATION
Screw kit
For joint For wall mounting For hood
Screw (4 × 20 mm) Screw (4 × 20 mm) Screw (3 × 10 mm)
*Lock screw attached on bracket base
Bracket base
Screw (3 × 10 mm)
Area masking seal
Main unit
Bracket
LED indicator
Lock screw* (M4 × 35 mm)
Lens
Base
PIR sensor
(Do not touch)
Terminals
Shaft cover
Cover
Lock screw
Hood
Anti-masking infrared LED
(HX-40AM/DAM only)
Microwave unit
(HX-40DAM
only)
(Do not touch)
Screw (4 × 20 mm)
- 3 -
HX-40DAMEN.indd3HX-40DAMEN.indd3 2010/06/2414:11:582010/06/2414:11:58
1-3
KNOCKOUTS
For wall fastening/bracket fastening
(installation pitch 83.5 mm (3.29")) For main unit fastening
Adjustment screw
Bracket
Main unit
(Off-the-shelf) magnet switch
installation position
For bracket
Up-Down lock screw
Wiring Hole
For wall
fastening
For switch
box fastening
Do not touch
Up-Down
lock screw
Wiring
knockout
Wiring sponge pad
Wiring Hole
- 4 -
HX-40DAMEN.indd4HX-40DAMEN.indd4 2010/06/2414:11:582010/06/2414:11:58
1-4
DETECTION AREA
0
2
4
6
8
(m)
(m)
2
4
6
8
MW
PIR
MW
PIR
M
W
PIR
10'
3.0 m2.5 m
5'
0'
(ft.)
(ft.)
20'
10'
10'
20'
0'
(ft.)
(ft.)
10'
5'
0'
(ft.)
10'
12.0 m
12.0 m
0' 20' 30' 40'
40'
40'
(ft.)
10'0'
246810
10
10 12
(m)
20' 30' 40'
(ft.)
10'0' 20' 30' 40'
85°
10°
20°
30°
40°
1-5
DETERMINATION OF PIR DETECTION LENGTH
To adjust the detection length, apply the masking seals to the back of the lens according to
the required detection length. Three types of masking seals are provided. Combine them
according to the detection length required.
Apply masking seal directly on the back side of the lens.
1
3
2
11
2
For microwave detection setting please refer to “4 SETTING”.
(Mounting height: 2.5 m (8'2"))
Top viewSide view
(Mounting height: 3.0 m (9'10"))
Vertical angle: 1 click (2.5°) upward
(Refer to “caution” in 2-2).
•
9.0 m (29'6")
3.0 m (9'10")
5.5 m (18'1")
3.0 m (9'10")
4.0 m (13'1")
3.0 m (9'10")
- 5 -
HX-40DAMEN.indd5HX-40DAMEN.indd5 2010/06/2414:11:592010/06/2414:11:59
Use the bracket for normal installation. The unit may be mounted directly on the wall, without
the bracket, only if the following three conditions are not;
The mounting height 3.0 m (9'10").
Horizontal direction adjustment is unnecessary.
The ground is level.
•
•
•

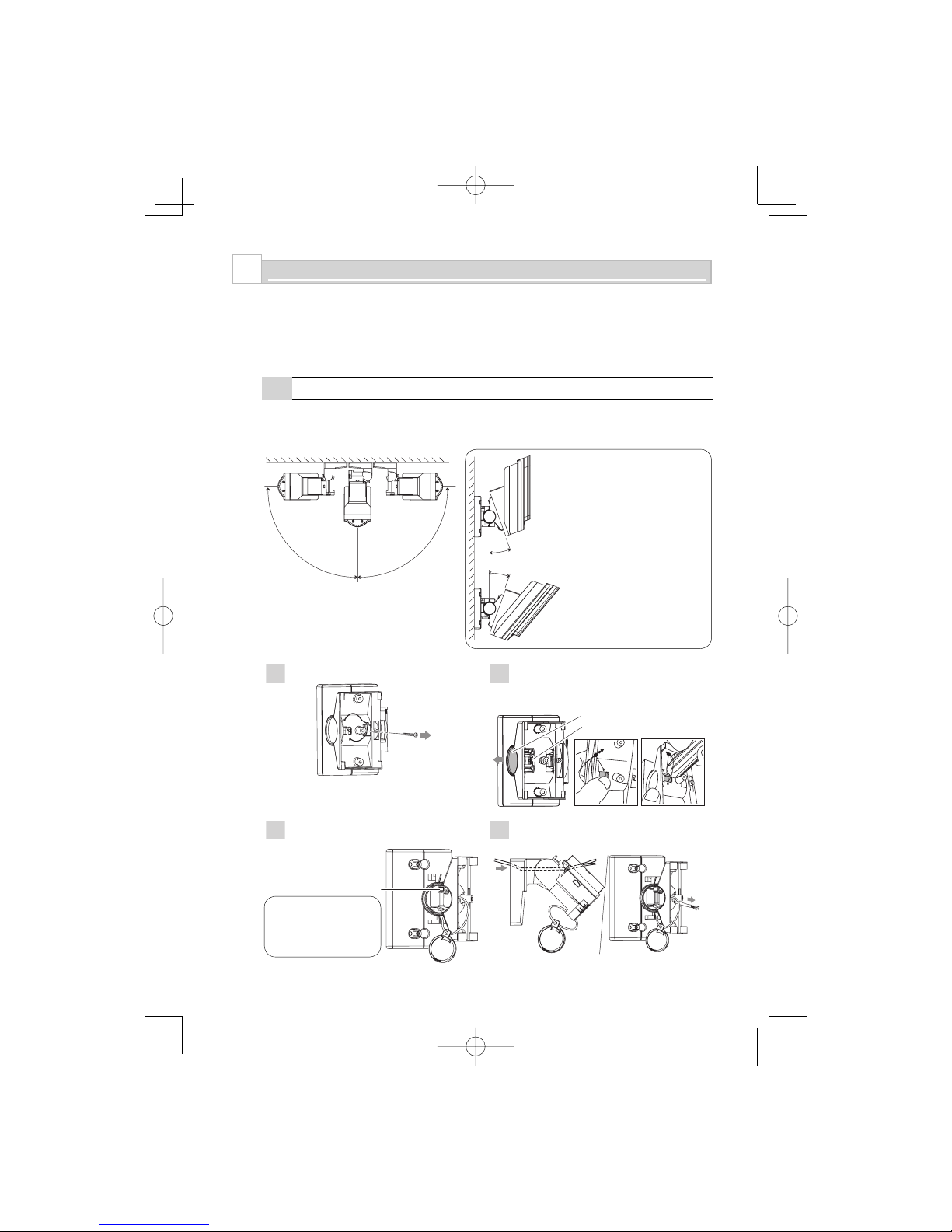

2-1
MOUNTING WITH BRACKET
Using the bracket makes it possible to adjust the unit horizontally by ±90°.
In cases where the ground is uneven and/or not parallel with the base of the unit, it is possible
to adjust the unit vertically by ±20°.
2INSTALLATION
90° 90°
20°
20°
Caution>>
Do not change the detection
length with bracket.
Use the masking seal to
adjust the detection length.
1Remove the Up-Down lock screw. 2
Push the shaft cover clip straightforwardly with
your thumb. In case the clip is stuck, use a
suitable tool. e.g. back side of a screw driver.
Shaft cover clip
Shaft cover
3Loosen the adjustment screw two turns. 4Tilt the bracket about 45° and pass
through the wire.
In
Out
Adjustment screw
Caution>>
Do not loosen the
screw too much.
It may disassemble.
- 6 -
HX-40DAMEN.indd6HX-40DAMEN.indd6 2010/06/2414:11:592010/06/2414:11:59
5Determine the horizontal direction (left or
right) of the detector before installing the
bracket on the wall.
6Open the wiring knockout.
7Open the Up-Down lock screw knockout
for connecting the bracket.
Knockout with 4 × 20
tapping screw (screwkit)
8
Tighten screws
1
and
2
, adjust the bracket
angle (refer to 2-2), then tighten screw
3
.
Perform an area check. If re-adjustment is
required, loosen screw 3and change the
bracket angle.
After the adjustment is complete, tighten
screw 3again.
To the right To the left
Wiring knockout
24 × 20 screw
Wiring
hole
Out
Wiring
sponge pad
14 × 20 screw
34 × 35 Up-Down
lock screw
In
Adjustment
screw
9Tighten the adjustment screw clockwise. 10 Wire to the terminal and install the main
unit and lens on the base.
11 Install the shaft cover into place.
- 7 -
HX-40DAMEN.indd7HX-40DAMEN.indd7 2010/06/2414:12:002010/06/2414:12:00
2-2
ADJUSTING THE VERTICAL ANGLE
For best performance, install detector parallel to the ground.
Decide the detection length. If you choose 9.0 m/5.5 m/4.0 m, mask the unnecessary lens with
masking seals. Refer to the 1-5 for the details.
Caution>>
If the base of the unit is already parallel to the ground,
Do not change the detection length by tilting the unit up or down. Detection length should
be adjusted with masking seal. Refer to 1-5 and 2-1 for the details.
•
12.0 m (40')
3.0 m (9'10")
If the detection length is
shorter than the designated
one (refer to page 5), change
the detector angle upward.
If the detection length is
longer than the designated
one (refer to page 5), change
the detector angle downward.
If the detection length is
equal to the designated
one, adjustments have
been completed.
0° is the right setting for 3.0 m
(9'10") height installation.
4 clicks (10°)
2 clicks (5°)
0°
Adjust 1 click (2.5° upward) for 2.5 m
(8'2") height installation.
Example (the ground is level)
* This is the case to have 12 m detection length.
Perform the walk test to check
if detector is parallel to the
ground.
- 8 -
HX-40DAMEN.indd8HX-40DAMEN.indd8 2010/06/2414:12:012010/06/2414:12:01

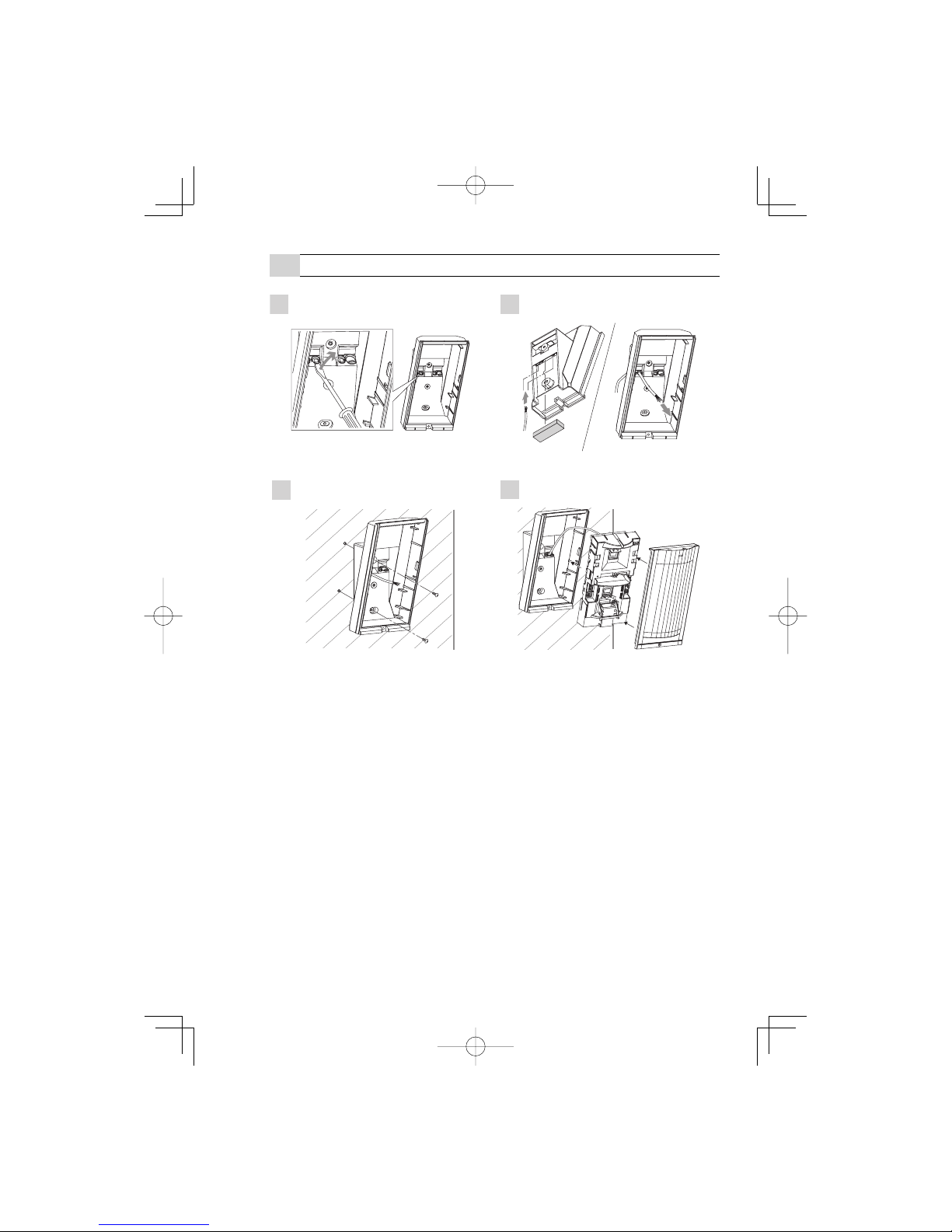

2-3
MOUNTING WITHOUT BRACKET
1Open the wiring knockout with suitable
tool e.g. screwdriver.
3Fasten the base to the wall.
2Pull the wire through the base knockout.
4Install main unit after wiring to the
terminal.
In
Out
Wiring sponge pad
- 9 -
HX-40DAMEN.indd9HX-40DAMEN.indd9 2010/06/2414:12:012010/06/2414:12:01
9.5-18VDC
+
–
N.C.
COM
N.O.
N.C.
COM
N.O.
SPSP
T.O.(N.C.)
AUX
(N.C.) (N.C.)
TAMPER
(N.C.) (N.C.)
TAMPER
INPUT
TROUBLE
OUTPUT ALARM POWER
+
–
SPSP
AUX
INPUT ALARM POWER
9.5-18VDC
*1:
TAMPER terminals to be connected to a 24 hour supervisory loop.
TAMPER OUTPUT
(N.C.) *1
AUX INPUT
(N.C.)
TROUBLE OUTPUT
(N.C.)
SPARE (Non short)
ALARM OUTPUT (N.O.)
ALARM OUTPUT (COM)
ALARM OUTPUT (N.C.)
POWER INPUT (-) (9.5 - 18VDC)
POWER INPUT (+) (9.5 - 18VDC)
HX-40AM
HX-40DAM
HX-40

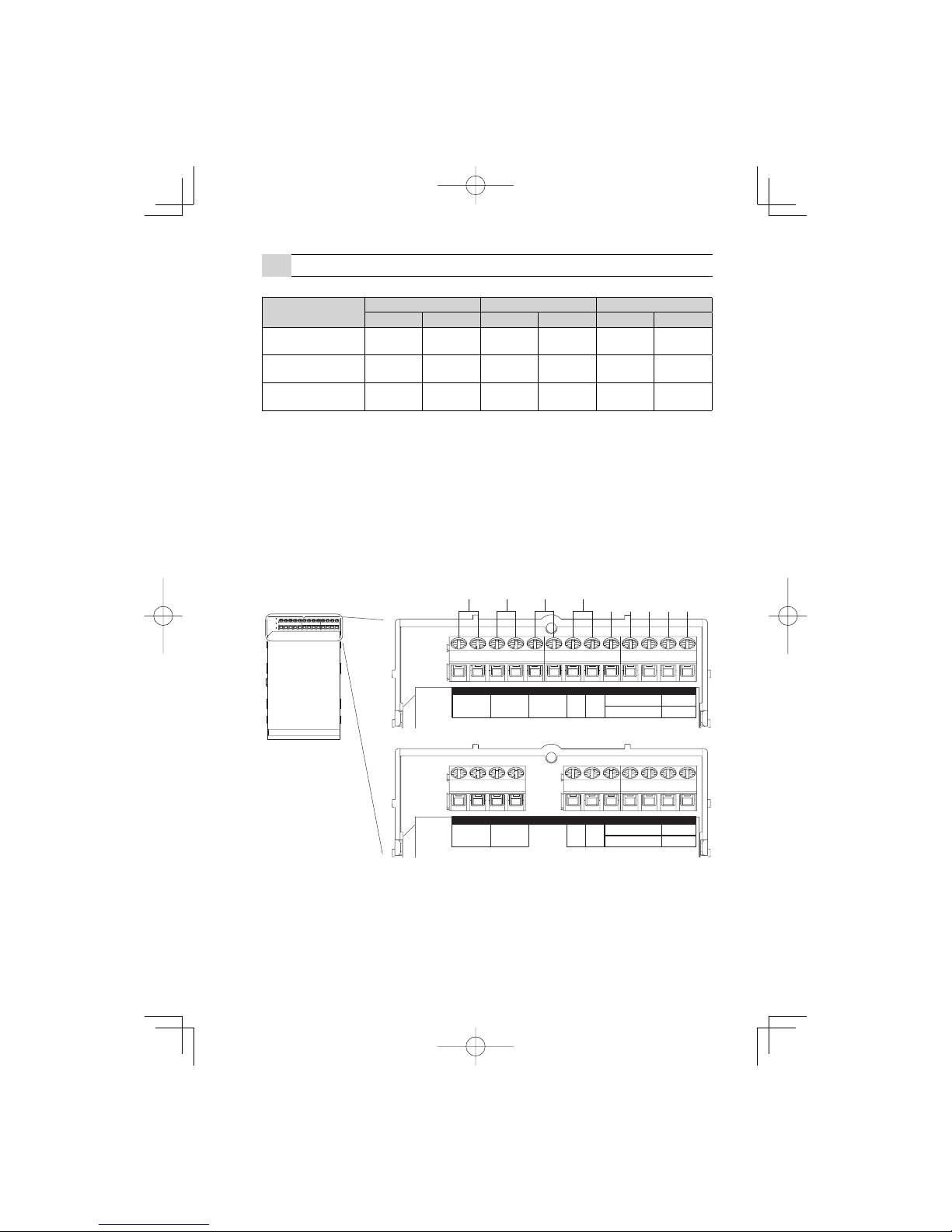

2-4
WIRING
Power wires should not exceed the following lengths.
WIRE GAUGE HX-40 HX-40AM HX-40DAM
12 V 14 V 12 V 14 V 12 V 14 V
AWG22 (0.33 mm2)160 m
(520')
360 m
(1,180')
140 m
(460')
310 m
(1,020')
120 m
(390')
250 m
(820')
AWG20 (0.52 mm2)260 m
(850')
560 m
(1,840')
230 m
(750')
490 m
(1,610')
180 m
(590')
390 m
(1,280')
AWG18 (0.83 mm2)410 m
(1,350')
900 m
(2,950')
360 m
(1,180')
780 m
(2,560')
290 m
(950')
630 m
(2,070')
- 10 -
HX-40DAMEN.indd10HX-40DAMEN.indd10 2010/06/2414:12:012010/06/2414:12:01
