Optex FlipX Series Manual de usuario

FlipX series

Flexible Range Indoor Detector

FlipX series

ADVANCED MODELS

INSTALLATION INSTRUCTIONS

59-3112-0 2208-31

UL 59-3112-0 2110-01

- Manufacturer's statement

- Parts identification

- Anti-masking

- Specifications

- Events and responses

- LED indications

- Dimensions

- Detection area

- Angle adjustment

with bracket CW-G2/CW-G3

- Compliance

Before installation

Others

<< Contents >>

Page

EOL settings

Down zone ON/OFF

Settings

Checking3

Volume setting

Wide/Narrow setting

Wide/Narrow area

Flip lens

PIR Anti-masking Microwave

FLX-A-AM ✓ ✓ ✓ -

FLX-A-DAM-X5

✓ ✓ ✓ ✓(10.525 GHz)

FLX-A-DAM-X8

✓ ✓ ✓ ✓(10.587 GHz)

FLX-A-DAM-X9

✓ ✓ ✓ ✓(9.425 GHz)

*1 Not certified to INCERT, NF

*2 Not certified to UL and SBSC

*3 Not certified to EN 50131-2-4, NF, INCERT, SBSC and UL

Installation

Wall mount

without bracket

Wiring

Wall mount

with bracket

Ceiling mount

with bracket

Disassemble 4

DIP switch settings 12

Mounting height

2.0 to 3.0 m (6’7” to 9’8”)

2.4 m (8’) recommended

Warning

Caution

< 1 m

Wetting with water

[ FLX-A-DAM only ]

Destroy

modify

<1 m

Outdoor installation

Detection through glass

Face to face/Back interference

Partial/complete obscuration

of the detection area.

Follow to the regulations

- Manufacturer’ s statement

NOTE

Failure to follow the instructions provided with this indication

and improper handling may cause death or serious injury.

Failure to follow the instructions provided with this indication

and improper handling may cause injury and/or property damage.

Check mark indicates recommendation.

Nix sign indicates prohibition.

Special attention is required to the

section of this symbol.

Symbol Meaning

Warning

Caution

Symbol Meaning

Before installation

Options

Cover

Main unit

Base

- Parts identifications

Sponge

Lens

CW-G3 *: Bracket for wall/ceiling mount

with tamper switch

Accessories

Mount screw x 2

PEU: Plug-in EOL Unit

Do not touch PIR and MW units.

* Not certified to EN 50131-2-2/EN 50131-2-4,

INCERT and SBSC

- Anti-masking

Wall tamper screw x 1

Joint screw x 3

Fixing screw x 2

Overview of anti-masking

If the front of the lens is covered with obstacles over 20 seconds, an alarm and trouble will be output.

Sensitivity setting

(Refer to “2-3 Dip switch/Volume settings” - “  Anti-masking sensitivity” )

Normally, use it in “Middle” .

Select the “High” setting if required by any standards or sensitivity is insufficient.

If there are many false alarms, you can use “Low” , but please note that it may not be output depending

on the materials and colors of the obstacles.

1-1. Disassemble

Open the cover

Unlock the cover

Installation

180°

Remove the terminal block

Pull

the 2 stoppers alternately to

remove the terminal block.

You do not need to remove the terminal block

if it does not interfere with the mounting of the base.

NOTE

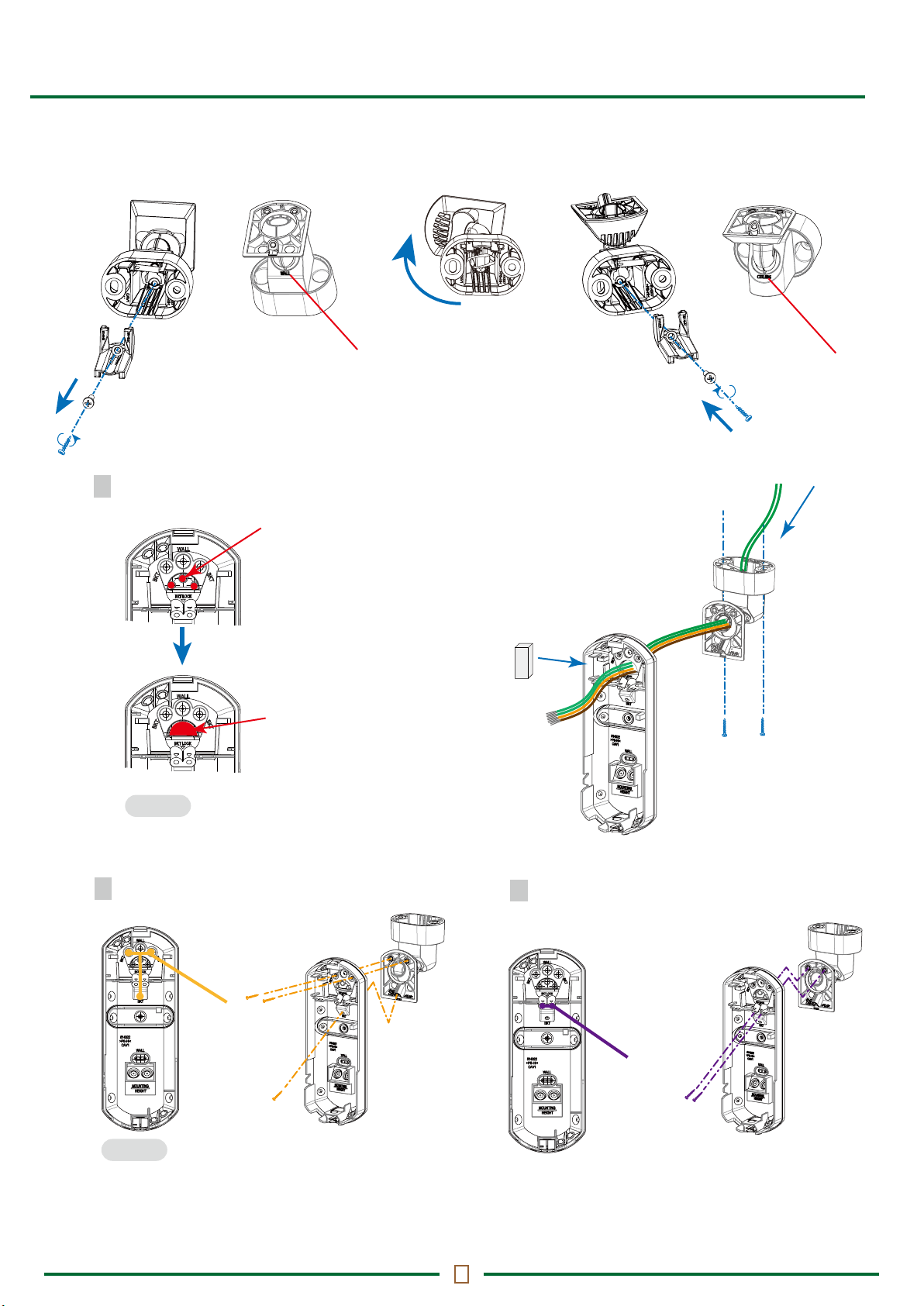

Mount the base

a. Wall mount b. Corner mount

Wire through the base

1-2. Wall mount without bracket

Wiring knockouts

For Wall mount

For Corner mount

Additional holes for tamper protect

for wall mount or

for corner mount

If the device is intentionally removed from the

mounting position, the brown colored part will

be cracked and remained on the wall.

The tamper switch will be operated.

For Wall/ Corner mount

Surface wiring

: Upper

: Lower

Mounting holes

A. Surface wiring

A-1. Upper A-2. Lower

B. Hidden wiring

How to break the knockouts

For Wall/ Corner mount

Hidden wiring:

Additional

Go toPage

1-3. Wall mount with bracket

Go to Page

Wire and mount on the wall

Wiring knockout guides

Punch out 3 knockout guides,

to open the wiring hole to allow

wiring run.

2Join the base on the bracket

Joint screw x 3

The bracket is basically jointed

using 3 holes and 3 joint screws.

Also use 2 additional fixing holes

if stronger support is required.

3Fix the base with the fixing screws

Fixing screw x 2

Adjust the detection direction while jointing.

Confirming with a walk test is required.

--> Refer to “3-1. Walk test”

NOTE

See page 5 for how to break the knockouts.

Wiring knockout hole

How to change the bracket to the ceiling mounting

[1] Loosen the fixing screw. [2] Rotate the body. [3] Tighten the fixing screw.

1-4. Ceiling mount with bracket

Wire and mount on the ceiling

Joint screw x 3

Fixing screw x 2

The bracket is basically jointed

using 3 holes and 3 joint screws.

Also use 2 additional fixing holes

if a stronger fixation is required.

Adjust the detection direction while jointing.

Confirming with a walk test is required.

--> Refer to “3-1. Walk test”

NOTE

2Join the base on the bracket 3Fix the base with the fixing screws

WALL

Rear side

CEILING

NOTE

See page 5 for how to break the knockouts.

Wiring knockout guides

Punch out 3 knockout guides,

to open the wiring hole to allow

wiring run.

Wiring knockout hole

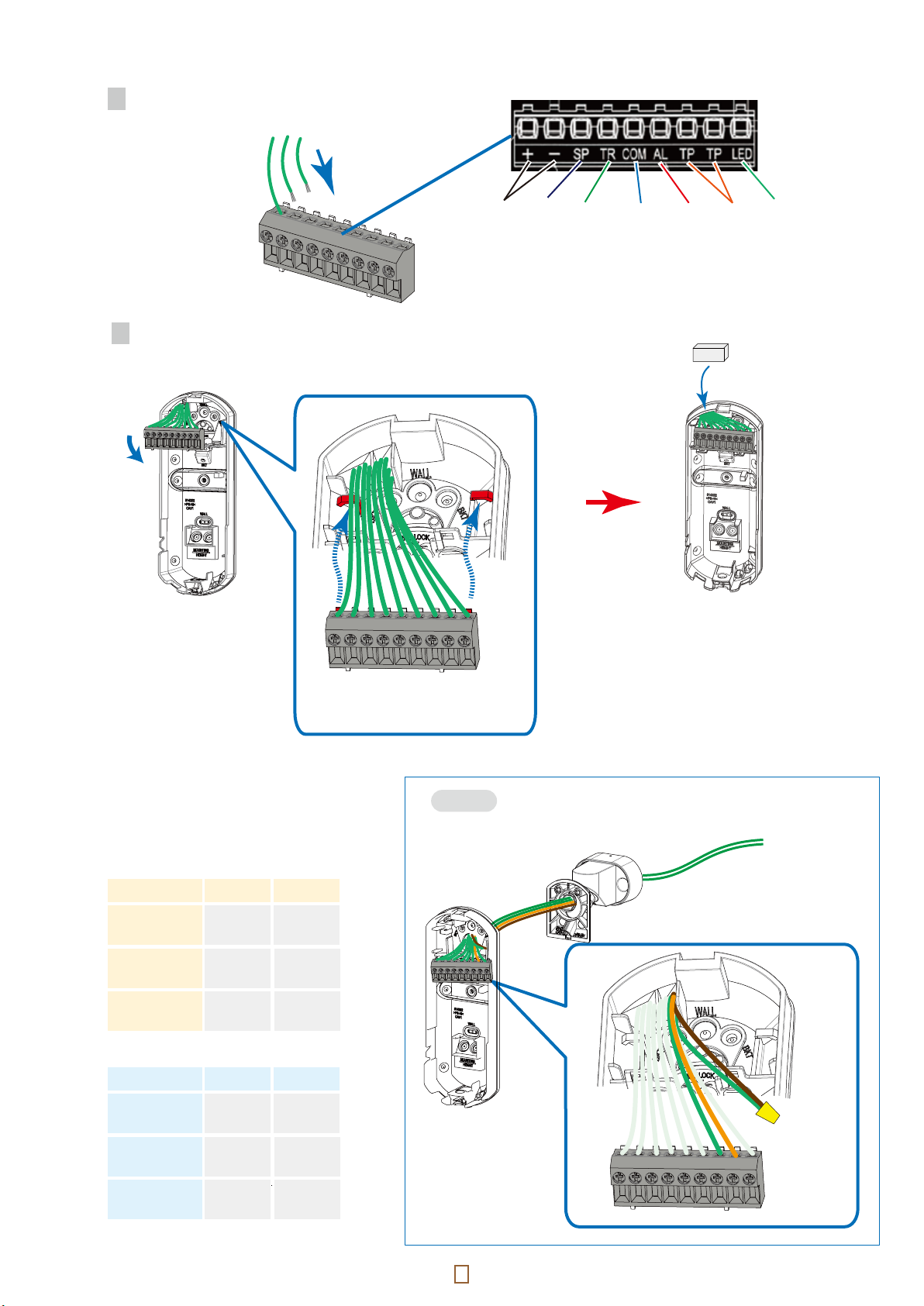

1-5. Wiring

Power Spare Trouble Common Alarm Tamper Remote LED *

* State not evaluated by UL

Wire to the terminal block

Attach the terminal block to the base

Insert the protrusions on both ends of the

terminal block into the holes in the base

(the parts shown in red).

WIRE GAUGE

AWG 22

(0.33 mm²)

AWG 20

(0.52 mm²)

AWG 18

(0.83 mm²)

12 V DC

360 m

(1,180 ft.)

570 m

(1,870 ft.)

900 m

(2,950 ft.)

14 V DC

780 m

(2,560 ft.)

1,230 m

(4,040 ft.)

1,960 m

(6,430 ft.)

WIRE GAUGE

AWG 22

(0.33 mm²)

AWG 20

(0.52 mm²)

AWG 18

(0.83 mm²)

12 V DC

270 m

(890 ft.)

430 m

(1,410 ft.)

690 m

(2,260 ft.)

14 V DC

590 m

(1,940 ft.)

940 m

(3,080 ft.)

1,490 m

(4,890 ft.)

FLX-A-AM

FLX-A-DAM

Power cable length

The power cable should be limited to the

following length.

SP TR COM AL TP TP LED

Twist and swage

the wires.

NOTE

How to wire to the tamper switch on the CW-G3.

Remove the main unit

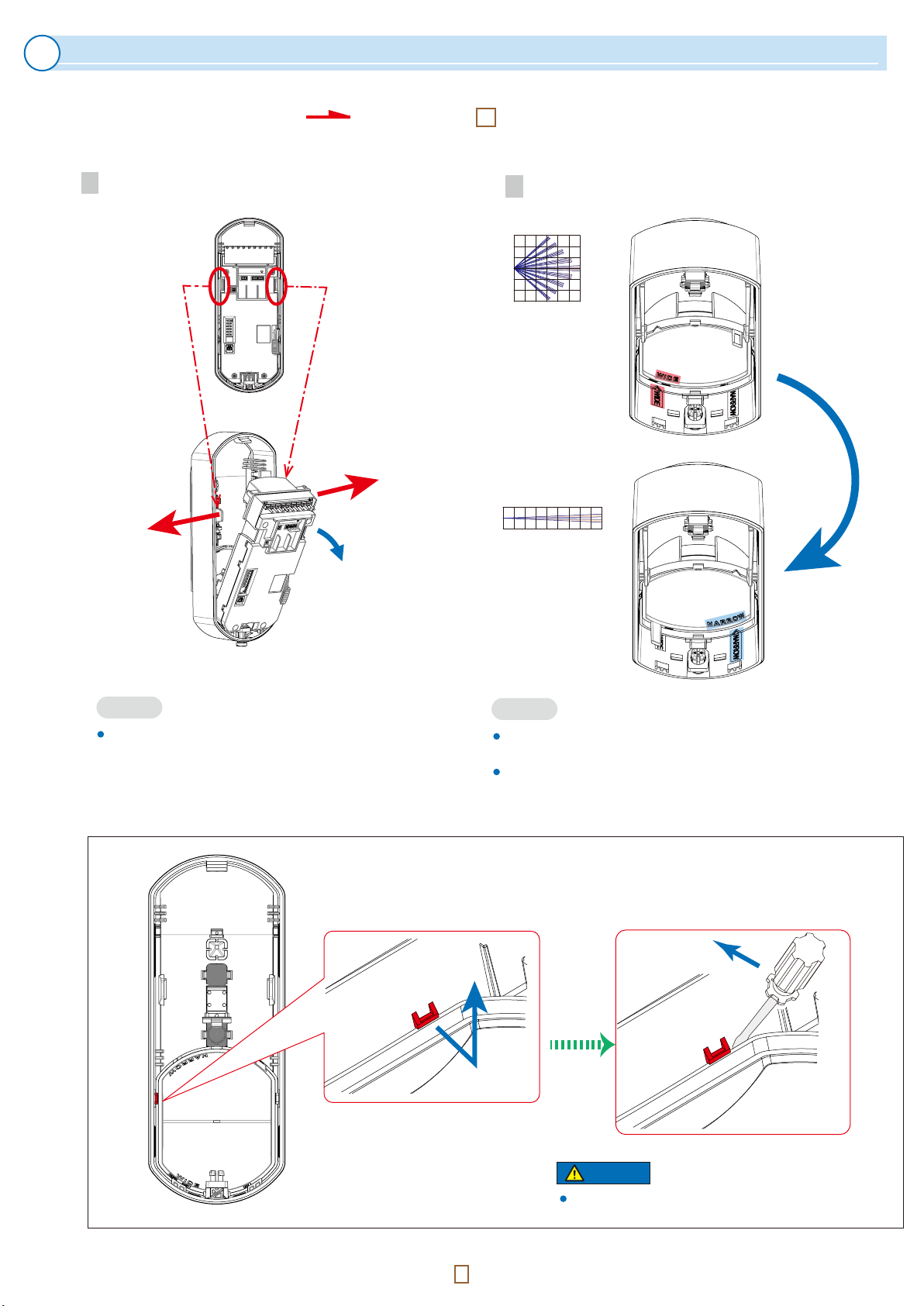

2-1. Wide/Narrow setting

Change the Flip lens from “Wide” to “Narrow”

How to remove the lens

Get over the rib, then pull up the lens.

WIDE

NARROW

NOTE

Default

If it is difficult to get over, use a flat head screwdriver.

Caution

Be careful not to damage the lens with a screwdriver.

Install the lens so that the letters on the cover and on the lens

match your intention.

By changing the lens setting, the internal circuit automatically

switches between Narrow and Wide.

Opening the hooked part as the red arrows indicate

makes it easy to take out the main unit.

NOTE

Go to 2-2 on to skip 2-1

when using the default “Wide” setting.

Page

Settings

How to install the lens

Push the lens firmly at 3 points in numerical order.

By changing the lens, the internal settings of “Wide” and “Narrow” are automatically switched.

It is not necessary to change the settings such as DIP switches.

When the lens is set to the “Narrow” position, MW detection will be disabled automatically.

NOTE

Assemble
