Optex FlipX Series Manual de usuario
FlipXseries
Flexible Range Indoor Detector
Flexible Range Indoor Detector
FlipXseries
PROFESSIONAL MODELS
INSTALLATIONINSTRUCTIONS
No.59-3169-0 2208-18
UL No.59-3169-0 2208-18
EN
1
- Manufacturer’ s statement
- Parts identification
- Specifications
- Dimensions
- Detection area
- Angle adjustment
with bracket CW-G2
- Compliance
Before installation
Others
<< Contents >>
Page
2
3
Installation
Wall mount
without bracket
Assemble and connect
Jumper pin settings
Wide/Narrow setting
1
Wall mount
with bracket Ceiling mount
with bracket
Settings2
Disasseble
Checking3
3
4 5 6
7
8
12
13
14
15
9
13
11
* Not certified to UL
Wide/Narrow area
Flip lens
PIR Microwave
FLX-P-ST ✓ ✓ -
FLX-P-DT-X5 ✓ ✓ ✓(10.525GHz)
FLX-P-DT-X8＊ ✓ ✓ ✓(10.587GHz)
FLX-P-DT-X9＊ ✓ ✓ ✓(9.425GHz)
PEU settings 10
- Manufacturer’ s statement
NOTE
Failure to follow the instructions provided with this indication
and improper handling may cause death or serious injury.
Failure to follow the instructions provided with this indication
and improper handling may cause injury and/or property damage.
Check mark indicates recommendation.
Nix sign indicates prohibition.
Special attention is required to the
section of this symbol.
Mounting height
2.0 to 3.0 m (6’7” to 9’8”)
3.0 m (9’8”) recommended
Symbol Meaning
Warning
Caution
Warning
Caution
< 1m
Wetting with water
2
Symbol Meaning
Before installation
Destroy
modify
<1m
[ FLX-P-DT only ]
Outdoor installation
Detection through glass Face to face/Back interference
Follow to the Regulations
Partial/complete obscuration
of the detection area.
1-1. Disassemble Open the cover Remove the main unit
Cover
Main unit
Base
Unlock the cover
- Parts identifications
Installation
1
180°
3
123
Sponge
Lens
Pull
Do not touch
MW and PIR
units.
CW-G2*
Bracket for wall/ceiling mount
Option
＊Not certified to SBSC.
Joint screw x 3
Fixing screw x 2
PEU: Plug-in EOL Unit
Mount the base
a. Wall mount b. Corner mount
Wire through the base
Mounting screws are not included.
Φ 3 mm screws are recommended.
1-2. Wall mount without bracket
Wiring knockouts
For Wall mount
For Corner mount
Select 2of the 3on each side.
For Wall/ Corner mount
Surface wiring
: Upper
: Lower
Mounting holes
A. Surface wiring
A-1. Upper A-2. Lower B. Hidden wiring
How to break the knockouts
NOTE
4
1
2
Go toPage
7
For Wall/ Corner mount
Hidden wiring:
5
1-3. Wall mount with bracket
Go toPage
7
Wire and mount on the wall
1
Wiring knockout guide
Punch out 3 knockout guides to open
the wiring hole to allow wire run.
2Join the base on the bracket
NOTE
Joint screw
x 3
The bracket is basically jointed
using 3 holes and 3 joint screws.
Also use 2 additional fixing screws
if stronger support is required.
3Fix the base with the fixing screws
(optional)
Fixing screw
x 2
Adjust the detection direction while jointing.
Confirming with a walk test is required.
--> Refer to “3-1. Walk test”
NOTE
Mounting screws are not included.
Φ 3 mm screws are recommended.
NOTE
See page 4 for how to break the knockouts.
Wiring knockout hole
How to change the bracket to the ceiling mounting
[1] Loosen the fixing screw. [2] Rotate the body. [3] Tighten the fixing screw.
6
1-4. Ceiling mount with bracket

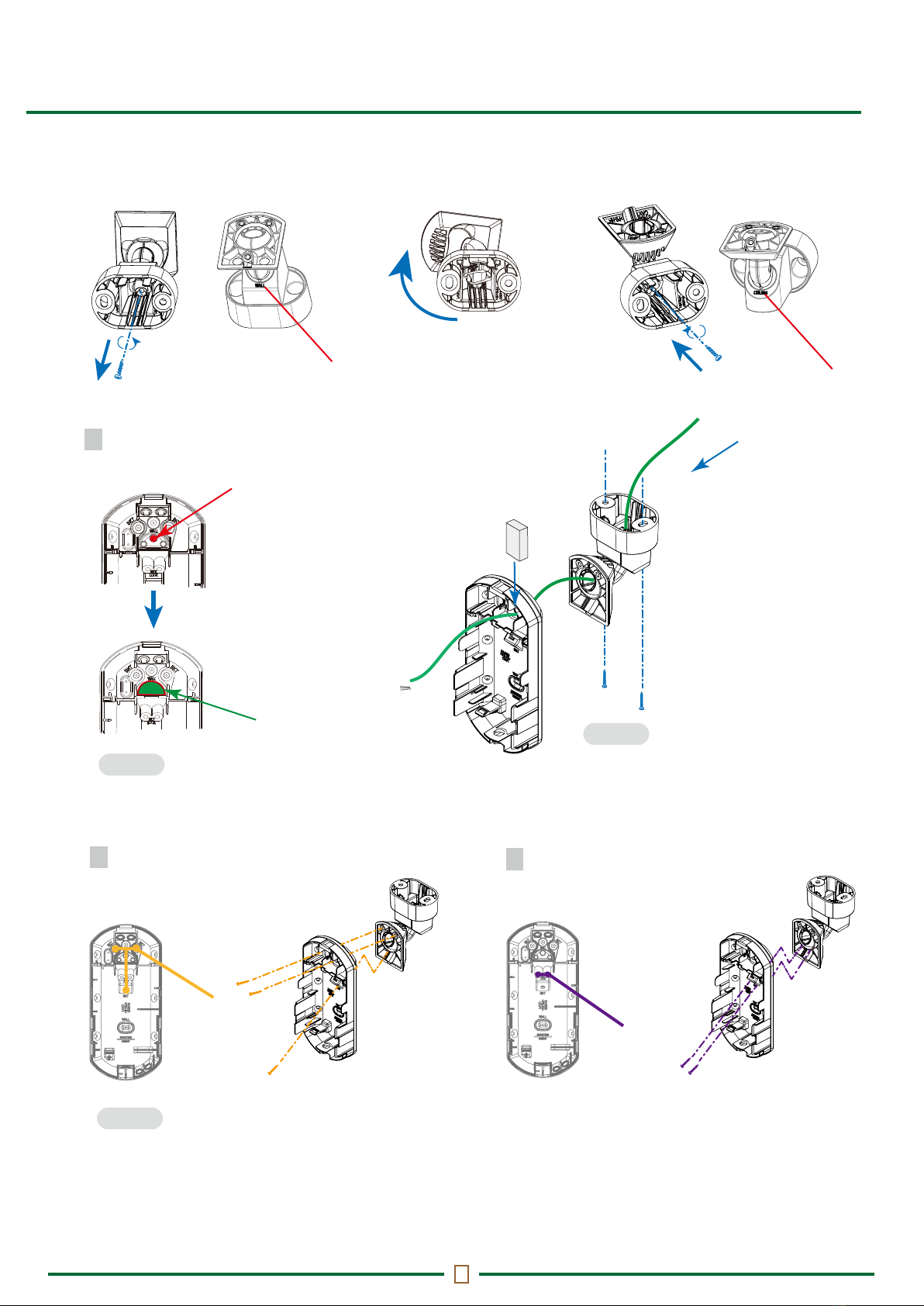

Wire and mount on the ceiling
1
NOTE
Adjust the detection direction while jointing.
Confirming with a walk test is required.
--> Refer to “3-1. Walk test”
NOTE
2Join the base on the bracket 3Fix the base with the fixing screws
(optional)
WALL
WALL
Rear side Rear side
CEILING
CEILING
Mounting screws are not included.
Φ 3 mm screws are recommended.
NOTE
See page 4 for how to break the knockouts.
Wiring knockout guide
Punch out 3 knockout guides to open
the wiring hole to allow wire run.
Wiring knockout hole
Joint screw
x 3
The bracket is basically jointed
using 3 holes and 3 joint screws.
Also use 2 additional fixing screws
if stronger support is required.
Fixing screw
x 2
+ - SP LED ALARM TAMP
N.C. N.C.
(Normally Close)
+12 V -
Power Spare Remote Alarm Tamper
LED *
* State not evaluated by UL
WIRE GAUGE
AWG 22
(0.33 mm²)
AWG 20
(0.52 mm²)
AWG 18
(0.83 mm²)
12 V DC
520 m
(1,710 ft.)
820 m
(2,690 ft.)
1,320 m
(4,330 ft.)
14 V DC
1,130 m
(3, 718 ft.)
1,790 m
(5,870 ft.)
2,850 m
(9,350 ft.)
WIRE GAUGE
AWG 22
(0.33 mm²)
AWG 20
(0.52 mm²)
AWG 18
(0.83 mm²)
12 V DC
410 m
(1,350 ft.)
650 m
(2,130 ft.)
1,030 m
(3,380 ft.)
14 V DC
890 m
(2,920 ft.)
1,400 m
(4,590 ft.)
2,240 m
(7,350 ft.)
FLX-P-ST FLX-P-DT
Power cable length
The power cable should be limited to the following length.
7
1-5. Assembe and connect
Connect wires to the terminal
Attach the main unit to the base
1
2
[2] Push the bottom of the PCB over the protruding claws.
[1] Hook the top of the PCB on the protrusions on both sides.
8
Settings
2
2-1. Wide/Narrow setting
Set the Flip lens to “Wide” or “Narrow”
How to remove the lens Get over the rib, then pull up the lens. Caution
Be careful not to damage the light path of the LED.
Also, be careful not to allow the light path to pinch the
wiring when closing the cover.
1
WIDE NARROW
Install the lens so that the letters on the cover and on the lens match your intention.
NOTE
Default
If it is difficult to get over, use a flathead screwdriver.
Caution
Be careful not to damage the lens with a screwdriver.
Go to 2-2 on to skip 2-1
when using the default “Wide” setting.
Page
9
9
2-2. Jumper pin settings
1LED
ON OFF LED
3Wide/Narrow
LENS
W N
2PIR sensitivity
PIR L M H
SENS
MW SHORT LONG
4MW sensitivity
(FLX-P-DT only)
How to install the lens
Push the lens firmly at 3 points in numerical order.
ON: LED is activated always.
OFF: LED can be controlled through the
Remote LED terminal (FLX-P-DT only).
[ Open; OFF 0 V; ON ]
1
23
Illustrations show the default position.
Default setting is “Wide” .
When “Narrow” is selected, MW detection will be disabled.
Set the jumper pin to “Wide” or “Narrow”
3Wide/Narrow
LENS
W N
2
NOTE
H: High sensitivity
M: Medium sensitivity
L: Low sensitivity
Caution
The jumper pin must be “Narrow” , when the lens is set to “Narrow” .
+ - SP LED ALARM TAMP
10
2-3. PEU settings
Align both triangle marks.
NOTE
12
PEU socket
Grade 2
Alarm Tamper
EOL
resistors
Relay & Tamper
inside the detector
Wiring to the control panel
