Optelec Compact 8
Advanced Features and Functions 1
Introduction
Congratulations on receiving your new Compact 8 from Optelec. This
handheld electronic video magnifier has a stand for table reading, or it
can be held for viewing nearby objects. Small enough to easily carry
with you, the Compact 8 is ideal for magnification on the go. A
convenient carrying case is provided to protect the unit during
transport.
Featuring a built-in 8-inch LED (light-emitting diode) screen, the
Compact 8 allows you to magnify images up to 30 times. You can
adjust the display of live images and image captures based on your
personal preferences, including magnification, brightness and color
filters, color combinations, lines and masks, and edge effects.
You can pan images while the camera is live or after you have taken a
picture. You can keep images on the Compact 8, later changing the
color mode or magnification for better viewing.
Wi-Fi can be enabled by connecting the Compact 8 to a smart
television or monitor with Miracast.
1.1 About this document
At Optelec, we are constantly improving our products and their
functionality. New versions of this document are frequently available
on the Optelec website.
These instructions will familiarize you with the features and operation
of Compact 8. The chapters are ordered from basic to advanced. In
addition, the information is provided in the order that you need to read
it. For example, you will learn that you must set up and charge your
device before powering up. Instructions are provided in an accessible
format that is easy to reference.
This document is formatted for double-sided printing on full size (8.5-
inch by 11-inch) or A4 paper with odd pages on top (right side) and
even pages on the back (left side).
Compact 8 Optelec
2 Advanced Features and Functions
1.2 What’s in the box?
The Compact 8 box includes the following:
1. Compact 8 device
2. Protective carry case
3. Lens cloth
4. AC adapter power supply
Note: Style may vary depending on country.
5. USB-C to USB-A power cable
6. Information for Use (IFU) documents—Compact 8 Setup and Use
and Compact 8 Safety and Care
1.3 Overview of the device
The front of the Compact 8 is the side with the screen. Since the
device has a touch screen, no buttons other than the Power button are
needed.
Optelec Compact 8
Advanced Features and Functions 3

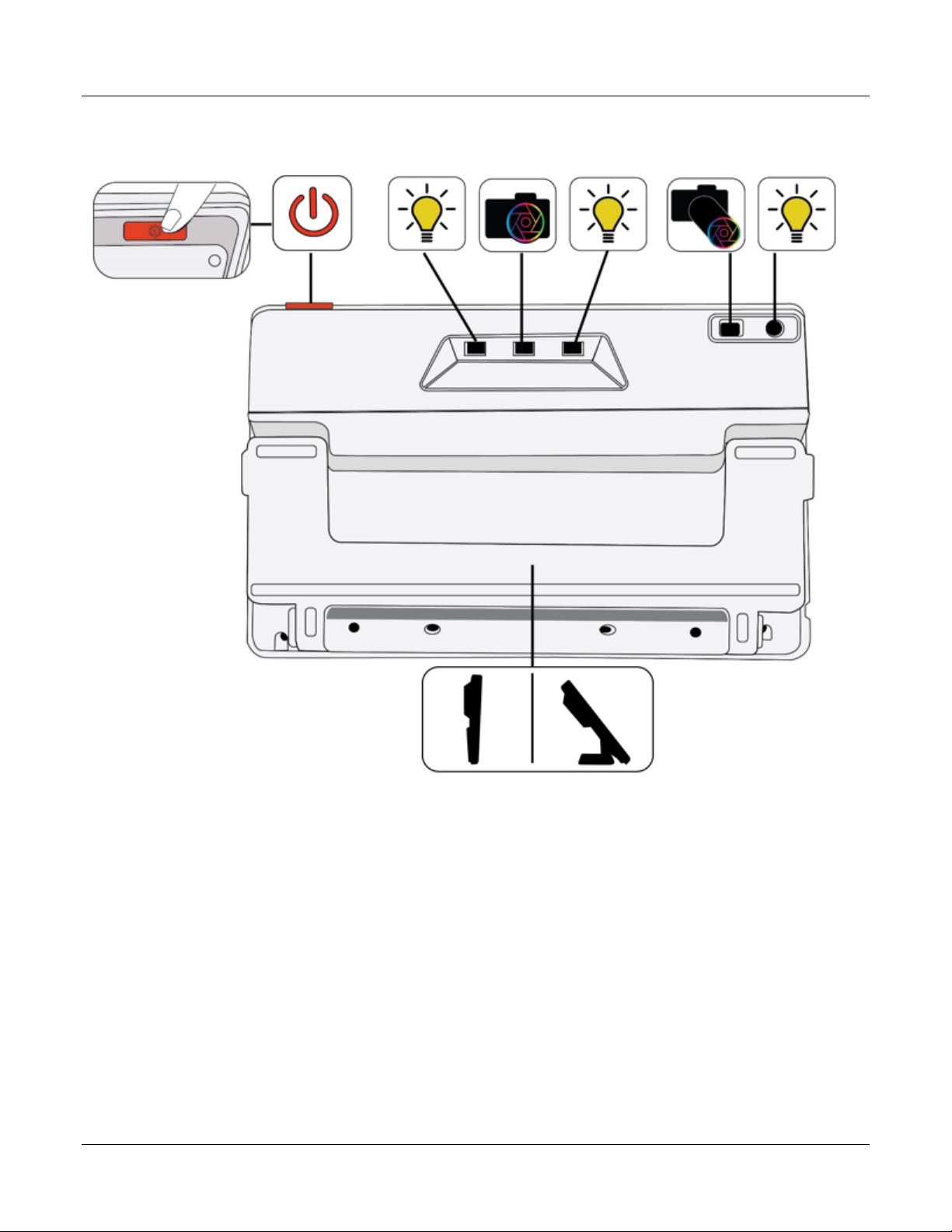

The following drawing shows the back of the Compact 8, where you
find the cameras, lights, and built-in stand. The Power button is on top.
On the back of Compact 8, the components from top to bottom, left to
right, are:
•Power on / standby / power off
•Light 1 for desktop camera
•Desktop camera
•Light 2 for desktop camera
•Distance camera
•Light for distance camera
•Built-in stand
Compact 8 Optelec
4 Advanced Features and Functions
Sound is provided when you power on Compact 8, and a camera
shutter sound occurs when you take a snapshot. A tapping sound can
be heard when activating a feature or adjusting the volume level.
Note: The audio port on the left side of the device does not currently
have functionality.
Compact 8 has no vibration (also called haptic feedback).
Open the stand
The stand must be opened to use Compact 8 to read with the desktop
camera.
To open the stand:
1. Hold up the Compact 8 on a flat surface with the display facing
you.
2. Use one hand to steady the device from the top.
3. With the other hand, use your thumb to press the blue tab on the
side of the stand while pushing out. When it is fully extended, the
stand snaps open.
Optelec Compact 8
Advanced Features and Functions 5
Close the stand
To use the Compact 8 to view objects at a short distance, the stand
must be closed to use the distance camera. For example, you need to
close the stand and hold the device to look at labels or signs.
To close the stand:
1. Hold the Compact 8 from the bottom with the display facing you.
2. Firmly hold the sides of the device with your palms while pushing
the backs of the legs toward the body until they snap closed.
Caution: When closing the stand, ensure your fingers are outside
of the recessed area on the rear of the device to reduce the risk of
your fingers getting pinched.
Compact 8 Optelec
6 Advanced Features and Functions
2 Setting Up Compact 8
Carefully unpack everything and familiarize yourself with the
components of Compact 8. Next, follow these directions to connect the
power supply and fully charge the battery before powering up.
Refer to the following drawing for an overview of the setup process.
