OPT7 Cyclone Manual de usuario
HID CONVERSION KIT
INSTALLATION GUIDE
Professional installation is recommended. ALL HID KITS ARE INSTALLED AT YOUR OWN RISK!
OPT7 and its affiliates will not be held liable for any damage or cost associated with installation or hardware. v1.0 010418
GETTING STARTED
1
- Or -
For H1,H3,H4,H7,H16 (5202) bulbs
Bulb
Please make sure all parts are included in your HID kit.
Bulb x2
Bi-Xenon Kit Relay Bundle TIPM Bundle
Ballast x2
Control Wire x1
Relay x1
Capacitors x2 TIPM Resistors x2
Relay x1
Ignitor x2
Zip Tie x2
Bolts x4
Vehicle Connection A x2
Vehicle Connection B x2
Make sure headlights and ignition are off (allow engine time to cool)
REQUIRED: Keep your original bulbs in a safe place (DO NOT DISPOSE)
Oils from skin can damage HID bulbs. Do not touch xenon bulbs with bare hands. Wear gloves and
safety glasses during installation.
Inspect each component to ensure it is undamaged. New bulbs may have a discoloration on the
bulb that makes it appear used or burnt out. This discoloration will fade after the bulb has been
activated.
When ready to install, unclip or unscrew the dust cover on the HID bulb.
Resistors and capacitors get very hot. Make sure they are not in contact with any surface other
than metal. These components can easily melt wires.
Recommended: If possible, test your HID kit before installing into headlight housing. Especially if
installing requires removal of parts.
SAFETY CHECK AND TIPS
2
1. Access and remove original bulbs (refer to your vehicle owner’s manual for vehicle specific
assistance)
1.1 If your headlight bulb is completely covered by a dust cover, you will need to make a
25mm hole in the center of the dust cover to allow the HID bulb wiring to pass through.
2. On the HID Bulb, remove the protective bulb cover by unscrewing or unclipping.
3. Feed the HID bulb through the dust cover.
4. If a 25mm hole was required, be sure to seal it with the rubber grommet included with the HID bulb.
5. Install the HID bulb into your housing, ensure it is secure just like the original bulb.
Follow the connection guide that matches the bulb type you ordered.
STEP 1 Installing HID Bulb(s)
3
Single Beam Bulbs
H1, H3, H7, H10, H11, 9005, 9006, 5202, H11b, 9012, & 880 Series
Standard Install Page 5
Install with TIPM Resistors Page 6
Install with Relay/Capacitors Page 7
Install with Relay/TIPM Resistors Page 8
Hi-Lo Bulbs (Xenon Low beam, Halogen High beam)
H4, H13, 9004, 9007
Standard Install Page 5
Install with TIPM Resistors Page 6
Install with Relay/Capacitors Page 9
Install with Relay/TIPM Resistors Page 10
Bi-Xenon Bulbs (Xenon low and high beam)
H4, H13, 9004, 9007
Standard Install Page 11
Install with TIPM Resistors Page 12
STEP 2 Connecting your Kit
4
STEP 2A Single and Hi-Lo Bulbs
H1, H3, H7, H16 (5202) uses spade connector
Bulb
B
Ballast
E
F
A
*Some bulbs may not have a plug connection.
Instead, 2 spade prongs must be inserted into the
vehicle power plug.
E. Vehicle Connection B
F. Rubber Grommet
G. OEM Headlight Plug
A. Xenon Bulb
B. Ignitor
C. HID Ballast
D. Vehicle Connection A
Legend
D
C
5
G
STEP 2B
H1, H3, H7, 5202 uses spade connector
Bulb
A
Ballast
H
*Some bulbs may not have a plug connection.
Instead, 2 spade prongs must be inserted into the
vehicle power plug.
E. TIPM Resistor
F. Vehicle Connection B
G. OEM Headlight Plug
H. Rubber Grommet
A. Xenon Bulb
B. Ignitor
C. HID Ballast
D. Vehicle Connection A
Legend
G
B
D
F
C
E
Single Beam or Hi-Lo Bulbs with TIPM Resistors
Single Beam HID Installation Diagram and Instructions with Relay
STEP 2C Single Beam Bulbs with Relay or Capacitors
7
Ballast
1.
4.
2.
3.
1. HID Ballast Power Polarity Connection
2. HID Capacitor
3. HID Ballast
4. HID Bulb-Ballast Connection
(May be directly attached to ballast)
Capacitor Connection
(Optional)
Ballast
Bulb
Ballast
Fuse
To battery (+)
Bulb
e
Relay
f
e
F
G
D
bd
c
A
HID Kit
A. Xenon Bulb
B. Ignitor
C. HID Ballast
D. Vehicle Connection A
E. Vehicle Connection B
F. Rubber Grommet
G. Original Vehicle Headlight
Power Source
C
F
C
B B
A
EG
a
D
Secure and leave unplugged
E
Relay
a. Relay Bracket
b. Positive Line (Connect to Battery)
c. Negative Line (Connect to Chassis)
d. Relay Fuse
e. HID Relay-Ballast Power Polarity Connection
f. Vehicle Connection
STEP 2D
8
Single Beam Bulbs w/Relay and TIPM Resistors
Ballast
Bulb
Ballast
Fuse
b d
Bulb
c
Relay
f
e
e
A
HID Kit
A. Xenon Bulb
B. Ignitor
C. HID Ballast
D. Vehicle Connection A
E. TIPM Resistor
F. Vehicle Connection B
G. Original Vehicle Headlight
Power Source
H. Rubber Grommet
C
E E
H
G
C
B B
A
H
FG
D D
a
To battery (+)
Secure and leave unplugged
F
Relay
a. Relay Bracket
b. Positive Line (Connect to Battery)
c. Negative Line (Connect to Chassis)
d. Relay Fuse
e. HID Relay-Ballast Power Polarity Connection
f. Vehicle Connection

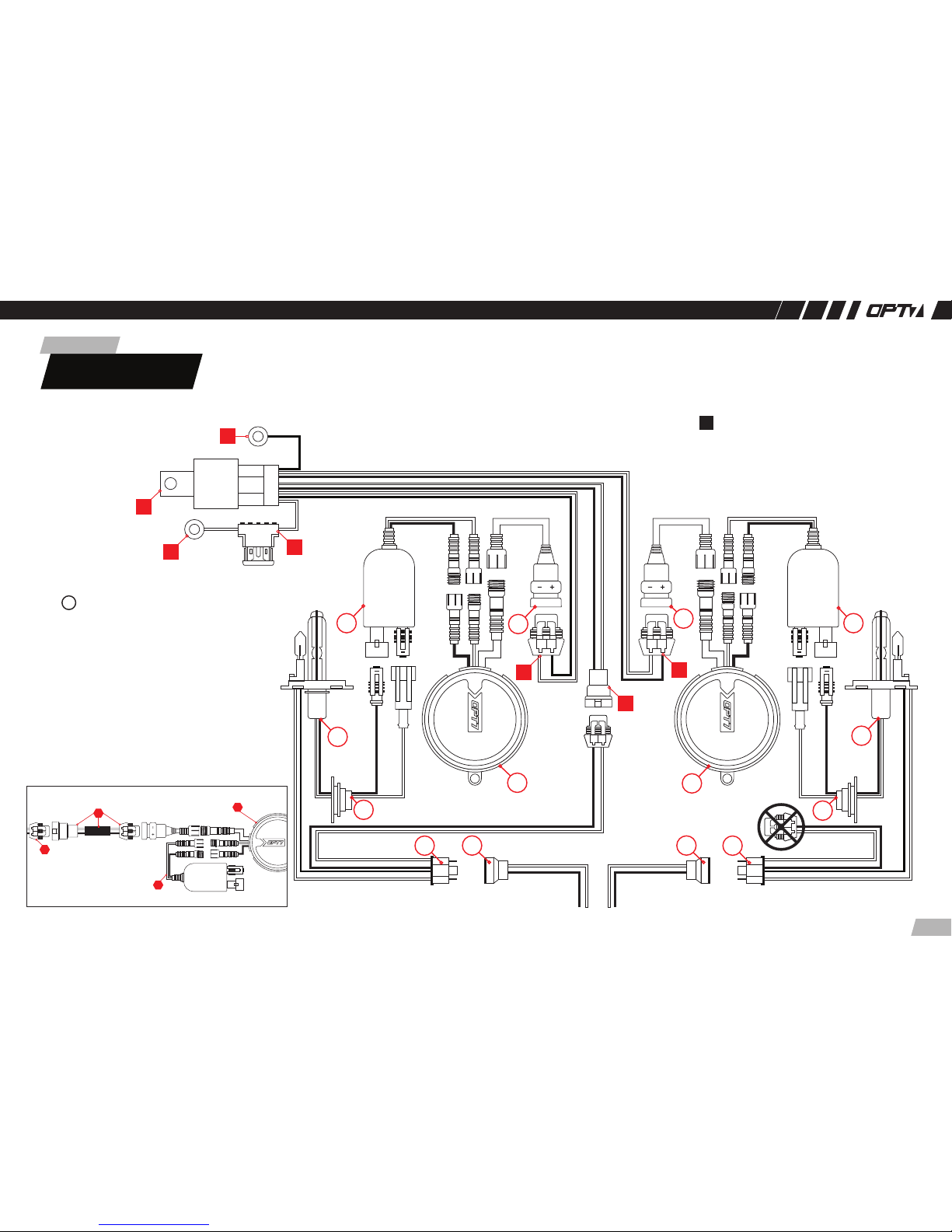

STEP 2E Hi-Lo bulbs with Relay or Capacitors
9
Ballast
1.
4.
2.
3.
1. HID Ballast Power Polarity Connection
2. HID Capacitor
3. HID Ballast
4. HID Bulb-Ballast Connection
(May be directly attached to ballast)
Capacitor Connection
(Optional)
BallastBallast
Fuse
To battery (+)
Relay
Bulb Bulb
e
f
e
F
G
D
bd
c
A
HID Kit
A. Xenon Bulb
B. Ignitor
C. HID Ballast
D. Vehicle Connection A
E. Vehicle Connection B
F. Rubber Grommet
G. Original Vehicle Headlight
Power Source
C
F
C
B B
A
EG
a
D
E
Relay
a. Relay Bracket
b. Positive Line (Connect to Battery)
c. Negative Line (Connect to Chassis)
d. Relay Fuse
e. HID Relay-Ballast Power Polarity Connection
f. Vehicle Connection
