One Forall Zapper URC-6512 Manual de usuario
R
Universal remote
E
F
D
I
NL
P
UK
URC-6512
701594
WWW.ONEFORALL.COM 2

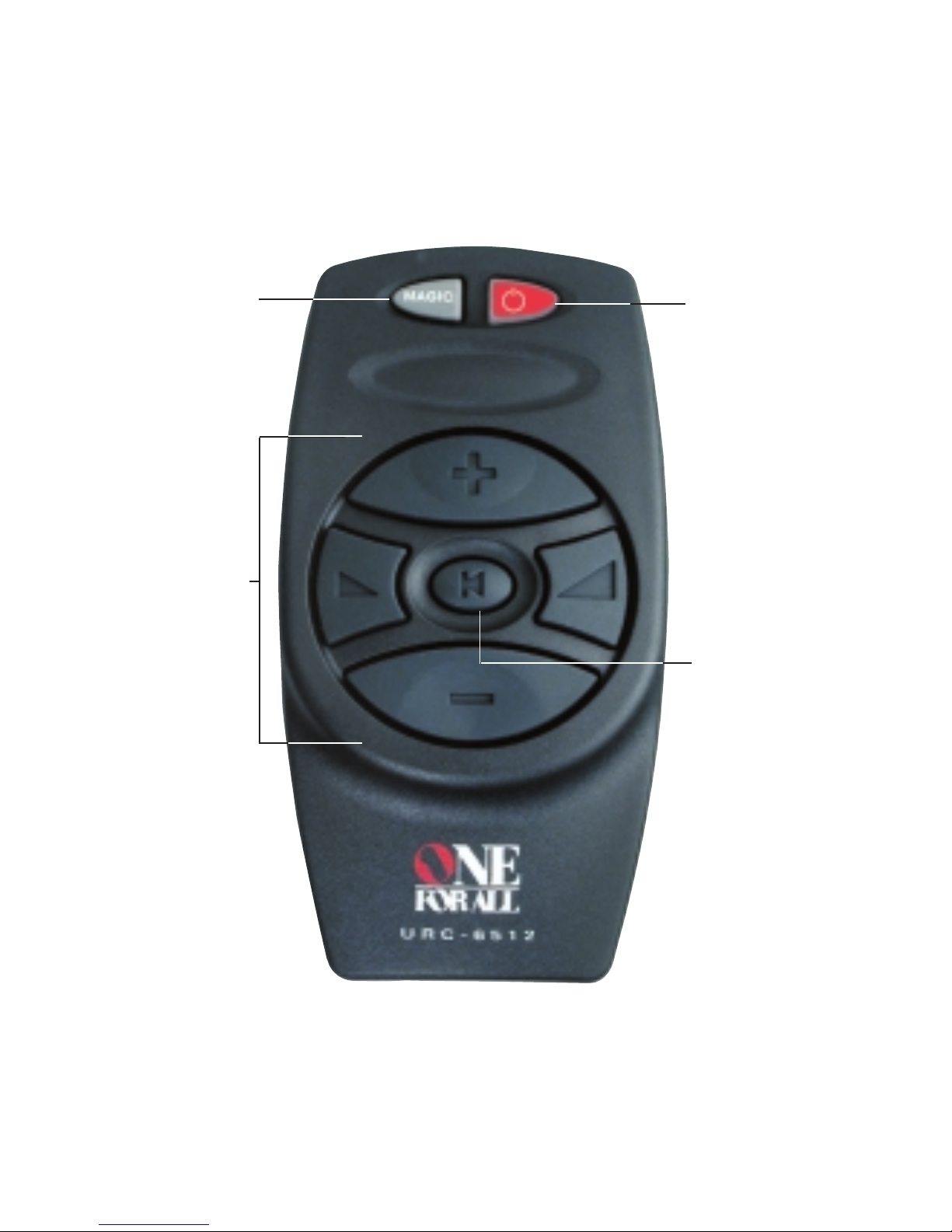

PICTURE OF THE ZAPPER REMOTE
3
INSTALLING THE BATTERIES
4
FEATURES AND FUNCTIONS
4
SETTING UP THE ZAPPER
Direct Set-Up 5
Search Method 7
Code Blink Out 8
SET-UP CODES
Television 59
ADVANCED OPERATION
Controlling Colour & Brightness 9
Scan 9
TROUBLE-SHOOTING
Helpful Hints 10
Thank you for purchasing the ZAPPER universal remote control
(URC-6512). Your ZAPPER package contains:
• The ZAPPER remote control
• The ZAPPER User Guide & Code Book
The User Guide & Code Book explains in simple steps how to set up and
operate your new universal remote control. You may need this guide
again in the future, so please be sure to keep it.
Your ZAPPER needs 2 new “AAA/LRO3” batteries.
Your ZAPPER is designed to let you use one remote to operate your
Television.
About Your ZAPPER
Table of Contents
UK
WWW.ONEFORALL.COM 3
4
12
3
WWW.ONEFORALL.COM 4
Installing The Batteries
The ZAPPER needs 2 new “AAA/LRO3” alkaline batteries.
1Remove the battery cover from the back of the ZAPPER by pres-
sing down on the tab.
2Match the batteries to the +/- marks inside the battery case, then
insert the batteries.
3Press the battery cover back into place.
See picture of the ZAPPER remote on page 3.
1MAGIC
The MAGIC key is used to set up your ZAPPER and to access special
features.
2Power
The POWER key operates the same function it did on your
orginal remote control. The LED (Light Emitting Diode) flashes red
to show the remote is working.
3Mute
The Mute key operates the same function it did on your orginal
remote control. It is also used to activate the Scan feature (see
page 9).
4Volume +/-, Programme +/-
The Volume and Programme keys operate just as those on your
original remote control. These keys are also used to program the
ZAPPER for your devices and to control the Colour and Brightness
settings of your television (see page 9).
Important notes:
- In order to avoid having to reprogram your ZAPPER after you remove
the batteries, you will need to insert new batteries within 5 minutes.
Also, it is best that you do not use rechargeable batteries.
- On the inside of the battery compartment door you will find a
label on which to write your set-up code after your ZAPPER is set
up for your television. Please write down your code for easy,
future reference.
Features and Functions
WWW.ONEFORALL.COM 5
Direct Set-Up
To set up the ZAPPER for your Television follow the instructions below. To
set up your Television:
1Find your Television code in the Set-Up Code section
(page 59-68). Codes are listed by brand name. The
most popular codes are listed first.
2Press and hold the MAGIC key until the POWER key
(LED) blinks twice (the POWER key (LED) will blink
once then twice).
3 Enter your 5-digit code according to the chart
below. The POWER key (LED) will blink twice.
4Now, aim the ZAPPER at your Television and press
POWER. If your Television switches off, your ZAPPER
should be ready to operate your device.
5Turn your device back on and try all the remote’s functions
to ensure they are working properly. If the functions do not
work properly, repeat steps 1-5 using another code listed
under your brand.
6 Write the codes for your TV in the boxes provided
on page 6 and inside the battery compartment for
easy future reference.
Setting Up The ZAPPER
ONE FOR ALL
Acura
Admiral
Adyson
Agazi
AGB
Aiko
11132
122241224223313
14232
21131
31121
142311113211322
224141131412131
2233213444
Volume + = 1
Volume
-
=2
Programme + = 3
Programme
-
=4
6WWW.ONEFORALL.COM
TV Code
Example: To enter the Sony TV code 24432, you would press Volume(-),
Programme(-), Programme(-), Programme(+), Volume(-).
If your television does not respond to the ZAPPER after you have tried all
the codes listed for your brand, try the Search Method described
on page 7.
Make sure you write your correct 5 digit code in the boxes provi-
ded inside the battery compartment and in the boxes provided on
this page.
Important notes:
- Some codes are quite similar. If your television does not respond or is not
functioning properly with one of the codes, follow steps 1-5 with each
code listed for your brand.
- If none of the codes listed for your brand operate your television, follow
the Search Method described in the next section. The Search Method can
be used even if your brand is not listed at all.
- Write the code for your TV in the boxes provided below and
inside the battery compartment for easy future reference.
■■ ■■ ■■ ■■ ■■
Volume + = 1
Volume
-
= 2
Programme
-
= 4
Programme + = 3
WWW.ONEFORALL.COM 7
Search Method
If your Television does not respond to the ZAPPER after trying all the codes
listed for your brand, try searching for your code. To search for your TV code:
1Turn on your TV and aim your ONE FOR ALL at your
television.
2Press and hold the MAGIC key until the POWER key
(LED) blinks twice (the POWER key (LED) will blink once
then twice).
3Next, press the Programme(-) key three times.
4Next, alternate between Programme(-) and POWER until
your Television turns off. You may have to press these keys
many times, so be patient. Remember, you must aim the
ZAPPER at your device the entire time you are searching
for your code.
5When your device turns off, press and release MAGIC.
Don’t forget, press MAGIC as soon as your device turns off.
The ZAPPER should now be ready to operate your Television. Turn your
device back on and try all the remote’s functions to ensure they are
working properly. If some of the ZAPPER’S commands are not operating
correctly, try the search method again, you may be using the wrong code.
Important notes: During step 4, you may have to press these keys many
times (up to 150!), so be patient. Remember, you must aim the ZAPPER at
your device the entire time you are searching for your code.
8WWW.ONEFORALL.COM
Code Blink Out
After you have used the Search Method, you can find out which code
the ZAPPER responded to by blinking back the code. It’s handy to know
your Television code for future reference. Remember, you can only
blink back your code after the ZAPPER is operating your device.
To blink out your TV code:
1Press and hold the MAGIC key until the POWER key
(LED) blinks twice (the POWER key (LED) will blink once
then twice).
2Next, press Programme(-), Programme(-),
Programme(+).
3For the first digit of your 5-digit code, press Volume + ( )
and count the red blinks.
4For the second digit, press Volume - ( ) and count the
red blinks.
5For the third digit, press Programme(+) and count the
red blinks.
6For the fourth digit, press Programme(-) and count the
red blinks.
7For the fifth digit, press MUTE and count the red blinks.
Write the codes for your TV in the boxes provided on page 6 and inside the
battery compartment for easy future reference.
WWW.ONEFORALL.COM 9
Controlling Colour & Brightness
Depending on the functions of your original remote control, the ZAPPER
can operate the colour and brightness settings of your Television.
Scan
Your ZAPPER comes with a special Scan function which lets you “scan”
through every programme available on your TV.
To scan the programmes on your TV:
1Aim the ZAPPER at your TV. Press and release MAGIC
then press the MUTE key.
The ZAPPER will send the command to advance
through all the programmes available on your
Television stopping at each programme for about three
seconds. Remember, you must aim the ZAPPER at your
device the entire time you are using scan.
2When you find a programme you would like to watch,
simply press any key to stop the Scan feature.
Advanced Operation
then holdPressColour up =
then holdPressColour down =
then holdPressBrightness up =
then holdPressBrightness down =
Note: You have 5 seconds to press the Volume or Channel keys for colour or
brightness adjustment after pressing MAGIC.
Important notes: Scan may not function with a television that did not have
a programme +/- key on the original remote.
10 WWW.ONEFORALL.COM
Trouble-Shooting
Helpful Hints
Solution:
Try the search method.
A) Try all the codes listed for your
brand.
B) Try the search method.
You may be using the wrong code.
Try Direct Set-Up again trying each
code listed under your brand or
start the search method over again
to locate the proper code.
Press MAGIC until the light blinks
twice.
Then press:
(Programme-)
(Programme+)
(Programme-)
If your original remote did not
have channel +/- keys, the ZAPPER
may not operate this function.
Make sure you are using new
batteries and are aiming the ONE
FOR ALL at your device.
Replace batteries with 2 new
“AAA/LR03” alkaline batteries
Problem:
Your brand is not listed in
the ONE FOR ALL code section?
The ONE FOR ALL does not
operate your television?
The ONE FOR ALL is not
performing commands
properly?
Your TV switches to
programme 1 when you
press the power key before
switching off OR you must
press Power twice to switch
on your TV?
You cannot reach channel 10
and above on your TV.
The ONE FOR ALL does not
respond after pressing a
key?
POWER key (LED) does not
blink when you press a key?
