Copying Parameters Between E5CC Temperature Controllers
Quick Start Guide
Version 1.0
September 2015
Page 2of 37
Copying Parameters between E5CC Temperature Controllers
Table of Contents
Purpose ......................................................................................................................................................... 3
Communications Specifications .................................................................................................................... 3
Component to Component ........................................................................................................................... 3
Wiring........................................................................................................................................................ 4
Parameter Setup ....................................................................................................................................... 5
Slave Setup............................................................................................................................................ 5
Master Setup......................................................................................................................................... 6
Component to Component Using CX-Thermo .............................................................................................. 8
Wiring........................................................................................................................................................ 8
E5CC Controller Settings ........................................................................................................................... 9
K3SC DIP Switch Settings.........................................................................................................................10
USB to RS-232C Cable (CS1W-CIF31) Settings ........................................................................................11
Using CX-Thermo ..................................................................................................................................122
Copying Parameters with the Master Device Online........................................................................122
Copying Parameters with the Master and Slave Devices Online......................................................221
Copying Parameters Starting Offline ..................................................................................................31
Page 3of 37
Purpose
Copying parameters between temperature controllers allows quicker change out and setup of multiple controllers. This
can be done with component to component communications or using CX-Thermo in conjunction with other components
such as an interface unit.
This document will show how to copy parameters for the E5CC. This can also be done with other model numbers within
the E5_C family, but some of the information might differ slightly, such as the wiring.
Communications Specifications
Figure 1: Communications Specifications
Component to Component
Both of the units must have communication capabilities, which is the 003 or 004 option selection for E5CC models. Keep
in mind that copy function is only possible between the same model number and the same version of the temperature
controller.
Page 4of 37
Wiring
Wire the controllers as follows for RS-485 communication.
Figure 2: Communications Wiring
Also wire additional inputs and outputs as needed for the application.
Page 5of 37
Parameter Setup
Below is an overview of the communication parameters.
Figure 3: Overview of Communications Programming
Slave Setup
(1) Press the key for at least three seconds to move from the “operation level” to the
“initial setting level.”
(2) Press the key for less than one second to move from the “initial setting level” to
the “communications setting level.”
(3) Scroll through the parameters as shown below by pressing the key. Use the up/down arrow keys to
adjust the value of the parameter.
Page 6of 37
(4) Set to 1.
(5) Press the key for less than one second to move from the “communications setting level” to the
“initial setting level.”
(6) Press the key for at least three seconds to move from the “initial setting level” to the
“operation level.”
Master Setup
Now we will adjust the parameters on the master unit.
(1) Press the key for at least three seconds to move from the "operation level" to the
"initial setting level."
(2) Press the key for less than one second to move from the "initial setting level" to
the "communications setting level."
(3) Select the parameters as shown below by pressing the key. Use the up/down arrow keys to adjust
the parameters.
(4) Only change the following parameters.
a. Set to Fins.
b. Set to 57.6.
c. Set to 0.
d. Set to 1.
e. Set to 2.
Note 1: MAXU should be set to the number of slaves in the system. For one slave, the value would be set to two.
(5) At the copy parameter, press the up arrow key for the unit to copy ALL parameters.
Note: This will copy the parameters to all of the slave units. To copy the parameters only to certain units, select
the number of the slave unit to receive the copied parameters (e.g., 1 for slave unit number 1, 4 for slave unit
number 4).
Page 7of 37

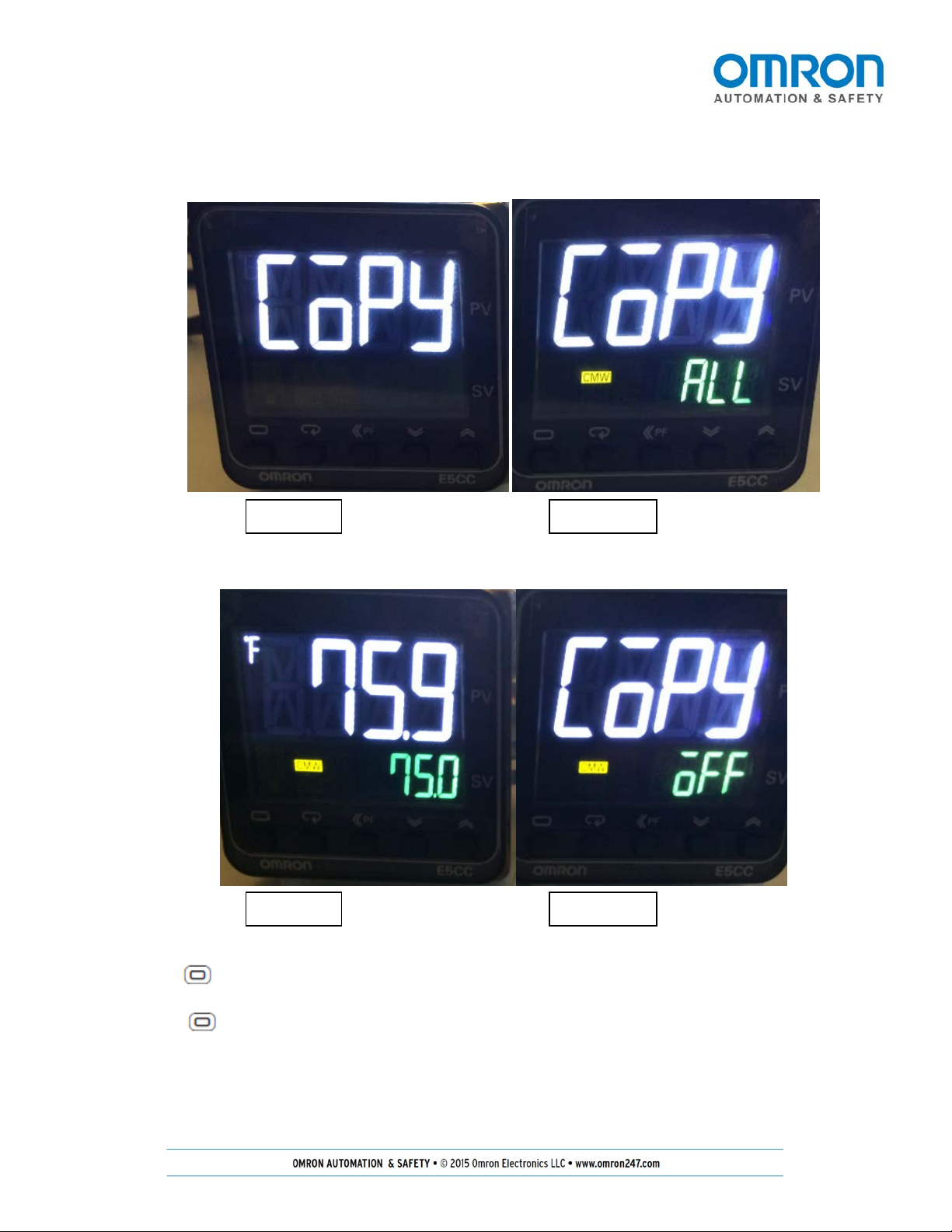

During the copying process below is what appears on the controllers. Once the copy process is started, it is not
possible to stop the copying operation.
After the copy is complete, this is what is shown on both units.
(6) Press the key for less than one second to move from the "communications setting level" to the
"initial setting level."
(7) Press the key for at least three seconds to move from the "initial setting level" to the
"operation level."
Master Unit
Slave Unit
Master Unit
Slave Unit
Page 8of 37
Component to Component Using CX-Thermo
Both of the units must have communication capabilities, which is the 003 or 004 option for E5CC models. Keep in mind
that copy function is only possible between the same model number and the same version of the temperature
controller. Additional products that were used include the following:
•K3SC interface converter,
•CS1W-CIF31 interface unit between USB serial communication and RS-232C,
•D-SUB 9 pin connector (needs a female connection), multi-conductor cable, or K32-23209 pre-made cable,
•CX-Thermo, and
•S8VK-G power supply.
Wiring
Below displays the wiring from the D-SUB 9 pin connector to the K3SC.
Figure 4: K3SC and 9 Pin Connector Connections
Page 9of 37
Shown is the wiring from the K3SC (displayed as Host RS-485) to the E5CC temperature controllers.
Figure 5: E5CC to K3SC Wiring
E5CC Controller Settings
Below are the default settings on the controller.
Figure 6: Default Communications Settings
Each controller needs a unique communications number. Start with unit number 1.
The remaining settings should be default.
Page 10 of 37
K3SC DIP Switch Settings
Set the K3SC DIP switches to match the settings on the E5CC temperature controllers.
Figure 7: K3SC DIP Switch Settings
DIP switches 0-8 should be set to off. If the default baud rate, data length, stop bits, and parity were used, then all of the
DIP switches would be set to off.
