Knob-type Selector Switch A22S/W G-115

Pushbutton

Switches

Knob-type Selector Switch

A22S/W

Install in 22-dia. or 25-dia. Panel Cutout

• Easy mounting and removal of Switch Unit.

• Increase wiring efficiency with three-row mounting of Switch

Blocks.

• Finger protection mechanism on Switch Unit provided as a stan-

dard feature.

• Use 25-dia. ring to install in 25-dia. panel cutouts.

• Mounted using either open-type (fork-type) or closed-type

(round-type) crimp terminals.

• IP65 oil resistance (non-lighted models)

IP65 (lighted models)

• EN60947-5-1

• UL and cUL approved (File No. E41515).

Model Number Structure

■Model Number Legend

Completely Assembled

Shipped as a set which includes the Selector, Lamp (lighted models only), and Switch.

1 2 3 4 5

6D 6 VDC

6A 6 VAC

12A 12 VAC/VDC

24A 24 VAC/VDC

5 5 VAC/VDC

12 12 VAC/VDC

24 24 VAC/VDC

A22@-@@-@-@

1 Lighted/Non-lighted

Code Description

Non-lighted

Lighted

2 Number of Notches/Reset Method

Code Description

2 notches/Manual

2 notches/Automatic

3 notches/Manual

3 notches/Automatic

3 Illumination Color

Code Description

None Black (for non-lighted models only)

Red

Green

Yellow

Blue

4 Light Source

Code Operating Voltage

None Non-lighted

LED

Without Voltage Reduction Unit

5 Contacts

Code Description

SPST-NO (See note 1.)

SPST-NC (See note 1.)

SPST-NO + SPST-NC

DPST-NO

DPST-NC

With Voltage Reduction Unit

None Non-lighted

LED 110 VAC (See note 2.)

220 VAC (See note 3.)

Incandescent

lamp 2. Operational voltage: 95 to 115 VAC

3. Operational voltage: 190 to 230 VAC

Note: 1. The LED lamp (24 VAC/VDC) can be

lit by directly applying 110 VAC/VDC

(220 VAC/VDC) to the lamp terminal.

LED incorporates the 24-VAC/VDC

models.

Note: 1. For models with 2 notches

2. The contacts are rated for stand-

ard loads. For microloads, refer to

Accessories section for the A22.

G-116 Knob-type Selector Switch A22S/W

Subassembled

The Selector, Lamp, or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units. These

can also be used as inventory for maintenance parts.

1. Selector

2. Lamp

3. Switch (General-purpose Load)

1 2 3

A22@-@@

1 Lighted/Non-lighted

Code Description

Non-lighted

Lighted

2 Number of Notches/Reset Method

Code Description

2 notches/Manual

2 notches/Automatic

3 notches/Manual

3 notches/Automatic

3 Illumination Color

Code Description

None Black (for non-lighted models only)

Red

Green

Yellow

Blue

1 2

5 5 VAC (6 VAC)

12 12 VAC (14 VAC)

24 24 VAC (28 VAC)

H1 100 VAC (130 VAC)

6D 6 VDC (6 VDC)

6A 6 VAC (6 VAC)

12A 12 VAC/VDC (12 VAC/VDC)

24A 24 VAC/VDC (24 VAC/VDC)

A22-@@

2 Illumination Color

Code Description

None Incandescent lamp

Red

Green

Yellow

Blue

1 Operating Voltage (Rated Voltage)

Code Description

LED lamp

Incandescent lamp

1 2 3

A22@-@M-@

1 Lighted/Non-lighted

Code Description

None Non-lighted

Lighted

2 Contacts

Code Description

SPST-NO (2-notch only)

SPST-NC (2-notch only)

SPST-NO + SPST-NC

DPST-NO

DPST-NC

3 Voltage Reduction Unit (Lighted Models Only)

Code Description

None Without Voltage Reduction Unit

110 VAC (See note 1)

220 VAC (See note 2)

Note: 1. Operational voltage: 95 to 115 VAC

2. Operational voltage: 190 to 230 VAC

Knob-type Selector Switch A22S/W G-117

Pushbutton

Switches

Ordering Information

■List of Models

Ordering as a Set

Non-lighted

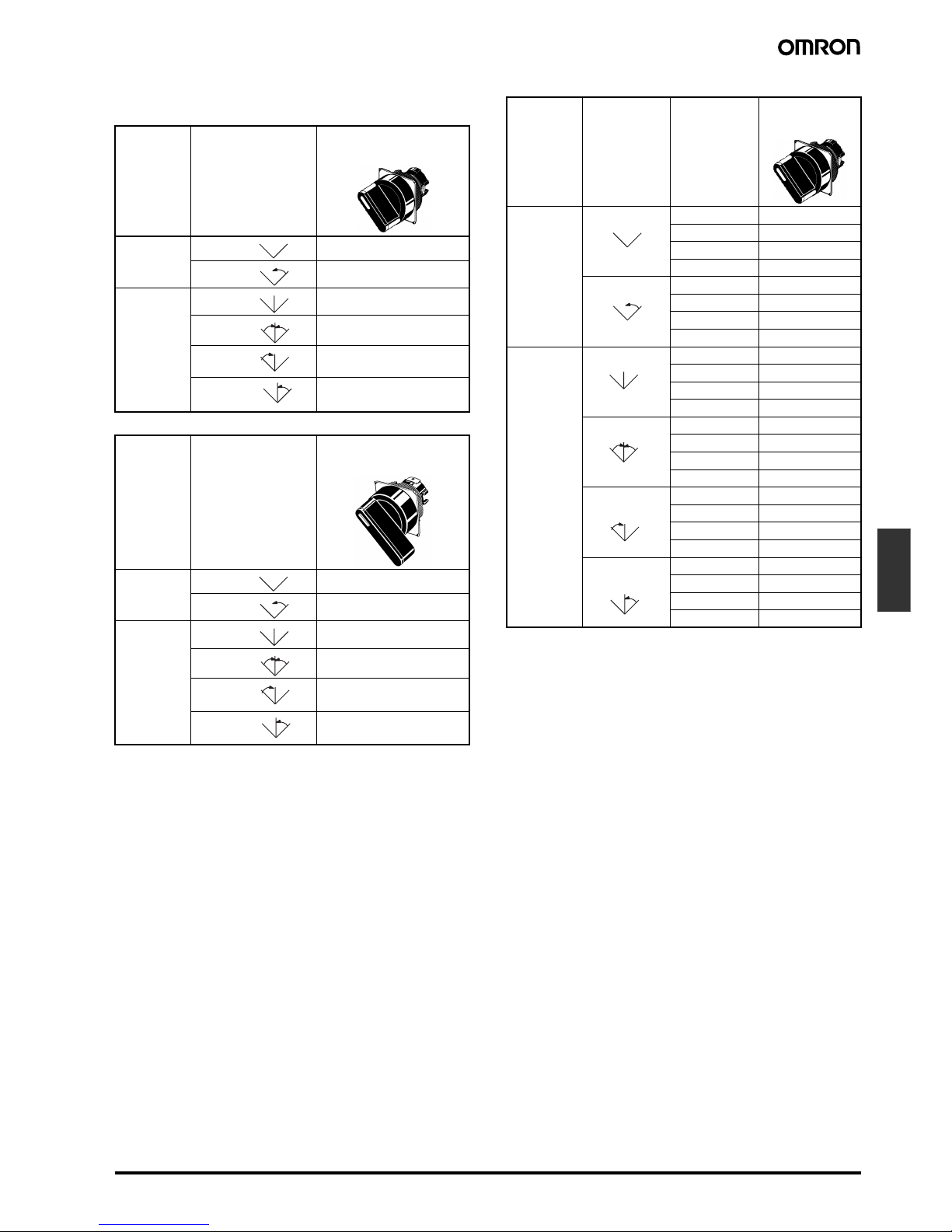

Appearance Number of

notches Resetting method Output Model Color of Selector

2 notches SPST-NO A22S-2M-10 Black

SPST-NC A22S-2M-01

SPST-NO + SPST-NC A22S-2M-11

DPST-NO A22S-2M-20

DPST-NC A22S-2M-02

SPST-NO A22S-2A-10

SPST-NC A22S-2A-01

SPST-NO + SPST-NC A22S-2A-11

DPST-NO A22S-2A-20

DPST-NC A22S-2A-02

3 notches SPST-NO + SPST-NC A22S-3M-11

DPST-NO A22S-3M-20

DPST-NC A22S-3M-02

SPST-NO + SPST-NC A22S-3A-11

DPST-NO A22S-3A-20

DPST-NC A22S-3A-02

Knob-type Selector Switch

A22S

Manual

Automatic

Manual

Automatic

G-118 Knob-type Selector Switch A22S/W

Lighted (Without Voltage Reduction Unit)

Appearance Number of

notches Resetting

method Output Operating

voltage Model Illumination

color

2 notches SPST-NO 6 VDC A22W-2M@-6D-10 Insert one of the

following letters

into the box @.

R (red)

Y (yellow)

G (green)

A (blue)

6 VAC A22W-2M@-6A-10

12 VAC/VDC A22W-2M@-12A-10

24 VAC/VDC A22W-2M@-24A-10

SPST-NC 6 VDC A22W-2M@-6D-01

6 VAC A22W-2M@-6A-01

12 VAC/VDC A22W-2M@-12A-01

24 VAC/VDC A22W-2M@-24A-01

SPST-NO +

SPST-NC

6 VDC A22W-2M@-6D-11

6 VAC A22W-2M@-6A-11

12 VAC/VDC A22W-2M@-12A-11

24 VAC/VDC A22W-2M@-24A-11

DPST-NO 6 VDC A22W-2M@-6D-20

6 VAC A22W-2M@-6A-20

12 VAC/VDC A22W-2M@-12A-20

24 VAC/VDC A22W-2M@-24A-20

DPST-NC 6 VDC A22W-2M@-6D-02

6 VAC A22W-2M@-6A-02

12 VAC/VDC A22W-2M@-12A-02

24 VAC/VDC A22W-2M@-24A-02

SPST-NO 6 VDC A22W-2A@-6D-10

6 VAC A22W-2A@-6A-10

12 VAC/VDC A22W-2A@-12A-10

24 VAC/VDC A22W-2A@-24A-10

SPST-NC 6 VDC A22W-2A@-6D-01

6 VAC A22W-2A@-6A-01

12 VAC/VDC A22W-2A@-12A-01

24 VAC/VDC A22W-2A@-24A-01

SPST-NO +

SPST-NC

6 VDC A22W-2A@-6D-11

6 VAC A22W-2A@-6A-11

12 VAC/VDC A22W-2A@-12A-11

24 VAC/VDC A22W-2A@-24A-11

DPST-NO 6 VDC A22W-2A@-6D-20

6 VAC A22W-2A@-6A-20

12 VAC/VDC A22W-2A@-12A-20

24 VAC/VDC A22W-2A@-24A-20

DPST-NC 6 VDC A22W-2A@-6D-02

6 VAC A22W-2A@-6A-02

12 VAC/VDC A22W-2A@-12A-02

24 VAC/VDC A22W-2A@-24A-02

3 notches SPST-NO +

SPST-NC

6 VDC A22W-3M@-6D-11

6 VAC A22W-3M@-6A-11

12 VAC/VDC A22W-3M@-12A-11

24 VAC/VDC A22W-3M@-24A-11

DPST-NO 6 VDC A22W-3M@-6D-20

6 VAC A22W-3M@-6A-20

12 VAC/VDC A22W-3M@-12A-20

24 VAC/VDC A22W-3M@-24A-20

DPST-NC 6 VDC A22W-3M@-6D-02

6 VAC A22W-3M@-6A-02

12 VAC/VDC A22W-3M@-12A-02

24 VAC/VDC A22W-3M@-24A-02

Knob-type Selector Switch

A22W

LED lighting

(without Voltage Reduction

Unit)

Manual

Automatic

Manual

Knob-type Selector Switch A22S/W G-119

Pushbutton

Switches

Lighted (With Voltage Reduction Unit)

Note: When ordering, specify the symbol that indicates color of the Selector in the @of the model number.

3 notches SPST-NO +

SPST-NC

6 VDC A22W-3A@-6D-11 Insert one of the

following letters

into the box @.

R (red)

Y (yellow)

G (green)

A (blue)

6 VAC A22W-3A@-6A-11

12 VAC/VDC A22W-3A@-12A-11

24 VAC/VDC A22W-3A@-24A-11

DPST-NO 6 VDC A22W-3A@-6D-20

6 VAC A22W-3A@-6A-20

12 VAC/VDC A22W-3A@-12A-20

24 VAC/VDC A22W-3A@-24A-20

DPST-NC 6 VDC A22W-3A@-6D-02

6 VAC A22W-3A@-6A-02

12 VAC/VDC A22W-3A@-12A-02

24 VAC/VDC A22W-3A@-24A-02

Appearance Number of

notches Resetting

method Output Operating

voltage Model Illumination

color

Knob-type Selector Switch

A22W

LED lighting

(without Voltage Reduction

Unit)

Automatic

Appearance Number of

notches Resetting

method Output Operating

voltage Model Selector

symbol (color)

2 notches SPST-NO 110 VAC A22W-2M@-T1-10 Insert one of the

following letters

into the box @.

R (red)

Y (yellow)

G (green)

A (blue)

220 VAC A22W-2M@-T2-10

SPST-NC 110 VAC A22W-2M@-T1-01

220 VAC A22W-2M@-T2-01

SPST-NO +

SPST-NC

110 VAC A22W-2M@-T1-11

220 VAC A22W-2M@-T2-11

DPST-NO 110 VAC A22W-2M@-T1-20

220 VAC A22W-2M@-T2-20

DPST-NC 110 VAC A22W-2M@-T1-02

220 VAC A22W-2M@-T2-02

SPST-NO 110 VAC A22W-2A@-T1-10

220 VAC A22W-2A@-T2-10

SPST-NC 110 VAC A22W-2A@-T1-01

220 VAC A22W-2A@-T2-01

SPST-NO +

SPST-NC

110 VAC A22W-2A@-T1-11

220 VAC A22W-2A@-T2-11

DPST-NO 110 VAC A22W-2A@-T1-20

220 VAC A22W-2A@-T2-20

DPST-NC 110 VAC A22W-2A@-T1-02

220 VAC A22W-2A@-T2-02

3 notches SPST-NO +

SPST-NC

110 VAC A22W-3M@-T1-11

220 VAC A22W-3M@-T2-11

DPST-NO 110 VAC A22W-3M@-T1-20

220 VAC A22W-3M@-T2-20

DPST-NC 110 VAC A22W-3M@-T1-02

220 VAC A22W-3M@-T2-02

SPST-NO +

SPST-NC

110 VAC A22W-3A@-T1-11

220 VAC A22W-3A@-T2-11

DPST-NO 110 VAC A22W-3A@-T1-20

220 VAC A22W-3A@-T2-20

DPST-NC 110 VAC A22W-3A@-T1-02

220 VAC A22W-3A@-T2-02

Knob-type Selector Switch

A22W

LED voltage-reduction

lighting

(with Voltage Reduction

Unit)

Manual

Automatic

Manual

Automatic

G-120 Knob-type Selector Switch A22S/W

Ordering Individually

Non-lighted Models

Lighted Models (without

Voltage Reduction Unit)

Selector Selector Selector

Switch Switch (without Voltage

Reduction Unit)

Lamp Lamp

LED LED

Lighted Models (with

Voltage Reduction Unit)

Incandescent

lamp

Switch (with Voltage

Reduction Unit)

Knob-type Selector Switch A22S/W G-121

Pushbutton

Switches

Selectors

Non-lighted (Color: Only Black is Available)

Lighted

Note: Either incandescent lamps or LED lamps can be used with the

above models.

Notches Reset method

2 notches A22S-2M

A22S-2A

3 notches A22S-3M

A22S-3A

A22S-3AM

A22S-3MA

Notches Reset method

2 notches A22S-C2M

A22S-C2A

3 notches A22S-C3M

A22S-C3A

A22S-C3AM

A22S-C3MA

Standard lever

IP65 (oil-resistant)

Manual

Automatic

Manual

Automatic

Left

automatic

Right

automatic

Standard lever

IP65 (oil-resistant)

Manual

Automatic

Manual

Automatic

Left

automatic

Right

automatic

Notches Reset method Selector color

2 notches Red A22W-2MR

Green A22W-2MG

Yellow A22W-2MY

Blue A22W-2MA

Red A22W-2AR

Green A22W-2AG

Yellow A22W-2AY

Blue A22W-2AA

3 notches Red A22W-3MR

Green A22W-3MG

Yellow A22W-3MY

Blue A22W-3MA

Red A22W-3AR

Green A22W-3AG

Yellow A22W-3AY

Blue A22W-3AA

Red A22W-3AMR

Green A22W-3AMG

Yellow A22W-3AMY

Blue A22W-3AMA

Red A22W-3MAR

Green A22W-3MAG

Yellow A22W-3MAY

Blue A22W-3MAA

Standard lever

IP65

Manual

Automatic

Manual

Automatic

Left

automatic

Right

automatic

G-122 Knob-type Selector Switch A22S/W

Lamps

LED Lamp

Note: 1. For voltage-reduction lighting, use the A22-24A@.

2. Used when the Selector color is yellow or white.

Incandescent Lamp

Switches (General-purpose Load)

Non-lighted

Lighted

Note: For voltage-reduction lighting, use the A22-24A@.

Operating voltage 6 V 12 V 24 V 24 V

Super-bright

Appearance AC/DC LED light Model

DC Red A22-6DR --- --- ---

Green A22-6DG --- --- ---

Yellow (See note 2.) A22-6DY --- --- ---

Blue A22-6DA --- --- ---

AC Red A22-6AR --- --- ---

Green A22-6AG --- --- ---

Yellow (See note 2.) A22-6AY --- --- ---

Blue A22-6AA --- --- ---

AC and DC Red --- A22-12AR A22-24AR A22-24ASR

Green --- A22-12AG A22-24AG A22-24ASG

Yellow (See note 2.) --- A22-12AY A22-24AY A22-24ASY

Blue --- A22-12AA A22-24AA A22-24ASA

Operating voltage 5 VAC/VDC 12 VAC/VDC 24 VAC/VDC 100 VAC/VDC

A22-5 A22-12 A22-24 A22-H1

Contacts Model

Automatic SPST-NO A22-10M

SPST-NC A22-01M

SPST-NO + SPST-NC A22-11M

DPST-NO A22-20M

DPST-NC A22-02M

Switch operation

Switch operation Contacts Voltage-reduction circuit

With Voltage Reduction Unit

Automatic SPST-NO A22L-10M A22L-10M-T1 A22L-10M-T2

SPST-NC A22L-01M A22L-01M-T1 A22L-01M-T2

SPST-NO + SPST-NC A22L-11M A22L-11M-T1 A22L-11M-T2

DPST-NO A22L-20M A22L-20M-T1 A22L-20M-T2

DPST-NC A22L-02M A22L-02M-T1 A22L-02M-T2

Without Voltage

Reduction Unit 110 VAC 220 VAC

Knob-type Selector Switch A22S/W G-123

Pushbutton

Switches

■Accessories (Order Separately)

The A22S/W uses the same accessories as the A22. Refer to the relevant information in the section for the A22.

Specifications

With the exception of the following items, the specifications are the same as for the A22. Refer to the relevant information in the Specifications

section for the A22.

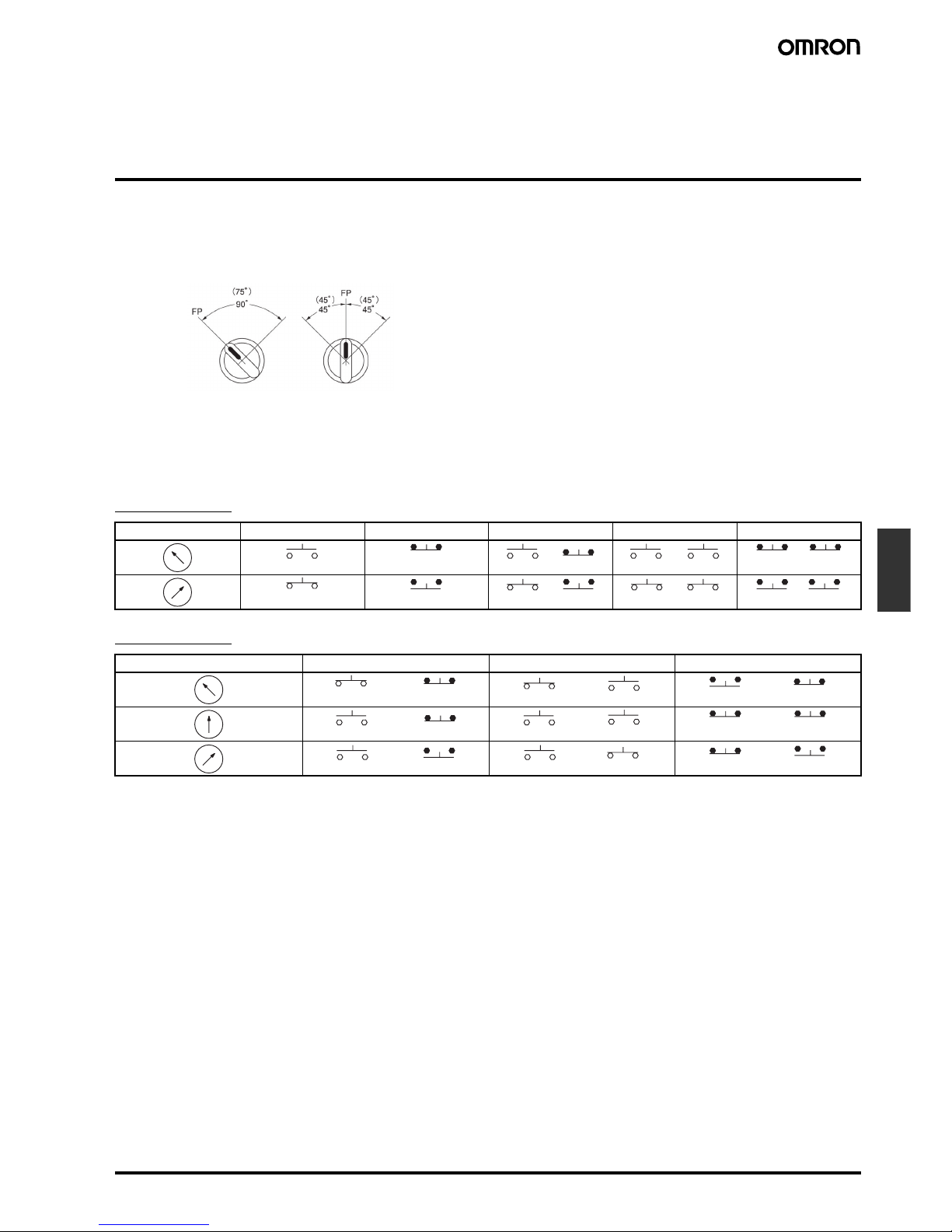

■Operation Angle

■Contacts

2-notch Type

3-notch Type

Two notches Three notches

2. FP: Free Position

Note: 1. The angle used for automatic reset

is shown in parentheses.

Knob position SPST-NO SPST-NC SPST-NO + SPST-NC DPST-NO DPST-NC

Knob position SPST-NO + SPST-NC DPST-NO DPST-NC

G-124 Knob-type Selector Switch A22S/W

Nomenclature

Dimensions

Note: All units are in millimeters unless otherwise indicated.

■Knob-type Selector Switch (Lighted/Non-lighted)

Lamp

•Light Source

Switch

•Contacts

•Lighting Method

Selector

•Number of Notches

2 notches/3 notches

•Applicable Colors

Lock Ring

Non-lighted: Black

Lighted: Red, green yellow, blue

LED lamp

Incandescent lamp

SPST-NO, SPST-NC, SPST-NO + SPST-NC,

DPST-NO, DPST-NC

(Minimum applicable load: 10 mA at 5 VDC)

Non-lighted

Lighted (without Voltage Reduction Unit)

Lighted (with Voltage Reduction Unit)

A22S/A22W

30 dia.

A22S-C

30 dia.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Omron

Omron

Omron TL4019 Series Manual de usuario

Omron

Omron A16 - Manual de usuario

Omron

Omron D40B - Manual de usuario

Omron

Omron E3JM - Manual de usuario

Omron

Omron A3A Series Manual de usuario

Omron

Omron D4N Series Manual de usuario

Omron

Omron D4SL-N Series Manual de usuario

Omron

Omron D4CC-1001 Manual de usuario

Omron

Omron D41D Manual de usuario

Omron

Omron S8VS-01505 Manual de usuario

Omron

Omron A22TK Manual de usuario

Omron

Omron A8GS-T Series Manual de usuario

Omron

Omron D4N Series Manual de usuario

Omron

Omron D4NL-1AFA-B Manual de usuario

Omron

Omron ER5018 Manual de usuario

Omron

Omron D5B - Manual de usuario

Omron

Omron D4NL-4AFA-B4 Manual de usuario

Omron

Omron D4MC Manual de usuario

Omron

Omron D4SL-N N Series Manual de usuario

Omron

Omron D4B-N - Manual de usuario

Omron

Omron D4BL - Manual de usuario

Omron

Omron ER6022 Manual de usuario

Omron

Omron A3AA-90K1-00 Manual de usuario

Omron

Omron D5C Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
