Omron TM Collaborative Robot: Backup, Restore, and Update – Ver. 1

QUICK START GUIDE

Omron TM Collaborative Robot:

Backup, Restore, and Update

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 2 of 9

Contents

1 Introduction ............................................................................................................................................... 3

2 Useful Documents...................................................................................................................................... 3

3 Backup........................................................................................................................................................ 3

3.1 Procedure............................................................................................................................................ 3

3.2 Recommended Backup Points.......................................................................................................... 4

4 Restore ....................................................................................................................................................... 5

5 USB Flash Drive Formatting ....................................................................................................................... 6

6 Update........................................................................................................................................................ 8

Figures

Figure 3.1 - System Setting Menu................................................................................................................. 3

Figure 3.2 - Backup Screen............................................................................................................................ 4

Figure 4.1 - Restore Screen ........................................................................................................................... 5

Figure 5.1 - Format........................................................................................................................................ 6

Figure 4.2 - Formatting Convention.............................................................................................................. 7

Figure 5.3 - Format Warning......................................................................................................................... 7

Figure 5.4 - Formatting Complete................................................................................................................. 7

Figure 5.5 - Folder Naming Convention ........................................................................................................ 7

Figure 6.1 - Included Files ............................................................................................................................. 8

Figure 6.2 - System Setting Menu................................................................................................................. 8

Figure 6.3 - System Version Screen............................................................................................................... 9

Figure 6.4 - Version Conflict Warning ........................................................................................................... 9

Version

Date

Author

Changes

HW Ver.

Sys. Ver.

1/17/2019

Kai Lee

Aaron H

Charlie K

Document Created

3.0

1.68.6800

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 3 of 9

1Introduction

This demonstrates how to back up the current system version of an Omron TM robot, how to restore

the robot to a previous system version, and how to update the firmware to a newer system version.

2Useful Documents

The ADE Team strongly recommends reviewing the following documents in addition to this one:

TM Flow Software Manual

I626-E-02

TM Initial Startup Tech Note

Document number TBD

In addition to the documents listed above, all Omron TM related downloads can be found at:

https://industrial.omron.us/en/products/tm-series#downloads

3Backup

In some cases, the Omron TM robot must be restored to a former system version. However, it is entirely

the user’s responsibility to regularly keep a good set of backup points to which the robot can be

restored. It is also important to note that restoring the robot to a previous system version is currently

the only method to “downgrade” the robot, as the Update function only

3.1 Procedure

1. Go to Backup\ Restore in the System menu.

a. Click on the Backup button so that it is highlighted green.

b. Enter a file name.

c. Click on the blue Backup button.

Figure 3.1 - System Setting Menu

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 4 of 9

Figure 3.2 - Backup Screen

2. The following will be backed up:

a. Firmware

b. Projects

c. Settings – TCP's, robot parameters, etc.

A maximum of three backup points are allowed.To delete a backup point, click on the Restore button

and then click the delete button, marked by an X in a red box.

3.2 Recommended Backup Points

Since only 3 backup points are allowed, therefore the ADE team’s suggested backup points are:

1. Upon initial setup (to retain a copy of the factory default settings).

2. After commissioning is complete.

3. Before updating to a new version of the firmware or before trying anything irreversible.

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 5 of 9

4Restore

To restore everything in the selected backup file;

a. Click the Restore button so that it is highlighted green.

b. Choose the file you want to restore.

c. To keep the current firmware, make sure to uncheck the box next to Restore Robot Firmware.

d. Click the blue Restore button in the lower right corner.

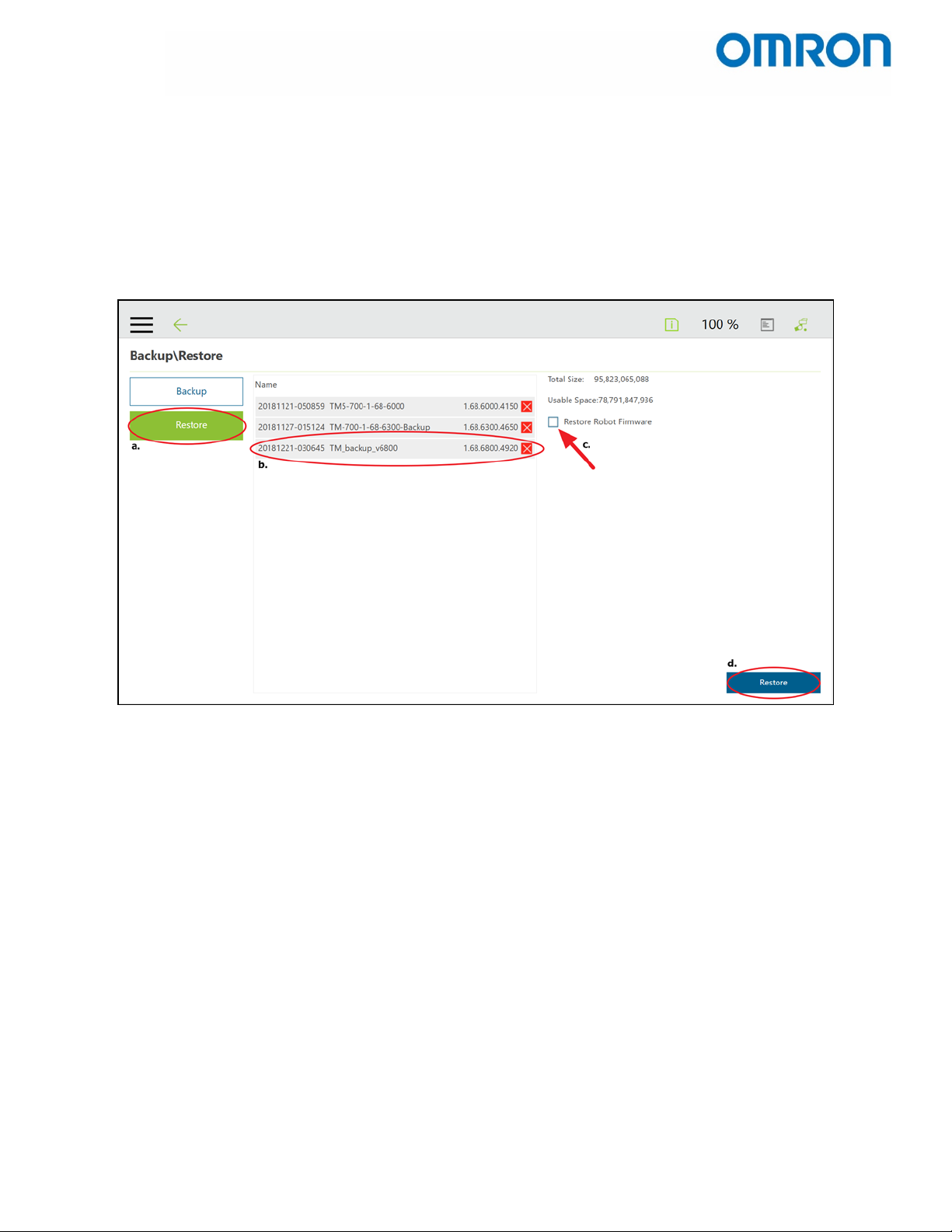

Figure 4.1 - Restore Screen

CAUTION: Do not remove power during the backup and restore process

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 6 of 9

5USB Flash Drive Formatting

1. Plug a USB flash drive into an empty USB port on your computer.

2. Right click on the USB drive name in the Windows Explorer menu on the left side of the screen,

the click on Format… This brings up the Format window.

Figure 5.1 - Format

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 7 of 9

3. Choose the NTFS file system

4. Change the Volume label to “TMROBOT”. The volume label

must match this name exactly.

5. Check the Quick Format box.

6. Click Start.

7. A pop-up window will display with a warning that you are

erasing ALL data from the USB flash drive. Click OK.

Figure 5.3 - Format Warning

8. Once the formatting is complete, a pop-up window will display “Format Complete”. Click OK to

finish the formatting procedure.

Figure 5.4 - Formatting Complete

9. The folder naming convention within the USB drive is very important. Follow the naming

convention shown below in figure 4.5.

Figure 5.5 - Folder Naming Convention

Figure 5.2 - Formatting Convention

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 8 of 9

6Update

The following steps detail how to update the robot’s System Version.

1. The latest version of TM Flow can be found on Omron’s website at

https://industrial.omron.us/en/products/tm-series.

2. Unzip the update file into the root directory of your newly formatted TM USB flash drive.

Figure 6.1 - Included Files

3. Plug the USB flash drive into a USB port on the robot controller.

4. Go to System Update in Setting

Figure 6.2 - System Setting Menu

Omron TM Collaborative Robot: Backup, Restore, Update – Ver. 1 Page 9 of 9

5. If the system recognizes the TM Flow file on the USB drive, a .tmr file like in the figure below.

Note that the clicking OK will result in an error if the file version of TM Flow is older than the

current System Version. To “downgrade” the robot, it must be restored to a backup System

Version.

Figure 6.3 - System Version Screen

6. Click OK to update the system.

a. CAUTION: Do not click anything or remove the USB until the update has finished and

the controller has completely shut down.

b. The robot will shut down completely after the update is done.

7. Manually restart the robot and the update will be finished.

a. Press the power button on the robot stick.

b. If the robot does not power on with the robot stick, or if the indicator light on the robot

becomes a fast-blinking red, it may be necessary to manually power cycle the control

box (turning the power supply off then on again).

8. Update the version of TM Flow on all Windows devices that control the robot (i.e. a laptop).

a. A version conflict error message will occur if the software version of TM Flow on a

Windows device does not match the system version in the robot.

b. The old version of TM Flow on the Windows device must be uninstalled before installing

the new version. Errors will occur if this step is neglected.

Figure 6.4 - Version Conflict Warning
