B-Series Camera Setup Guide
Version 1.0, Mar-2022
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
2
How to use the Guide
1. The Table of Contents is hyperlinked for ease of use. Hold the control button and click the
page number or title of the desired section to be read.
2. Each section of this guide can be expanded or collapsed. Right click on the title of a section
and select collapse all headings. The contents of the guide can then be individually expanded
or collapsed as needed. Additionally, by hovering the mouse over the left hand side of a
section title, a triangular icon will appear that can be clicked to expand or collapse that
particular section.
3. Double click on the icon to open embedded documents.
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
3
Table of Contents
Contents
How to use the Guide ............................................................................................................................ 2
Table of Contents .................................................................................................................................. 3
Guide Objective and Terminology ......................................................................................................... 4
Warnings ................................................................................................................................................ 4
Mount the Camera ................................................................................................................................. 4
Install a Lens .......................................................................................................................................... 5
Connect the Ethernet Cable and I/O Cable ........................................................................................... 7
Connect the Power Supply .................................................................................................................. 13
Download and Install the SDK Software .............................................................................................. 14
Set up PC IP Settings .......................................................................................................................... 15
Launch the B-Series Software ............................................................................................................. 16
Camera Configuration .......................................................................................................................... 17
Acquire an Image ................................................................................................................................. 17
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
4
Guide Objective and Terminology
This guide covers all of the steps required to connect a B - Series camera to a PC and configure the
camera for usage. For information related to the B - Series, refer to the applicable B - Series manual.
Warnings
1. Sensor temperature must be maintained less than the maximum sensor temperature
listed in the applicable manual. To ensure this, keep the StViewer “Mainboard”
temperature, also called chunk data “Camera temperature”, at the (sensor limit - 10°C)
2. Forced air cooling or additional heatsinking must be used if the ambient temperature is
>25°C

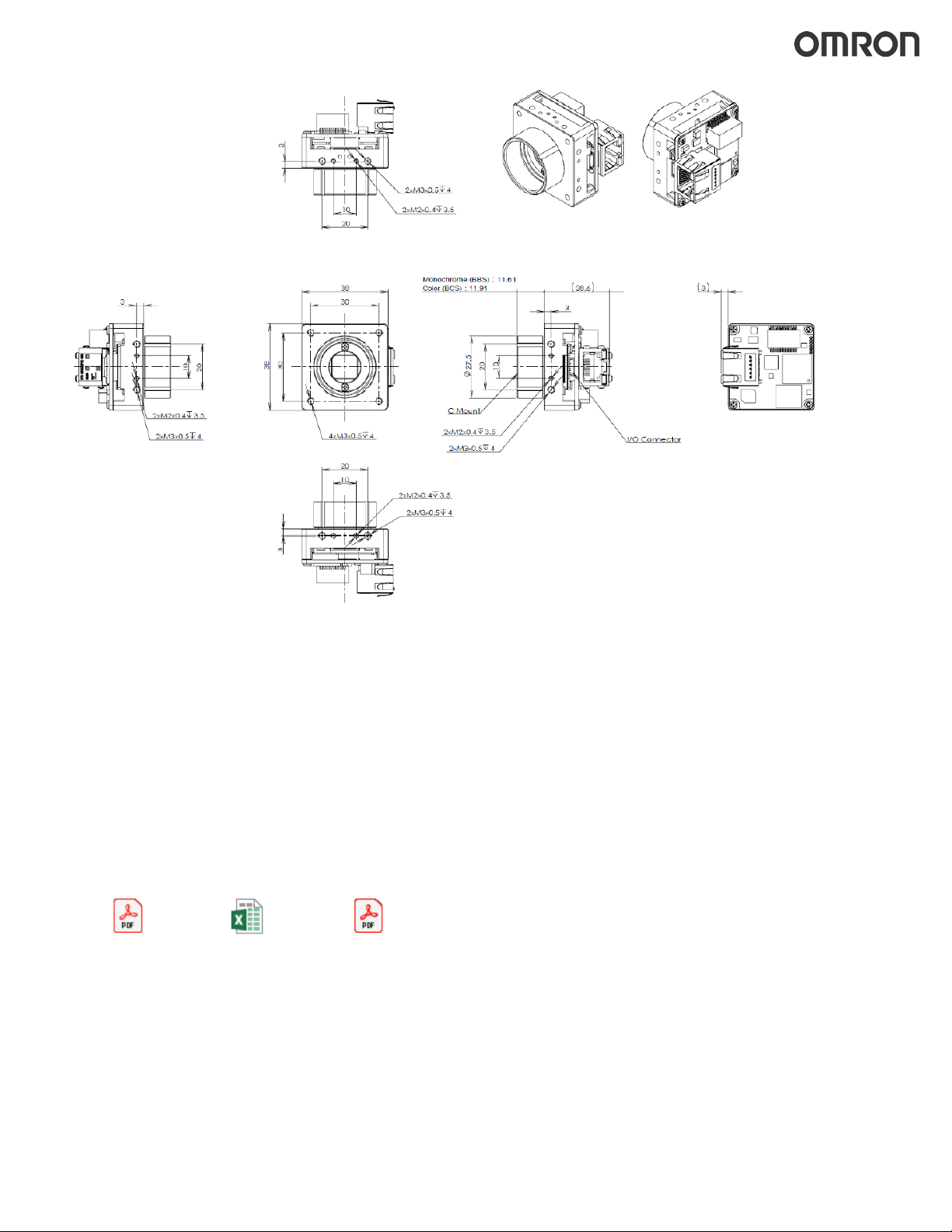

Mount the Camera
To mount the camera use one of the following methods:
1. Attach the B-Series camera to your equipment using either the M3 or M2 mounting holes on
the camera. Ensure that your mounting screws do not exceed the allowable depths of 4mm for
the M4 holes and 3.5mm for the M2 holes. Refer to the specific diagram in the manual for your
part number.
21S012-00_STC-BxS
500xx-BC_Spec_Man
21S013-00_STC-BxS
312xx-Bx_Spec_Manu
21S014-00_STC-BxS
43xx-Bx_Spec_Manua
21S041-00_STC-BxS
202xx-Bx_Spec_Manu
21S042-00_STC-BxS
163xx-Bx_Spec_Manu
21S064-00_STC-BxS
213xx-Bx_Spec_Manu
21S075-00_STC-BxS
1242xx-BC_Spec_Man
21S076-00_STC-BxS
2041xx-BC_Spec_Man
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
5
Install a Lens
In order to use a B-Series camera a lens must be installed. The camera is designed to use standard
C-mount lenses.
For more information on the available C-mount lenses see the Vision Accessory Catalog.
Refer to the applicable B-Series camera datasheet, to determine the camera’s sensor size and
resolution. Choose a lens family, which is appropriate for the resolution and sensor size, using the
Vision Accessory Catalog as a guide. Calculate the required lens focal length to attain the correct
field of view. The training “How to Select a Lens” may help ion the calculations. To attach the lens
screw the lens on to the camera. Torque should be “hand tight”.
Vision Accessory
Catalog.pdf
lens calculations
template-5.xlsx
How to select a
lens.pdf
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
6
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
7
Connect the Ethernet Cable and I/O Cable
In order to connect a B-Series Camera to a PC, an Ethernet cable is required. There is also an
optional I/O cable.
1. To attach the Ethernet cable, press it in to the RJ-45 jack.
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
8
2. Connect the RJ-45 connector on the other end of the Ethernet cable one of the following
ways:
a. If you have a POE compliant B-Series camera (STC-BBSxxxxPOE-BC)
i. To your PC, if you have a POE NIC card in your PC
ii. To a POE injector. Recommended injector = Omron V330-AP1. The injector
should be complaint with IEEE802.3af. Make connections as specified in the
documentation for the POE injector.
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
9
iii. To a POE switch. The switch should be complaint with IEEE802.3af. Make
connections as specified in the documentation for the POE switch.
Omron Automation | © 2022 Omron. All Rights Reserved. | omron.automation.com
