Omron CP2E Manual de usuario

Programmable Controller

CP2E

Micro PLC designed to support

data collection and Machine

to Machine communication

Diverse range of functions for your machine

Efficient solution for a flexible production, traceability and monitoring of machine key assets,

to respond to operational excellence.

Improved connectivity to networking and serial devices.

Reduced development time with function blocks (FBs) programming.

Battery-free operation increases robustness and reduces maintenance. The extended operating

temperature range increase reliability for special applications.

Note: Please check datasheet (Cat. No. P145) to select your controller. Available functions differ model by model.

2 Ethernet ports 4-axis positioning function

CP2E-N

Up to 3 serial ports

Normal operation continues

-20 to 60℃

1 port

2 ports

Install and forget: reliable solution

for all environmental conditions

Input/output terminal

LED indicators for quick

troubleshooting

Automatic Recovery by

electric interferences

* Needed only in case Real Time Clock is used.

Extended operational

temperature range

Battery-free operation*

Improved connectivity

for ethernet and serial devices P.4 -5

Built-in Ethernet switching function

Serial open protocols and Modbus communication

P.7

Reduced effort to realize complex machines

4-axis positioning function with linear interpolation

P.6 -7

Try Omron Function blocks for positioning,

Machine to Machine communication and

predictive maintenance

Download from

www.ia.omron.com/cp_fb

2Ethernet

ports

Ethernet Send/Receive Data

Reduce programming time by Ethernet

Send/Receive Data FB to easily

exchange data between controllers.

Improved connectivity for ethernet and serial devices

Ready for Machine to Machine communication

Connect machines to networks to collect field data.

Two built-in Ethernet ports eliminate the need for switching hubs. One port is connected to the host,

and another can be connected to an HMI, PLC, or PC running support software or reserved.

Machine to Machine connectivity

Note: The L2 Switching Hub function is built in.

Two Ethernet ports on the CP2E share the same IP address.

Improve design efficiency and productivity

reducing development time with

a modular conception of the machine

Assembling lines

MES connection

CP2E-N

CP2E-N CP2E-N

Ethernet

Host and HMI connectivity

CP2E-N

Up to

3serial

ports

Up to

serial

ports

FB Modbus RTU master

Reduce programming time by Modbus FB

to easily communicate with serial devices.

Open connectivity to serial devices

CP2E-N can use up to 3 serial ports by mounting option boards.

Data collection, Control and Monitoring of serial devices is easy and flexible.

Ethernet

RS-232C RS-232C RS-485

Bar code reader

Measurement device

(air leak tester,

weigher, etc.)

Inverter Semiautomatic assembling

machines

CP2E-N NB

Connect bar code readers for traceability

and monitor state of machine

CP2E-N

Ethernet

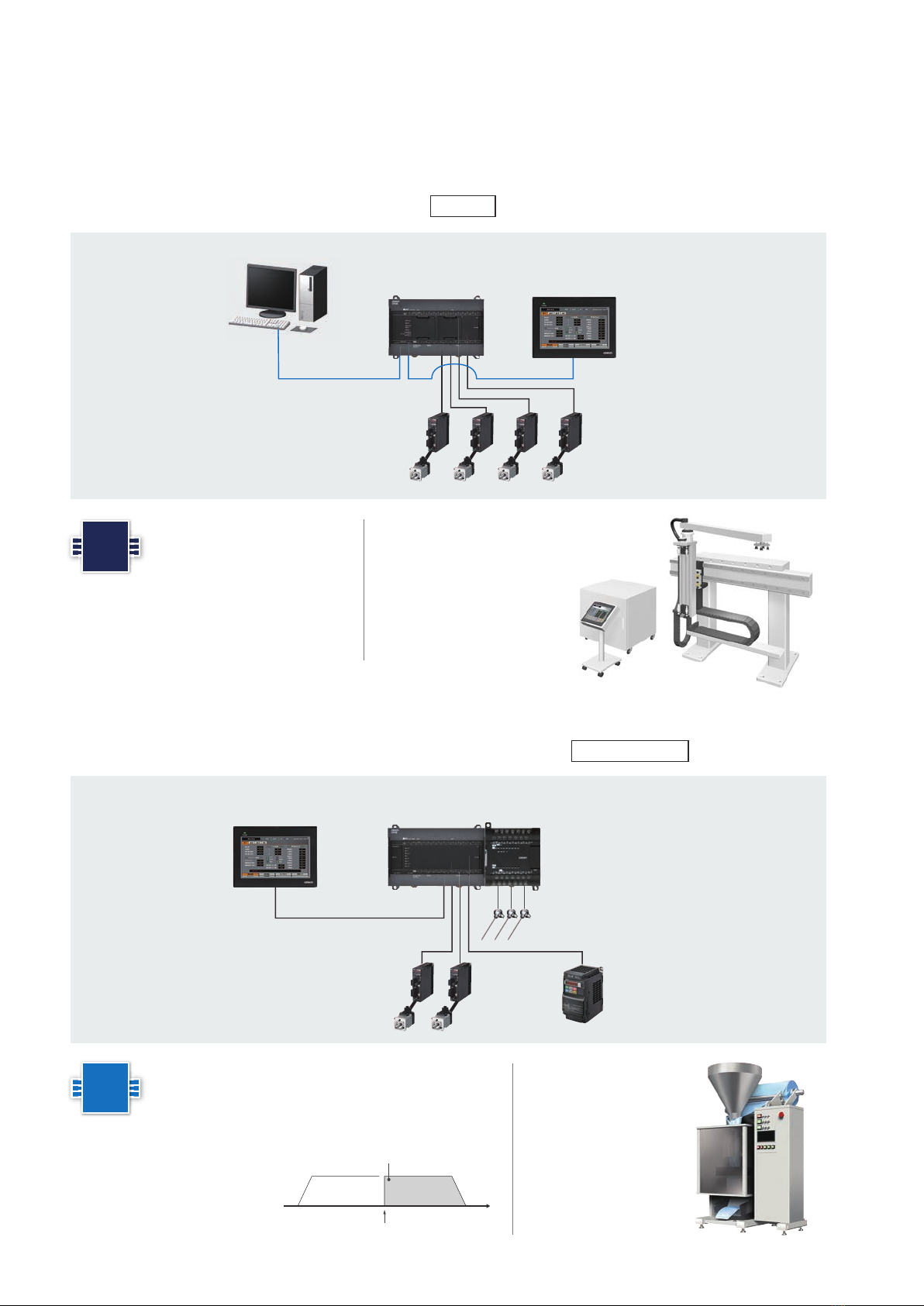

Reduced effort to realize complex machines

Positioning on mark for Packaging Machines

CP2ENB

Operate with 4-axis

simultaneously to reduce

machine cycle time

Pick and Place

Constant movement from

mark detection to seal

position

Packaging machine

Inverter

RS-485

Temperature Sensor

RS-232C

Stop after a defined

amount of pulses

(Time)

Interrupt input

Simplified positioning:

4-axis can operate simultaneously for

a faster positioning.

With one instruction you can

execute a fixed positioning

on Interrupt input (mark)

independently by PLC cycle time.

Interrupt feeding

PID Control with auto tuning

Servomotor/Servo Drive

CP2E-N NB

CP1W-TS003

Temperature Sensor Unit

Speed

control

Position

control

Up to 4-axis linear interpolation CP2E-N

CP2E-N/CP2E-S

4-axis positioning

Instruc-

tion

FB Linear interpolation

Fixed positioning on interrupt

(IFEED instruction)

Cost reduction in maintenance,

logistic/stock

Stable multipoint temperature control,

setting via NB series HMI

Small extrusion machine

CP1W-TS004

12-ch Temperature Sensor Unit

CP2E

Pressure/position　

Inverter control

Temperature

Sensor

Extended operational temperature range

Increase reliability in special

applications

Temperature Sensor

Battery-free operation*

Automatic Recovery by electric

interferences.

Normal operation continues

CP2E detects and recovers

in real-time operation a bit

corruption.

Increase machine efficiency

avoiding CPU stops.

PID Control with auto tuning

RS-232C

(Time)

(Temperature)

Hunting Overshooting

Temperature

control (PID)

CP1W-MAD44

4 inputs/4 outputs

Analog I/O Unit

Stable temperature control with autotuning function CP2E-N/CP2E-S/CP2E-E

PID with Autotuning function

enable stable temperature

control reducing start-up time.

Connection with stand alone

temperature control is also

available.

Install and forget: reliable solution

for all environmental conditions

Grain storage

facility

Waste disposal

equipment

Multi-level

parking

-20 to 60℃

* Needed only in case Real Time Clock is used.

Reduce installation time

and easily check wiring

errors by LED indicators

I/O LED indicators

CP2E-N/CP2E-S/CP2E-E

FB PID Control with auto tuning

CPU unit with 30, 40, or 60

I/O points

CPU unit with 30, 40, or 60

I/O points

CPU unit with 14 or 20

I/O points

CPU unit with 30, 40, or 60

I/O points

CPU unit with 14 or 20

I/O points

USB port

Expansion unit

option board

Ethernet

Clock

positioning option board

Ethernet

Expansion unit

positioning option board

Ethernet

Clock

-20 to 60℃Battery-freeClock

Memory

10 K steps

-20 to 60℃Battery-freeClock

3 expansion

units

4-axis

positioning

2option boards

2Ethernet

ports

Memory

10 K steps

Up to

3serial ports

2-axis

positioning

1option board

1Ethernet

port

Up to

2serial ports

USB port

-20 to 60℃Battery-freeClock

Memory

8K steps

1 x RS-232C port

1 x RS-485 port

2-axis

positioning

3 expansion

units

Memory

4K steps USB port

-20 to 60℃Battery-free

1 x RS-232C

port *1

3 expansion

units

1 x RS-232C

port *1

Memory

4K steps USB port

-20 to 60℃Battery-free

Network Model: Ethernet connectivity, 4-axis positioning, FB programming

Essential Model: 1 serial port, FB programming

Standard Model: 2 serial ports, 2-axis positioning, FB programming

CP2E-N

CP2E-S

CP2E-E

*1. RS-232C: Screwless terminal block (6 terminals), RS-485: Screwless terminal block (3 terminals)

Product lineup

20-point I/O Unit

16-point Output Unit

Analog Input Unit

Analog Output Unit

Analog I/O Unit

12-ch Temperature

Sensor Unit

I/O Connecting Cable

4-ch Temperature

Sensor Unit

2-ch Temperature

Sensor Unit

8-point Input Unit

8-point Output Unit

Battery: only for Real time

Clock function-

CP2E-N/CP2E-S CPU Unit

Option Board (for CP2E-N-type CPU Units)

Expansion I/O Unit and Expansion Unit

Battery

RS-232C

RS-485 (isolated)

RS-232C RS-422A/485 RS-422A/485

(isolated)

2 analog inputs

0 to 10 V, 0 to 20 mA

2 analog outputs

0 to 10 V

2 analog inputs

0 to 10 V,

0 to 20 mA

2 analog outputs

0 to 10 V

Analog Option Board*2

*2. Two 2-port serial option boards cannot be mounted in a CPU unit.

Two analog option boards also cannot be mounted in a CPU unit.

40-point I/O Unit

32-point Output Unit

2-port Serial Option Board *2

１-port Serial Option Board

I/O points Specifications

Power supply Inputs Outputs Output type

Program capacity DM Area capacity

Model

100 to 240 VAC

8 6

Relay

10K steps 16K words

　CP2E-N14DR-A

Transistor (sinking) 　CP2E-N14DT-A

24 VDC

Relay 　CP2E-N14DR-D

Transistor (sinking) 　CP2E-N14DT-D

Transistor (sourcing) 　CP2E-N14DT1-D

100 to 240 VAC

12 8

Relay 　CP2E-N20DR-A

Transistor (sinking) 　CP2E-N20DT-A

24 VDC

Relay 　CP2E-N20DR-D

Transistor (sinking) 　CP2E-N20DT-D

Transistor (sourcing) 　CP2E-N20DT1-D

100 to 240 VAC

18 12

Relay 　CP2E-N30DR-A

Transistor (sinking) 　CP2E-N30DT-A

24 VDC

Relay 　CP2E-N30DR-D

Transistor (sinking) 　CP2E-N30DT-D

Transistor (sourcing) 　CP2E-N30DT1-D

100 to 240 VAC

24 16

Relay 　CP2E-N40DR-A

Transistor (sinking) 　CP2E-N40DT-A

24 VDC

Relay 　CP2E-N40DR-D

Transistor (sinking) 　CP2E-N40DT-D

Transistor (sourcing) 　CP2E-N40DT1-D

100 to 240 VAC

36 24

Relay 　CP2E-N60DR-A

Transistor (sinking) 　CP2E-N60DT-A

24 VDC

Relay 　CP2E-N60DR-D

Transistor (sinking) 　CP2E-N60DT-D

Transistor (sourcing) 　CP2E-N60DT1-D

I/O points Specifications

Power supply Inputs Outputs Output type

Program capacity DM Area capacity

Model

100 to 240 VAC

18 12

Relay

8K steps 8K words

　CP2E-S30DR-A

24 VDC

Transistor (sinking) 　CP2E-S30DT-D

Transistor (sourcing) 　CP2E-S30DT1-D

100 to 240 VAC

24 16

Relay 　CP2E-S40DR-A

24 VDC

Transistor (sinking) 　CP2E-S40DT-D

Transistor (sourcing) 　CP2E-S40DT1-D

100 to 240 VAC

36 24

Relay 　CP2E-S60DR-A

24 VDC

Transistor (sinking) 　CP2E-S60DT-D

Transistor (sourcing) 　CP2E-S60DT1-D

I/O points Specifications

Power supply Inputs Outputs Output type

Program capacity DM Area capacity

Model

100 to 240 VAC

86Relay

4K steps 4K words

　CP2E-E14DR-A

20 12 8Relay 　CP2E-E20DR-A

30 18 12 Relay 　CP2E-E30DR-A

40 24 16 Relay 　CP2E-E40DR-A

60 36 24 Relay 　CP2E-E60DR-A

Ordering Information

CP2E-N/Network Models

CP2E-S/Standard Models

CP2E-E/Essential Models

CPU Units

Function Blocks are available to download free of charge from Omron website. (www.ia.omron.com/cp_fb)

For details, refer to datasheet of CP2E (Cat.No. P145).

Tabla de contenidos

Otros manuales de Controladores de Omron

Omron

Omron EJ1N-TC4 Manual de usuario

Omron

Omron TRAJEXIA-PLC Manual de usuario

Omron

Omron K8DT-LS Series Manual de usuario

Omron

Omron SYSMAC C200H-FZ001 Manual de usuario

Omron

Omron CS1D-CPU S Series Manual de lista de piezas

Omron

Omron V600-CD1D-V2 Manual de usuario

Omron

Omron CP1E-N**S*D Series Manual de usuario

Omron

Omron Sysmac NJ-series Manual de usuario

Omron

Omron E5EC-B Manual de usuario

Omron

Omron E5GN Manual de usuario

Omron

Omron SYSMAC C2000H Manual de usuario

Omron

Omron 3G3AX-MX2-ECT Manual de usuario

Omron

Omron NX701-17 Series Manual de programación

Omron

Omron CS Series Manual de usuario

Omron

Omron CS1 - Manual de usuario

Omron

Omron V700 series Manual de usuario

Omron

Omron SCARA YRCX Series Manual del propietario

Omron

Omron CJ1W-SCU32 Manual de usuario

Omron

Omron E5ED-8 Series Manual de usuario

Omron

Omron SYSMAC CJ - REFERENCE 01-2008 Manual de usuario

Omron

Omron E5EN Manual de usuario

Omron

Omron CJ - REFERENCE 02-2010 Manual de usuario

Omron

Omron V680 RFID - Manual de usuario

Omron

Omron NX Series Manual de instrucciones

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
