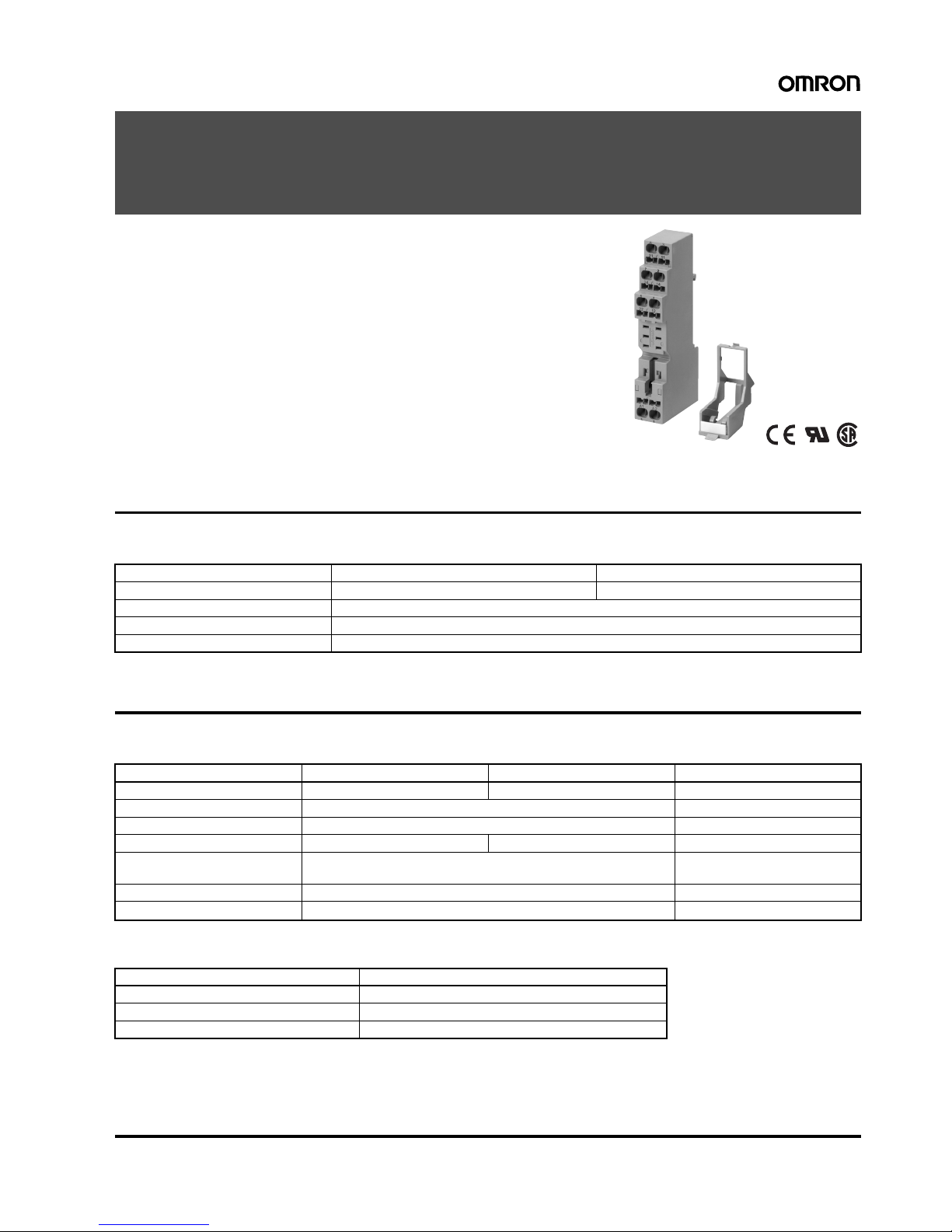

Screwless Clamp Terminal Socket P2RF@@S 1

Screwless Clamp Terminal Socket

P2RF@@S

• Screwless clamping greatly contributes to reducing wiring time.

• No over or under tightening of cable connection so better con-

tact reliability is achieved.

• Double wiring possible on all the terminals, and easy bridge and

branch connections.

• Use either solid or stranded wires from 0.2 to

1.5 mm2(AWG24 to AWG16).

• Safe terminal arrangement: Coil terminals separated from con-

tact terminals.

• Unique ejector enables easy relay replacement.

• Nameplate available

• Finger-protection

Ordering Information

■List of Models

Specifications

■Ratings/Characteristics

■Approved Standards

1-pole for G2R1S 2-pole for G2R2S

Socket P2RF-05-S P2RF-08-S

Clip & Release Lever P2CM-S

Nameplate R99-11

Socket Bridge P2RM-SR, P2RM-SB

Item P2RF05S P2RF08S Remarks

Relay G2R-1-S Series G2R-2-S Series ---

Dimensions (W×H×D) 18×92×38.2 max. ---

Rated voltage 250 VAC ---

Rated carry current 10 A at 70°C 5 A at 70°C VDE0627

Applicable wires 0.2 to 1.5 mm2(AWG24 to AWG16)

Solid wire, Standard wire

---

Number of wire connections 2 wires per terminal (1 wire per hole) ---

Clamping force 10 N min. (0.2 mm2), 40 N min. (1.5 mm2)EN60999

Standard File No. (status)

VDE0627 (IEC664, EN60999) 40002313UG

UL508 (UL1059) E87929

CSA C22.2 No. 14 (CSA C22.2 No. 158) LR31928 (1281408)

2Screwless Clamp Terminal Socket P2RF@@S

Dimensions

32.6

27.6

22.6

24.5

35.4

28.5

32.6

(5.3)

92.0 max.

18.0 max.

6 TYP

16.8 TYP

61.3 TYP

38.2 max.

36.5 max.

Standard model

Option (with ejector and

label attached)

Option (with ejector and

label attached)

P2RF-05-S

32.6

27.6

22.6

24.5

35.4

(3.4)

28.6

32.6

(5.3)

60.5 TYP

92.0 max.

18.0 max.

6 TYP

16.8 TYP

38.2 max.

36.5 max.

Standard model

Option (with ejector

and label attached)

Option (with ejector

and label attached)

P2RF-08-S

Screwless Clamp Terminal Socket P2RF@@S 3

Terminal Arrangement

Mounting Height (With Lever)

■Accessories (Option)

Socket Bridge for P2RF-S

List of models

Specification

Clip and Release Lever for P2RF-S

P2CM-S

A1 A2

P2RF-05-S P2RF-08-S

Common contacts

Make contacts

Break contacts

Coil

28.6

56.9

(5.30)

P2RF-05-S P2RF-08-S

28.6

(5.30)

55.7

61.6 TYP 60.6 TYP

Model number Length L (mm) Color of insulating coating

P2RM-SR 14.3 Red

P2RM-SB Blue

Item Characteristic

Rated ON current 10 A

Rated insulation voltage 250 VAC

Temperature rise 35°C max.

Dielectric strength 3,000 VAC for 1 minute

Ambient operating temperature −55 to 70°C

914

Insulating coating

Diameter conductor 1.2 mm

(4.0)

(32.0)

16.8 TYP

40.1 TYP

36 TYP

3 TYP

6 TYP

4Screwless Clamp Terminal Socket P2RF@@S

Installation

■Tools

A flat-blade screwdriver should be used to mount the cables.

Applicable Screwdriver

●Flat-blade, Parallel-tip, 2.5 mm diameter (3.0 mm max.)

Examples: FACOM AEF.2.5×75E (AEF. 3×75E)

VESSEL No. 9900-(-)2.5×75 (No. 9900-(-)3×100)

WAGO 210-119

WIHA 260/2.5×40 (260/3×50)

*Chamfering the tip of the driver improves insertion when used as an

exclusive tool.

■Applicable Wires

Applicable Wire Sizes

0.2 to 1.5 mm2, AWG24 to AWG16

Applicable Wire Type

Solid wires, standard wires, flexible wires, or wires with ferules can

be used.

(See note 1.) <2.2 ≤Diameter D (mm) ≤3.2 (3.5: see note 2.)

Conductor diameter d (mm) or length of sides a and b (mm) ≤1.9

Note: 1. If the outer diameter D of the wire is less than 2.2 mm and

the exposed conductor length is less than 8mm potentially

bad connection might occur in case wire is pushed to far in-

side. Please see following drawing.

2. If the outer diameter D of the wire exceeds 3.2 mm, it might

be difficult to use double wiring.

Examples of Applicable Wires (Confirmed Using Catalog Information)

●Flat-blade, Parallel-tip

●Flat-blade, Flared-tip

2.5 dia. (3.0 mm max.)

Cannot be used.

Wires with Ferules

Type of wire Conductor type See note 1, above. Recommended wire

sizes

See note 2, above.

Equipment wire 2491X Flexible 0.5, 0.75, 1.0 mm21.5 mm2

BS6004 Solid 0.5 mm2

Switchgear BS6231 Solid 1.0 mm21.5 mm2

Switchgear BS6231 Flexible 0.5, 0.75 mm21.0 mm2

Tri-rated control and switchgear Flexible 0.5, 0.75, 1.0, 1.5 mm2

Conduit Standard 1.5 mm2

UL1007 Flexible 18AWG 16AWG

UL1015 Flexible 18AWG, 16AWG

UL1061 Flexible 18AWG

UL1430 Flexible 18AWG 16AWG

Screwless Clamp Terminal Socket P2RF@@S 5

■Wiring

Use wires of the applicable sizes specified above. The length of the

exposed conductor should be 8 to 9 mm.

Use the following wiring procedure.

1. Insert the specified screwdriver into the release hole located

beside the wire connection hole where the wire is to be inserted.

2. Insert the exposed conductor into the wire connection hole.

3. Pull out the screwdriver.

8.5 ±0.5 mm

Fig. 1 Exposed Conductor Length

Fig. 2 Wire Connection Holes and Release Holes

Wire connection holes

Release holes

Wire connection hole

Fig. 3 Section A-A of Fig. 2

Release hole

Screwdriver

Insert

Pull out

6Screwless Clamp Terminal Socket P2RF@@S

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. J132-E2-02-X

Precautions

Precautions for Connection

•Do not move the screwdriver up, down, or from side to side while it

is inserted in the hole. Doing so may cause damage to internal

components (e.g., deformation of the clamp spring or cracks in the

housing) or cause deterioration of insulation.

•Do not insert the screwdriver at an angle. Doing so may break the

side of socket and result in a sort-circuit.

•Do not insert two or more wires in the hole. Wires may come in

contact with the spring causing a temperature rise or be subject to

sparks. (There are two wiring holes for each terminal.)

•Insert the screwdriver along the hole wall as shown below.

•If lubricating liquid, such as oil, is present on the tip of screwdriver,

the screwdriver may fall out resulting in injury to the operator.

•Insert the screwdriver into the bottom of the hole. It may not be

possible to connect cables properly if the screwdriver is inserted

incorrectly.

General Precautions

•Use the clip to prevent relays floating or falling out of the socket.

•Do not use the product if it has been dropped on the ground. Drop-

ping the product may adversely affect performance.

•Confirm that the socket is securely attached to the mounting track

before wiring. If the socket is mounted insecurely it may fall and

injure the operator.

•Ensure that the socket is not charged during wiring and mainte-

nance. Not doing so may result in electric shock.

•Do not pour water or cleansing agents on the product. Doing so

may result in electric shock.

•Do not use the socket in locations subject to solvents or alkaline

chemicals.

•Do not use the socket in locations subject to ultraviolet light (e.g.,

direct sunlight). Doing so may result in markings fading, rust, corro-

sion, or resin deterioration.

•Do not dispose of the product in fire.

Removing from Mounting Rail

To remove the socket from the mounting rail, insert the tip of screw-

driver in the fixture rail, and move it in the direction shown below.

Screwdriver
