Omntec PROTEUS B Manual de usuario

Compatible Controllers

PROTEUS

®B/K/X

Revision 2206

Document No. 200177 rev2206

OMNTEC Mfg., Inc. has been certified

by DQS Inc. to ISO 9001:2015

MAGNETOSTRICTIVE

TANK GAUGING PROBE

INSTALLATION MANUAL

1. Open the camera app

2. Focus the camera on

the QR code by gently

tapping the code

3. Follow the instructions

on the screen to view

PDF file

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 2 of 11 Rev Date: 2-7-2022

Probe Installation Guide

Safety

When working in a hazardous area, it is important to block off this area to

keep out vehicles and unauthorized persons from entering. Observe all codes

and regulations from your local area. Also, review the instructions and safety

requirements listed in the Installation Manual.

Failure to comply can create an explosion hazard that can result in death, personal injury,

and/or property damage.

When making electrical splices use the SK-4 connector seal kit in accordance

with the instructions. This provides a water tight seal. You must use the

proper cable and conduit configuration (see Electrical Wiring from Installation

Manual).

Failure to comply can result in water intrusion to wiring which may cause the system to

fail.

Don’t VOID Your Warranty!

Warranty will be void if OMNTEC EC-2 (Belden #8761 or #87761 for direct burial) cable is not used with

MTG-series probes.

Probe wires must only enter the controller through the intrinsically-safe preformed knockouts.

WARNING

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 3 of 11 Rev Date: 2-7-2022

Probe Installation Guide

4” Riser Installation

1”

7/8”

3.75” Buna

Product Float

5/8” 316SS

3-Pin Mini Style

Connector

Retainer and

End Cap

Spacer Bracket

Cathodic Boot

3.75” Buna

Water Float

Typical Assembly for 4” riser application

Spacer Bracket

1. Make sure you have all the required

materials that come with the probe

float kit (See Figure 2.0).

2. Assemble the spacer brackets;

higher bracket directly below the

probe head and the lower bracket

about 8” below the probe head.

3. Slide on the product float first and

then the water float.

4. Place the cathodic boot on the

bottom of the probe.

5. The foot retainer gets placed on the

probe before securing the assembly

with the foot end cap. The foot end

cap should fit inside the foot

retainer if oriented properly.

Typical Float Kit for 4” riser application

Figure 2.0

Figure 1.0

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 4 of 11 Rev Date: 2-7-2022

Probe Installation Guide

Figure 3.0

4” Riser Application

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 5 of 11 Rev Date: 2-7-2022

Probe Installation Guide

Wiring (wired probes)

The MTG Probe has three wires that are color coded as follows:

WHITE = Signal

BLACK = Signal Ground

GREEN = Shield (connected to drain of extension cable)

1. Bring the probe’s cable to a weatherproof junction box.

2. Make all wiring connections using the provided SK-4 connector sealing kit. Follow the

instructions within the seal kit for proper installation.

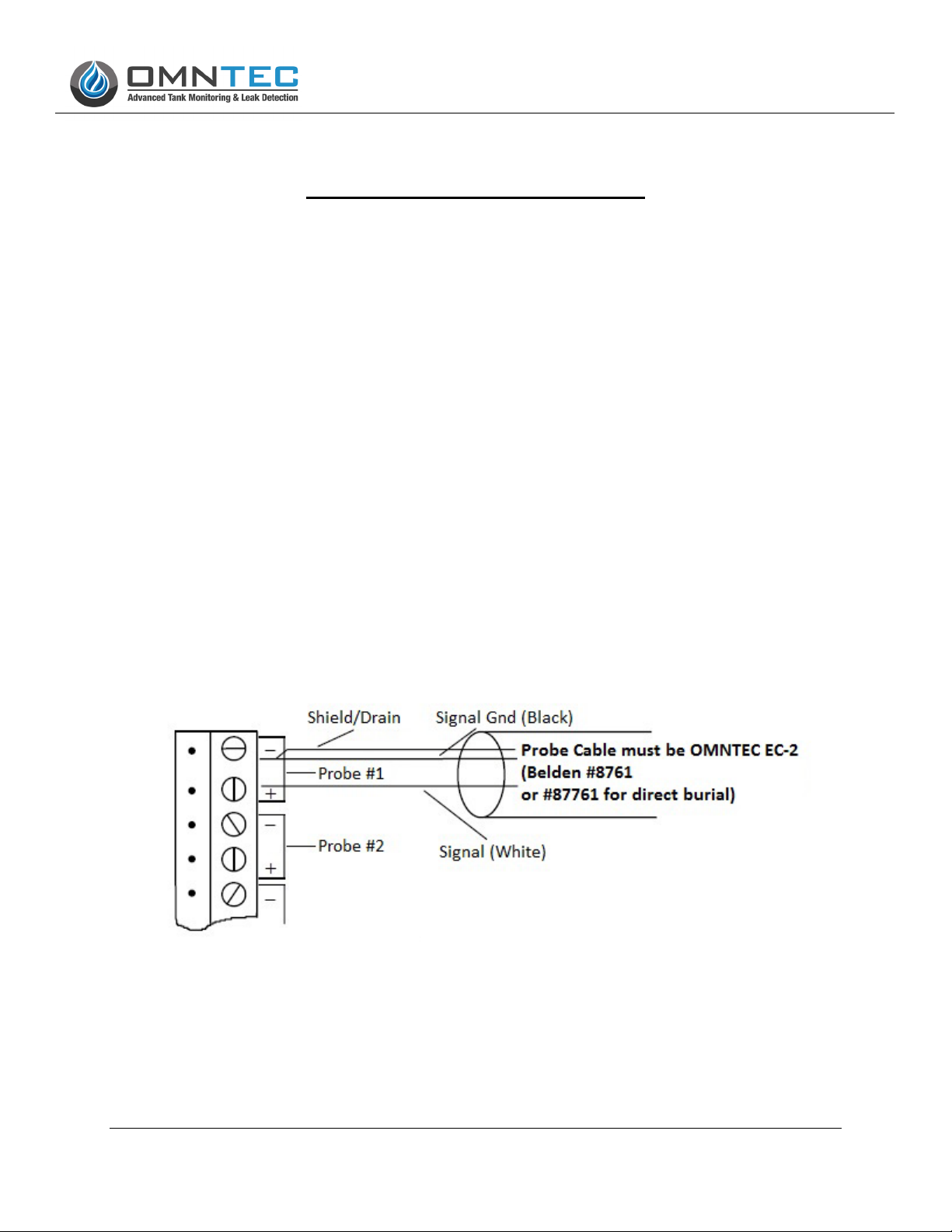

MTG Probe Connections at the Controller

1. Connect the Signal wire (white) to the positive (+) terminal of the corresponding Tank #

(See Figure 4.0).

2. Connect both the Signal Ground wire (black) and the Shield/Drain wire (bare) to the

negative (-) terminal of the corresponding Tank # (See Figure 4.0).

Figure 4.0

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 6 of 11 Rev Date: 2-7-2022

Probe Installation Guide

Wiring (wireless probes)

The Wireless MTG Probe has three wires that are color coded as follows:

RED = Power

WHITE = Signal

BLACK = Common

1. Bring the probe’s cable to a weatherproof junction box.

2. Make all wiring connections using the provided SK-4 connector sealing kit. Follow the

instructions within the seal kit for proper installation.

Wireless MTG Probe Connections to Transmitter

1. Each wireless probe will be paired with a transmitter and mast assembly. The mast

assembly will have the same three-colored wires as the probe. Connect the probe

wiring to the mast wiring and splice in a waterproof junction box using the SK-4 kit.

2. Install and plug in the batteries for your transmitter in a non-hazardous area.

3. Connect the transmitter to the top of the mast assembly and press the reset button on

the transmitter.

4. Secure the mast cover to the top of the mast assembly using the provided hardware.

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 7 of 11 Rev Date: 2-7-2022

Probe Installation Guide

Figure 5.0

Swage Lock Application

Part No. SL-34

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 8 of 11 Rev Date: 2-7-2022

Probe Installation Guide

Flex Probe Application (Fixed Top)

Figure 6.0

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 9 of 11 Rev Date: 2-7-2022

Probe Installation Guide

Flex Probe Application (Fixed Bottom)

Figure 7.0

OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779

Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com

File Name: 200177 rev2206.docx Page 10 of 11 Rev Date: 2-7-2022

Probe Installation Guide
