Section 1

Introduction

Section 2

Installation

Section 3

Operation

Section 4

Maintenance

Figures

Tables

Contents

Page

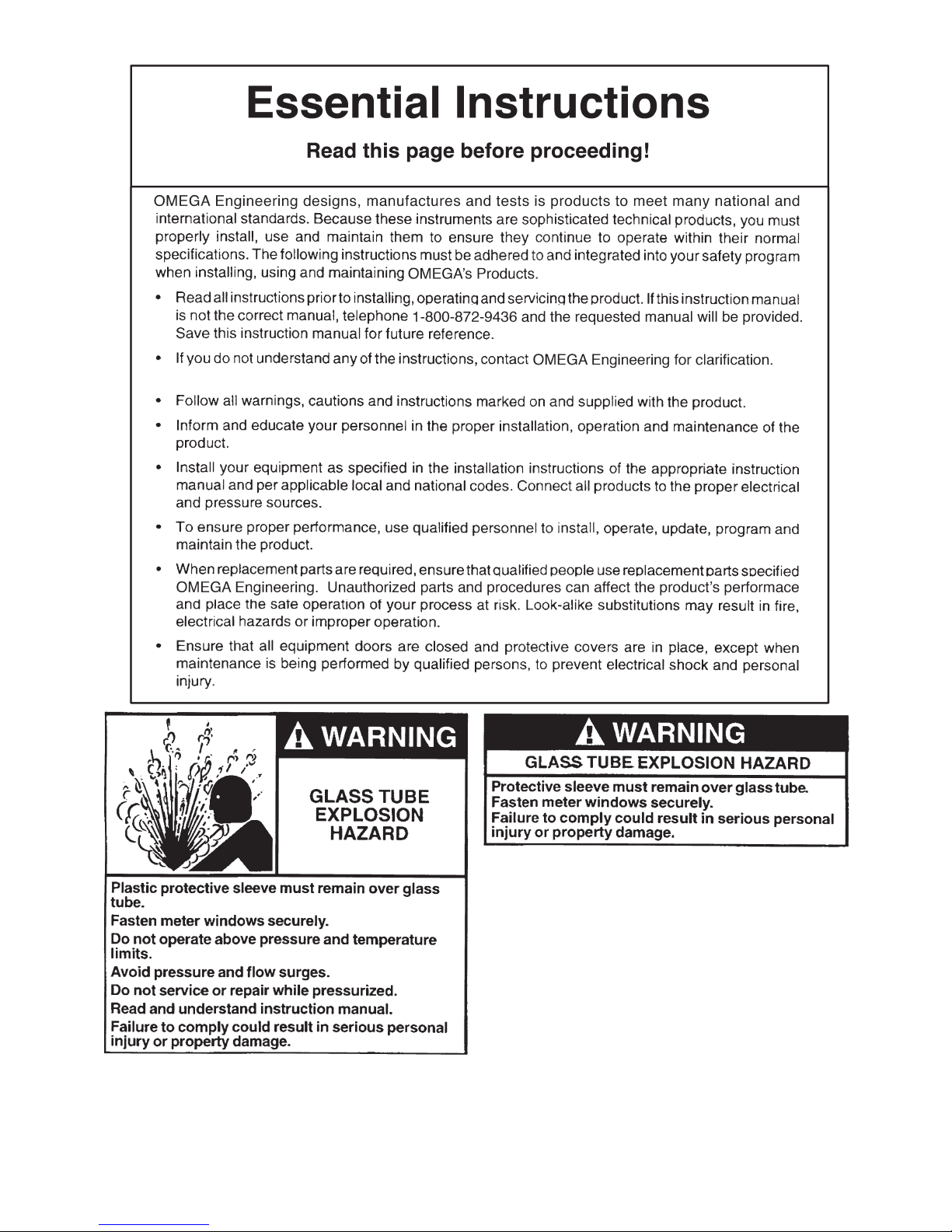

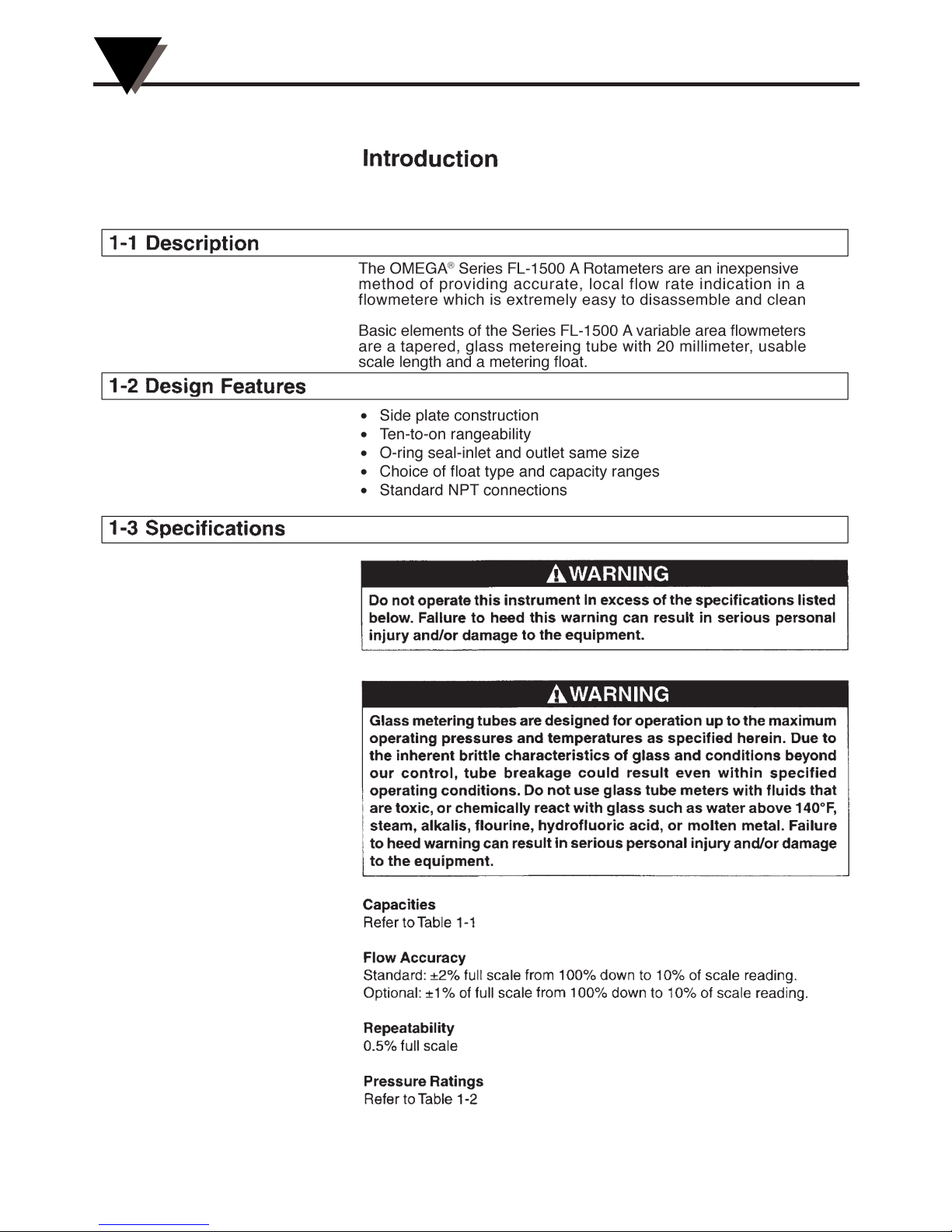

Description . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Design Features . . . . . . . . . . . . . . . . . . . . .1-1

Specifications . . . . . . . . . . . . . . . . . . . . . . . .1-1

Discription of Equipment . . . . . . . . . . . . . . .1-2

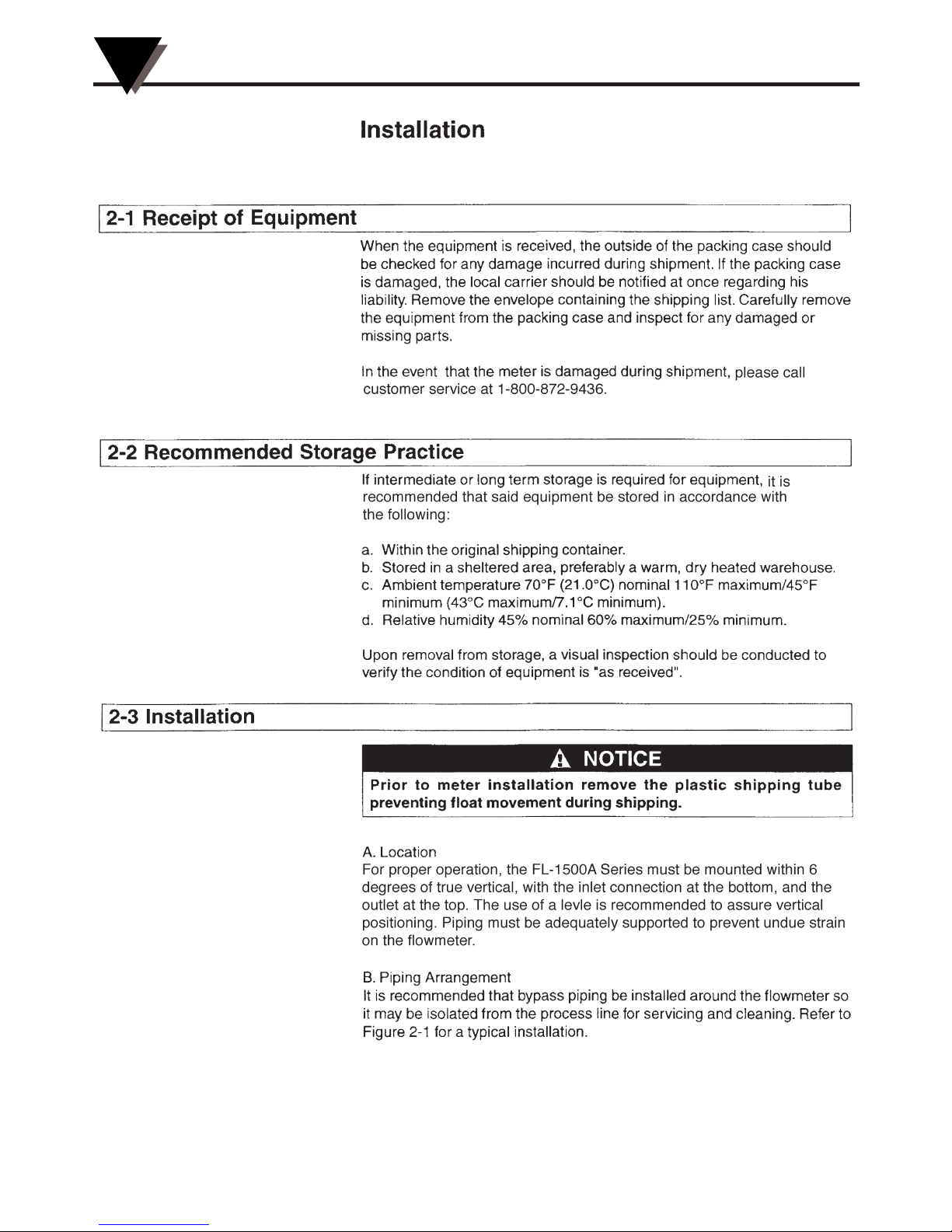

Receipt of Equipment . . . . . . . . . . . . . . . . .2-1

Recommended Storage Practice . . . . . . . . .2-1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Operating Instructions . . . . . . . . . . . . . . . . .3-1

General . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

1-1 Float Type . . . . . . . . . . . . . . . . . . . .1-4

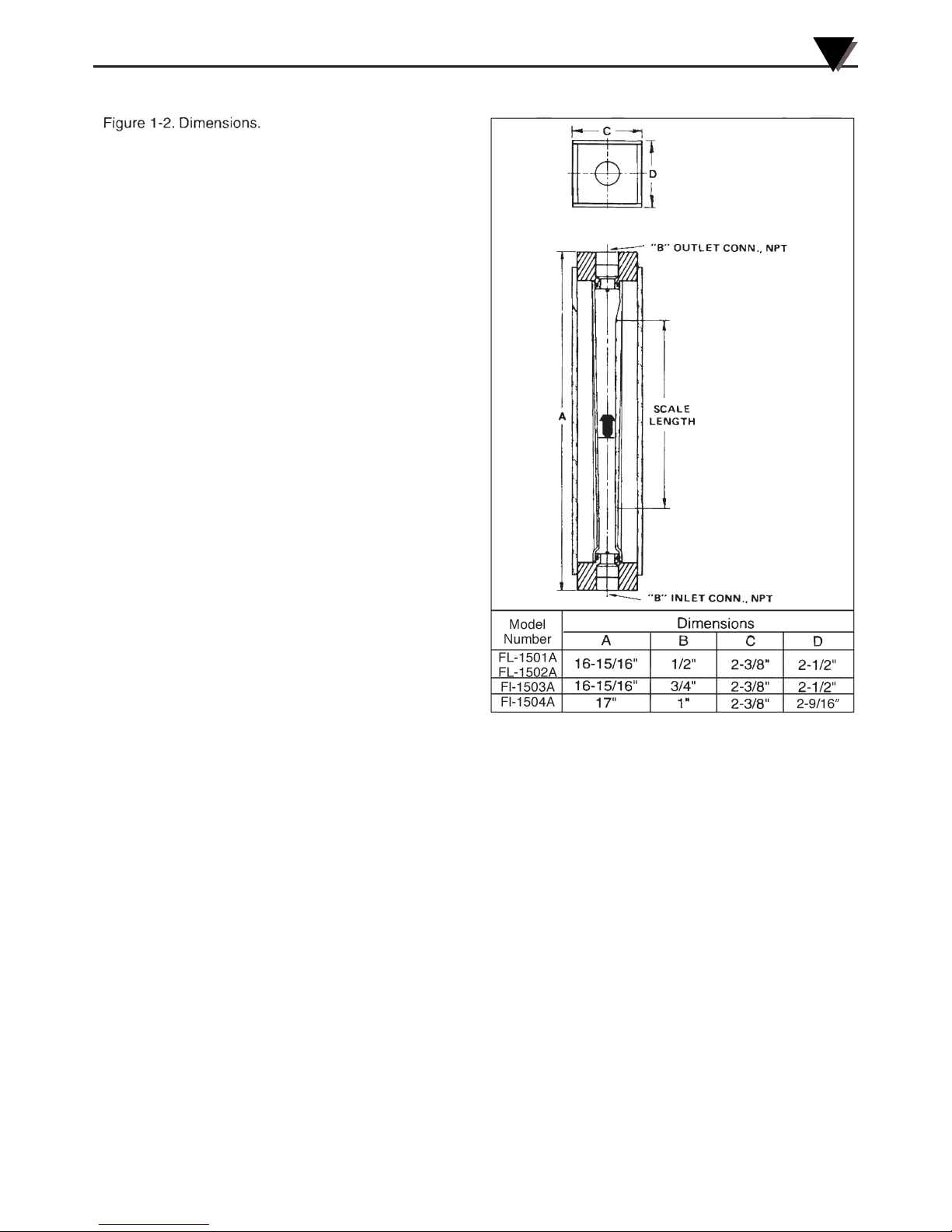

1-2 Dimensions . . . . . . . . . . . . . . . . . .1-4

2-1 Typical Bypass Installation . . . . . . .2-2

2-2 Panel Cutouts . . . . . . . . . . . . . . . . .2-3

3-1 Reading Edge of Float . . . . . . . . . .3-2

3-2 Typical Bypass Installation . . . . . . .3-2

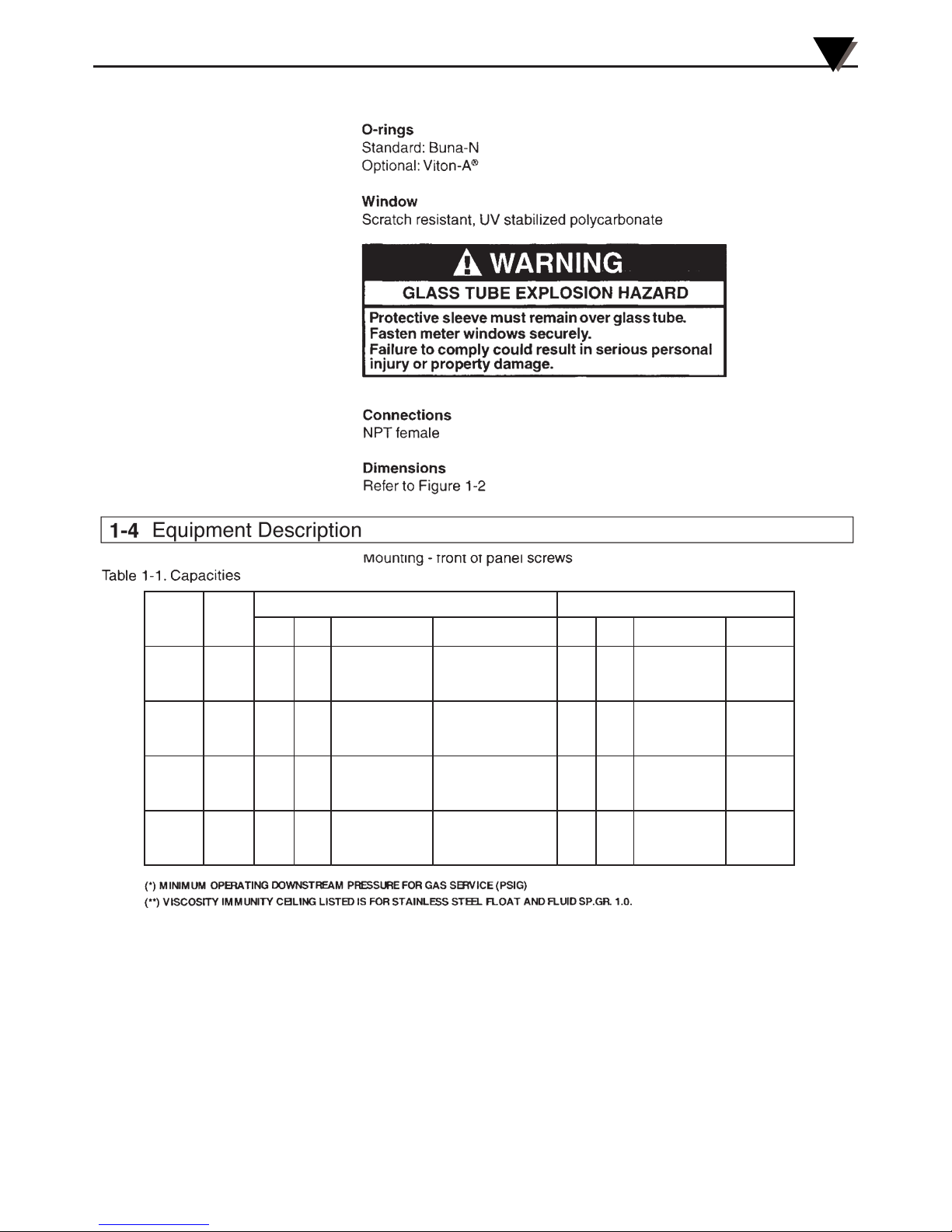

1-1 Capacities . . . . . . . . . . . . . . . . . . .1-3

1-2 Pressure Ratings . . . . . . . . . . . . . .1-3

1-1

Introduction

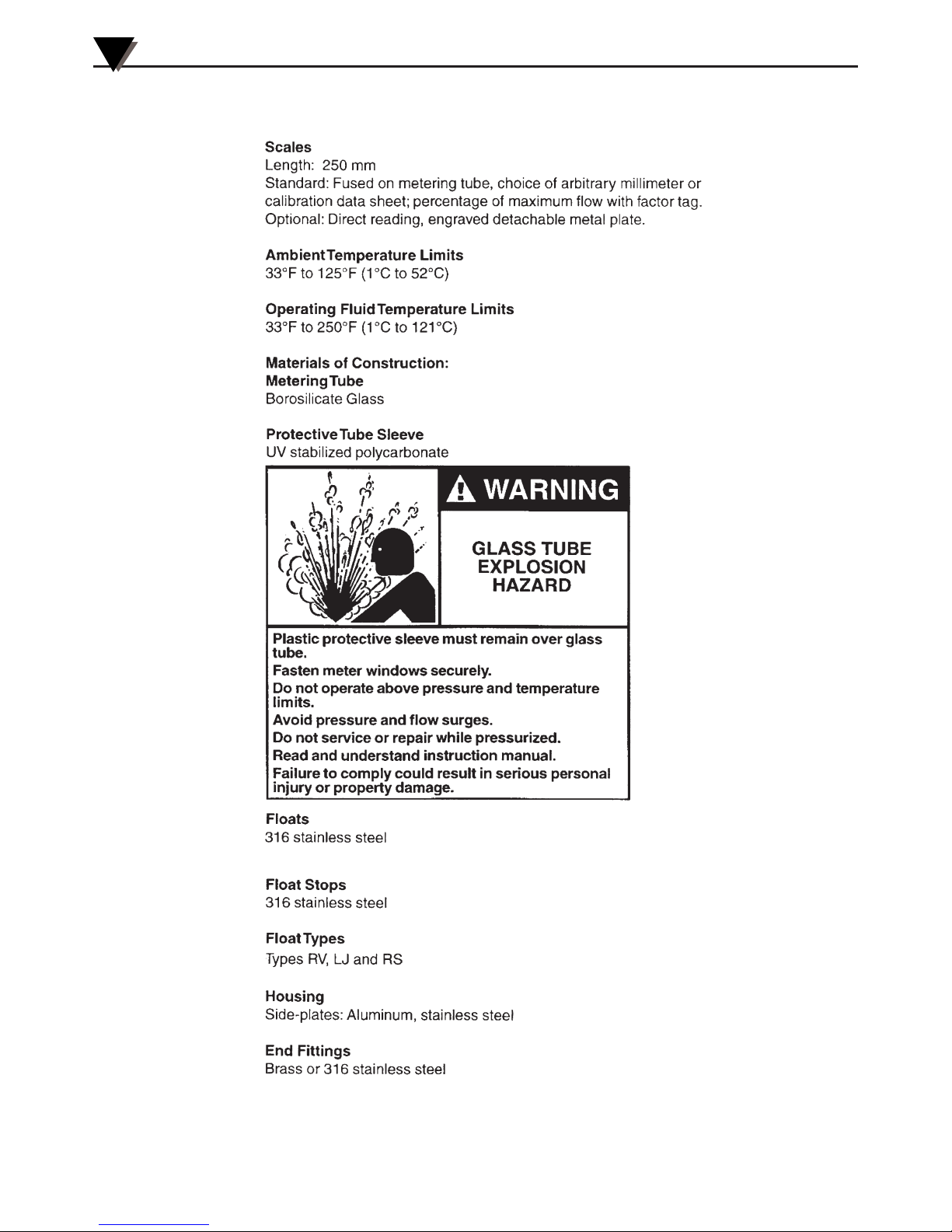

1-2

Introduction 1

1-3

MODEL

NUMBER FLOAT GPM LPM

PRESSURE DROP

INCHES W.C.

VISCOSITY IMMUNITY

CEILING, CS(**)

SCFM SLPM

PRESURE DROP

INCHES W.C.

PSI

CRITICAL (*)

FL-1501A 8-RV-3 0.78 2.95 4.0 2.0 3.17 89.80 4.0 0

FL-1502A 8-RV-14 1.45 5.49 12.0 5.4 5.88 165.5 14.0 0

FL-1503A 9-RV-33 2.53 9.58 6.0 11.0 10.45 295.9 7.0 0

FL-1504A 10-RV-64 6.28 23.77 11.0 15.0 25.76 729.5 13.0 0

WATER AIR @ 14.7 PSIA and 21°C (70°F)

1-4

Model Maximum Working Max

Number Pressure (psig) Temp.

Gas

Service

FL-1501A, FL-1502A 300

FL-1503A 175

FL-1504A 100

121°C

(250°F)

Introduction 1

1-5

2-1

Installation
