Product Overview

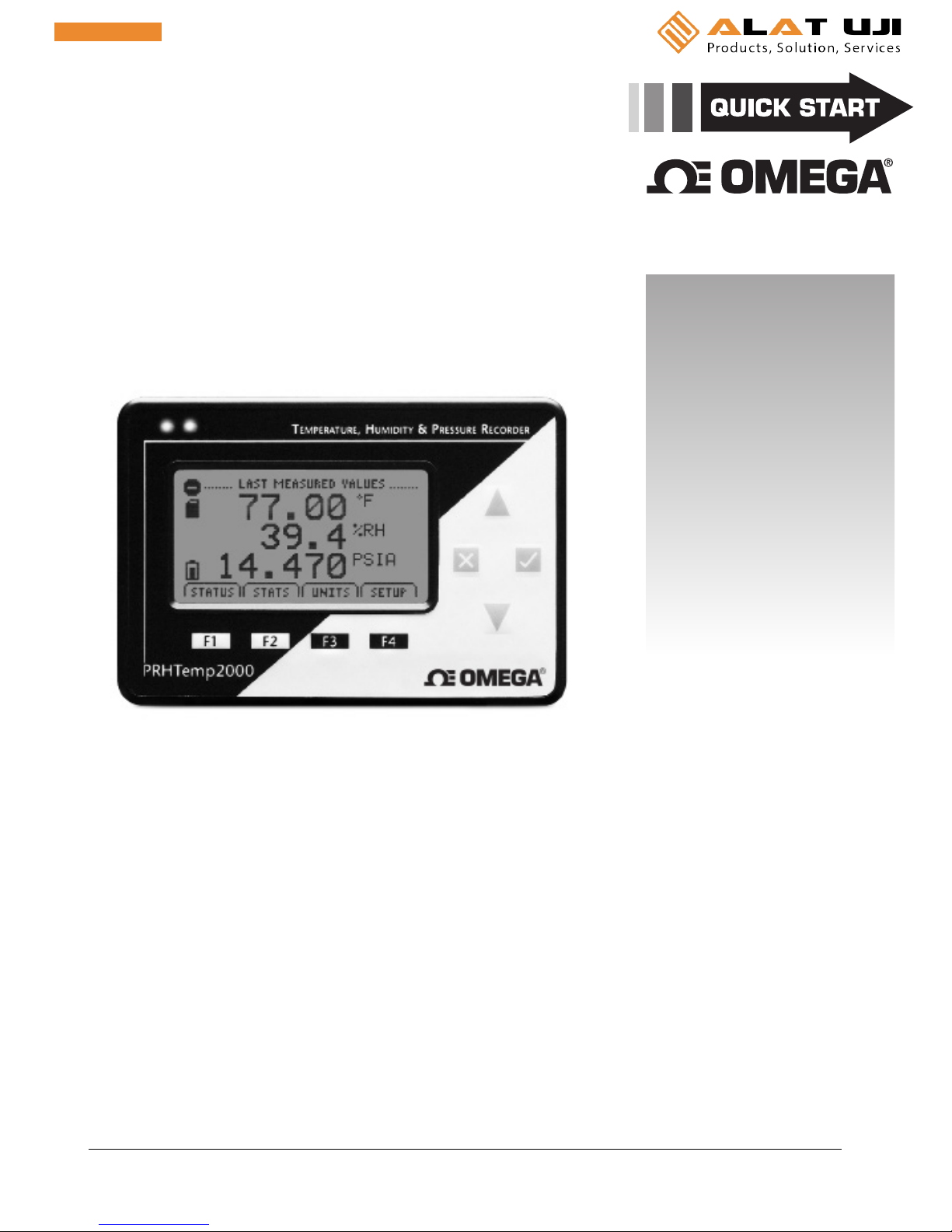

The OM-CP-PRHTEMP2000 is a pressure, temperature and humidity data logger with LCD display. The conve-

nient LCD provides access to the current pressure, temperature and humidity readings, as well as minimum,

maximum and average statistics. For additional information refer to your OM-CP-PRHTEMP2000 manual and

“Data Logger & Software Operating Manual”.

Backlight

The backlight uses a signiﬁcant amount of battery life. Refer to the manual to conﬁgure the auto shut-off when

not in use.

Submergibility

The OM-CP-PRHTEMP2000 is rated IP65, which means it is dust tight and can withstand water jets.

Set Password

To password protect the device so that others cannot start, stop or reset the device:

- In the Connected Devices panel, click the device desired.

- On the Device Tab, in the Information Group, click Properties. Or, right-click the device and select Properties

in the context menu.

- On the General Tab, click Set Password.

- Enter and conﬁrm the password in the box that appears, then select OK.

OM-CP-PRHTEMP2000

Installation Guide

Installing the Interface cable

- OM-CP-IFC200

Insert the device into a USB port. The drivers will install automatically.

Installing the software

Insert the Omega Software Flash Drive in an open USB port. If the autorun does not appear, locate the drive

on the computer and double click on Autorun.exe. Follow the instructions provided in the Installation Wizard.

Device Operation

Connecting and Starting the data logger

1. Once the software is installed and running, plug the interface cable into the data logger.

2. Connect the USB end of the interface cable into an open USB port on the computer.

3. The device will appear in the Connected Devices list, highlight the desired data logger.

4. For most applications, select “Custom Start” from the menu bar and choose the desired start method,

reading rate and other parameters appropriate for the data logging application and click “Start”. (“Quick

Start” applies the most recent custom start options, “Batch Start” is used for managing multiple loggers

at once, “Real Time Start” stores the dataset as it records while connected to the logger.)

5. The status of the device will change to “Running”, “Waiting to Start” or “Waiting to Manual Start”,

depending upon your start method.

6. Disconnect the data logger from the interface cable and place it in the environment to measure.

Note: The device will stop recording data when the end of memory is reached or the device is stopped. At this

point the device cannot be restarted until it has been re-armed by the computer.

Downloading data from a data logger

1. Highlight the data logger in the Connected Devices list. Click “Stop” on the menu bar.

2. Once the data logger is stopped, with the logger highlighted, click “Download”. You will be prompted

to name your report.

3. Downloading will ofﬂoad and save all the recorded data to the PC.

Quick Start Manual

Product Maintenance

Battery Replacement

Materials: 9/64” HEX Driver (Allen Key) and a Replacement Batteries (6 AA)

1. Remove the back cover from the device by unscrewing the four screws.

2. Remove the batteries from the compartment.

3. Insert the new batteries as indicated by the diagram on the battery holder.

4. Replace the cover taking care not to pinch the wires. Screw the enclosure back together.

Note: Be sure not to over tighten the screws or strip the threads.

Recalibration

The OM-CP-PRHTEMP2000 standard calibration is one point at 25 °C, two points at 25 %RH and 75 %RH and

two points at 14.7 PSI and 30 PSI. a reminder is automatically displayed in the software when the device is

due.

OM-CP-PRHTEMP 2000

Temperature Sensor Semiconductor (strain guage)

Temperature Range –20 °C to +60 °C (-4 °F to +140 °F)

Pressure Resolution 0.1°C (0.18°F)

Calibrated Accuracy +0.5 °C/+0.9 °F (0 °C to 50 °C/32 °F to 122 °F)

Pressure Sensor Semiconductor

Pressure Range 0 to 30 PSIA

Pressure Resolution 0.002PSIA

Calibrated Accuracy +1.0%FSR; 0.25% at 25 °C

Humidity Sensor Internal Semiconductor

Humidity Range 0%RH to 95%RH

Humidity Resolution 0.1%RH

Calibrated Accuracy +3%RH (2%RH @ 25 °C Typical)

Memory 87,381/channel

Reading Rate 1 reading every 2 seconds up to 1 reading every 24 hours

Required Interface Package IFC200

Baud Rate 115,200

Typical Battery Life 1 year with display off, 30 days with continuous LCD

and no backlight

Operating Environment -20°C to 60°C (-4°F to 140°F), 0%RH to 95%RH (non-condensing)

Material Black anodized aluminum

Dimensions 4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm)

Weight 16oz (440g)

Approvals CE

OM-CP-PRHTEMP2000 General Speciﬁcations

Quick Start Manual
