Omega ECHO TOUCH Guía de inicio rápido

Table

Contents -

:~~~t,~

"",,$, "

Installing &Programming

The

ECHO

System 3

Overview

The

Controller 4

The

ECHO-TOUCH

Status Screen 5

Using The

ECHO-TOUCH

Controller 6

First time use &controller setup 6

Language selection 6

Controlling

your

system 7

Mutli-Car Operation &Vehicle Profiles 12

Multi-car operation 12

Programming the vehicle

name

Selecting car1

car2 13

Selecting the vehicle image 13

Programming

The

Controller Options 14

Selecting button beep, melody, &vibrate modes 14

Clock &time options

overview

Setting the time &date 15

Setting the time format (12

24 Hour) 16

Setting the alarm clock 16

Demo mode 17

LCD screen display options

overview

Setting the screen on time 18

Setting the screen brightness 18

Other Controller Functions 18

Viewing the alarm trigger history 18

Power

off mode 19

•Parking timer &remote start timer. 19

The ECHO-TOUCH communicates with awindow-mounted base unit which

is plugged directly into the host security system module. The window-mount

antenna should

mounted directly to the interior glass by utilizing the attached

adhesive pad (clean the glass before adhering) for the best performance. The

receiver/transmitter also contains alternative Status Lights and aValet Switch.

these may

used, or the original items may

retained.

NOTE: It

recommended

fully

charge the

controller

before use.

•

Host

Omega

Security

System Control

Module

--~

Step 2Plug

and route the Echo

transmitter/receiver unit wiring harness.

Using the adhesive tape, mount the Echo

transmitter/receiver onto an interior glass

(carefully clean the surface).

(configurations vary)

Step 1 \ Echo Base

Locate &Transmitter/

Remove the \Receiver Unit

security system's \

Echo port

jumper

connector (it has a \

Red wire loop). \

\\\\

{!JJ\

Step 3Program the Echo controller and the

original 1-way transmitters into the security system

(see the system's guide for instructions).

Overview Of The Controller

Antenna: Sends commands to the

system and receives confirmations for

2-way functions,

2) Touch Screen LCD: Displays all

controller function buttons as well as the

status

your system.

Home Button: This wakes up the

controller when the screen is off and

returns you back to the status screen.

4) Charger Port: This

where you plug

the charger to recharge the control-

ler's battery.

Keychain Loop: Use this loop to

attach the controller to your keychain.

·The ECHO·TOUCH Status Screen

Alarm

Trigger

Indicator

In Range

Indicator

Current System State

Vehicle Image

(Selectable)

Lock/Unlock

Indicator_

Vibration Mode Indicato

MelodyNoice

Indicator

Battery Level

Indicator*

Clock/Timer

Vehicle Name

(Programmable)

Alarm

Clock

icon

CH2/CH3

Indicator

Remote Start ON/OFF

Indicator

*The

controller

powered

built-in

rechargeable battery. When the battery

level

indicator

shows

low

battery,

plug

the

supplied

USB cable

into

the

control-

ler, then

connect

the

othe

end

the

supplied

AC adapter

your

computer's

USB

port. While charging, the

indicator

will

increment

from

empty

full. When fUll, the

indicator

will

show

plug

icon.

Using The ECHO·TOUCH

Controller

:'>

FIRST TIME USE &CONTROLLER SETUP

Before the controller will function properly, it must be matched to the type of

system you have. The ECHO-TOUCH is compatible with many different sys-

tems so please follow these steps to configure it for yours:

1) Press the HOME button to turn on the controller.

2) Tap the screen to see the control icons

3) Press the UP

ARROW

once until you see SCREEN

6(pictured to the right).

4) Press the SYSTEM TYPE button

Select one of the following options:

Alarm

System

Only: Use this setting for systems with-

out abuilt-in remote start option.

GEN 1

Remote

Start: Use this setting if you press

LOCK+UNLOCK to activate your remote starter.

GEN 2

Remote

Start: Use this setting ifyou press the

"III"

button or asingle dedicated "START" button to

activate your remote starter.

6) Press the "FOLDER" button to save the setting.

LANGUAGE

SELECTION

Go to SCREEN 6and choose: American flag =ENGLISH

•Spanish flag =SPANISH

SCREEN 6

Using The ECHO-TOUCH

Controller

(cont'd)

CONTROLLING

YOUR

SYSTEM

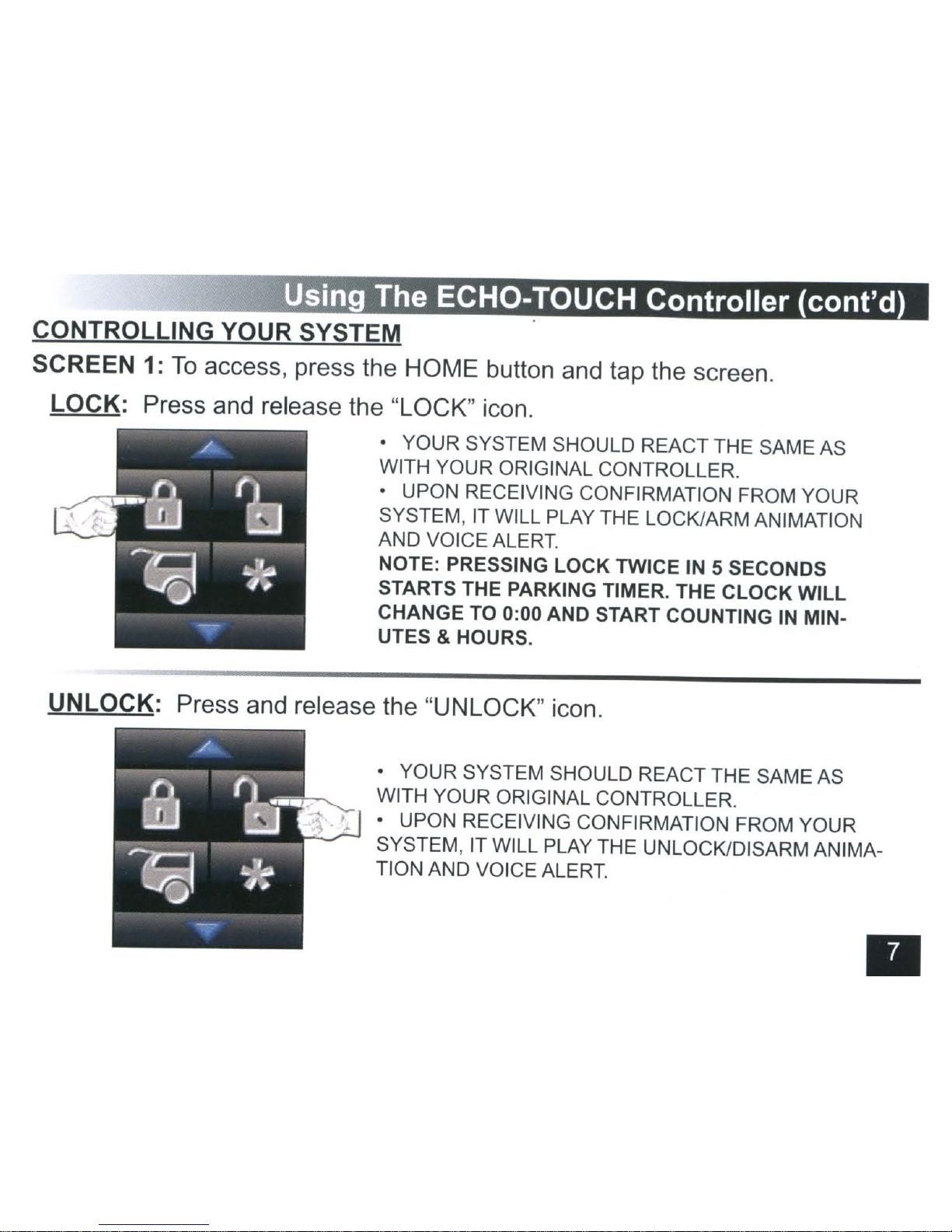

SCREEN 1:

access, press the HOME button and tap the screen.

LOCK:

Press and release the "LOCK" icon.

•YOUR SYSTEM SHOULD REACT THE SAME AS

WITH YOUR ORIGINAL CONTROLLER.

•UPON RECEIVING CONFIRMATION FROM YOUR

SYSTEM, IT WILL PLAY THE LOCK/ARM ANIMATION

AND VOICE ALERT.

NOTE: PRESSING

LOCK

TWICE IN 5SECONDS

STARTS THE PARKING TIMER. THE

CLOCK

WILL

CHANGE TO 0:00 AND START COUNTING

MIN-

UTES &HOURS.

UNLOCK:

Press and release the "UNLOCK" icon.

•YOUR SYSTEM SHOULD REACT THE SAME AS

WITH YOUR ORIGINAL CONTROLLER.

•UPON RECEIVING CONFIRMATION FROM YOUR

SYSTEM, IT WILL PLAY THE UNLOCK/DISARM ANIMA-

TION AND VOICE ALERT.

Using The ECHO-TOUCH Controller (cont'd)

TRUNK RELEASE /CHANNEL

Press the and hold the ''TRUNK'' icon for 3

seconds.

•YOUR SYSTEM SHOULD REACT THE SAME AS

WITH YOUR ORIGINAL CONTROLLER.

•UPON RECEIVING CONFIRMATION FROM YOUR

SYSTEM, IT WILL PLAY THE

TRUNK

RELEASE ANIMA-

TION AND VOICE ALERT

START (GEN 1/GEN 2REMOTE START}: Press and release the

u*"

icon us-

ing the same method as with the original controller (i.e., 1or 2presses, etc).

•YOUR SYSTEM SHOULD REACT THE SAME AS

WITH YOUR ORIGINAL CONTROLLER.

•UPON RECEIVING CONFIRMATION FROM YOUR

SYSTEM, IT WILL PLAY THE REMOTE START ANIMA-

TION, AND PLAY THE REMOTE START ON/OFF VOICE

ALERT.

•THE CLOCK WILL CHANGE TO 0:00 TO STARTTHE

REMOTE START TIMER. IT WILL TIME

HOW

LONG

THE ENGINE RUNS

MINUTES &HOURS.

Using The ECHO-TOUCH Controller (cont'd)

CHANNEL 3(ALARM ONLY}: Press and release

the"

icon using the same

method as with the original controller (i.e., 1or 2presses, etc).

•YOUR SYSTEM SHOULD REACT THE SAME AS

WITH YOUR ORIGINAL CONTROLLER.

•UPON RECEIVING CONFIRMATION FROM YOUR

SYSTEM, IT WILL PLAY THE CHANNEL 3ANIMATION

AND VOICE ALERT.

SCREEN 2:

access, press the HOME button, tap the screen, press the down

arrow once.

CHANNEL 3(GEN 1/GEN 2REM START}: Press and release the "CH3" icon

using the same method as with the original controller (i.e., 1or 2presses, etc).

•YOUR SYSTEM SHOULD REACT THE SAME AS

WITH YOUR ORIGINAL CONTROLLER.

•UPON RECEIVING CONFIRMATION FROM YOUR

SYSTEM, IT WILL PLAY THE CHANNEL 3ANIMATION

AND VOICE ALERT.

Using The ECHO-TOUCH

Controller

(cont'd)

CHANNEL 4(IF EQUIPPED): Press and release the "CH4" icon using the

same method as with your original controller (i.e., 1or 2presses, etc).

•YOUR SYSTEM SHOULD REACT THE SAME

WITH YOUR ORIGINAL CONTROLLER.

----.,,-.. NOTE: THE

"CH3"

ICON WILL NOT BE VISIBLE

WHEN THE CONTROLLER IS SET FOR

"ALARM

ONLY" UNDER THE "SYSTEM TYPE" SETTING.

CHANNEL 5(IF EQUIPPED): Press and release the "CH5" icon using the

same method as with your original controller (i.e., 1or 2presses, etc).

•YOUR SYSTEM SHOULD REACT THE SAME

WITH YOUR ORIGINAL CONTROLLER.

NOTE: THE

"CH3"

ICON WILL NOT BE VISIBLE

WHEN THE CONTROLLER

SET FOR

"ALARM

ONLY" UNDER THE "SYSTEM TYPE" SETTING.
