Omega Engineering OMEGASCOPE OS523E Manual de usuario

OS530LE, OS532E, OS53xE-CF,

OS533E, OS534E, OS530HRE,

OS523E, OS524E OMEGASCOPE

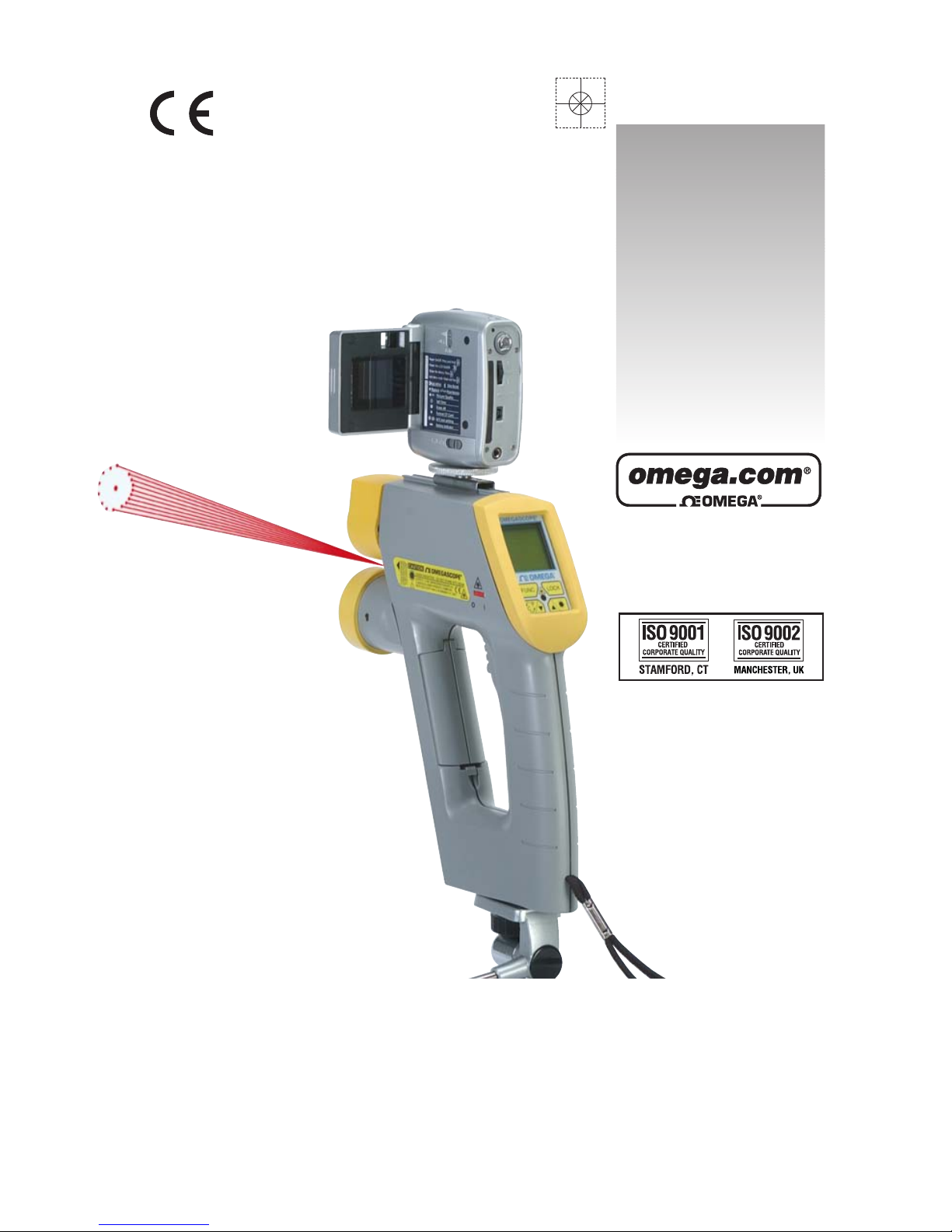

Handheld Infrared Thermometer

Shown with

Built-in Distance

Measuring Option

and Digital Video

Camera Attachment

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

User’s Guide

Shop online at

Servicing North America:

U.S.A.: One Omega Drive, Box 4047

ISO 9001 Certified Stamford, CT 06907-0047

Tel: (203) 359-1660

FAX: (203) 359-7700

e-mail: [email protected]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada

Tel: (514) 856-6928

FAX: (514) 856-6886

e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA®

Customer Service: 1-800-622-2378/1-800-622-BEST®

Engineering Service: 1-800-872-9436/1-800-USA-WHEN®

Mexico: En Espan˜ol: (001) 203-359-7803

e-mail: [email protected]

FAX: (001) 203-359-7807

[email protected]

Servicing Europe:

Czech Republic: Frystatska 184, 733 01 Karvina´, Czech Republic

Tel: +420 (0)59 6311899

FAX: +420 (0)59 6311114

Toll Free: 0800-1-66342

e-mail: [email protected]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

Tel: +49 (0)7056 9398-0

FAX: +49 (0)7056 9398-29

Toll Free in Germany: 0800 639 7678

e-mail: [email protected]

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

M44 5BD United Kingdom

Tel: +44 (0)161 777 6611

FAX: +44 (0)161 777 6622

Toll Free in United Kingdom: 0800-488-488

e-mail: [email protected]

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI

regulations that apply. OMEGA is constantly pursuing certification of its products to the European New

Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any

errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, human applications.

Unpacking Instructions

Notes

Unpacking Instructions

Remove the Packing List and verify that you have received all

equipment, including the following (quantities in parentheses):

• OS530/OS520 Series Handheld Infrared Thermometer (1)

• AA Size Lithium Batteries (4)

• Soft Cover Carrying Case (1)

• Analog Cable (1)

• RS232 Cable (only for OS533E, OS534E, OS523E, OS524E)

• CD Software (only for OS533E, OS534E, OS523E, OS524E)

• Quick Start Manual (1)

Accessories

If you have any questions about the shipment, please call Customer

Service at:

1-800-622-2378 or 203-359-1660. We can also be reached on the

Internet at:

omega.com

e-mail: [email protected]

When you receive the shipment, inspect the container and equipment

for signs of damage. Note any evidence of rough handling in transit.

Immediately report any damage to the shipping agent.

The carrier will not honor damage claims unless all shipping

material is saved for inspection. After examining and removing

contents, save packing material and carton in the event

reshipment is necessary.

Model No. Description

UNI-ADAP-9V 100-240 Vac adapter, 9 Vdc @1.7A

OS520-RCC Hard Carrying Case, Standard

OS520-SC-RCC Hard Carrying Case, Large

88013K Surface Probe, K Type T/C, up to 815°C (1500°F)

88001K Surface Probe, K Type T/C, up to 482°C (900°F)

CAL-3-IR NIST Traceable Calibration

SC-520 Sighting Scope

HH-DM Distance Measuring Meter

DV-CAM Digital/Video Camera

NOTE

TABLE OF

CONTENTS

Page

Unpacking Instructions i

Chapter 1 General Description 1-1

1.1 Introduction 1-1

1.2 Parts of the Thermometer 1-5

1.2.1 Front of the Thermometer 1-5

1.2.2 Rear of the Thermometer 1-7

Chapter 2 Using the Handheld Infrared Thermometer 2-1

2.1 How to Power the Thermometer 2-1

2.1.1 Battery Operation 2-1

2.1.2 AC Power Operation 2-1

2.2 Operating the Thermometer 2-2

2.2.1 Measurement Techniques 2-6

2.3 Real Time Mode (Active Operation) 2-8

2.3.1 Adjusting Emissivity 2-11

2.3.2 Using the LOCK Function 2-11

2.3.3 Using the Trigger Function 2-11

2.3.4 Using the Distance Function 2-12

2.3.5 Laser Sighting Status 2-15

2.3.6 Calculating Temperature Values 2-15

2.3.7 Changing the Temperature from °F to °C (or vice versa) 2-16

2.3.8 Turning on the Display Backlighting 2-16

2.3.9 Thermocouple Input (OS532E, OS533E, OS534E) 2-16

2.3.10 Using the Alarm Functions 2-17

2.3.11 Using Ambient Target Temperature Compensation 2-19

(OS533E, OS534E, OS523E, OS524E)

2.3.12 PC Interface Software (OS533E, OS534E, OS523E, OS524E) 2-20

2.3.13 PC Interface Commands 2-25

2.3.14 Storing Temperature Data on Command 2-27

(OS533E, OS534E, OS523E, OS524E)

2.3.15 Logging Temperature Data in Real Time 2-28

(OS533E, OS534E, OS523E, OS524E)

2.3.16 Erasing the Temperature Data from Memory 2-29

2.4 Recall Mode (Passive Operation) 2-30

2.4.1 Reviewing the Last Parameters 2-32

2.4.2 Reviewing Previously Stored Temperature Data 2-32

(OS534E, OS523E, OS524E)

Chapter 3 Laser Sighting 3-1

3.1 Warnings and Cautions 3-1

3.2 Description 3-2

3.3 Operating the Laser Sighting 3-3

3.4 Laser Sighting Status 3-3

Chapter 4 Sighting Scope 4-1

4.2 Installing and Operating the Sighting Scope 4-1

OS530E/OS520E Series

Handheld Infrared Thermometer

iii

Chapter 5 Digital Video Camera 5-1

5.1 Camera Parts 5-1

5.2 Battery Installation 5-1

5.3 Turning Camera ON/OFF 5-1

5.4 Menu Selection 5-1

Chapter 6 Maintenance 6-1

6.1 Replacing the Batteries 6-1

6.2 Cleaning the Lens 6-2

6.3 Calibrating the Thermometer 6-2

6.4 Servicing the Laser Sighting 6-2

Chapter 7 Troubleshooting Guide 7-1

Chapter 8 Specifications 8-1

Chapter 9 Glossary of Key Strokes 9-1

Appendix A How Infrared Thermometry Works A-1

Appendix B Emissivity Values B-1

Appendix C Determining an Unknown Emissivity C-1

Index I-1

TABLE OF

CONTENTS

1-1

General Description 1

1.1 Introduction

The OS530E/OS520E series Handheld Infrared (IR) Thermometers

provide non-contact temperature measurements up to 4500°F. They

offer effective solutions for many non-contact temperature

applications, including the following:

• Predictive Maintenance: Tracking temperature shifts which

indicate pending failure in solenoid valves.

• Energy Auditing: Locating wall insulation voids to reduce

building heating costs.

• Food Processing: Taking accurate temperature readings without

direct contact with the food or packaging material.

The IR thermometer provides information at a glance — the custom

backlit dual digital LCD displays both current and minimum,

maximum, average or differential temperatures. This versatile

instrument provides:

• Measurable target distances from 5 inches to approximately 100

feet

• Emissivity adjustable from 0.1 to 1.00 in 0.01 steps provides ease

of use when measuring a variety of surfaces.

• Built-in Laser sighting in Circle & Dot configurations.

• Thermocouple input available.

• Distance Measurement available, either field mountable or built-

in.

• Digital/Video Camera Option available

• An electronic trigger lock feature set via the keypad allows

continuous temperature measurement up to 10 times per second.

• Audible and visual alarms. The high and low alarm points

are set via the keypad.

• 1 mV per degree (°F or °C) analog output, which allows

interfacing with data acquisition equipment (including

chart recorders, dataloggers and computers). OS524E provides 0.5

mV/Deg.

• Last temperature recall (Hold).

• Backlit display useful in low ambient light conditions.

• Powers from 4 AA size batteries or an ac adapter.

• RS232 serial communication to a PC or printer. This allows

downloading data for further analysis.

• Ambient target temperature compensation. This provides more

accuracy for measuring low emissivity targets.

• Record up to 800 temperature data points. Review the recorded

data on the thermometer LCD, as well as downloading the data

to a PC.

General Description

1-2

The thermometer is easy to use:

• Units have standard “V” groove aiming sights.

• Integral tripod mount permits hands-free operation, if necessary.

• Temperature readings are switchable from °F to °C via the keypad.

• Parameters, such as target material emissivity and alarm setpoints, can

be set and remain in memory until reset.

This instrument has a rugged and functional design, including:

• Sealed keypad display.

• Convenient trigger operation.

• Soft carrying case and wrist strap, for safety and ease of carrying.

• Rubber boot around the lens and the display.

Table 1-1. OS530 Series Handheld Infrared Thermometer Features

Features

OS530LE OS532E OS533E OS534E

Accuracy* ±1% rdg ±1% rdg ±1% rdg ±1% rdg

Range -10 to 1000°F -10 to 1000°F -10 to 1000°F -10 to 1600°F

-23 to 538°C -23 to 538°C -23 to 538°C -23 to 871°C

Emissivity adjustable adjustable adjustable adjustable

Backlit Dual Display standard standard standard standard

Distance to Spot

Size Ratio 10:1 10:1 20:1 30:1

Differential Temperature standard standard standard standard

Min/Max Temperature standard standard standard standard

Average Temperature standard standard standard standard

High Alarm standard standard standard standard

Thermocouple Input — standard standard standard

Audible Alarm

& Indicator standard standard standard standard

Analog Output 1mV/deg 1mV/deg 1mV/deg 1mV/deg

Built-in Laser Sighting dot/circle dot/circle dot/circle dot/circle

Trigger Lock standard standard standard standard

Last Temperature Recall standard standard standard standard

Low Alarm — — standard standard

Ambient Target

Temperature — — standard standard

Compensation

RS232 Interface — — standard standard

Data Storage — — — standard

Distance Measurement Optional

Digital Camera Optional

1-3

General Description 1

Features

OS530HRE OS530LE-CF OS533E-CF OS534E-CF

Accuracy* 3°F (1.7 °C) ±1% rdg ±1% rdg ±1% rdg

Range -22 to 250°F -10 to 1000°F -10 to 1000°F -10 to 1600°F

-30 to 121°C -23 to 538°C -23 to 538°C -23 to 871°C

Emissivity Adjustable Adjustable Adjustable Adjustable

Display Resolution 0.1°For 0.1°C 1°F or 1°C 1°F or 1°C 1°F or 1°C

Backlit Dual std std std std

Display

Field of view 20:1 0.15"@6" 0.15"@6" 0.15"@6"

Differential

Temperature std std std std

Min/Max

Temperature std std std std

Average

Temperature std std std std

High Alarm std std std std

Low Alarm --- --- std std

Audible Buzzer

& Indicator

std std std std

Ambient Target

Temp --- --- std std

Compensation

Analog Output 1 mV/Deg 1 mV/Deg 1 mV/Deg 1 mV/Deg

RS232 Output --- --- std std

Data Storage --- --- --- std

Built-in Laser Dot/Circle Dot Dot Dot

sighting

Trigger Lockstd std std std std

Last Temperature

Recall std std std std

Thermocouple

Input --- --- std std

Distance Optional Not Recommended

Measurement

Digital Optional

Camera

* The temperature accuracy is 1% of Rdg or 2ºC (3ºF) whichever is greater.

Otros manuales para OMEGASCOPE OS523E

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termómetro de Omega Engineering

Omega Engineering

Omega Engineering OS1300 Series Manual de usuario

Omega Engineering

Omega Engineering Omegaette HH303 Manual de usuario

Omega Engineering

Omega Engineering CL3512A Manual de usuario

Omega Engineering

Omega Engineering HH502 Manual de usuario

Omega Engineering

Omega Engineering OS520 Manual de usuario

Omega Engineering

Omega Engineering PRTXB Series Manual de usuario

Omega Engineering

Omega Engineering OMEGAETTE HH306 Manual de usuario

Omega Engineering

Omega Engineering HH203A Manual de usuario

Omega Engineering

Omega Engineering 873C Manual de usuario

Omega Engineering

Omega Engineering HH82A Manual de usuario

Omega Engineering

Omega Engineering OSP 100 series Manual de usuario

Omega Engineering

Omega Engineering HH501BJ Manual de usuario

Omega Engineering

Omega Engineering OMEGASCOPE OS523E Manual de usuario

Omega Engineering

Omega Engineering DialtempTM A Manual de usuario

Omega Engineering

Omega Engineering HH2100 Series Manual de usuario

Omega Engineering

Omega Engineering HH806AW Manual de usuario

Omega Engineering

Omega Engineering OSXL650 Manual de usuario

Omega Engineering

Omega Engineering HH802U Manual de usuario

Omega Engineering

Omega Engineering DP95 Manual de usuario

Omega Engineering

Omega Engineering HH-21 Manual de usuario

Omega Engineering

Omega Engineering OMEGAETTE POCKET PP OS-PP Manual de usuario

Omega Engineering

Omega Engineering OMEGASCOPE OS523 Manual de usuario

Omega Engineering

Omega Engineering OS550 Series Manual de usuario

Omega Engineering

Omega Engineering HH-21A Manual de usuario

Manuales populares de Termómetro de otras marcas

Delton

Delton 981A Manual de usuario

Baker

Baker MM2P Manual de usuario

Tarmo

Tarmo 320281 Manual de usuario

Citizen

Citizen CTD 504 Manual de usuario

TFA

TFA 14.1500 Manual de usuario

Vive

Vive DMD1010 Manual de usuario

Gotemp

Gotemp THB4002 Manual de usuario

GREISINGER

GREISINGER G 1202 Manual de usuario

Amprobe

Amprobe TMD-53W Manual de usuario

Trotec

Trotec BP10 Manual de usuario

Radiance instruments

Radiance instruments RT616 Series Manual de usuario

Eurolec

Eurolec IR151 Manual de usuario

Scaneo

Scaneo TS42B Manual de usuario

Sper scientific

Sper scientific 800043 Manual de usuario

Microlife

Microlife NC 200 Manual de instrucciones

Motorola

Motorola MBP69SN Guía de configuración

The MeatStick

The MeatStick The MeatStick Manual de usuario

Hama

Hama TH35-A Manual de usuario
