User's Guide

http://www.omega.com

e-mail: [email protected]

CIO-RELAY08

CIO-RELAY16

CIO-RELAY24

CIO-RELAY32

For Your Notes

6.2 MERCURY WETTED (/M) VERSIONS ............... 12

6.1 CIO-RELAY08, 16, 24 and 32 (standard versions) ...... 12

6 SPECIFICATIONS ...............................

5.3 FORM A RELAYS (/M versions) .................... 11

5.2 FORM C RELAYS (standard versions) ............... 9

5.1 I/O CONNECTOR DIAGRAMS ...................... 9

5 CONNECTING TO RELAYS ........................

4.3 DETAILED RELAY CONTROL I/O MAP .............. 7

4.2 PROGRAMMING NOTES .......................... 6

4.1 DIRECT I/O REGISTER PROGRAMMING ............. 6

4 PROGRAMMING .................................

3.3 WAIT STATE .................................... 4

3.2 BASE ADDRESS ................................. 4

3.1 Mercury whetted (/M) board special considerations ....... 4

3 HARDWARE INSTALLATION ......................

2.2 Run InstaCalTM ................................. 2

2.1 Install the InstaCalTM software ..................... 2

2 QUICK START ......................................

1.1 ACCESSORIES .................................. 1

Table of Contents

1 INTRODUCTION .................................

1 INTRODUCTION

The CIO-RELAY16 is a 16 channel relay interface board for ISA bus computers. The

board provides 16 Form C (SPDT) relays. The CIO-RELAY08 board is designed for

applications that require fewer relays and is identical to the RELAY16 board except

that only 8 relays are installed. The CIO-RELAY32 is two CIO-RELAY16s on a sin-

gle board while the CIO-RELAY24 is are CIO-RELAY32 with eight of the relays not

installed.

The /M versions (e.g. CIO-RELAY16/M and CIO-RELAY08/M) are identical to the

standard versions, but use Mercury wetted relays and offer quicker switch times, less

contact bounce and lower on-resistance than the standard models.

The CIO-RELAY16 family has been designed for control applications where a few

points of high voltage (or current) need to be controlled.

WARNING!

High voltages will be present on the CIO-RELAY16 family boards

when high voltage is connected to the CIO-RELAY16 connector.

Use extreme caution! Never handle the CIO-RELAY16 when sig-

nals are connected to the board through the connector.

DO NOT REMOVE THE PROTECTIVE PLATES FROM THE

CIO-RELAY16!

1.1 ACCESSORIES

The CIO-RELAY16 family are digital I/O boards with relay based signal conditioning

installed. Most accessory boards are intended to provide signal conditioning or easy

to access signal termination. In general, the CIO-RELAY16 will not require addi-

tional signal conditioning.

We recommend that under no circumstance should a screw terminal board be used to

connect high voltages to the CIO-RELAY16 series board. The CIO-RELAY16 is

intended to control high voltages. If you use a screw terminal board you will expose

yourself and others to those high voltage signals.

We recommend that you construct a safe cable to carry your signals directly from your

equipment to the CIO-RELAY16 connector.

For Your Notes

6.2 MERCURY WETTED (/M) VERSIONS

POWER CONSUMPTION

CIO-RELAY 510 mA + (22 mA per activated relay max)

GENERAL SPECIFICATIONS

Number 8 / 16

Contact arrangement Form A (SPST)

Contact rating 50 Watts @ 1Amp or

500VDC resistive

Contact type Mercury wetted

Contact resistance 50 milliohms max.

Operate time 2 milliseconds

Release time 2 milliseconds max.

Dielectric isolation 500V (1 minute)

Life Expectancy 107Operations (Full Load)

ENVIRONMENTAL

Operating temperature 0 to 70 °C

Storage temperature -40 to 100 °C

Humidity 0 to 90% non-condensing

Weight 8 oz.

2 QUICK START

The installation and operation of all four CIO-RELAY series boards is very similar.

Throughout this manual we use CIO-RELAY as a generic designation for the CIO-

RELAY08, CIO-RELAY16, CIO-RELAY24 and CIO-RELAY32. When required due

to the differences in the boards, the specific board name is used.

The CIO-RELAY boards are easy to use. This quick start procedure will help you

quickly and easily setup, install and test your board. We assume you already know

how to open the PC and install expansion boards. If you are unfamiliar or uncomfort-

able with board installation, please refer to your computer’s documentation.

We recommend you perform the software installation described in

the following sections prior to installing the board in your com-

puter. The InstaCalTM operations below will show you how to prop-

erly set the switches and jumpers on the board prior to physically

installing the board in your computer.

2.1 Install the InstaCalTM software

Windows 95, 98 and NT users install InstaCAL by running the SETUP.EXE program

included on your InstaCAL floppies or CD.

Windows 3.x and DOS users install the program by running the INSTALL.EXE pro-

gram supplied on your InstaCAL disk.

These installation routines will create all required folders/directories and unpack the

various pieces of compressed software. Simply run install and follow the on-screen

instructions. Remember where the installed files are placed, as you will need to access

them in the next step (the default location is on your main hard drive in a directory or

folder named C:\CB\).

2.2 Run InstaCalTM

To run InstaCalTM in the various forms of Windows, find the file named InstaCal.exe

using your file management system and double click your mouse on it. In DOS simply

type instacal and press the Enter key.

Once running, InstaCalTM provides four sub-menus (plus exit).

1. Select Install (either highlight it and hit enter of double click your

mouse on it).

2. Select Board #0 (select another number if Board #0 is already installed)

3. Select Board Type

4. Move through the selections and highlight the particular board you

are installing (e.g. CIO-RELAY08 or CIO-RELAY16/M).

Either double click on the board or hit enter.

5. The board’s default settings are then displayed. The board’s defaults are:

BASE ADDRESS: 300H (768 Decimal)

WAIT STATE OFF

6. You are now ready to install the board in your computer. Open your PC (after

turning off the power) and install the board. After the board is installed and the

computer is closed up, turn the power back on.

7. Run InstaCalTM again, and at the main menu select Test.

a. Select the board you just installed

b. Select Internal Test

c. The internal control registers of the board will then be tested. If this test

is successful, your board is installed correctly. If not, you likely have

a base address conflict, or have the base address switch set incorrectly.

Please refer to the next chapter for more information regarding selecting

and setting the base address.

d. If the Internal Test is completed successfully, you may want to check

that the I/O pins are working correctly. To check this select

External Test and follow the instruction provided. This will

require the use of an ohmmeter.

6 SPECIFICATIONS

6.1 CIO-RELAY08, 16, 24 and 32 (standard versions)

POWER CONSUMPTION

+5V supply 510 mA typical plus 22 mA per active (on)

relay

GENERAL SPECIFICATIONS

Number 8, 16, 24, or 32

Contact arrangement Form C (SPDT)

Contact rating 3A @ 120V A.C or 28V D.C. resistive

Contact type Gold overlay silver

Contact resistance 100 milliohms max.

Operate time 20 milliseconds

Release time 10 milliseconds max.

Life expectancy 10 million mechanical operations min.

ENVIRONMENTAL

Vibration 10 to 55 Hz (Dual amplitude 1.5mm)

Shock 10G (11 milliseconds)

Dielectric isolation 500V (1 minute)

Life Expectancy 1 Million Operations Electrical

100,000 Operations @ Full Load

5.2 FORM C RELAYS (standard versions)

Shown here is the schematic for a form C relay as used on the standard CIO-

RELAY08, 16, 24 and 32.

The form C relay has a COMMON, normally open (NO) and normally closed (NC)

contact. When a 0 is written to the output, the common and NC are in contact. When a

1 is written to the output the common and NO are in contact.

5.3 FORM A RELAYS (/M versions)

Shown here is the schematic for a form A relay as used on mercury wetted (/M)

models.

The form A relay has COMMON and normally open (NO) connections. When a 0 is

written to the output, the common and NO are disconnected. When a 1 is written to

the output the common and NO are in contact.

NORMALLY OPEN

COMMON

FORM A RELAY

3 HARDWARE INSTALLATION

3.1 Mercury whetted (/M) board special considerations

The Mercury whetted boards must be mounted in the computer such that they will

remain within 30 degrees of vertical. Note that installation of these boards in most

tower computer cases will require the tower be rested on its side for proper operation.

3.2 BASE ADDRESS

The base address switch controls the I/O location where the CPU can access the regis-

ters of the CIO-RELAY board.

The factory default is 300H (768D).

If you have a board installed at address 300H, you will have to choose a new address

from those available on your computer. You may use the list of PC I/O address

assignments found on the following page and add notes about the boards you have

installed in your computer.

Choose a new base address from those available and set the switch using the guide

below. Please note that the switch shown below is for the CIO-RELAY08 and CIO-

RELAY16 boards. Since the CIO-RELAY32 and CIO-RELAY24 board require 4 I/O

address, their base address switch does not provide switch 2. All other settings are

identical.

If address 300H is available on your computer, we recommend that you select it. for

your board. The software examples are written for base = 300H.

SERIAL PORT3F8-3FFEGA2B0-2BF FLOPPY DISK3F0-3F7PARALLEL PRINTER270-27F SERIAL PORT3E8-3EFALT BUS MOUSE23C-23F CGA3D0-3DFBUS MOUSE238-23B EGA3C0-3CFEXPANSION UNIT (XT)210-21F PARALLEL PRINTER3BC-3BFGAME CONTROL200-20F MDA3B0-3BBHARD DISK (AT)1F0-1FF SDLC3A0-3AF80287 NUMERIC CO-P (AT)0F0-0FF SDLC380-38F8237 #2 (AT)0C0-0DF PARALLEL PRINTER378-37FNMI MASK (XT)0A0-0AF HARD DISK (XT)320-32F8259 PIC #2 (AT)0A0-0A1 PROTOTTYPE CARD310-31FDMA PAGE REGISTERS080-08F PROTOTYPE CARD300-30F

CMOS RAM & NMI MASK (AT)

070-071 SERIAL PORT2F8-2FF8742 CONTROLLER (AT)060-064 SERIAL PORT2E8-2EF8255 PPI (XT)060-063 GPIB (AT)2E0-2E78253 TIMER040-043 EGA2D0-2DF8259 PIC #1020-021 EGA2C0-2CF8237 DMA #1000-00F

FUNCTIONHEX

RANGE

FUNCTIONHEX

RANGE

TABLE OF I/O ADDRESS

3.3 WAIT STATE

There is a wait state jumper on CIO-RELAY series boards. The factory default is

wait state disabled. You will probably never need the wait state because PC expan-

sion slot busses are limited to 8 or 10 MHz.

If you were to get intermittent operation from your CIO-RELAY board, you may try

enabling the wait state to see if that solves the problem.

CIO-RELAY24 and CIO-RELAY32 Connector

This connector is the center of the board. The connector for relays 0 through 15

is the connector that is closest to the computer back-plate. PINS corresponding

to relays 24 through 31 are not connected on the RELAY24 version.

The form A relays used on the /M versions

have NO and COM connections only!

WARNING!

High voltages will be present on the CIO-RELAY boards when you

have connected high voltage inputs or outputs to the CIO-RELAY

connector. Use extreme caution! Never handle the CIO-RELAY

when signals are connected to the board.! DO NOT REMOVE

THE PROTECTIVE PLATES FROM THE CIO-RELAY.

GND 50

31 NO 48

31 NC 46

30 COM 44

29 NO 42

29 NC 40

28 COM 38

27 NO 36

27 NC 34

26 COM 32

25 NO 30

25 NC 28

24 COM 26

23 NO 24

23 NC 22

22 COM 20

21 NO 18

21 NC 16

20 COM 14

19 NO 12

19 NC 10

18 COM 8

17 NO 6

17 NC 4

16 COM 2

49 +5V

47 31 COM

45 30 NO

43 30 NC

41 29 COM

39 28 NO

37 28 NC

35 27 COM

33 26 NO

31 26 NC

29 25 COM

27 24 NO

25 24 NC

23 23 COM

21 22 NO

19 22 NC

17 21 COM

15 20 NO

13 20 NC

11 19 COM

9 18 NO

7 18 NC

5 17 COM

3 16 NO

1 16 NC

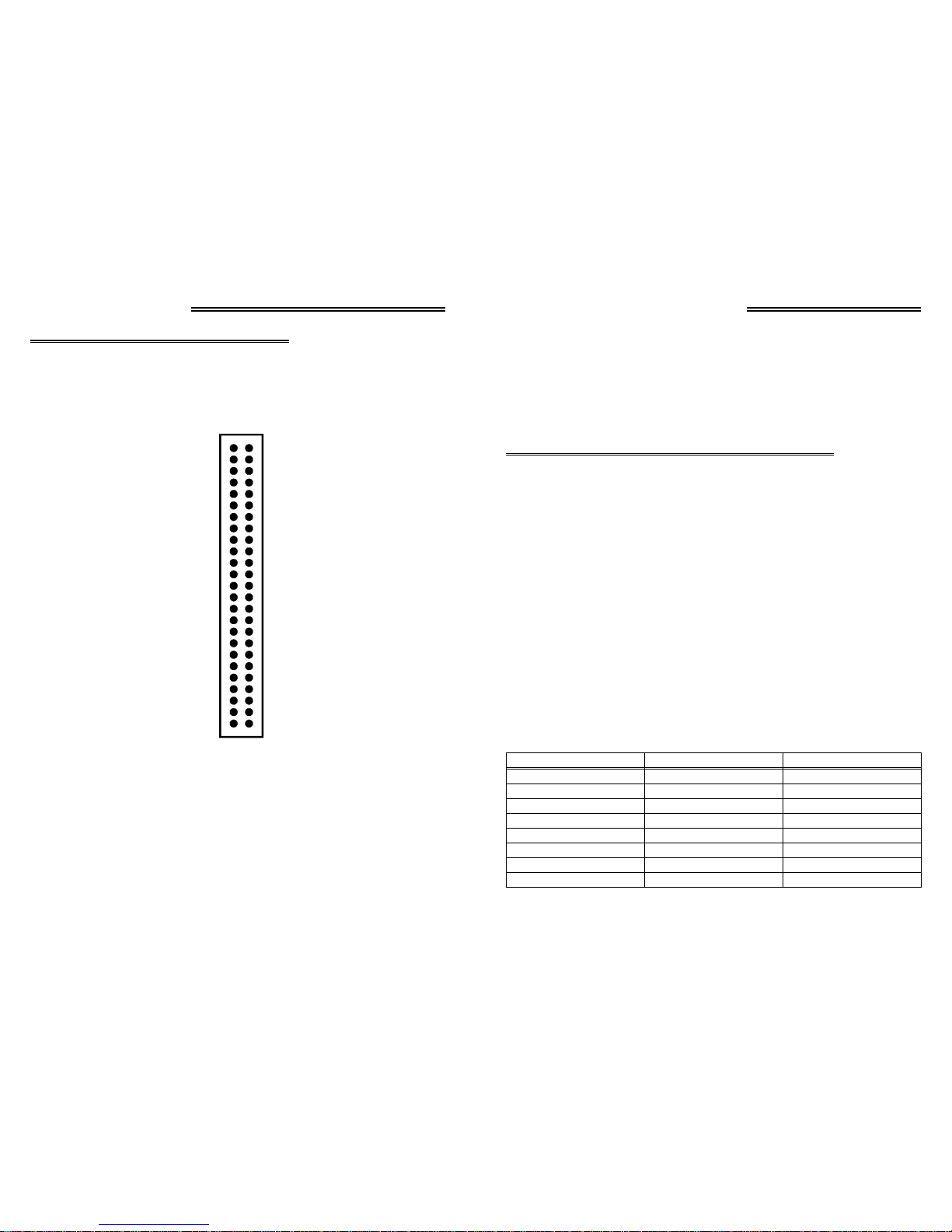

5 CONNECTING TO RELAYS

5.1 I/O CONNECTOR DIAGRAMS

The CIO-RELAY08 and CIO-RELAY16 boards use a single 50 pin connector for sig-

nal interfacing. The CIO-RELAY24 and CIO-RELAY32 use two 50 pin connectors.

The pin-outs of the connector are shown here.

CIO-RELAY08 and CIO-RELAY16 Connector

PINS corresponding to relays 8 through 15 are not

connected on the RELAY08 version. The form A relays used

on the /M versions have NO and COM connections only!

WARNING!

High voltages will be present on the CIO-RELAY boards when you

have connected high voltage inputs or outputs to the CIO-RELAY

connector. Use extreme caution! Never handle the CIO-RELAY

when signals are connected to the board.! DO NOT REMOVE

THE PROTECTIVE PLATES FROM THE CIO-RELAY.

GND 50

15 NO 48

15 NC 46

14 COM 44

13 NO 42

13 NC 40

12 COM 38

11 NO 36

11 NC 34

10 COM 32

9 NO 30

9 NC 28

8 COM 26

7 NO 24

7 NC 22

6 COM 20

5 NO 18

5 NC 16

4 COM 14

3 NO 12

3 NC 10

2 COM 8

1 NO 6

1 NC 4

0 COM 2

49 +5V

47 15 COM

45 14 NO

43 14 NC

41 13 COM

39 12 NO

37 12 NC

35 11 COM

33 10 NO

31 10 NC

29 9 COM

27 8 NO

25 8 NC

23 7 COM

21 6 NO

19 6 NC

17 5 COM

15 4 NO

13 4 NC

11 3 COM

9 2 NO

7 2 NC

5 1 COM

3 0 NO

1 0 NC

4 PROGRAMMING

The CIO-RELAY boards are easy to program. Eight bit registers located at the base

address and the base address plus an offset are written to control relays or can be read

to determine the state of relays.

In addition to direct I/O programming, the boards are fully supported by the powerful

Universal Library program as well as most third party application programs.

4.1 DIRECT I/O REGISTER PROGRAMMING

The CIO-RELAY family uses between one and four I/O addresses. Each address con-

trols 8 relays and the relays are controlled by writing to these registers. The base

address maps of the CIO-RELAY boards are shown below.

BASE ADDRESS Relay 0-7 Read/Write

BASE + 1 Relay 8-15 Read/Write (RELAY16, 24, 32)

BASE + 2 Relay 16-23 Read/Write (RELAY24, 32)

BASE + 3 Relay 24-31 Read/Write (RELAY32 only)

The registers are written to and read from as a single 8 bit byte. Each bit controls an

output (write) or represents the state of a relay (read).

All registers are read left to right. The leftmost bit being the most significant bit. Fol-

lowing this format bit 7 of BASE+0 corresponds to relay 7 and bit 0 to relay 0.

To construct a control word, use the following table:

801287406462032510164883 442 221 110 HEX VALUEDECIMAL VALUEBIT POSITION

For example, to assemble the control byte that will turn on relays 0. 1. 3. 5 and 7 we

can see from the chart below we need to write decimal 171 (hex AB):

171AB 111111OP0 212212OP1 004004OP2 818818OP3 00160010OP4 3213220120OP5 00640040OP6 128112880180OP7 WEIGHTON=1DECIMALWEIGHTON = 1HEXRELAY

4.2 PROGRAMMING NOTES

WRITE = CONTROL: Write a byte to the register to control the relays. A one in the

relay bit position turns the relay on.

READ = STATUS: Read the status of the relay control register. A one in the relay

bit position indicates the relay is on.

ON & OFF for FORM C RELAYS:

On means that FORM C relay common is in contact with the Normally Open contact.

Off means that FORM C relay common is in contact with the normally closed contact.

4.3 DETAILED RELAY CONTROL I/O MAP

The following section provides a detailed description of the register map and relay

control registers.

Base Address +0 (applicable to all CIO-RELAY series boards).

RELAY OP7 OP6 OP5 OP4 OP3 OP2 OP1 OP0

BIT No. 76543210

HEX Value 804020108421

DECIMAL 1286432168421

Base Address +1 (RELAY16, 24 and 32 only)

RELAY OP15 OP14OP13 OP12OP11 OP10 OP9 OP8

BIT No. 76543210

HEX Value 804020108421

DECIMAL 1286432168421

Base Address +2 (RELAY24 and 32 only)

RELAY OP23 OP22 OP21 OP20 OP19OP18OP17 OP16

BIT No. 76543210

HEX Value 804020108421

DECIMAL 1286432168421

Base Address +1 (RELAY32 only)

RELAY OP31 OP30 OP29 OP28 OP27 OP26 OP25 OP24

BIT No. 76543210

HEX Value 804020108421

DECIMAL 1286432168421

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Omega Engineering

Omega Engineering

Omega Engineering OMG-PCI-DIO48 Manual de usuario

Omega Engineering

Omega Engineering USB-4761 Manual de usuario

Omega Engineering

Omega Engineering OME-DB-889D Manual de usuario

Omega Engineering

Omega Engineering OMG-COMM232-PCI Manual de usuario

Omega Engineering

Omega Engineering OME-A8111 Manual de usuario

Omega Engineering

Omega Engineering IOP-241 Manual de usuario

Omega Engineering

Omega Engineering BNC-08DI, BNC-16DI, BNC-16SE Manual de usuario

Omega Engineering

Omega Engineering OMG-P232 Manual de usuario

Omega Engineering

Omega Engineering OMG-USB-DIO48 Manual de usuario

Omega Engineering

Omega Engineering OMG-COMM2-EX Manual de usuario

Omega Engineering

Omega Engineering OME-A826PG Instrucciones de montaje

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
