Panini Grill
Model PG-CN-0711-FT
Item 42913
Instruction Manual
2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
--------------------------------------------------------------------------------------- 6 - 7
--------------------------------------------------------------------------------------------- 7
----------------------------------------------------------------------------------------- 8
----------------------------------------------------------------------------- 9 - 10
---------------------------------------------------------------------------- 11
------------------------------------------------------------------------------------------- 12 - 14
---------------------------------------------------------------------------- 15
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model PG-CN-0711-FT
3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
4
General Information
Safety and Warranty
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
SAFETY
Please take notice that the unit will still be too hot to handle immediately after use.
The contact grill has a thermal cut-o safety device to avoid over heating.
If the power cord is damaged, it must be replaced by qualied technician.
5
Safety and Warranty
SAVE THIS INSTRUCTIONS
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop o to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without diculty.
In any case, for suitable recycling, we suggest disposing of the products separately (dierentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
6
Technical Specications
Installation
Take out the contact grill from the packaging and locate the unit on a rm level surface.
When this appliance is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative
nished, etc., it is recommended that they be made of non-combustible material, if not, they shall be clad with
a suitable non-combustible heat-insulating material, and that the closet attention be paid to re prevention
regulations.
PROGRAMMABLE TIMER INSTRUCTIONS
Note: Be sure the unit is unplugged and cool prior to installing or removing the programmable timer.
1. Installing the batteries - 2pcs AAA 1.5V battery.
Place your ngers on the two tabs on the sides of the timer and rmly depress and pulling towards you,
the timer is released from the unit, then open battery box cover, install batteries in, then slide battery cover
back into the position. Check timer to ensure power is supplied by pressing “-”. Insert timer into the port
until side tabs lock into place.
2. Programming the timer.
Note: The timer will not automatically shut o your unit. Once your programmed time has lapsed,
the unit will beep 5 times and the screen will go blank.
PROGRAM MANUALLY
To manually program the timer, hold both “-” and “+” at the same time for four seconds. The timer will beep
twice. After the second beep, use the “-” and “+” to scroll to your desired time setting up to 19:59. For fast
scroll, hold the button down until you have reached your desired time setting. The timer will automatically
Model PG-CN-0711-FT
Grill Surface 10” x 18” / 254 x 457mm
Thermostat Control 60 - 300°C / 140 - 572°F
Power 3200W
Electrical 220V / 60Hz / 1
Top Grill Smooth
Bottom Grill Smooth
Dimensions 19” x 15.4” x 10” / 483 x 391 x 254mm
Packaging Dimensions 20” x 23” x 14” / 508 x 584 x 356mm
Weight 70 lbs. / 31.8 kgs.
Packaging Weight 72.6 lbs. / 32.9 kgs.
Item Number 42913
7
Installation
Operation
program the setting after ve seconds. Now that you have programmed your time, you may press the “-” button
any time to start the timer. Once programmed, the timer will always default to the time setting until otherwise
changed.
PROGRAM USING COUNT-UP MODE
Your programmable timer allows you to program your time using count-up mode. This is convenient for when
you need to rst measure the time required to grill your sandwich before programming. Once you have started
grilling, press the “+” button to start the timer. When you have nished grilling, press both “-” and “+” to set the
time. Once programmed, the timer will always default to this time setting until otherwise changed.
Note: When batteries are removed, the timer automatically defaults to the factory setting of 10
seconds.
BEFORE FIRST USE
Initial Burn-O of Factory Sediments and Seasoning/Curing of Cast Iron Plates:
1. Place grill in a well-ventilated area under an exhaust hood.
2. Remove protective paper from grill surface.
3. Plug grill in, turn thermostat knob to maximum setting and switch the unit ON with top grill plate in closed
position. This will dry o any remaining moisture and will burn o all factory sediments from grill and on grill
surfaces. The unit will visibly smoke as it continues the burn-o.
4. When burn-o has completed (smoking has ceased), turn the unit OFF, open grill fully and allow to cool for
about an hour.
5. Clean grill surface with cleaning brush using cleaning liquid and hot water. Rinse and dry thoroughly.
6. When unit has cooled, apply a very thin, even layer of shortening, fat or lard to the surface of the top and
bottom grill plates.
NOTE: Liquid vegetable oil can also be used, but should rst dry to the surface before cleaning the
cast iron plate thoroughly is advised. Warm up the cast iron plate for 10 minutes until all smoke
and/or odor has dissipated. Switch o and unplug the unit, then use warm, soapy water to clean.
NEVER USE COLD WATER ON THE HOT PLATE.
Always preheat the grill before use until the ready light illuminates.
Lift the top grill plate, arrange food on the bottom plate and bring top plate back down to make contact with
food and begin cooking. If additional sandwiches are desired, lower the lid to preserve the heat while you
prepare the additional sandwiches. When not cooking, the thermostat is turned o, switch o the on/o switch,
unplug the unit.
8
Maintenance
Be sure to always wash the grill plates after each use to remove any residue that may have accumulated.
For cleaning cast iron plate, please use warm soapy water while still warm. Do not use cold water on hot plate.
After cleaning, be sure the oil tray must be dry thoroughly before putting them back to the unit.
Do not immerse completely in water or any liquid to clean.
The appliance is not to be cleaned with a water jet.
HELP
If the contact grill does not work, please check the following:
1. The power supply is correct and switched on.
2. The positions of switch and thermostat are correct.
9

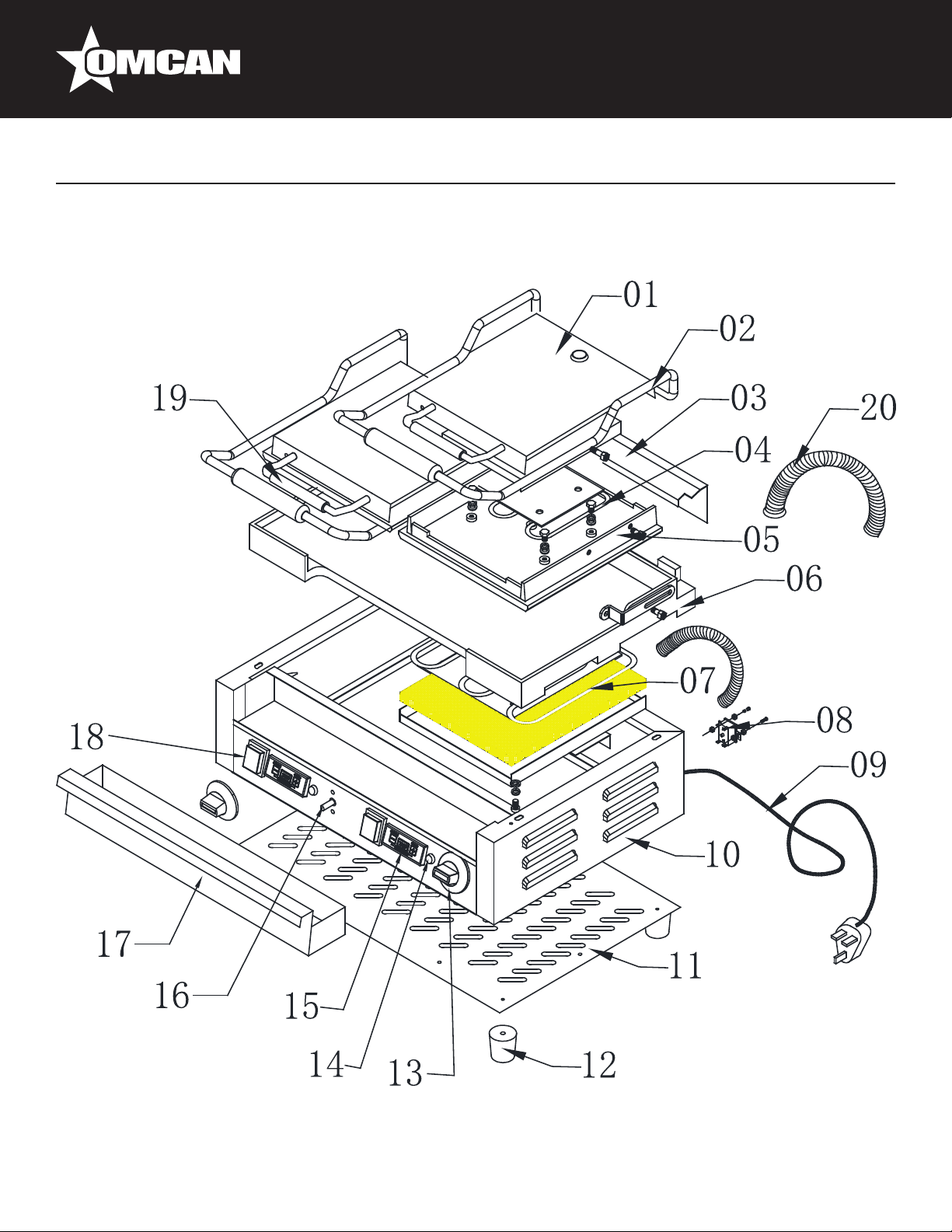

Parts Breakdown
Model PG-CN-0711-FT 42913
10
Parts Breakdown
Model PG-CN-0711-FT 42913
Item No. Description Position Item No. Description Position Item No. Description Position
AJ451 Lid for 42913 01 AJ458 Thermo Cut Out for 42913 08 AJ465 Timer for 42913 15
AJ452 Big Handle for 42913 02 AJ459 Plug and Lead for 42913 09 AJ466 Thermostat for 42913 16
AJ453 Rear Cover for 42913 03 AJ460 Body for 42913 10 AJ467 Oil Tray for 42913 17
AJ454 Top Element for 42913 04 AJ461 Bottom for 42913 11 AJ468 On/Off Switch for 42913 18
AJ455 Top Cast Iron for 42913 05 AJ462 Foot for 42913 12 AJ469 Small Handle for 42913 19
AJ456 Bottom Cast Iron for 42913 06 AJ463 Dial for 42913 13 AJ470 Spring for 42913 20
AJ457 Bottom Element for 42913 07 AJ464 Indicator Light for 42913 14
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Parrilla de Omcan
Omcan
Omcan CE-IT-0127 Manual de usuario
Omcan
Omcan PG-CN-0515-R Manual de usuario
Omcan
Omcan PA10173 Manual de usuario
Omcan
Omcan PG-IT-0483-R Manual de usuario
Omcan
Omcan CE-CN-CBR15 Manual de usuario
Omcan
Omcan OGC-24 Manual de usuario
Omcan
Omcan CE-CN-0030-S LP Manual de usuario
Omcan
Omcan PG-CN-0711-RT Manual de usuario
Omcan
Omcan PG-CN-0515-F Manual de usuario
Omcan
Omcan PG-CN-0711-F Manual de usuario
