Olympus ORBEYE Manual

ORBEYE System Set-up

Press Tower Power Button On

Step 1

Step 4

Step 7

Step 2

Step 5

Step 8

Step 3

Step 6

Step 9

Place White Paper/Gauze Under

Head

Press Load User Preset

System Boots Up

Press and Hold White Balance for

2 Seconds

Select Case Type

Main Menu Screen Comes On

Beeps and Says Completed

Home Screen Appears

Monitor Set-Up

Turn On Monitor

Step 1

Step 4

Step 7

Step 2

Step 5

Step 8

Step 3

Step 6

Step 9

Use 2 Arrows to Select Flip

Rotation is On When (R) is

Upside Down

Press Control to Access Menu

Use Flip (OFF) for Main ORBEYE

Monitor

Connect Each Monitor Cable

White Dot Up

Press Custom 1

Use Flip (Rotation) for Assistant

Monitor

Set Up Room by Case Needs

Refer to Room Setup Guide

Head Controls

Trigger Brake Release Pull To

Move Release to Lock

Step 1

Step 4

Buttons 1, 2 and 3 can be programmed with different functions and saved by user proﬁle.

Step 2

Step 5

Step 3

Step 6

Button (1)

Brightness Up (+)

A – Up and Down Movement

Focuses ORBEYE

Button (2)

Brightness Down (-)

B – Up and Down Movement

Zooms ORBEYE

Depth of Field

(1 -5) Cycles Through

A–Focus B–Zoom

This sheet does not replace the IFU. Please refer to IFU for proper care and use

Olympus is a registered trademark of Olympus Corporation, Olympus America Inc., and/or their afﬁliates. I Medical devices listed may not be available for sale in all countries.

136 Turnpike Road, Southborough, MA 01772

For more information, contact your Olympus

sales representative, or call 800-773-4301.

www.medical.olympusamerica.com

Printed in USA OAIENT0719QRG31511

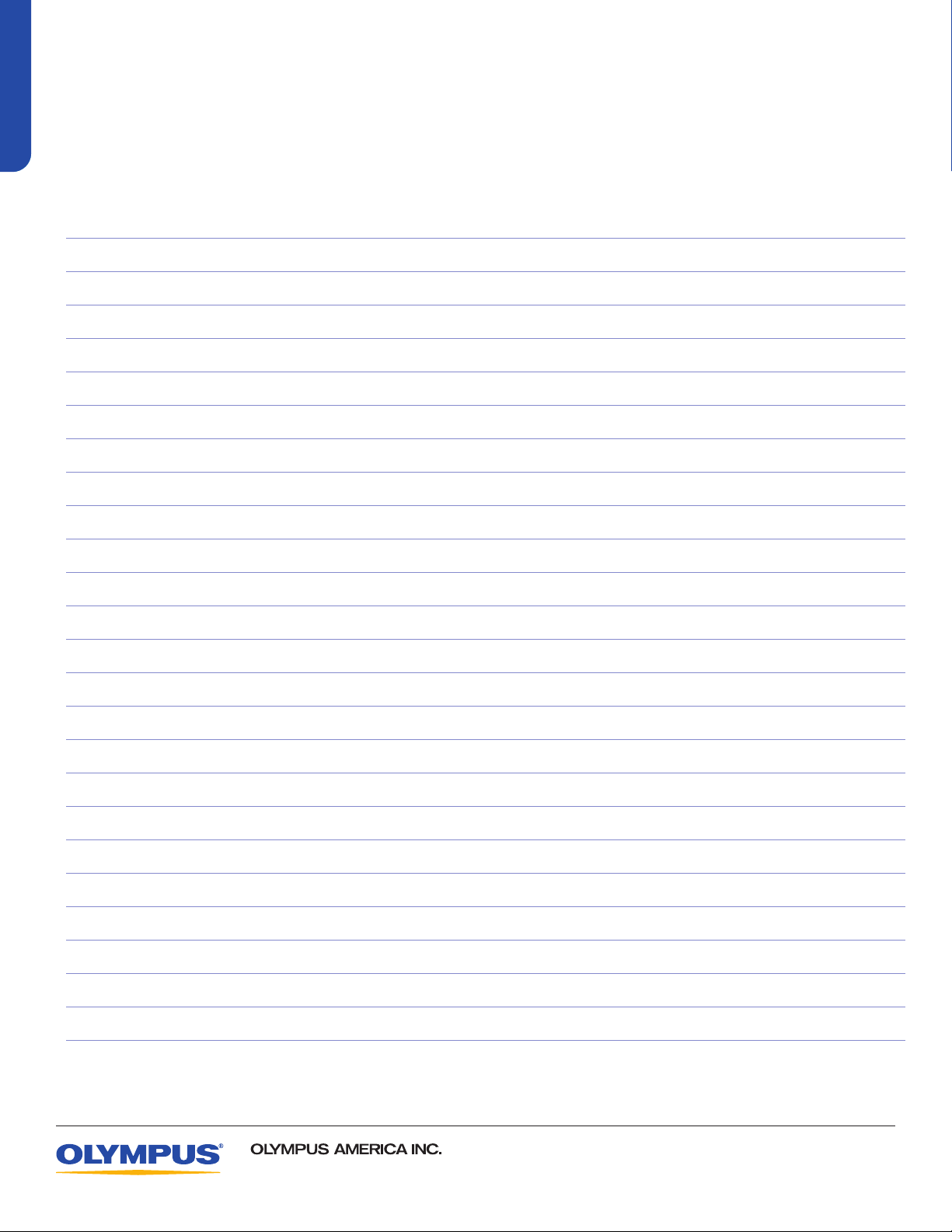

Notes
